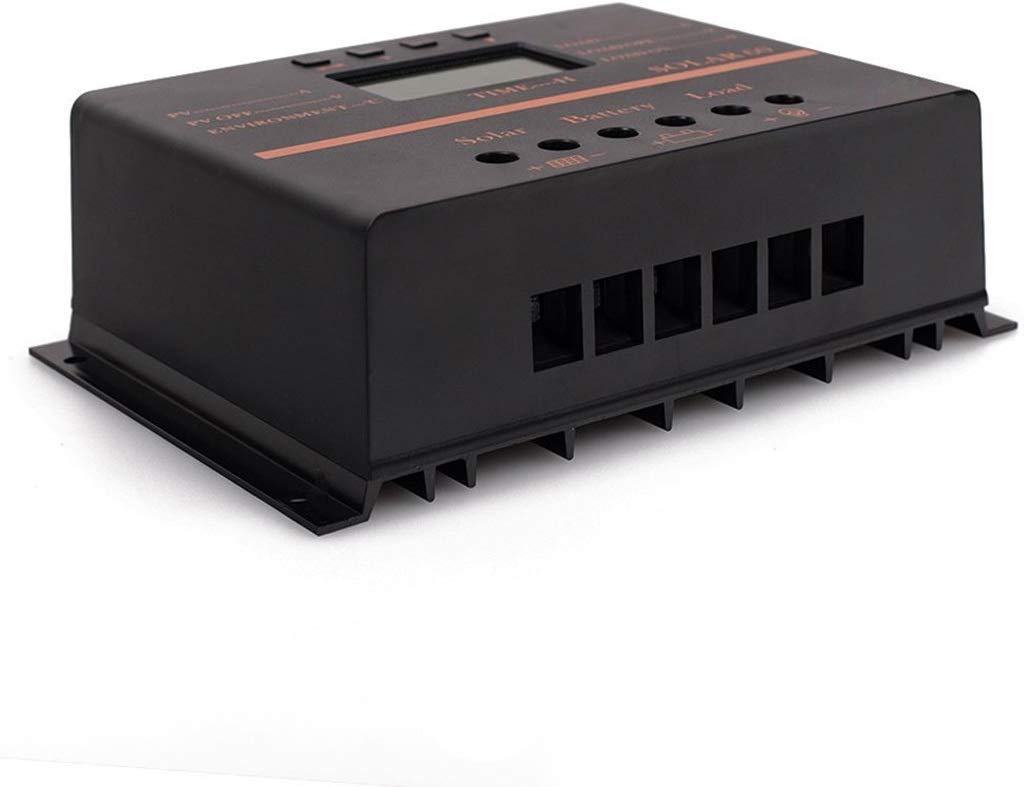

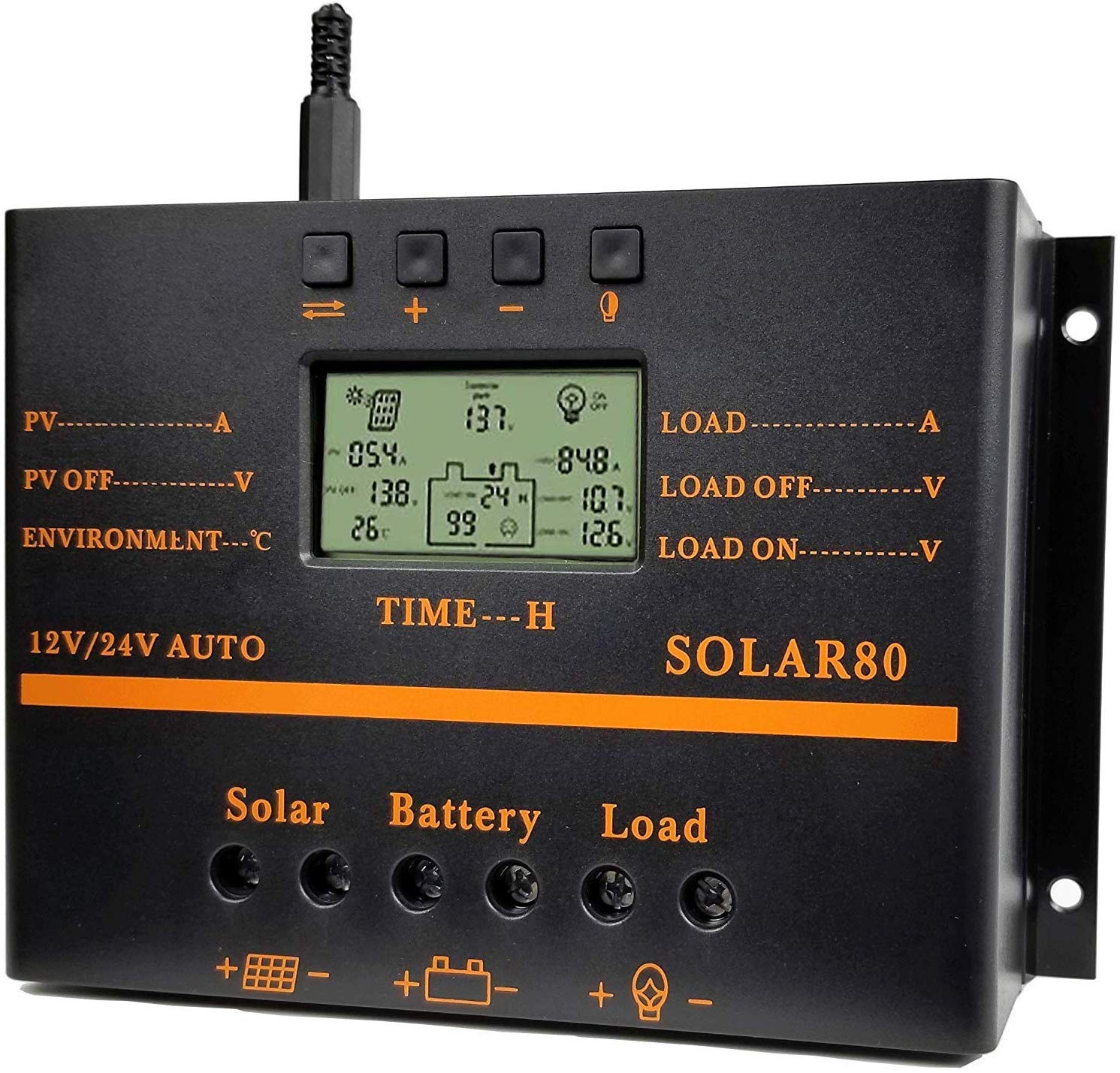

YKYWTRWL Solar Charge Controller 80A PWM 12V/24V 1920W with USB Output, Multi-Circuit Protection, ABS Housing, for Lighting System

Brand: YKYWTRWL

Color: Black

Features:

• High Charging Ability: Large Power 80 amp solar charge controller, 12V/24V Auto Identification, 5V USB output, Max PV Array input Voltage/Power (Battery Voltage): 24V/960W(12V), 48V/1920W(24V), Get Free Battery Monitor in the Package
• Intelligent High-complex Protection Technology: Short Circuit Protection, Overcharge Protection, Over-current Protection, Reverse Connection Protection
• ABS Material Shell Design: Anti-Fall & Durable Overall Design, Achieve the Longest Product Service Lifetime
• Enhanced Heat Sink: High-Quality aluminum alloy Heat Sink, Super Efficient Heat Dissipation, the thickest Part can Reach to 0.12 In. Simple Operation: 1, Simple & Easy Button Operation 2, Adjustable Charge-Discharge Parameter 4, Operation Mode of Load is Settable
• Our controller is backed by FULL MONEY BACK GUARANTEE! If for any reason you are not satisfied with this purchase, kindly contact us and our dedicated world class customer support team will offer a replacement or full refund without any cost from your side!

model number: B083KN9H22

Part Number: B083KN9H22

Details: This controller has an efficient charging system and can handle high power input reach to 1920W, this controller equipped with industrial-grade STM 8 microprocessor to control the charge and discharge process. It has perfect and liable battery charge and discharge period management. The charge circuit is characterized by high efficiency and low consumption by controlling the MOSFET of the ultra-low internal resistance with PWM. This controller has multiple load control modes and adaptable to different industries. the housing of this controller is made of superior quality ABS material that is extra durable.USB output port also equipped with this controller for electrical devices charging.
User Manual is available for Download
Product Specification:

Charge Control Mode: PWM
Rated Current : 80A
Rated voltage: 12V/24V Automatic Identification
Max input Power: 960W(12V), 1920W(24V)
Installation Cable Area: 3# AWG (25mm2)
Maximum Voltage of solar panel: 48V
Float Voltage: 13.8V/27.6V
Low Voltage Disconnection: 10.7V/21.4V
Low Voltage Re-connection: 12.5V/25V
No load loss: <30mA
loop voltage drop:<200mV
Temperature compensation: -4mV/Cell/°C
Operating Temperature: -10℃~60℃
Storage temperature: -30℃~70℃
Humidity Requirement: ≤90％
Dimension: 128 mm×188 mm×61mm
Mounting hole spacing: 98mm×178 mm --Φ5
Net Weight: 720g

Package List:

1 x 80A Solar Charging Controller
1 x Temperature Sensor
1 x User Manual

EAN: 8652516359107

Package Dimensions: 8.5 x 6.2 x 3.5 inches
