ToneShaper Guitar Wiring Kit, For Fender HSS Stratocaster, HSS2 (Auto-Split Wiring)

Brand: ToneShaper

Color: Black

Features:

• No Compromise Bridge Humbucker: Auto-splits in 2-position, to retain that legendary Strat quack
• No generic parts (450G pots, 400V/600V caps) - only our custom parts, RIGHT for your application
• Tonally-Optimized Volume Pot: 500k in 1-position (bridge hum), switches to 250k in positions 2-5
• Professional wiring diagram - the highest-quality documentation in the industry
• Separate the Fender / Gibson Tones: Dedicated 1-position tone control does not affect 2-5 positions

Binding: Electronics

model number: TS-WK-ST-HSS2

Part Number: TS-WK-ST-HSS2

Details: Challenge: combine single-coils + humbucker in Strat without compromising tone or hum-canceling; and optimize pot values.
Accomplish all three easily with our HSS Auto-Split kit, and customize the tone controls to boot:
Auto-split the humbucker in the 2-position - combining only one coil with the middle pickup. Retains hum-canceling (pickups permitting), and most-closely approximates Strat’s 2-position tone. Our narrow 5-way superswitch does this automatically.
Pot values? Don’t compromise. 500k volume pot lets the humbucker sound right, but adding a resistor in the other positions drops it to 250k so the other positions sound great.
And our narrow superswitch allows us to customize the tone controls! Different pot and cap values for each tone control optimizes them for their respective positions: Gibson values for the “Gibson” position (1), and Fender values for the “Fender” positions (2/3/4/5). (1) Capacitor, .022µF Orange Drop
(1) Capacitor, .047µF Orange Drop
(1) Jack, Switchcraft, 1/4" Mono
(1) Pot, CTS 250K Audio, Low Torque (.250" Bushing Length)
(2) Pot, CTS 500K Audio, Low Torque (.250" Bushing Length)
(1) Resistor, 470K
(1) Screw for Shielding Ground Lug
(1) Shielding Ground Lug
(1) Switch, 5-Way, Oak-Grigsby, 4-Pole Superswitch, Narrow
(1) Treble Bleed Kit for Single-Coils
(3') Wire, 22 AWG Cotton Push Back w/ Tinned Overcoat, Black
(3') Wire, 22 AWG Cotton Push Back w/ Tinned Overcoat, White
(3') Wire, 22 AWG Stranded Silver-Plated Copper, Black PTFE
(3') Wire, 22 AWG Stranded Silver-Plated Copper, White PTFE

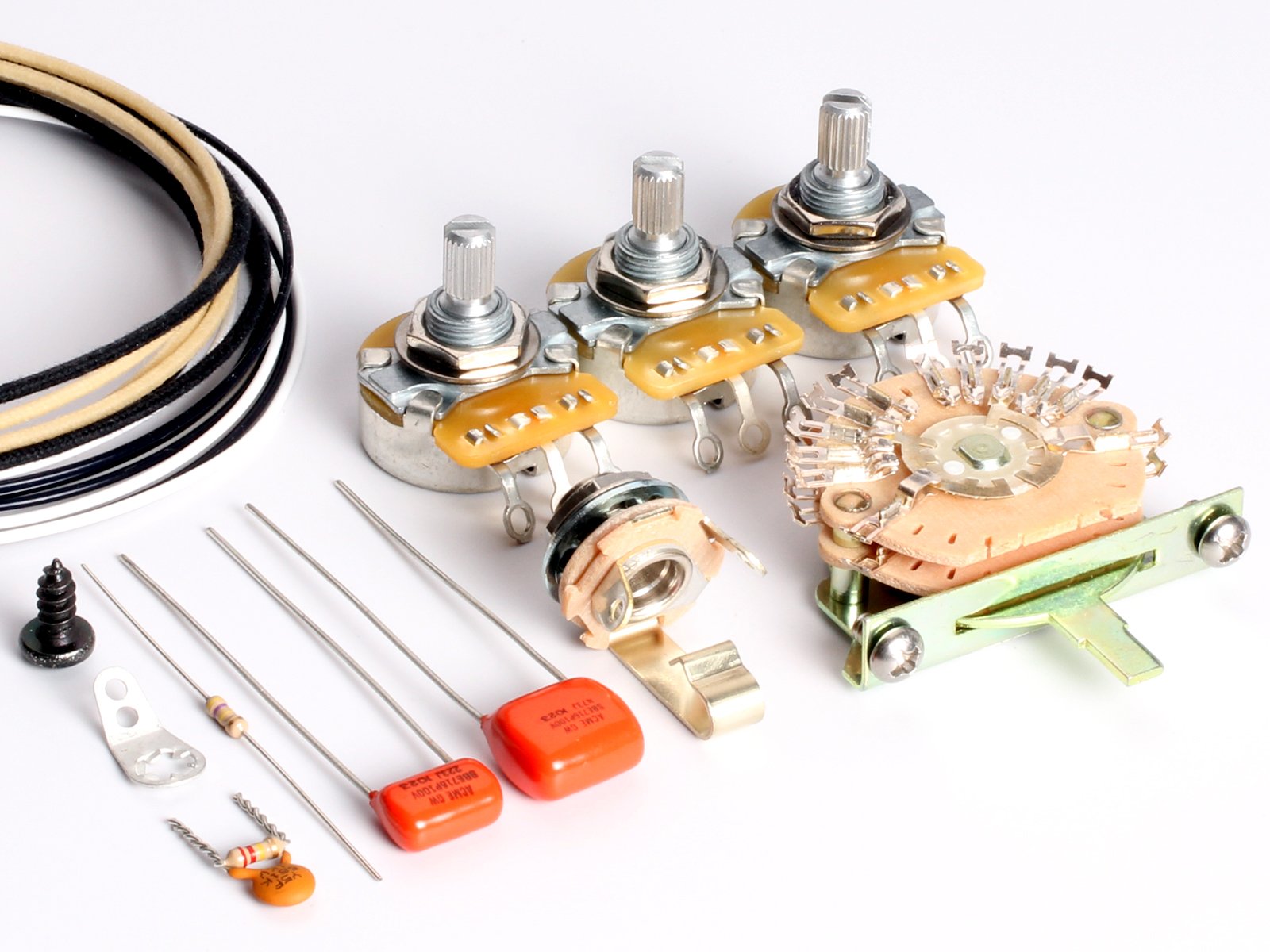

(1) Professional, Fully-Illustrated Wiring Diagram

EAN: 0852606002533

Package Dimensions: 10.6 x 6.0 x 1.2 inches
