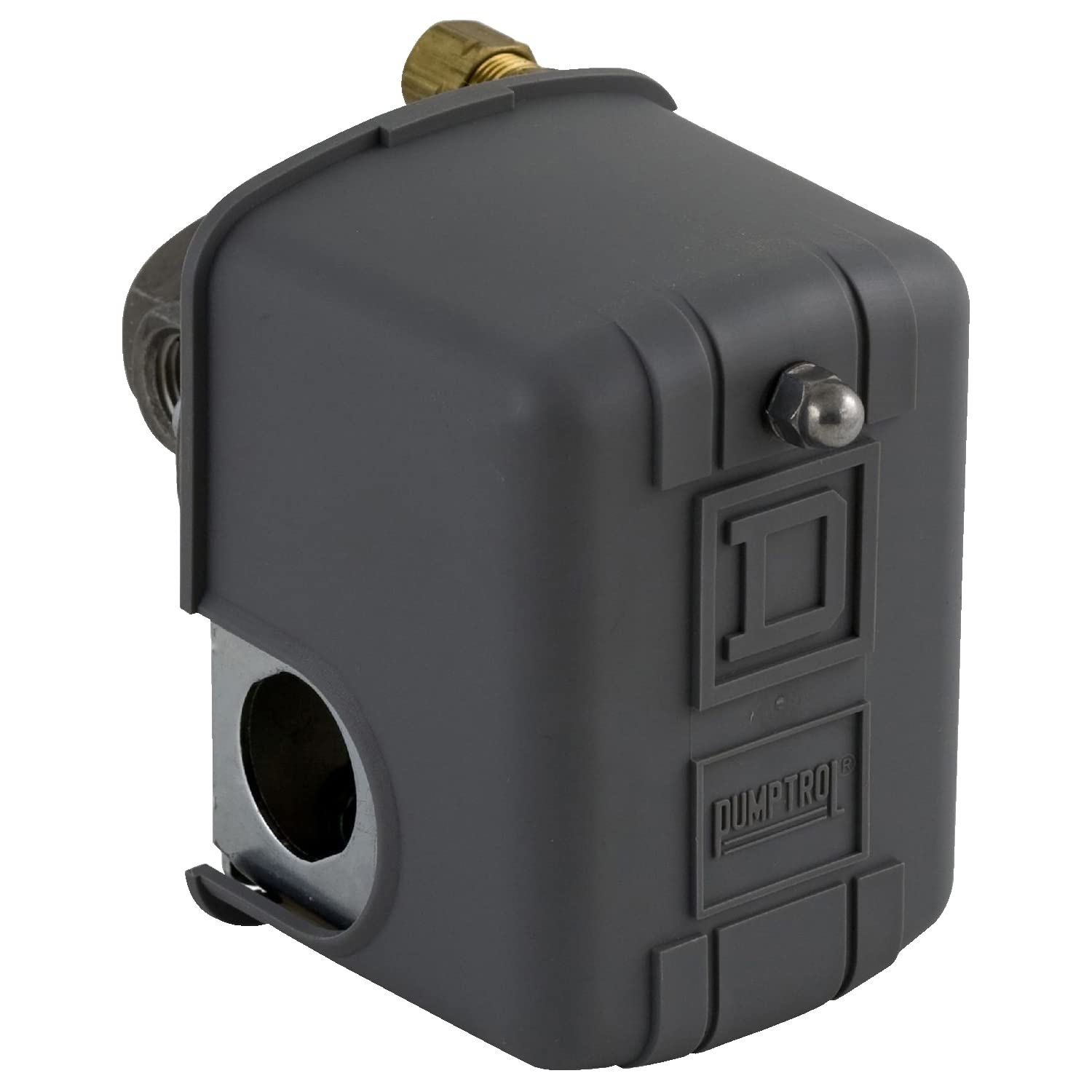

Telemecanique Sensors 9013FHG12J55X Air-Compressor Pressure Switch, 150 Psi Set Off, 30 Psi Fixed Differential, 1/4" Npsf Internal, 2-Way Release Valve

Brand: Schneider Electric

Color: Black

Features:

• Pressure Switch - Water or Air
• Pressure Switch used to control electrically driven motors
• Diaphragm Actuated
• Includes a 2-way pressure release valve

Binding: Tools & Hardware

model number: 9013FHG12J55X

Part Number: 9013FHG12J55X

Details: This Square D Pumptrol 9013FHG12J55X air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 150 psi. The switch has a 1/4" NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 hp or less. The non-adjustable differential is 30 psi, and the adjustable cut-out range is 70-150 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections, and two 2-pole NC contacts open on rising pressure. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratories (UL) Listed and Canadian Standards Organization (CSA) certified. This switch includes a 2-way pressure release valve. Square D Pumptrol pressure switches are manufactured by Schneider Electric.

EAN: 0785901522942

Package Dimensions: 4.2 x 4.1 x 3.0 inches
