Stanbroil Fire Pit Gas Burner Spark Ignition Kit – Including Push Button Igniter Gas Shut-Off Valve with Key

Brand: Stanbroil

Features:

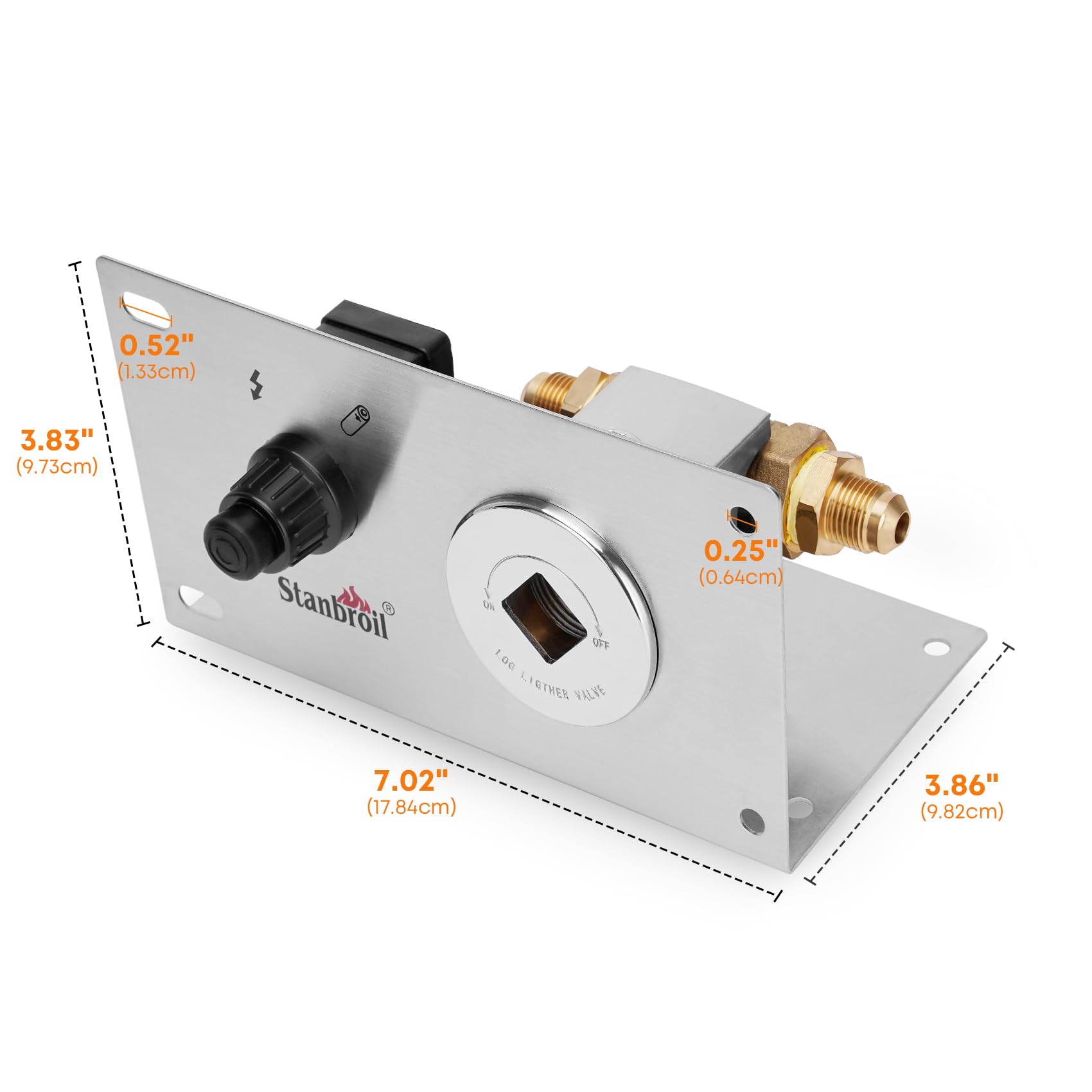

• Dimensions of the Face Plate: 7” L*3 13/16” H, Base Plate: 3 13/16” H*3 13/16” W

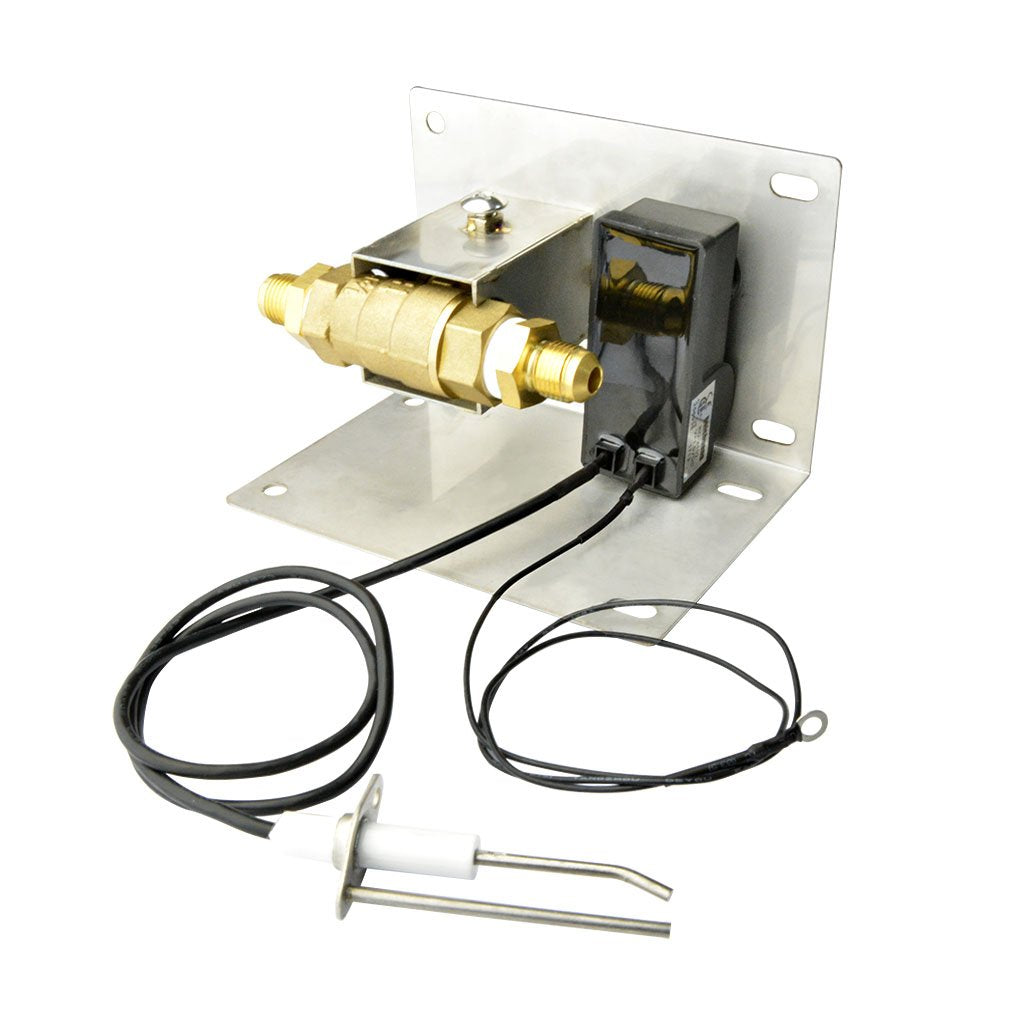

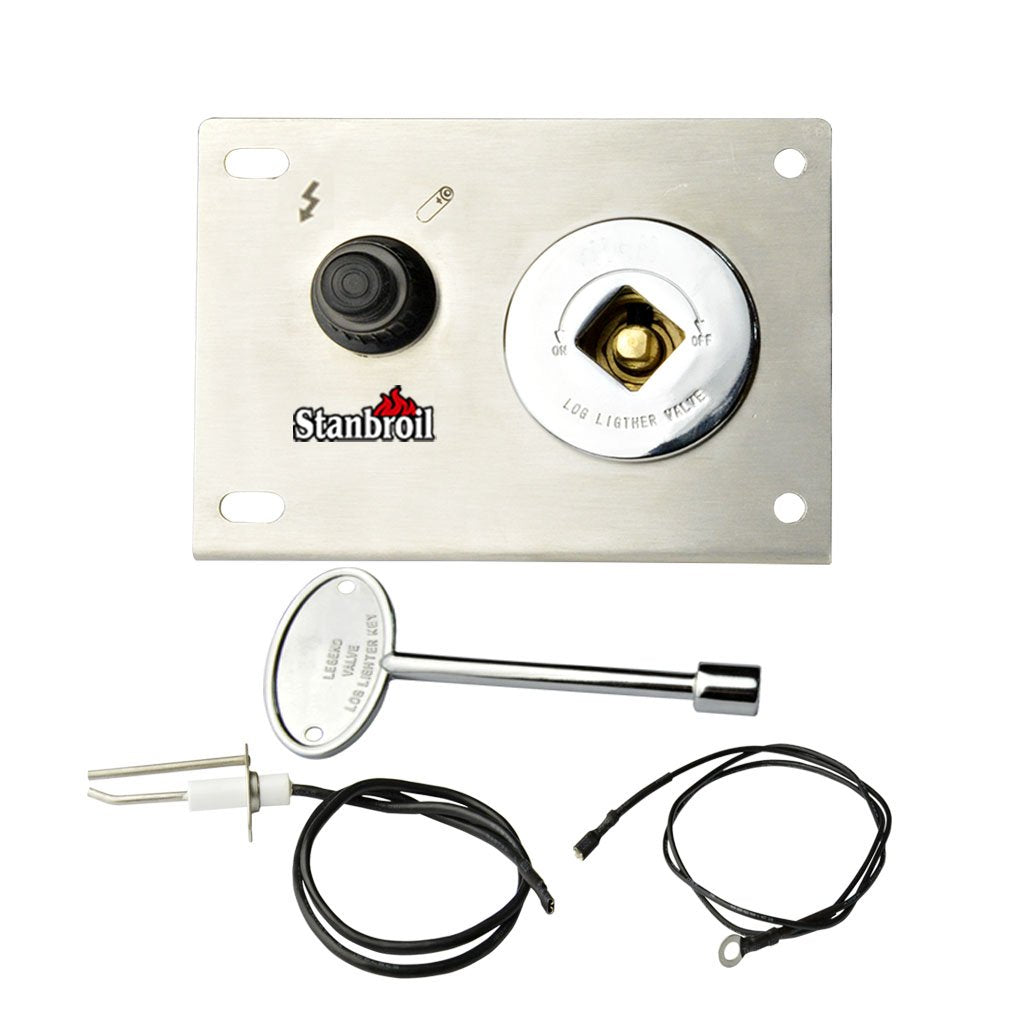

• Kit contains Chrome Ball Valve with 3” Chrome Key, Spark Ignitor with Leads &Ground Wire, Stainless Steel Mounting Plate
• Ball Valve: 1/2 Female NPT*1/2 Female NPT, we include Two 3/8" Male Flared x 1/2 NPT Fittings for Your Convenience
• Easy to install, Perfect for your DIY gas fire pit
• Requires a AAA battery (not included)

model number: AK007-SS

Part Number: AK007-SS

Details: Stanbroil Fire Pit Gas Burner Spark Ignition Kit will turn your manual ignition fire pit, fireplace, gas burner into an easy to start push button ignition. This battery operated igniter will cause a spark to ignite the gas when you depress the button, similar to your electronic ignition BBQ. The key to a good installation is the ground. You must screw igniter bracket solidly and directly to the burner pan. Keep the igniter area relatively clear of embers, rocks, fire glass ect. You can create a void around the igniter using a screen. This void will fill with gas and ignite much easier than an igniter covered in fire glass, ect. The stainless steel face plate will give you a professional mounting for both your push button as your chrome keyed shut off ball valve.

Tips for installation
Run both wires up through the pan from the bottom using any pre-existing hole. Mount the sparker close as possible to to one of the outer gas holes. The key to a good spark is a good ground so make sure that you sandwich one wire between the pan and the bracket. The other ends connect to the push button block. Insert the battery and push the button.

Package Dimensions: 7.4 x 5.4 x 4.3 inches
