Solar Disconnect Switch DC1500V 32Amp 4-Pole Isolator Solar Switch with Waterproof IP66 Enclosure for Rooftop Solar Systems

Brand: ZJWZJH

Color: Black 4-pole

Features:

• [Ui: DC1500V] The DC isolator solar switch is designed to quickly and safely disconnect DC power up to 32A 1500V when installing or maintaining PV systems. Compliant with IEC60947-1&3 standards, it is the first choice for repair, maintenance, inspection and installation. (rated working voltage 1200V, rated insulation voltage 1500V)

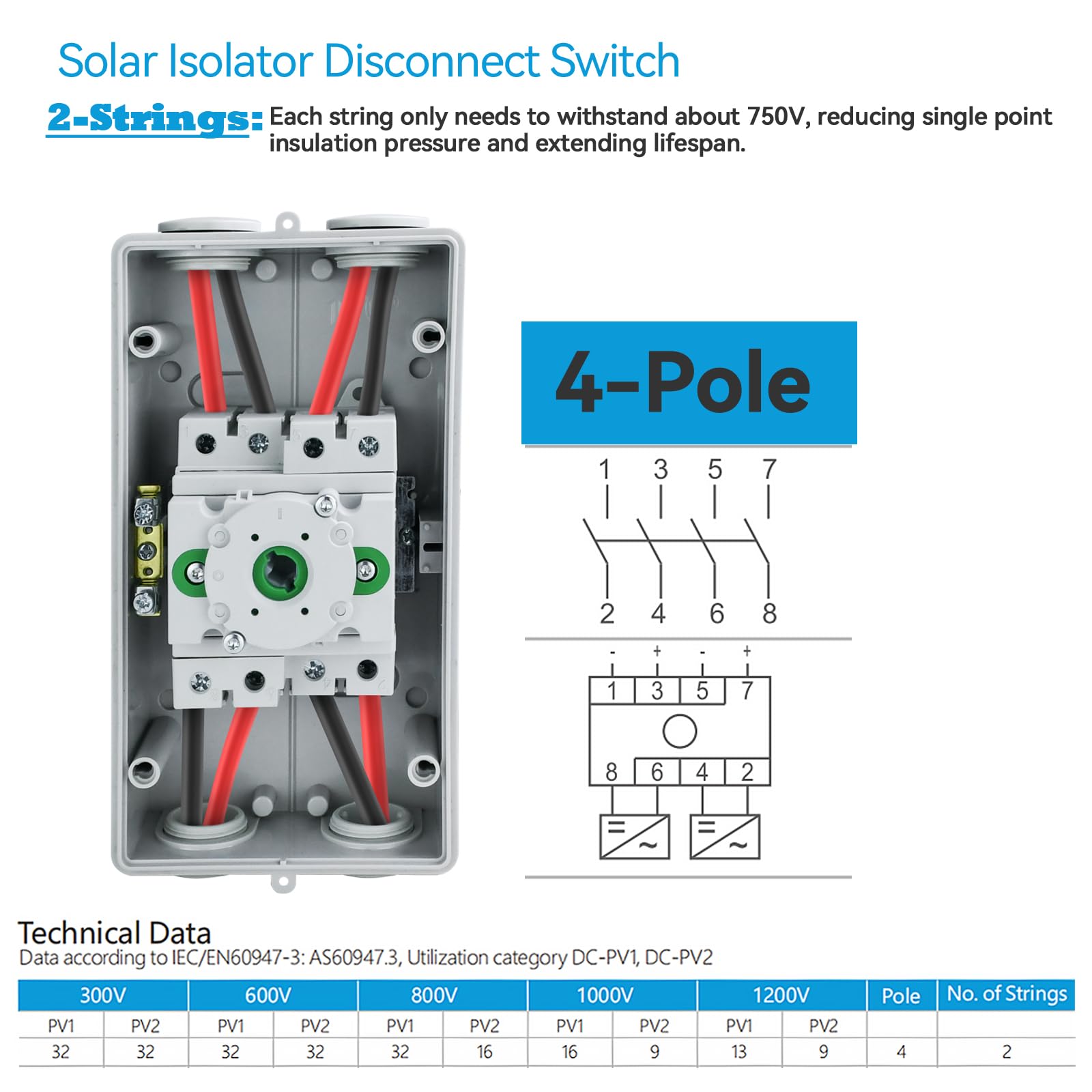

• [HIGH SECURITY] Black handle, 4-Pole. The PV switch disconnector has 4 separate circuits of 32 amps each, 64A max. for 2 circuits for high work safety. And the solar disconnect switch has a padlocked handle that locks in the closed position and is tamper-resistant.
• [Ease of Use] to work seamlessly with the MC4 connector with a stable, robust self-locking system. Installation is as simple as plugging in the cable, saving time and effort.

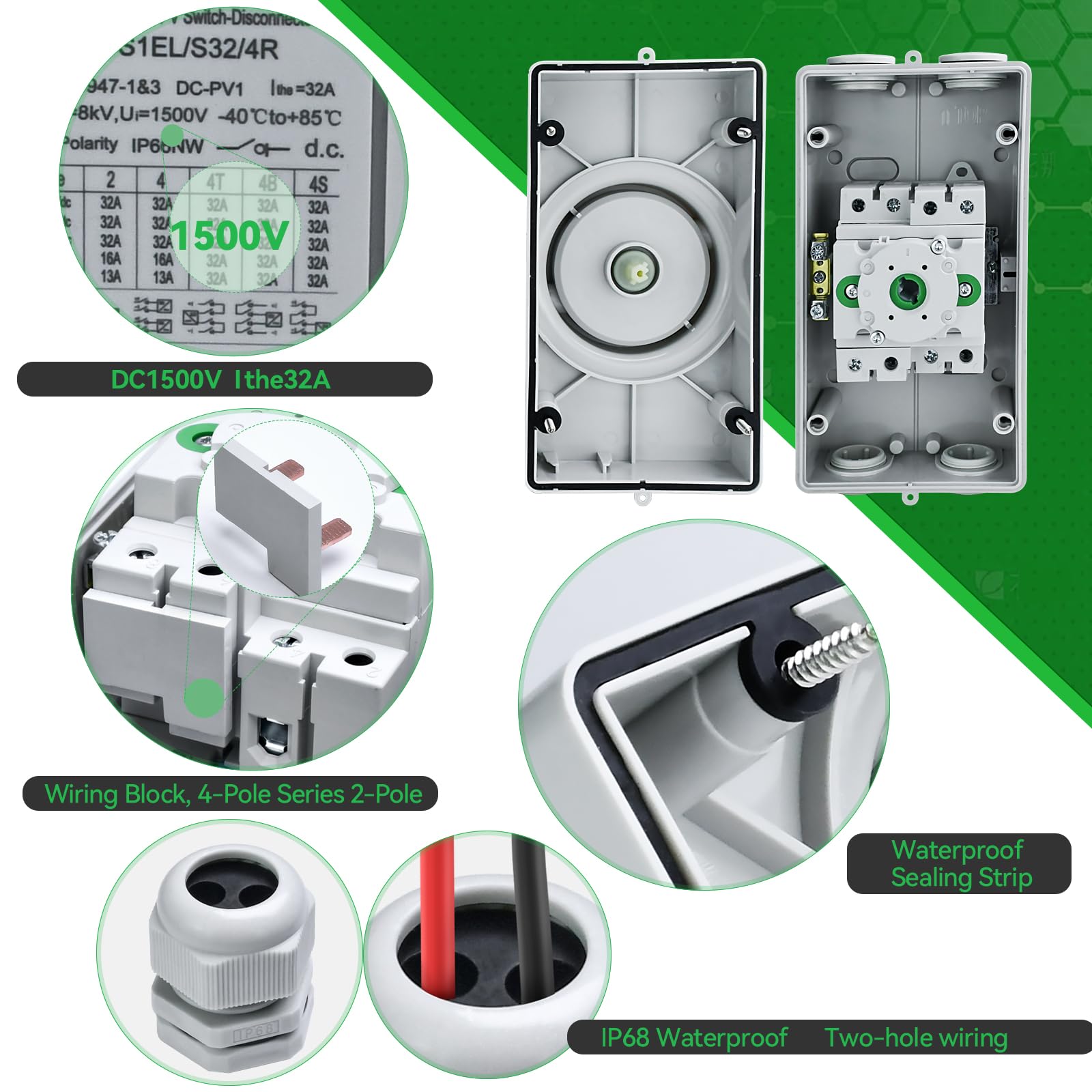

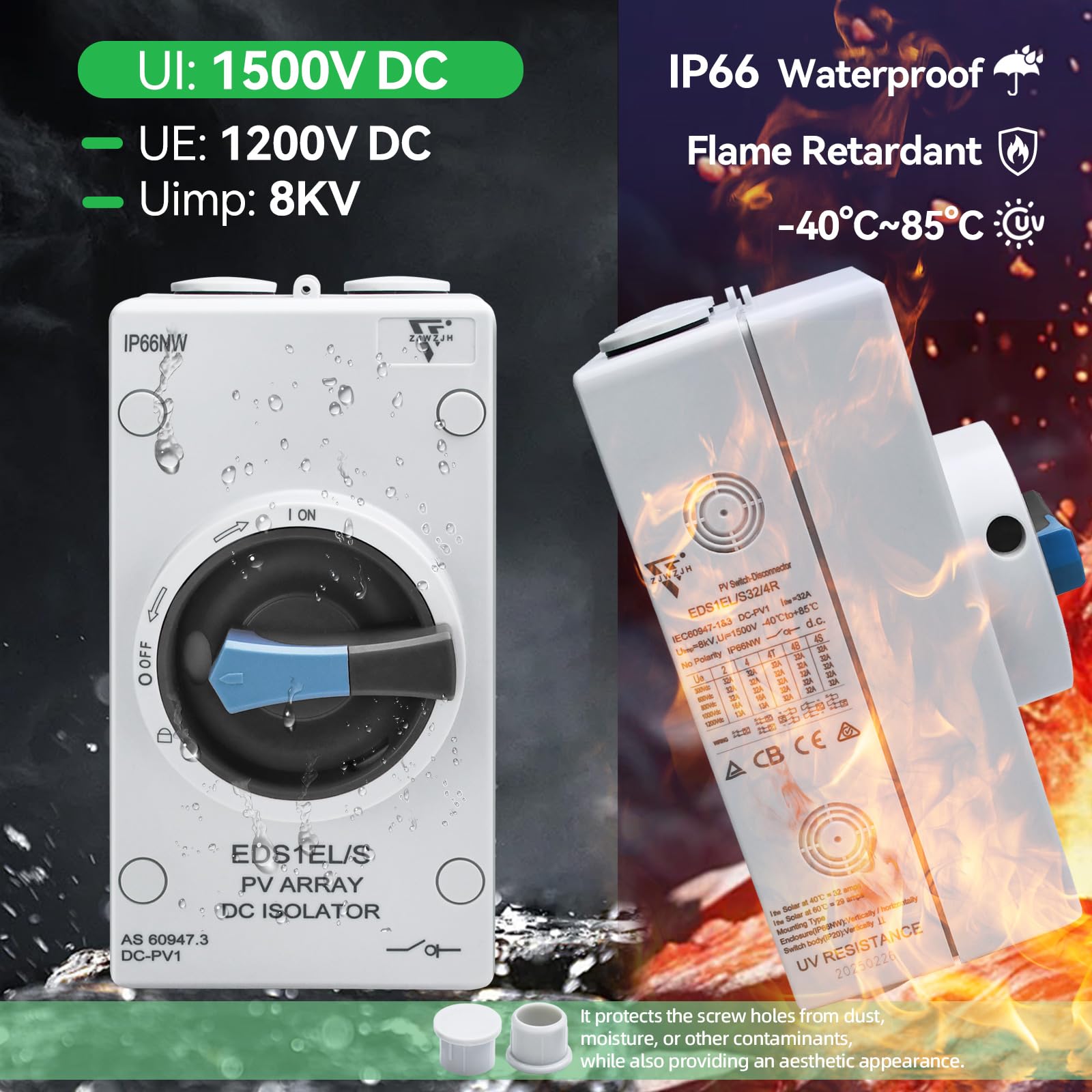

• [RELIABLE & DURABLE] ZJWZJH's solar pv isolator switches are made of high quality PC material, It has the advantages of UV-proof, flame retardant, water and dust prevention (IP66), Cold and heat protection (-40℉~+185℉), environmental aging and corrosion resistance, and long service life, perfect for outdoor and indoor installation.
• Whether it's solar panels, solar charge controllers, solar inverters or solar modules, you can integrate our DC disconnect switches to connect and control them all.

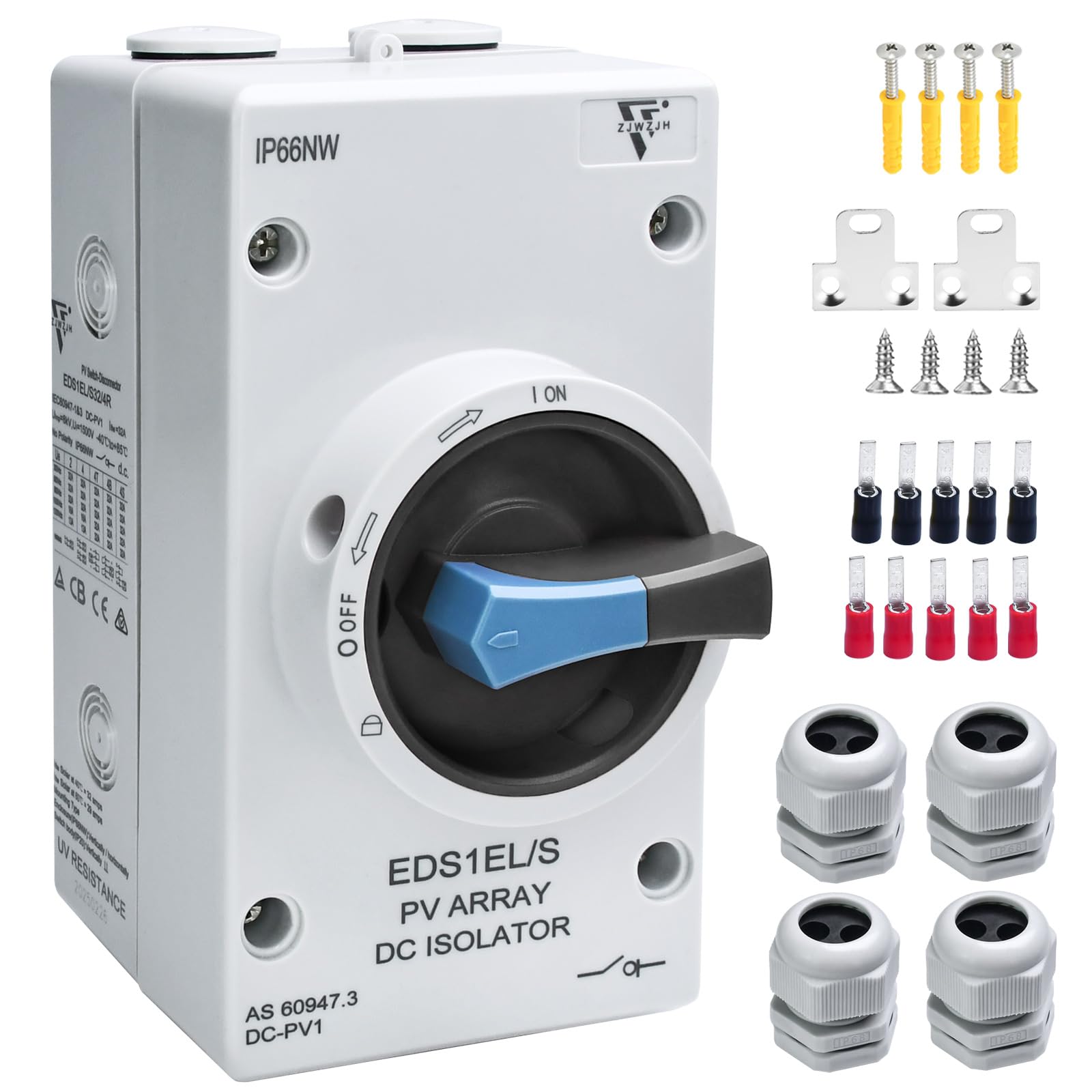

• [ Package ] 1 X Disconnector Switch; 4 X Screw; 2 sets of Wall Mounting Kit; 5 sets of connection terminals; 4 x Cable Connectors.

model number: EDS1-4R-K

Part Number: EDS1-4R-K

Details: The DC isolator solar switch is designed to quickly and safely disconnect DC power up to 32A 1500V when installing or maintaining PV systems. Compliant with IEC60947-1&3 standards, it is the first choice for repair, maintenance, inspection and installation. (rated working voltage 1200V, rated insulation voltage 1500V)

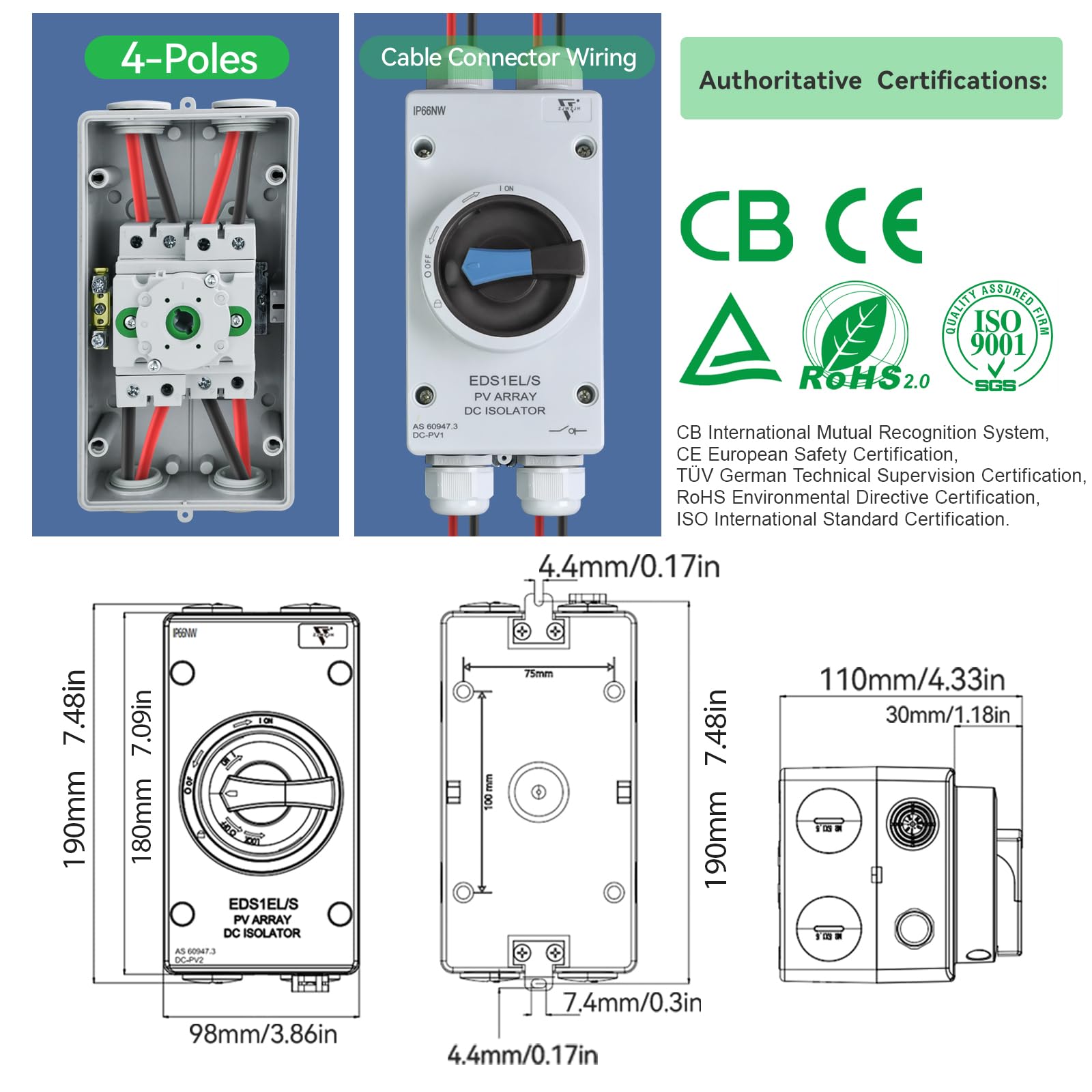

Package Dimensions: 10.7 x 5.2 x 4.5 inches
