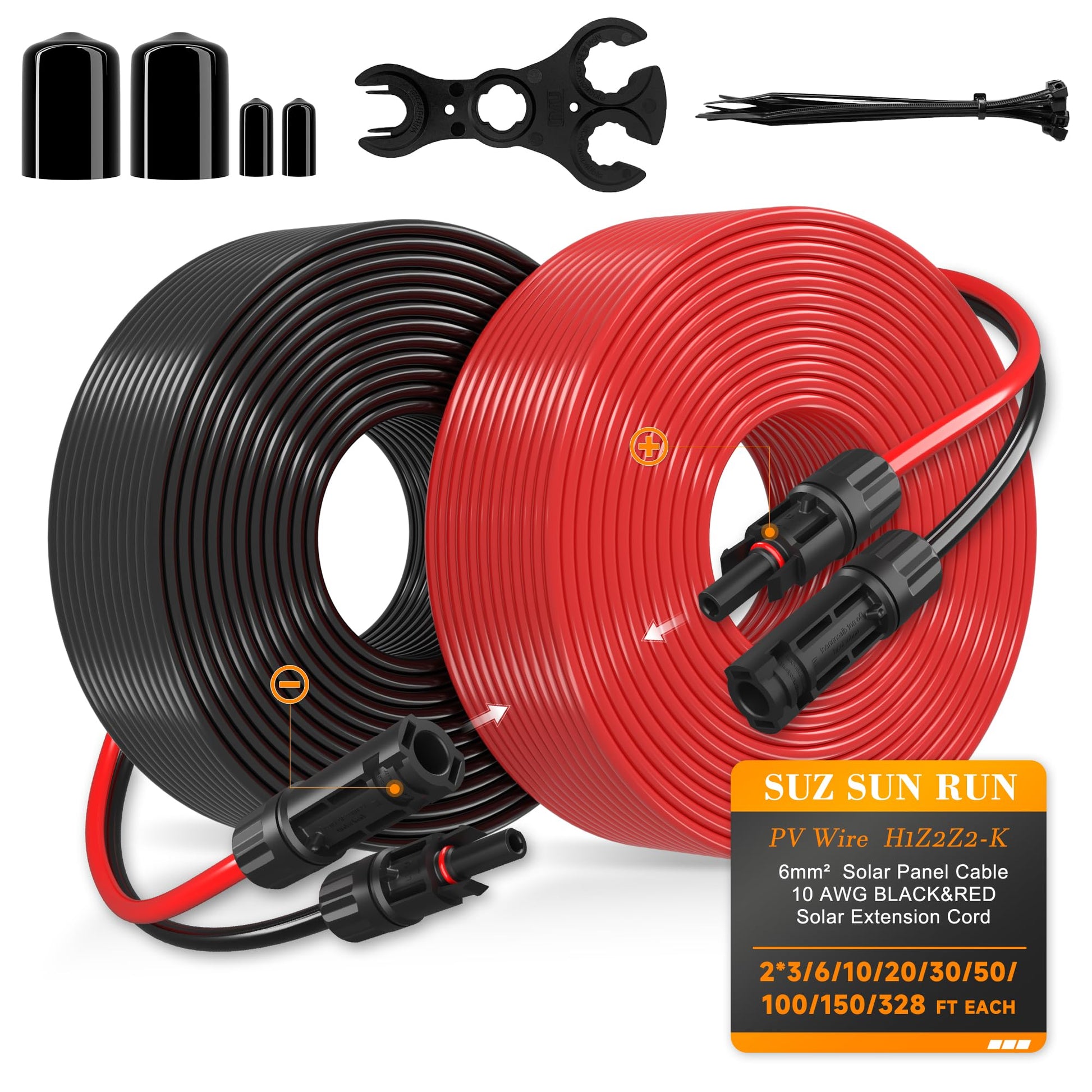

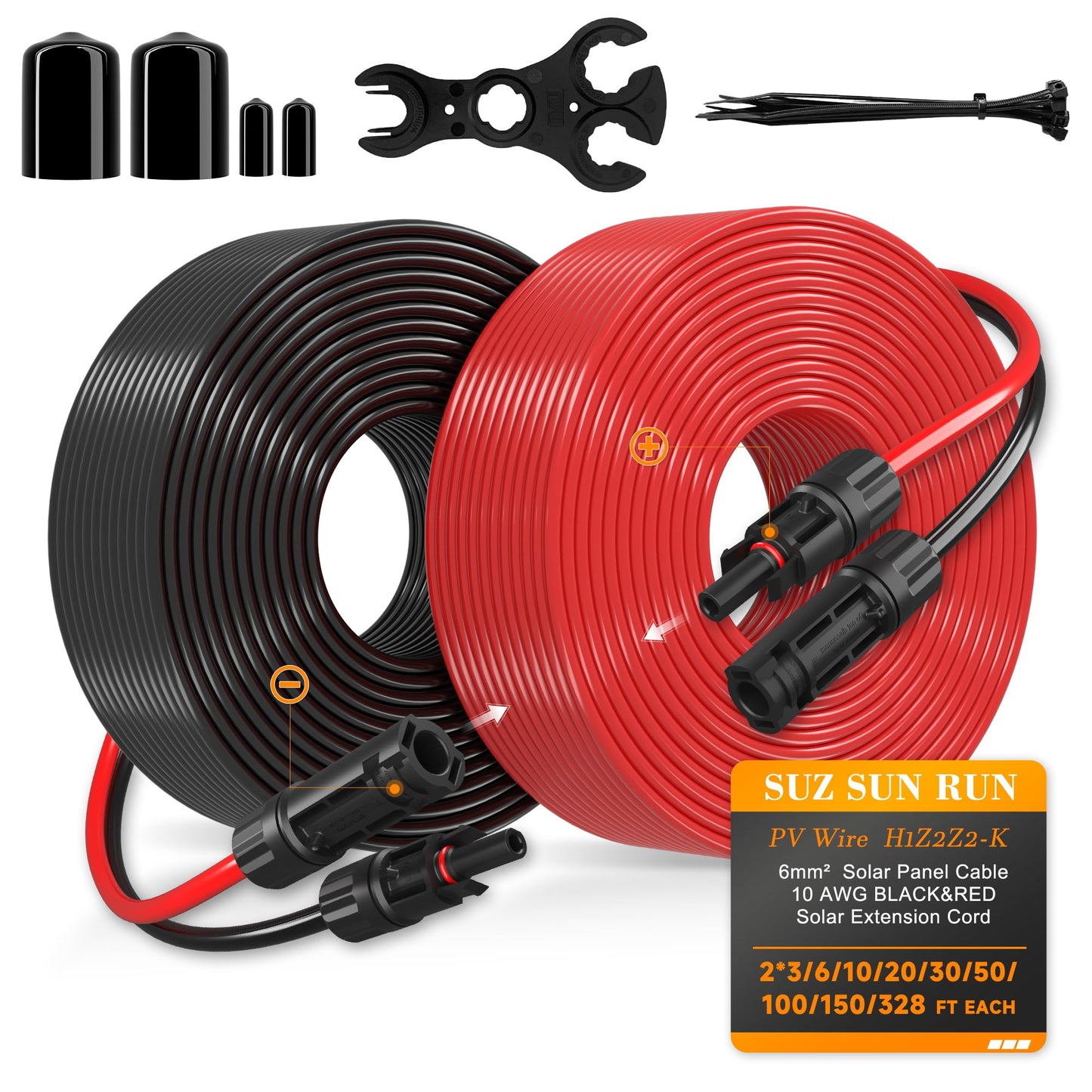

SJZSUNRUN 10 Gauge Wire Solar Extension Cable (30FT Black & Red) With 2 Pairs Connectors for PV Panels, Outdoor Automotive, Marine

Brand: SJZ SUN RUN

Color: Black&red

Features:

• 🧵 𝐏𝐫𝐞𝐦𝐢𝐮𝐦 𝐌𝐚𝐭𝐞𝐫𝐢𝐚𝐥: (6mm²) copper tinned wire, solar cable. 10AWG XLPE/XLPO material sheath protects the wires from wear and chemical corrosion which is flame resistant, anti-ageing, acid and alkali resistance, moisture resistant, weatherproof, moisture-proof, UV-proof. With 2 pairs of solar connectors, is made of PPO insulation material protecting it from corrosion, and is easy to solder. High precision Oxygen-free copper conducts electricity well. Compared with aluminium mat
• 🧵 𝐏𝐫𝐨𝐟𝐞𝐬𝐬𝐢𝐨𝐧𝐚𝐥 𝐏𝐫𝐨𝐝𝐮𝐜𝐭𝐢𝐨𝐧 𝐄𝐪𝐮𝐢𝐩𝐦𝐞𝐧𝐭: Solar extension cable is completely manufactured and inspected by machinery, with high precision and small error, ensuring maximum safety and reliability. The diameter of each conductor is 0.28 mm, and there are 84 conductors in a bundle. At the temperature of 20 degrees Celsius, the maximum DC resistance of the conductor does not exceed 3.39.

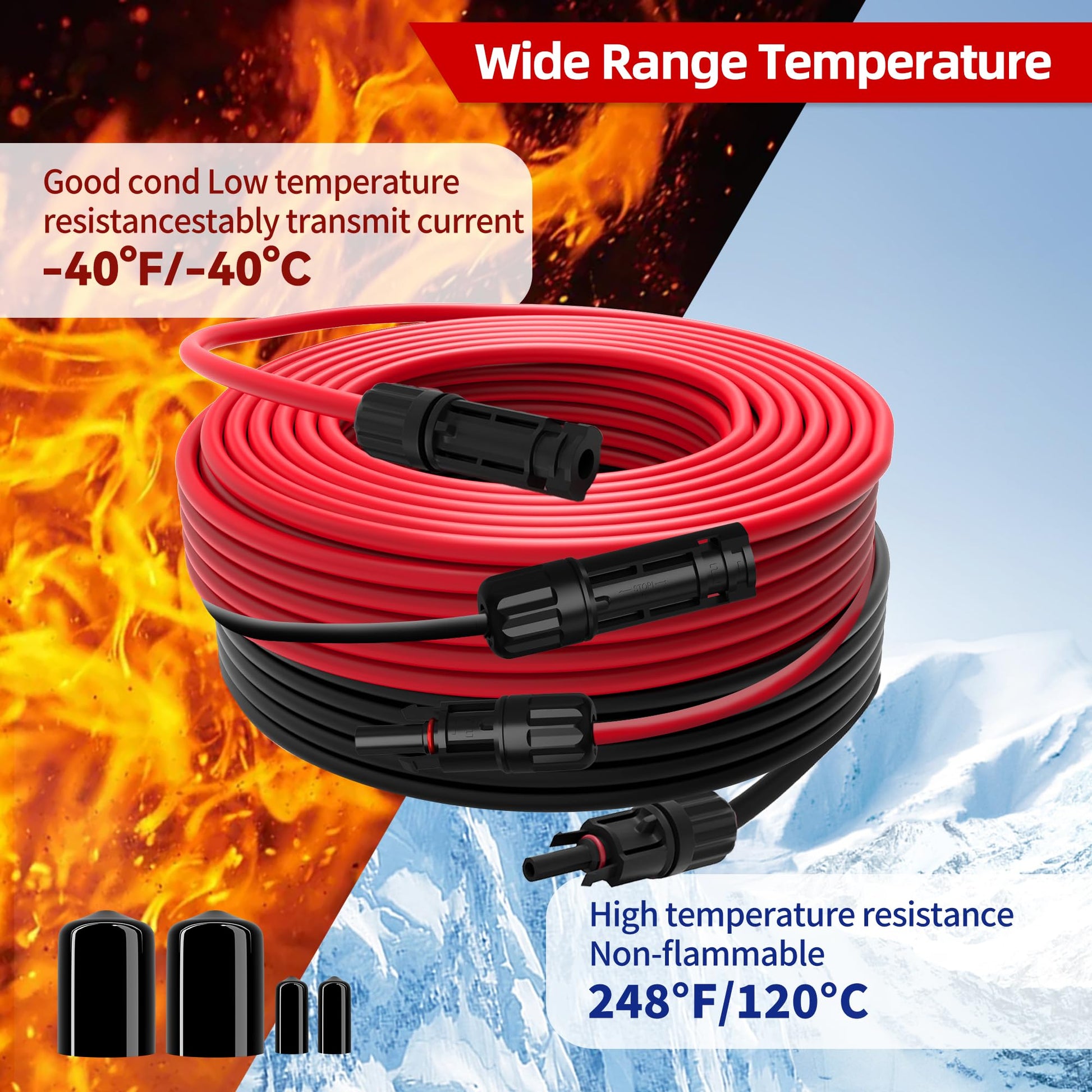

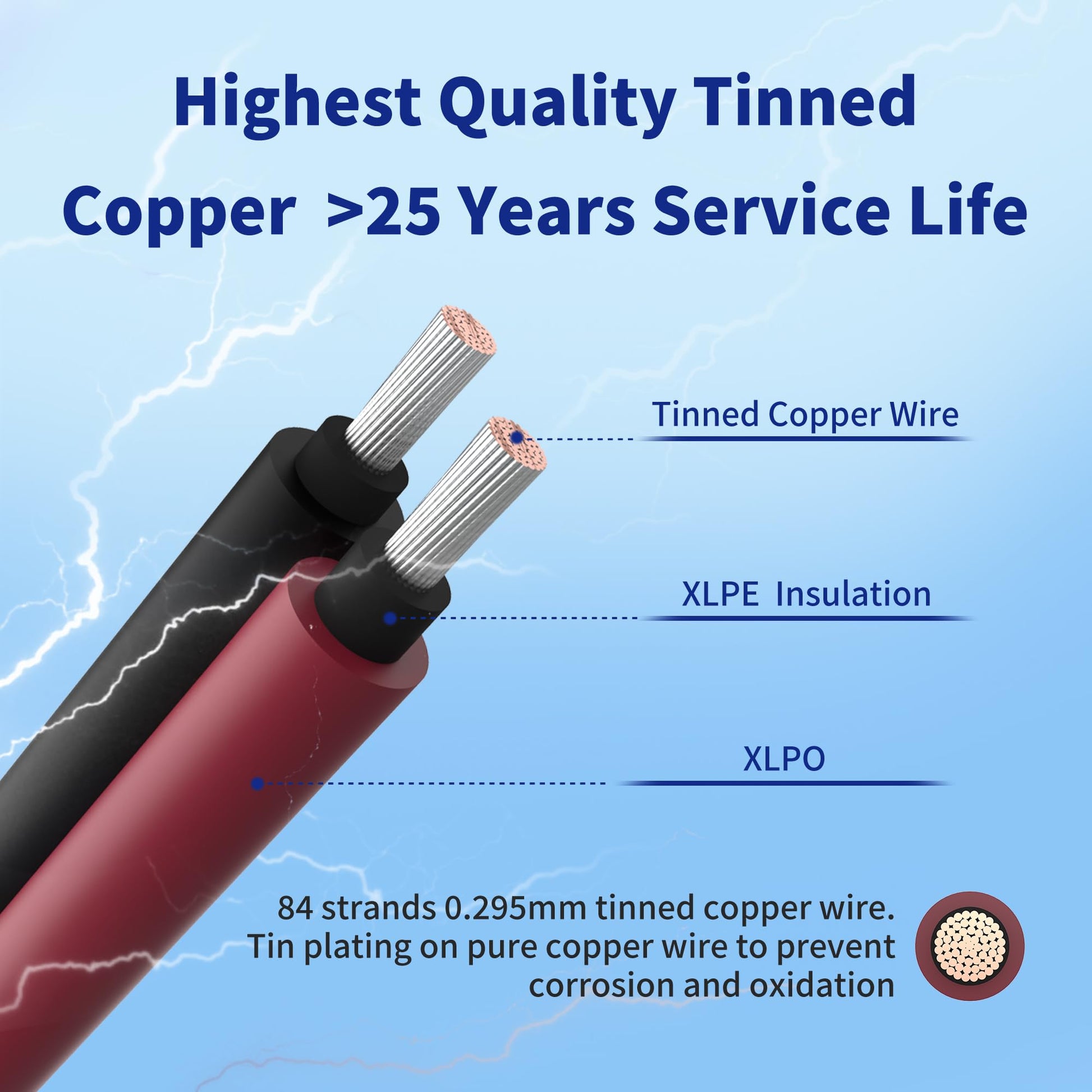

• 🧵 𝗦𝗼𝗹𝗮𝗿 𝐖𝐢𝐫𝐞 𝗧𝗲𝗰𝗵𝗻𝗶𝗰𝗮𝗹 𝗱𝗮𝘁𝗮: 10 AWG solar wire rated voltage 1000V AC, 1800V DC rated current 70A, 84 strands 0.285 mm tinned copper wire, conductor resistance: (20°C) ≤ 3.39 Ω/KM.Operating temperature: -40°C to 120°C. The Tinned Copper Hookup Wire is flexible and easy to solder, peel, and cut.

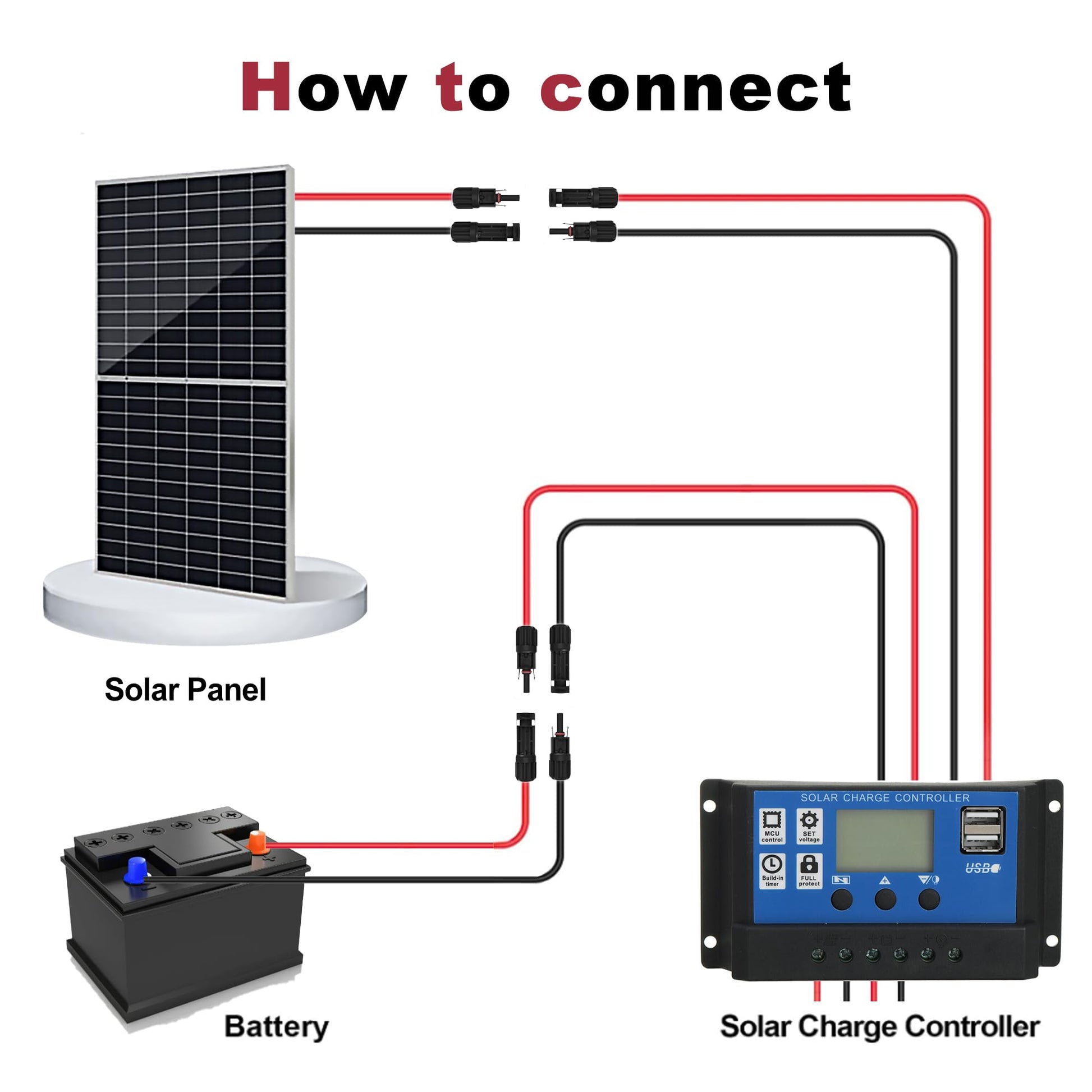

• 🧵 𝐖𝐢𝐝𝐞 𝐂𝐨𝐦𝐩𝐚𝐭𝐢𝐛𝐢𝐥𝐢𝐭𝐲: The solar cable is moisture, UV and corrosion resistant. Designed for long life and outdoor applications. gauge wire widely used in various low voltage electronic device wiring, can be used for solar panels, inverter wiring, DC circuits, Boat, Marine, Automotive, RV, LED etc.
• 🧵 𝐄𝐱𝐜𝐞𝐥𝐥𝐞𝐧𝐭 𝐂𝐮𝐬𝐭𝐨𝐦𝐞𝐫 𝐒𝐞𝐫𝐯𝐢𝐜𝐞: 30Ft black + 30Ft red 10AWG solar panel wire with 2-pairs soalr connectors, you can cut the appropriate cable according to your needs. We commit to providing high-quality products and customer satisfaction, The electricity wire we provided meets the test of CE testing EN50618:2014,with TUV, H1Z2Z2-K certification.

model number: 30ft

Part Number: 30ft

EAN: 0767159191279

Package Dimensions: 6.5 x 6.1 x 3.9 inches
