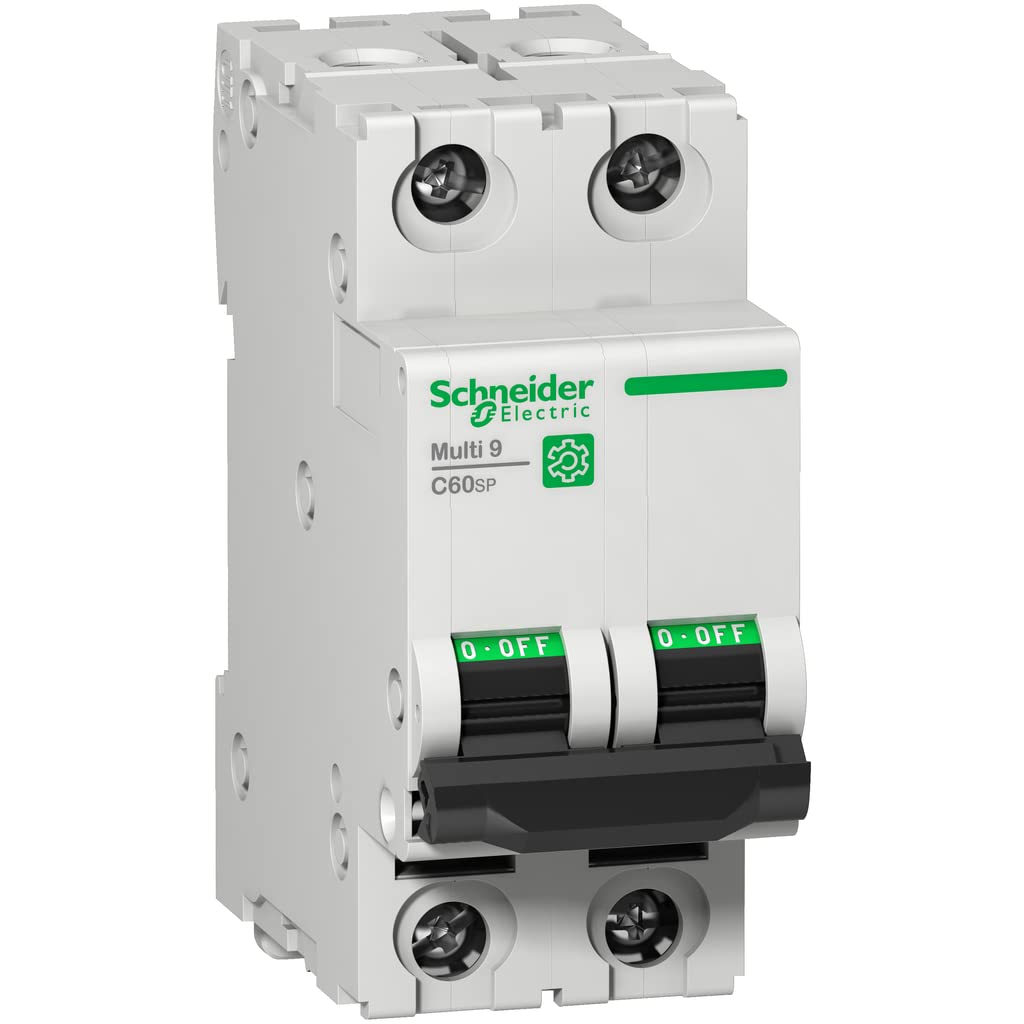

Schneider Electric - Multi9 C60SP Miniature Circuit Breaker (MCB), 2-Pole, 32A, B Tripping Curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) Short Circuit & Overload Current Protection - CSA Certified

Brand: Schneider Electric

Color: Light Grey

Features:

• MINIATURE CIRCUIT BREAKERS: Multi9 provides protection against short circuits and overcurrent faults ensuring uninterrupted functionality. Easy installation with bi-connect terminals. The design prevents false insertion of cables and loose termination with pull up terminals.
• RATED OPERATIONAL VOLTAGE: The Multi9 M9F21232 circuit breaker is rated for 240 Volts AC at 50/60 Hz, 415 Volts AC at 50/60 Hz and 440 Volts AC at 50/60 Hz. Insulation voltage is rated at 500 volts AC EN/IEC 60947-2
• TECHNICAL SPECIFICATIONS: 2 pole mini circuit breaker with thermal magnetic trip unit technology and DIN rail mounting support. Ambient air temperature for operation is between -30°C and 70°C.
• MULTI STANDARD: Multi9 covers all standards for industry application: UL/CSA for North America, IEC, EAC, CCC and others for the rest of the world.
• COMPREHENSIVE PROTECTION: Multi9 is a range of DIN rail modular devices, a solution offering great performance. Multi9 covers all standards for industry application: UL/CSA for North America, IEC, EAC, CCC and others for the rest of the world. It allows a unique panel design. Designed to meet your needs for most types of machines, it offers a wide range of modular devices providing protection, signaling functions and accessories.
• ENVIRONMENTAL DATA: Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.

Binding: Tools & Hardware

model number: M9F21232

Part Number: M9F21232

EAN: 3606481167729

Package Dimensions: 3.3 x 3.0 x 1.7 inches
