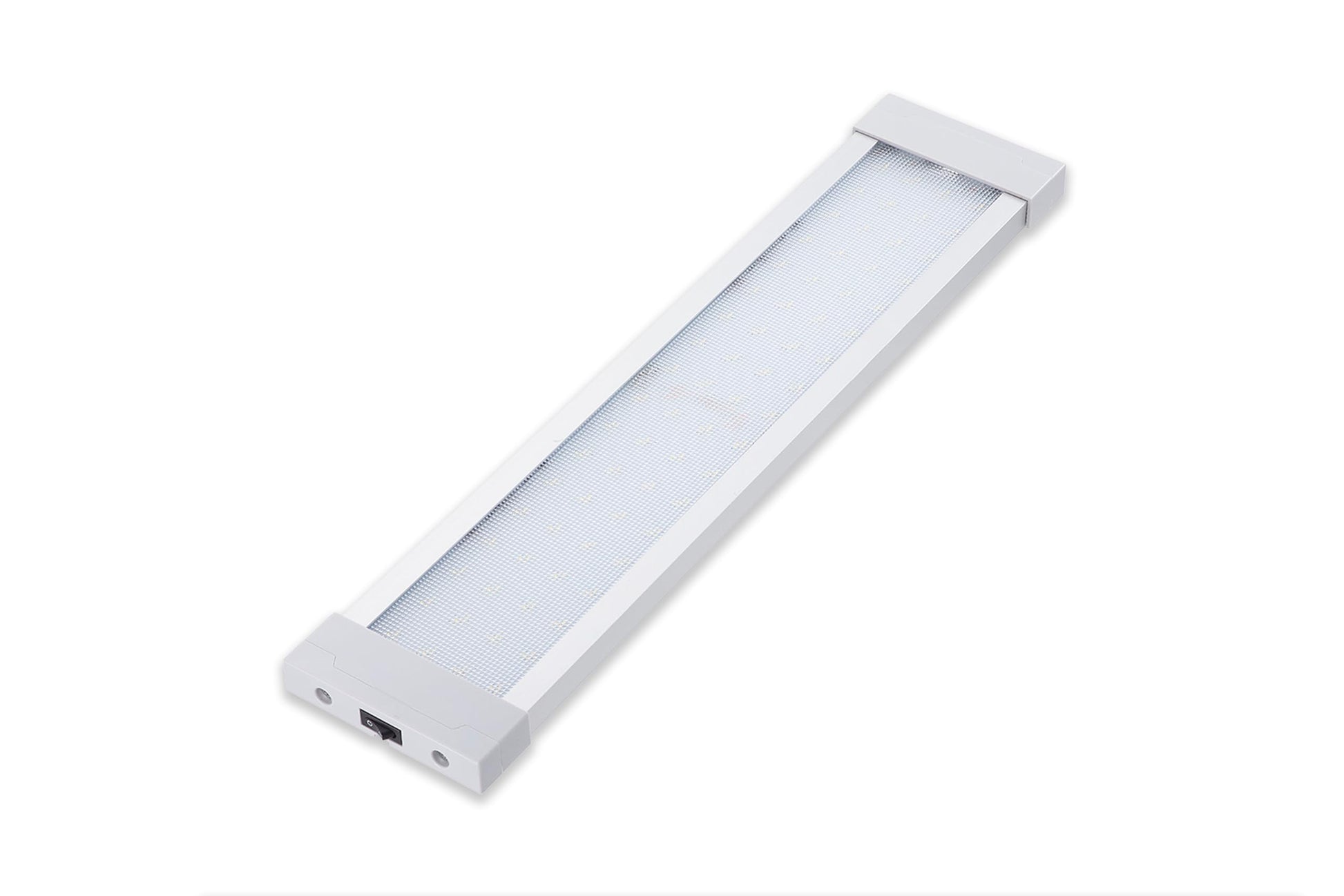

Raycharm RV & Enclosed Trailer Under-Cabinet Interior LED Light Fixture 18.1" x 3.9", 6000K Cool-White Even Diffused Beam, High Light-Output Low Ampere Draw, 12V/24V DC, On/Off Rocker Switch, 1-Pack

Brand: Raycharm

Color: White

Features:

• 【Easy Installation】Easy bolt-on installation in limited or out-of-sight spaces as like RV & Boat celling and under-cabinet by DIY. No hardware drilling required.
• 【Safety】Shock & vibration resistance when driving over the rough roads, and generate less heat (working temperature 80-100 °F) than incandescent bulbs (working temperature 200 °F). This cooler temperature prevents fingers from being burned, and RV interior from getting heat-up.
• 【Energy Efficiency】 Power Consumption is only 10% of the equivalent of OE RV incandescent light. Provide more light-output (Lumen output) while consume less energy (low current draws), and will not drain your battery, overload your circuits, nor produce too much heat for a long period of time.
• 【Various Applications】Perfect for RV, enclosed trailer and marine boat lighting as cabin light, under-cabinet light, ceiling light, closet & compartment light, courtesy light, kitchen & bathroom light, engine & utility room light, and more.
• 【Kelvin Variety】Different color temperature as 3000K Warm-White, 4000K Natural-White, and 6000K Cool-White are available to customize your specific applications and create the perfect atmosphere from RV & boat bedroom, bathroom living to working area.

model number: b1b70b7b-e513-49d4-b5cc-9d143457dc33

Part Number: 293-460-R

Details: Specifications:

Wattage: 14.4 Watt per Light
Voltage: 12V/24V DC
Current Draw: 1,100 mA@12V, 500 mA@24V
Switch Type: Integrated On/Off Rocker Switch
Color Temperature: Cool-White
Finish: Grey
Working Temperature: -40℃ ~ +50℃
Connection Type: Hardwired
Housing Materials: Aluminum
Lens Materials: Polycarbonate
Lens Color: Clear
Power Wire Length: 15.7 in. (40 cm)
Wire Gauge: 20 AWG
Lumen Output: 1440 lm
Waterproof Rating: Non-Waterproof
Product Type: Interior Light
Net Weight per light: 1.37 lbs. (0.62 kg)
Product Height: 0.68 in. (17.3 mm)
Product Length: 18.11 in. (460 mm)
Product Width: 3.92 in. (99.6 mm)
Quality Warranty: 2 Years
Safety & Notes:
1. The light is the low voltage LED lights primarily designed 12-24 VDC mobile lighting.
When installed for household, it is strongly recommended to be processed by
professional electrician in strict accordance with the safety standard.
2. For your safety, please cut off the power source before performing any installation
or wiring procedures.
3. When lights illuminated, direct eyes exposure to the LED light beam need to be
avoided.
4. Power button is touch sensitive for on & off control
5. Indoor or cabin use only. Without immerse in the water.
Installation Instructions:
1. Remove two endcap screws to access mounting holes.
2. Mount LED fixture to surface using 4 mounting screws, and then replace endcaps.
3. Connect RED wiring to Positive, and the WHITE to Negative

Package Dimensions: 18.7 x 4.4 x 1.0 inches
