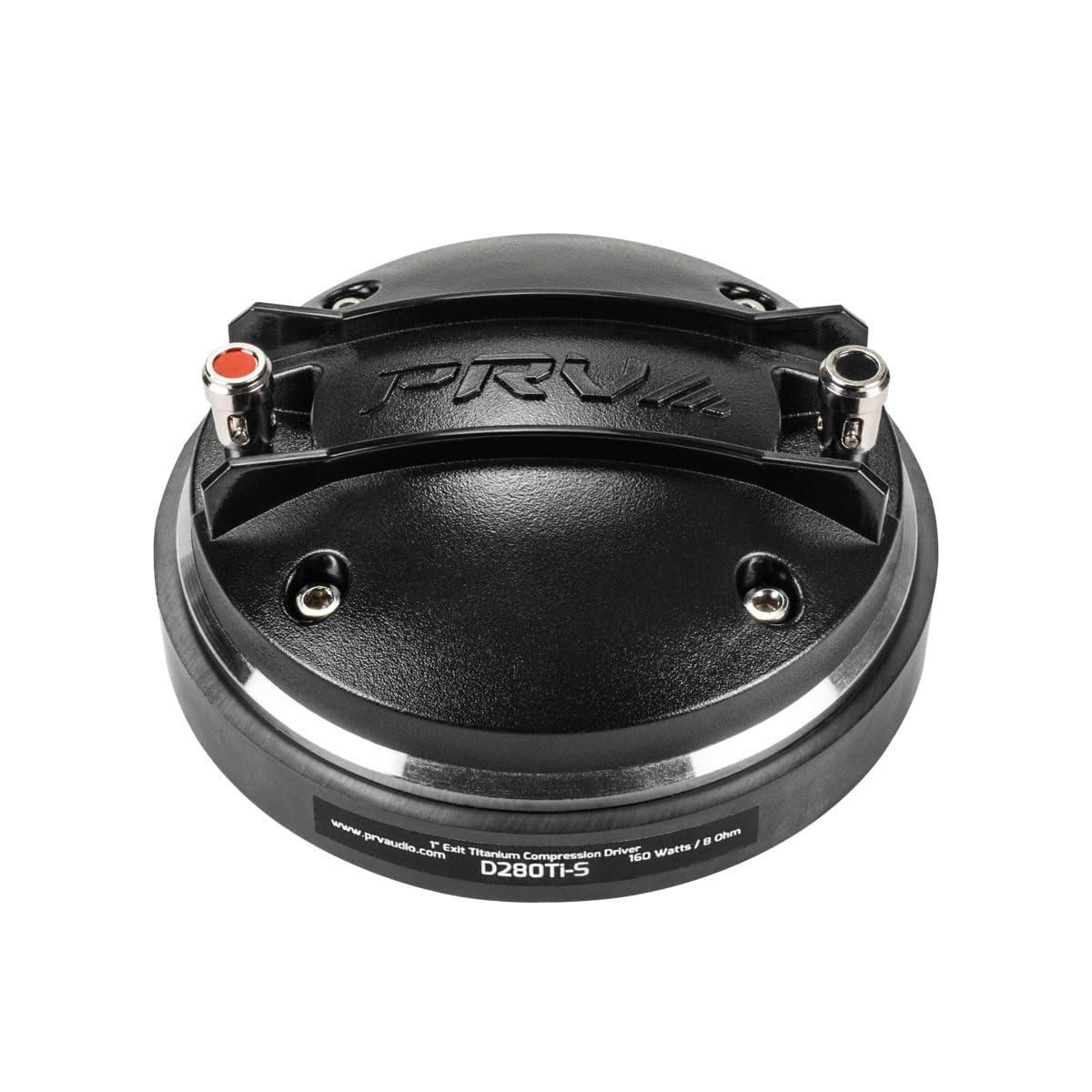

PRV AUDIO D280Ti-S 160 Watts 1" Exit Screw-On Horn 8 Ohm Pro Audio Compression Driver (Single)

Brand: PRV Audio

Color: Black/Silver

Features:

• Industry standard 1-3/8"-18 TPI screw-on design
• Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required
• A 2 and 3 or bolt pattern ensures easy replacement with current 1” bolt-on horns and weighs just 3.3 lbs
• A standard 1 3/8” screw ensures easy replacement with current 1” horns
• Program Power: 160 Watts

Binding: Electronics

Release Date: 27-01-2020

model number: D280Ti-S

Part Number: D280Ti-S

Details: The D280Ti-S high frequency compression driver, with superior audio clarity and power, is designed to output high sound pressure levels, making it perfect for professional sound systems. This is an excellent upgrade for DJ speaker cabinets with screw-on horns.
Standard 1-3/8″-18 TPI threads make them an easy replacement and upgrade option for many Pro audio cabinets, where manufacturers typically use the cheapest component possible. This driver’s high sensitivity translates into a clearer, more effortless sound than ever before from your speaker cabinet.
Featuring excellent performance and low distortion, this high frequency compression driver is ideal for studio monitors, stage boxes, and sound reinforcement in medium to large rooms. Due to its high quality in PRO audio, this driver is also one of the top choices for 3-Way custom car audio systems.
- Pure Titanium diaphragm with a large 1.75″ Voice Coil, providing high power handling with excellent output – 109 dB Sensitivity.
- This driver offers the famous PRV Audio crisp high output on high frequency response, with accuracy (from 1,300 to 20,000 Hz) with a linear frequency response.
- Premium high frequency driver for any sound systems that uses a 1” exit screw-on horns. Reliable upgrade driver for 2-Way Cabinets. Premium capacitor included.
- Designed to reproduce the all-important vocal range with detailed high frequencies at high power handling with only 4.50″ diameter.
- PRO Audio high frequency driver, able to handle 160 Watts Continuous Program Power (RMS) with music. Also Available in a Bolt-On Version.
The one-piece titanium diaphragm reduces the amount of moving mass, which enhances the driver’s ability to produce clear and crisp high frequencies. Its injected-molded phase plug eliminates undesirable phase cancellations.
This configuration allows for an extended high frequency response, making it ideal for applications that demand detailed and accurate sound reproduction. As a result, you can expect clarity and precision in audio output, especially at higher frequencies.
Recommended Crossover Settings:
The titanium diaphragm is attached to a 1.75″ diameter copper-clad aluminum wire with Kapton former for a 160 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor
- 1800 Hz at 12 dB per octave filter Crossover / BT12
- 1700 Hz at 18 dB per octave filter Crossover / BT18

EAN: 0799928733854

Package Dimensions: 5.2 x 5.0 x 3.1 inches
