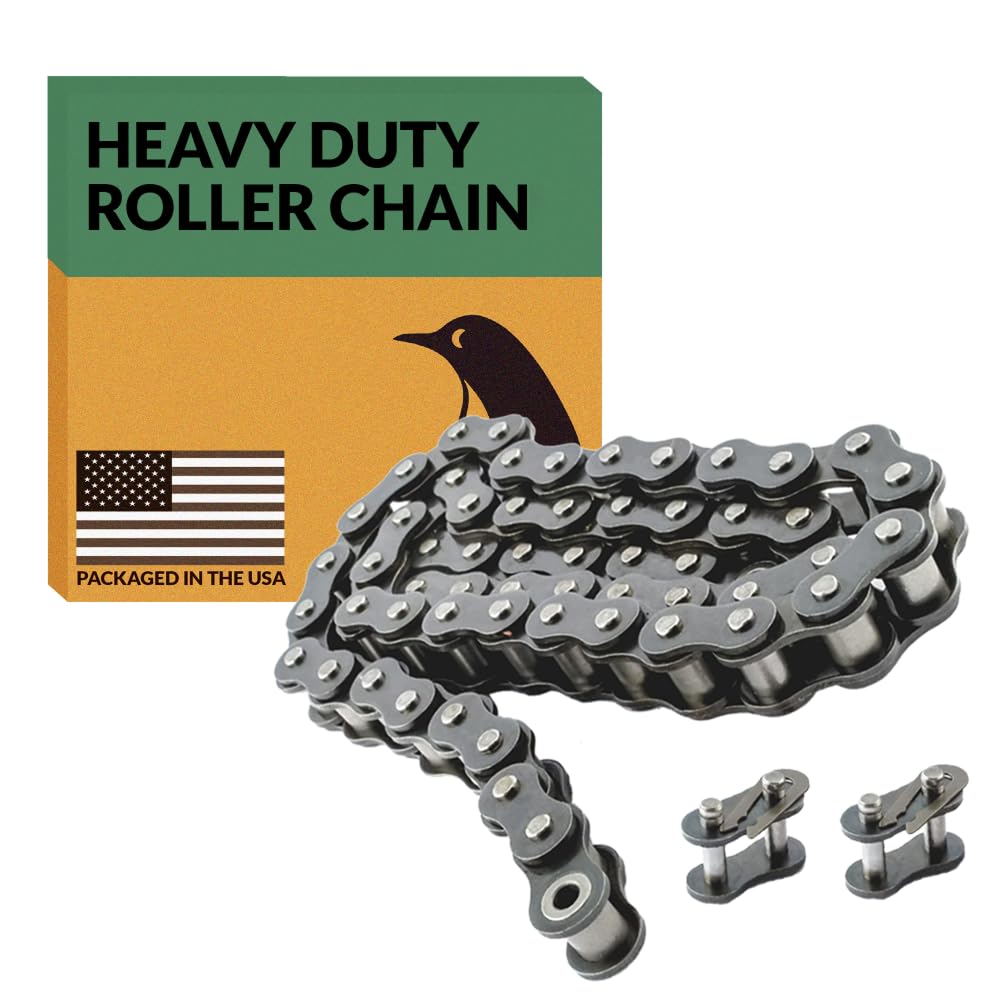

PGN #60 Heavy Duty Roller Chain - 10 Feet + 2 Free Connecting Links - #60H - 159 Links

Brand: PGN BEARINGS

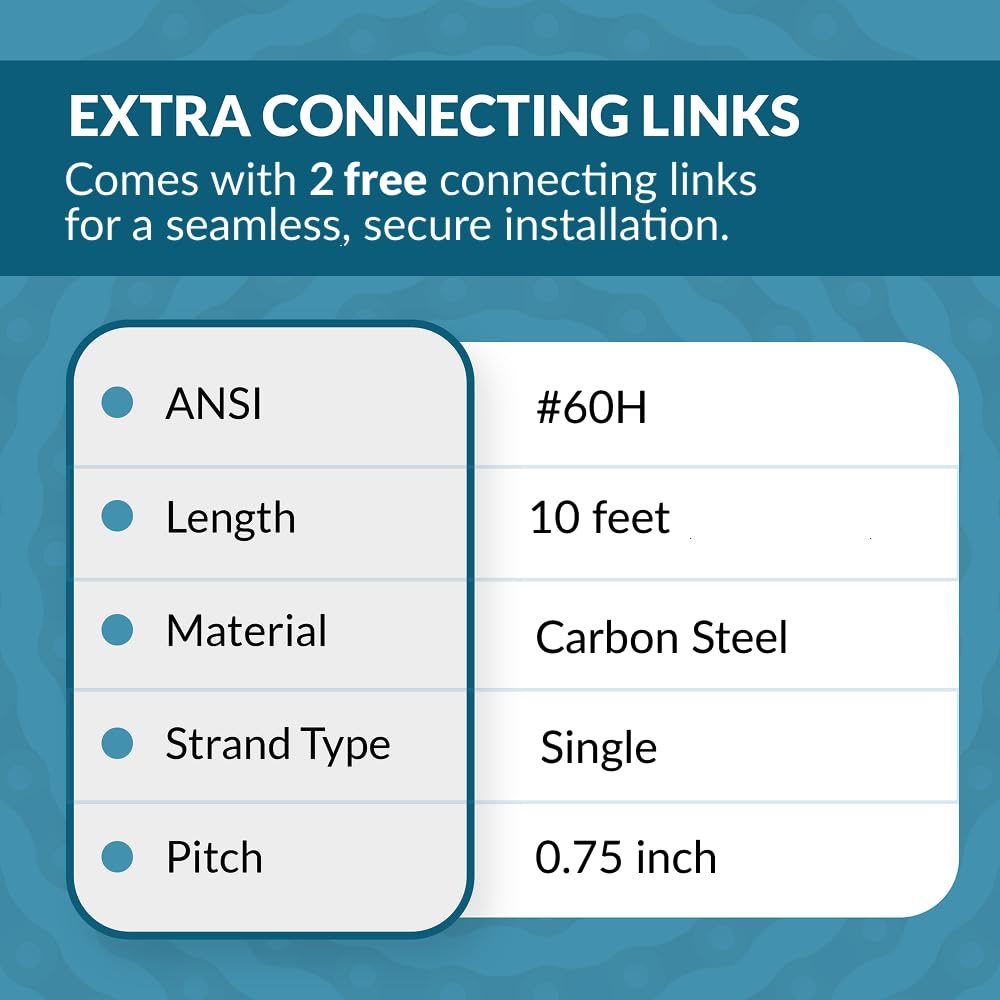

Features:

• ANSI Chain No.: #60H
• Length: 10 feet
• Heavy Duty, Single Strand
• 3/4" inch Pitch
• Carbon Steel

model number: PGN-RC-#60H/10FT

Part Number: PGN-RC-#60H/10FT

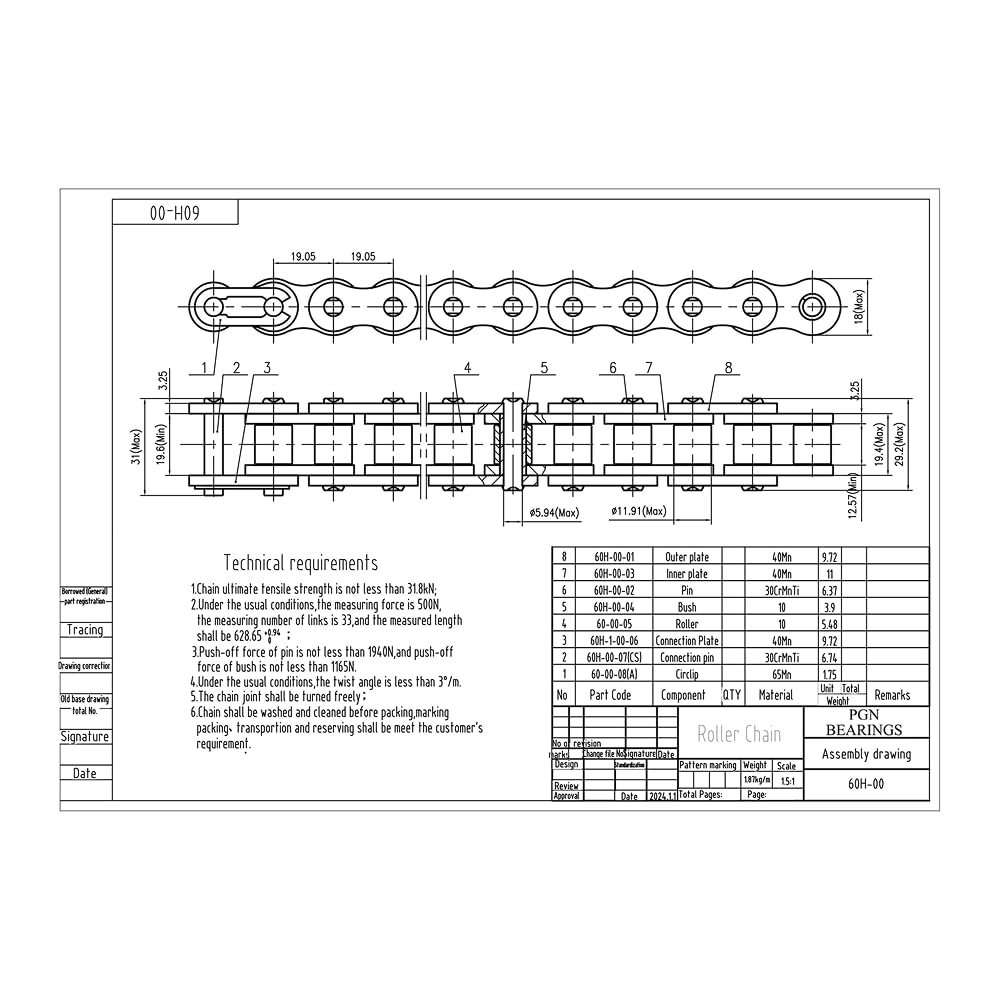

Details: #60H Heavy Duty Roller Chain x 10 feet
ANSI Chain No.: #60H
Length: 10 feet

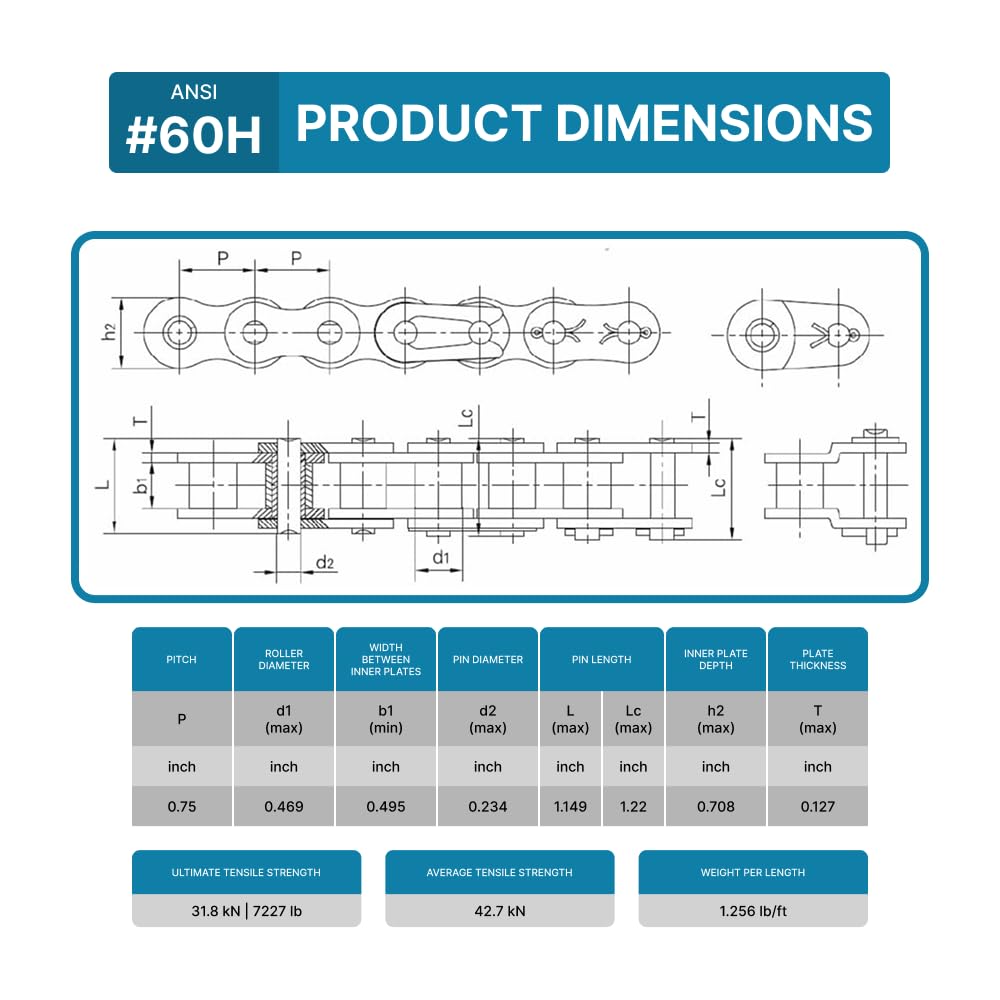

Pitch (P): 0.75 inch (19.050 mm)
Roller Diameter (d1 max): 0.469 inch (11.91 mm)
Width Between Inner Plates (b1 min): 0.495 inch (12.57 mm)
Pin Diameter (d2 max): 0.234 inch (5.94 mm)
Pin Length (L max): 1.149 inch (29.2 mm)
Pin Length (Lc max): 1.22 inch (31.0 mm)
Inner Plate Depth (h2 max): 0.708 inch (18.00 mm)
Plate Thickness (T max): 0.127 inch (3.25 mm)
Ultimate Tensile Strenght (Q min): 31.80/7227 kN/LB
Average Tensile Strenght (Qo): 42.7 kN
Weight (q): 1.256 lb/ft (1.87 kg/m)

EAN: 0760655001240

Package Dimensions: 10.2 x 9.8 x 2.0 inches
