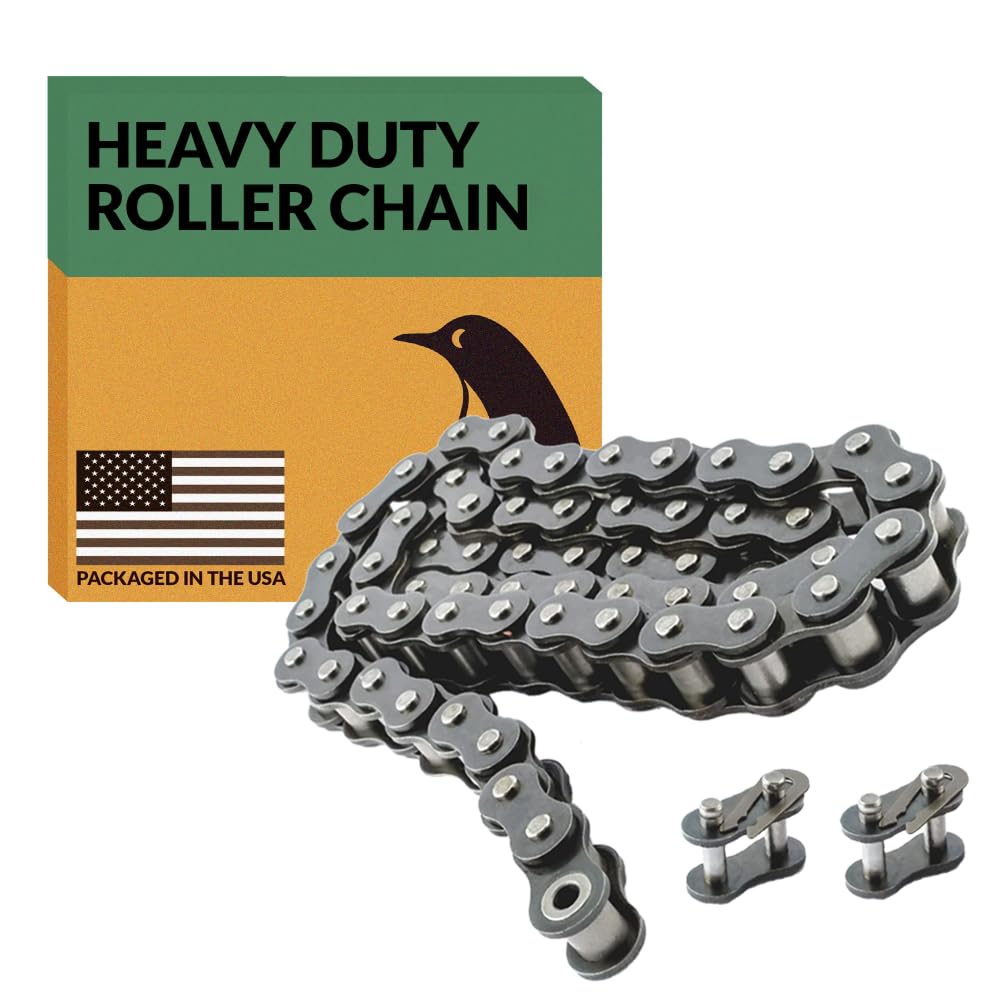

PGN #40 Heavy Duty Roller Chain - 10 Feet + 2 Free Connecting Links - #40H - 239 Links

Brand: PGN Bearings

Features:

• ANSI Chain No.: #40H
• Length: 10 feet
• Heavy Duty, Single Strand
• 1/2" inch Pitch
• Carbon Steel

model number: PGN-RC-#40H/10FT

Part Number: PGN-RC-#40H/10FT

Details: #40H Heavy Duty Roller Chain x 10 feet
ANSI Chain No.: #40H
Length: 10 feet

Pitch (P): 0.50 inch (12.7 mm)
Roller Diameter (d1 max): 0.313 inch (7.95 mm)
Width Between Inner Plates (b1 min): 0.309 inch (7.85 mm)
Pin Diameter (d2 max): 0.156 inch (3.96 mm)
Pin Length (L max): 0.74 inch (18.80 mm)
Pin Length (Lc max): 0.783 inch (19.9 mm)
Inner Plate Depth (h2 max): 0.472 inch (12.0 mm)
Plate Thickness (T max): 0.08 inch (2.03 mm)
Ultimate Tensile Strenght (Q min): 14.1/3205 kN/LB
Average Tensile Strenght (Qo): 19.1 kN
Weight (q): 0.55 lb/ft (0.82 kg/m)

EAN: 0760655019375

Package Dimensions: 9.4 x 6.5 x 1.1 inches
