Partsam 12V Waterproof Square LED Trailer Tail Light Kit Clear Lens Red Trailer Brake Stop Tail Turn Signal Running Lights License Kit for Camper Truck RV Boat Trailer Snowmobile Marine Under 80"

Brand: PARTSam

Color: Red

Features:

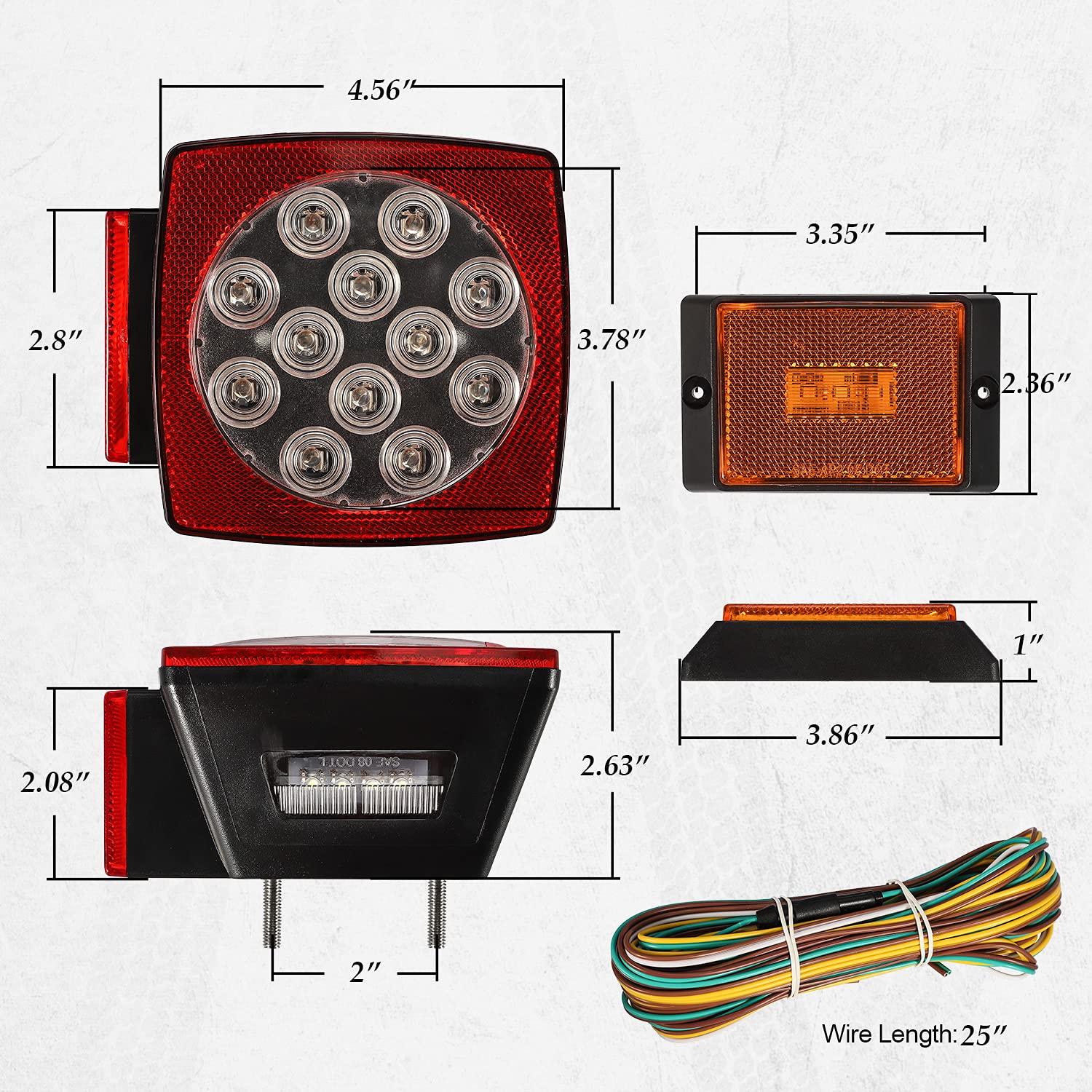

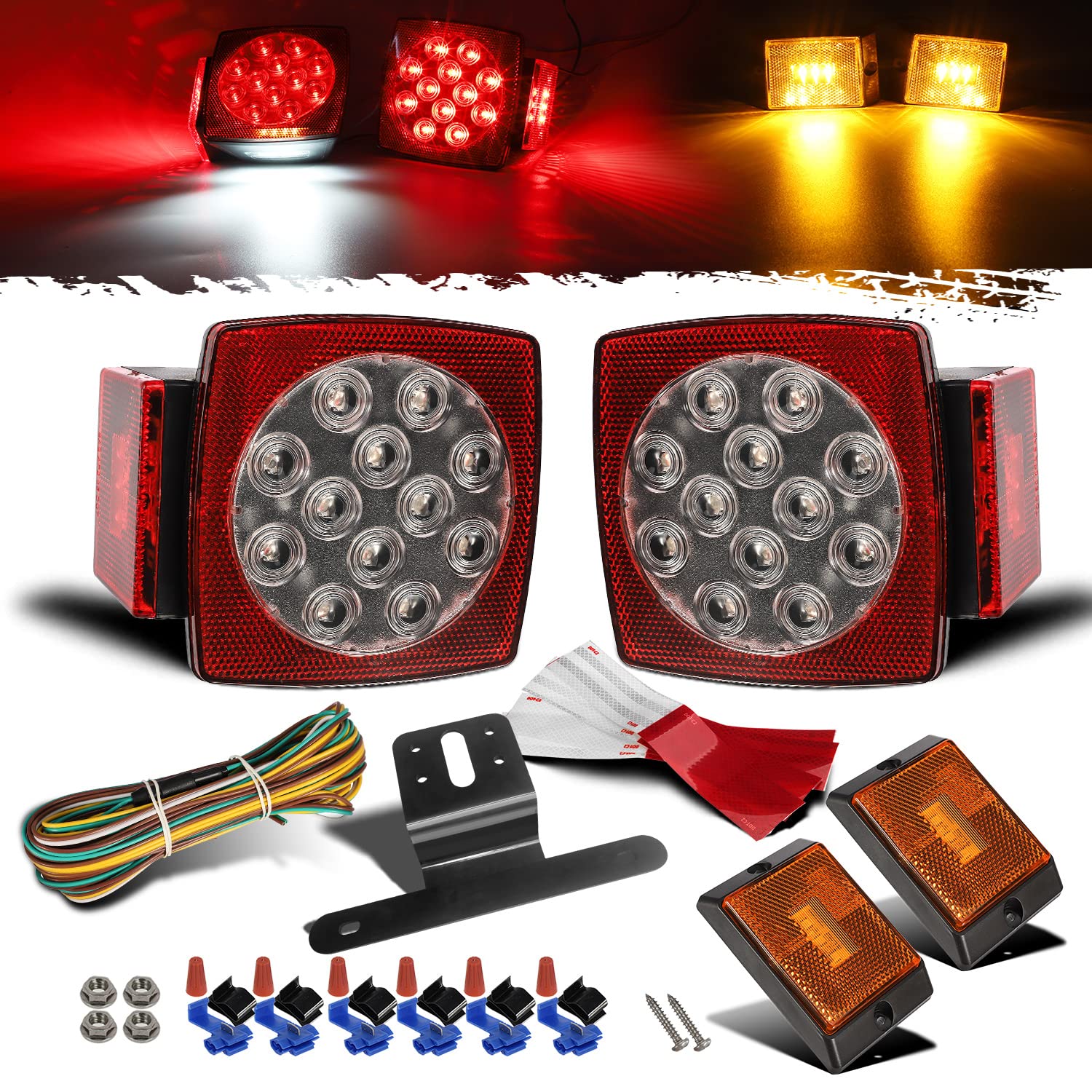

• 4.56" long x 3.78" tall x 2.63" deep; trailer light kit with 2 stud mount waterproof LED tail lights, corrosion-resistant license-plate bracket, 25ft wiring harness(21.98 feet and 3.93 feet wiring harness), stainless steel mounting hardware, 2pcs amber clearance lights and 4pcs reflective sticke. 2-stud mount on 2" centers;

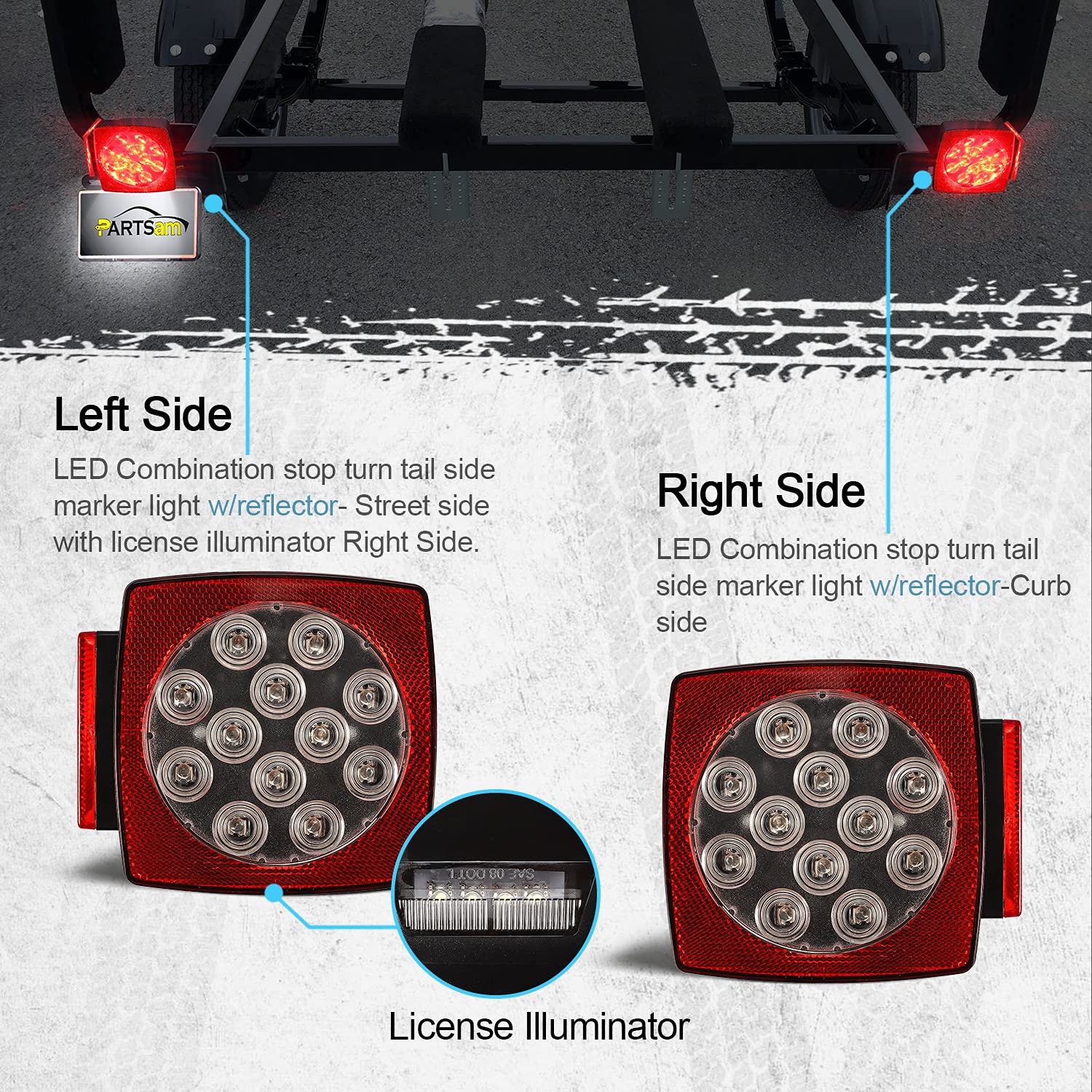

• 2 Clear/Red, waterproof, stud-mounted LED trailer tail lights for less than 80" trailers tractors truck boat snowmobile, esp. ideal for jet ski trailer lights. Square trailer light serves 7 functions: Stop light, Turn signal light, Tail light. Rear reflex reflector, Side marker light, Side reflex reflector, License plate illuminator(only for LH Side/Driver Side)

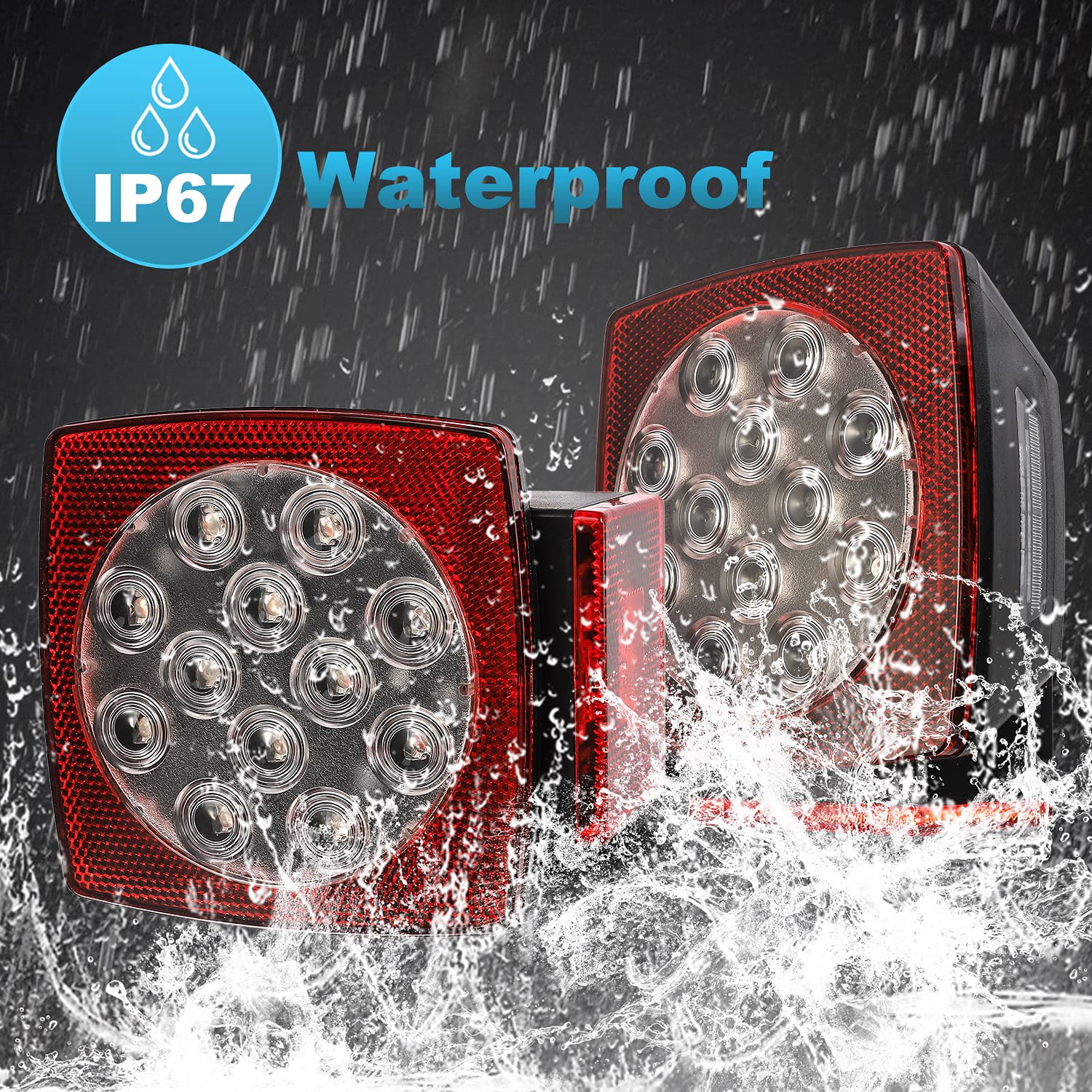

• For this Red submersible LED trailer light kit, Right light has 16 LEDs (12 face, 4 side); Left/streetside light has 21 LEDs (12 face, 4 side, 5 bottom). These trailer tail lights has no screws on the lamp shade, the LED trailer lights are completely welded together, The circuit board of tail light is seal. excellent tightness makes it be definitely IP67 waterproof and submersible. Of course, you can also put the clear epoxy around it for a guarantee;
• Left side: White Wire is the Ground; White+ Yellow, front side works and is high brightness; White+ Brown, THREE sides work, front side is low brightness; Right side: White Wire is the Ground; White+ Green, front side works and is high brightness; White+Brown, TWO sides work, front side is low brightness;
• Auto Parts, Uncle Sam. PARTSam LED Light with high-quality LED chips.

model number: Square LED Trailer Tail Light Kit

Part Number: GTCV-0484496913

Details: Submersible Completely Sealed Trailer Boat LED Stop turn tail License plate Lights Kit

Application: Add or upgrade the lights on boat, snowmobile, camper, or utility trailer

Features:

12V LED Trailer Light Kit, Clearance

Functions as Stop Turn Tail Rear / Side reflector Side Marker and License Illuminator (on left).

For under 80" wide application

Acrylic lens is screwed on to the housing

Left side has 12 red square LED ( Stop, turn & tail) , 4 red round LED ( Side marker), and 5 white round LED (License)

Right side has 12 red square LED ( Stop, turn & tail) , 4 red round LED ( Side marker)

Kit includes 25" trailer wiring harness, 4" trunk connector, license plate bracket and mounting hardware.

Comes with Ground, Tail and Stop Turn 3 wires(high low brightness)

Light dimension: 4 9/16" h * 5 1/16" w * 2 3/4" d

High visibility safety lights are easy to mount

Includes 1 pair multi-functions tail lights, parts pack with all fasteners and commectors needed for installation

low heat, low current, high reliability, faster on and off and you can install as many LED lights on your boat and trailer as you want!

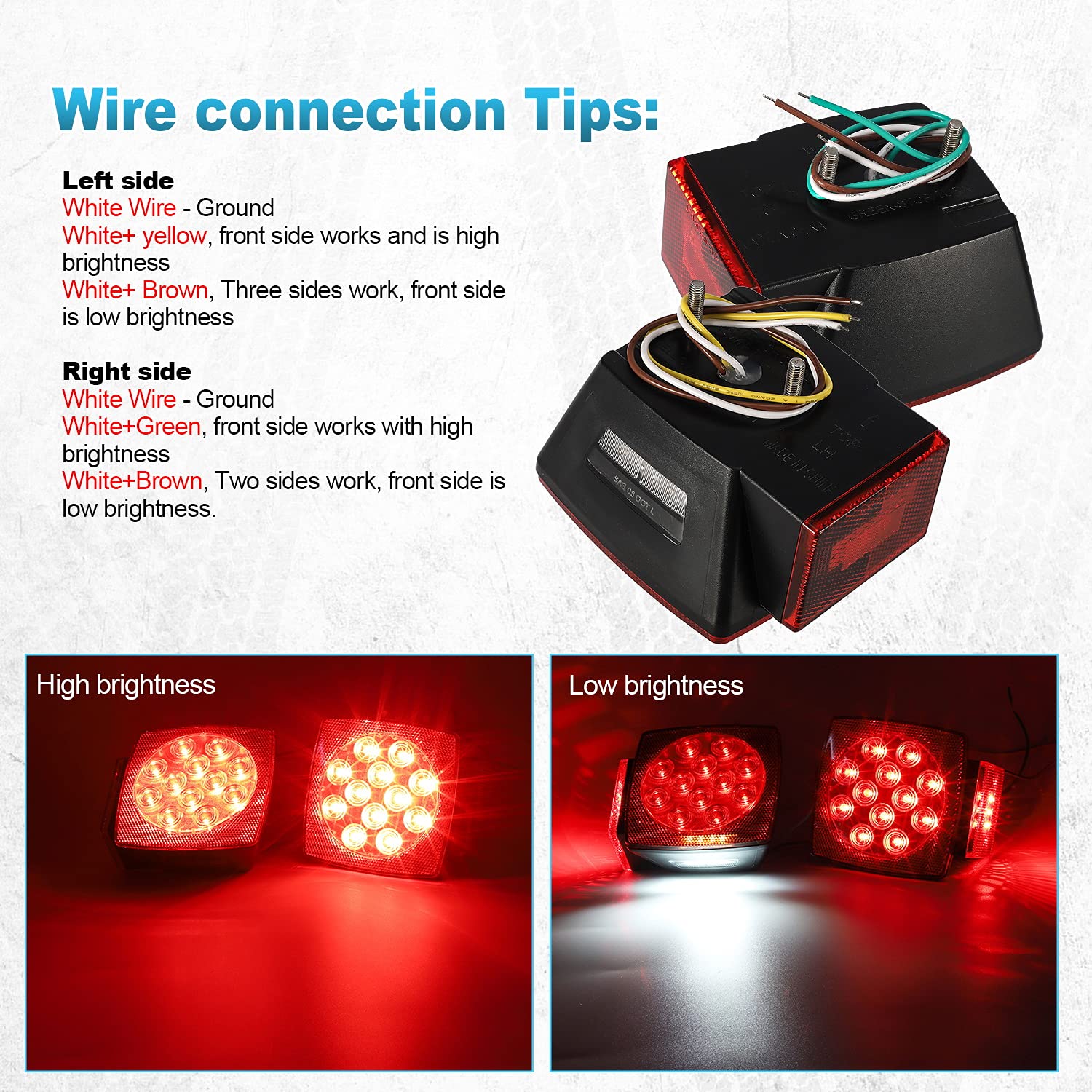

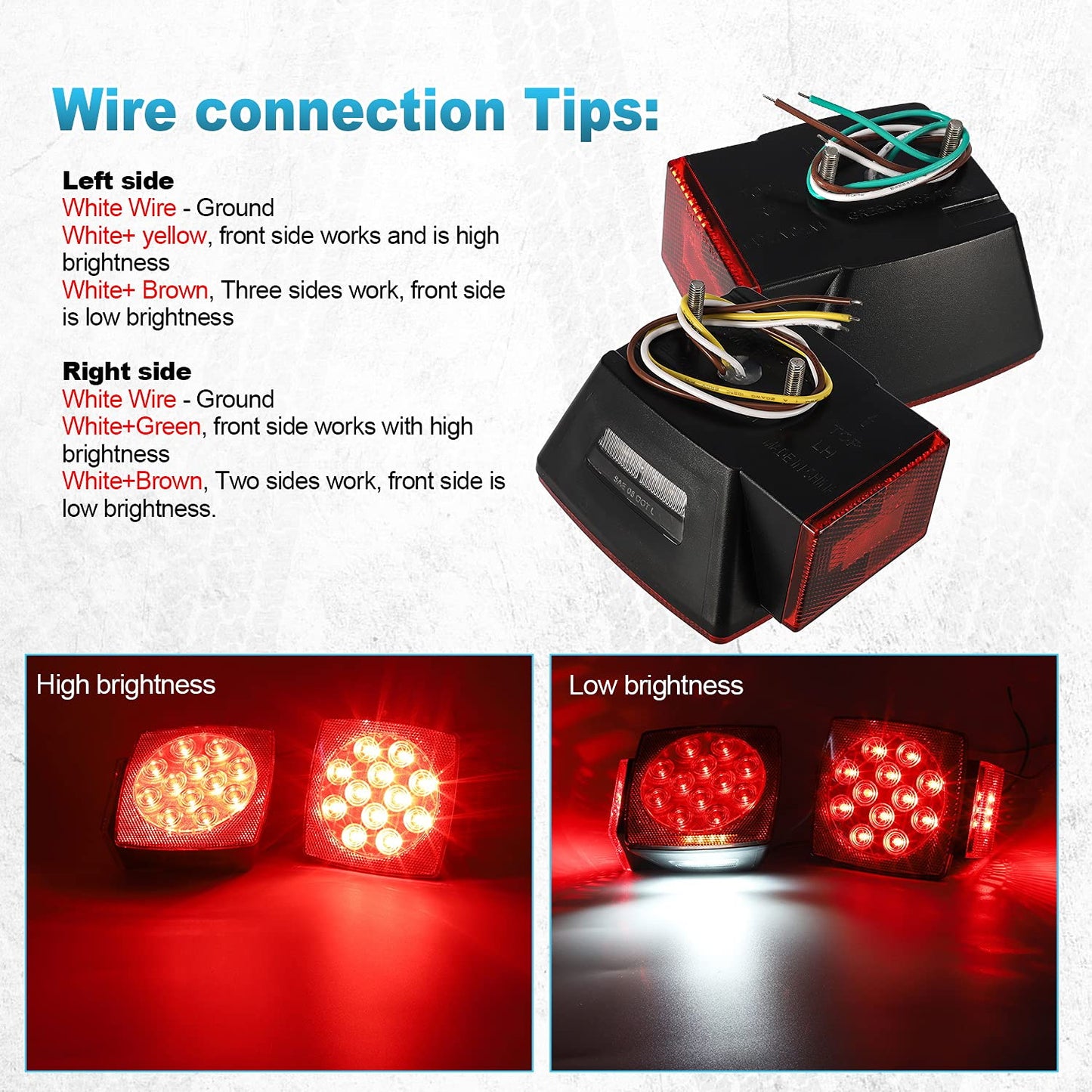

Wire Connection Tips:

Left side: White Wire is the Ground; White+ Yellow, front side works and is high brightness; White+ Brown, THREE sides work, front side is low brightness.

Right side: White Wire is the Ground; White+ Green, front side works and is high brightness; White+Brown, TWO sides work, front side is low brightness.

Tips: There is 1 more white light on the left side.

EAN: 0602731720747

Package Dimensions: 9.6 x 6.0 x 5.4 inches
