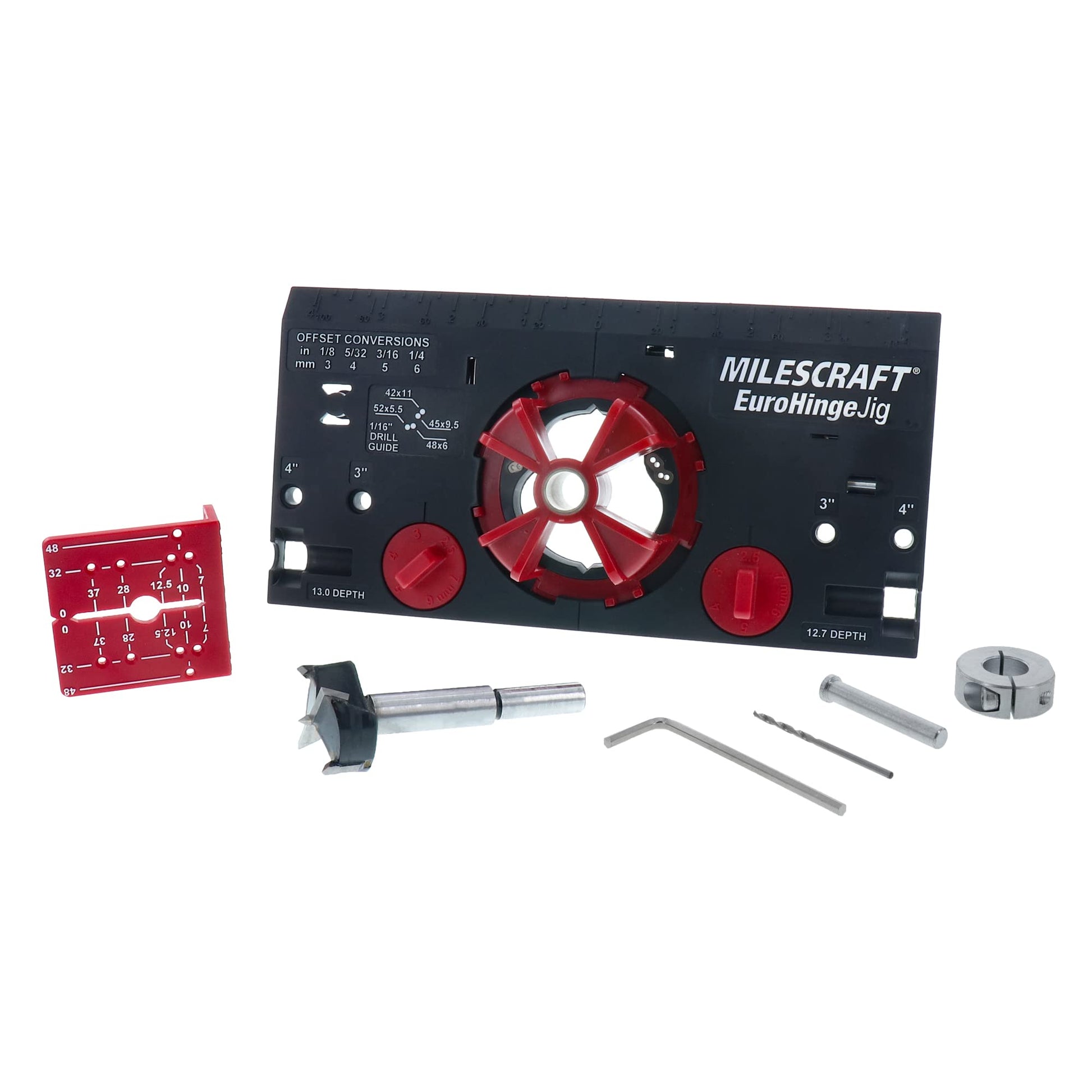

Milescraft 1342 Euro Hinge Jig – Concealed Hinge Jig, Drilling Guide, Drill Jig for Framed and Frameless Cabinets. Metal Drill Guide Produces Perfect Hinge Holes. 35 mm Forstner Bit Included

Brand: MILESCRAFT

Color: Multi Color

Features:

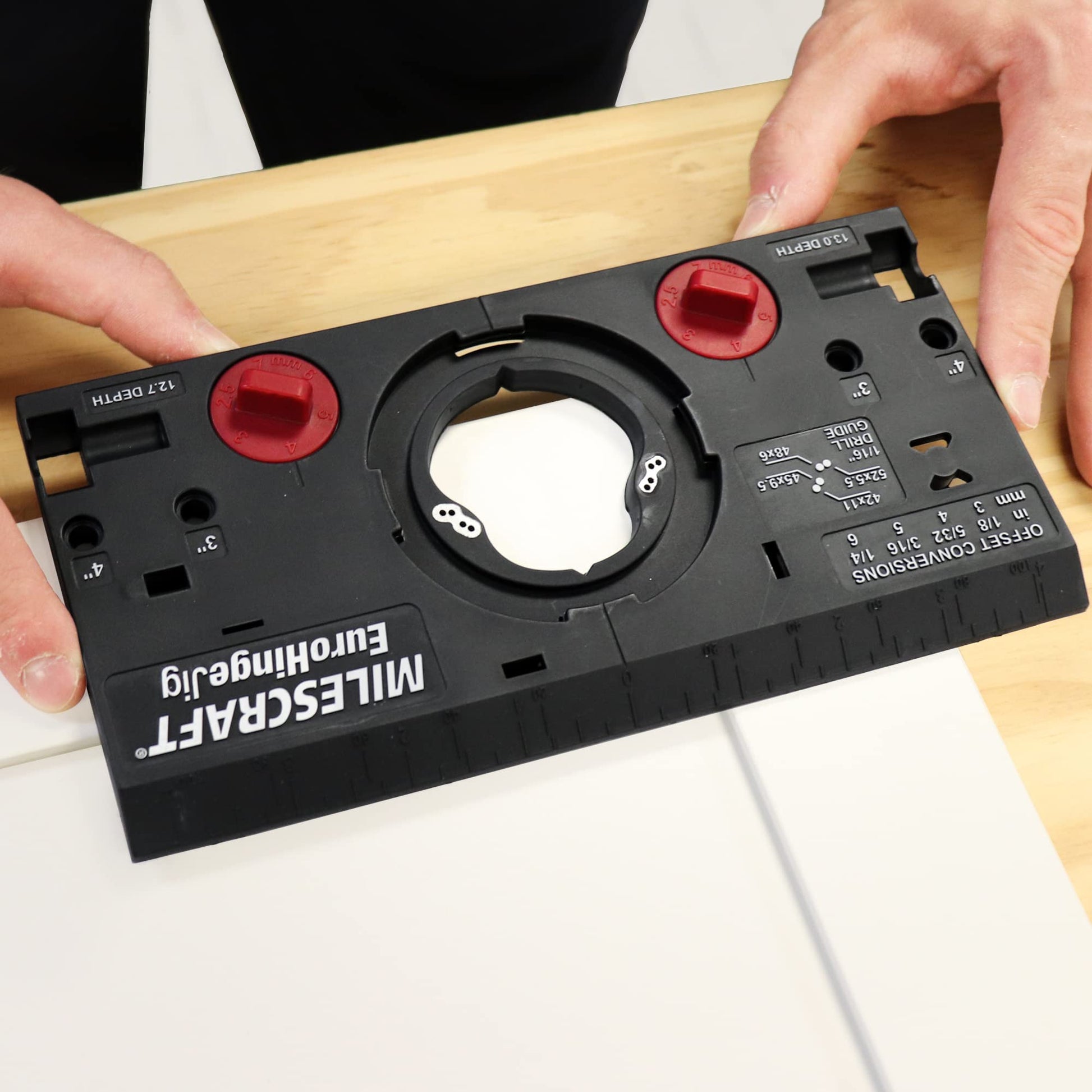

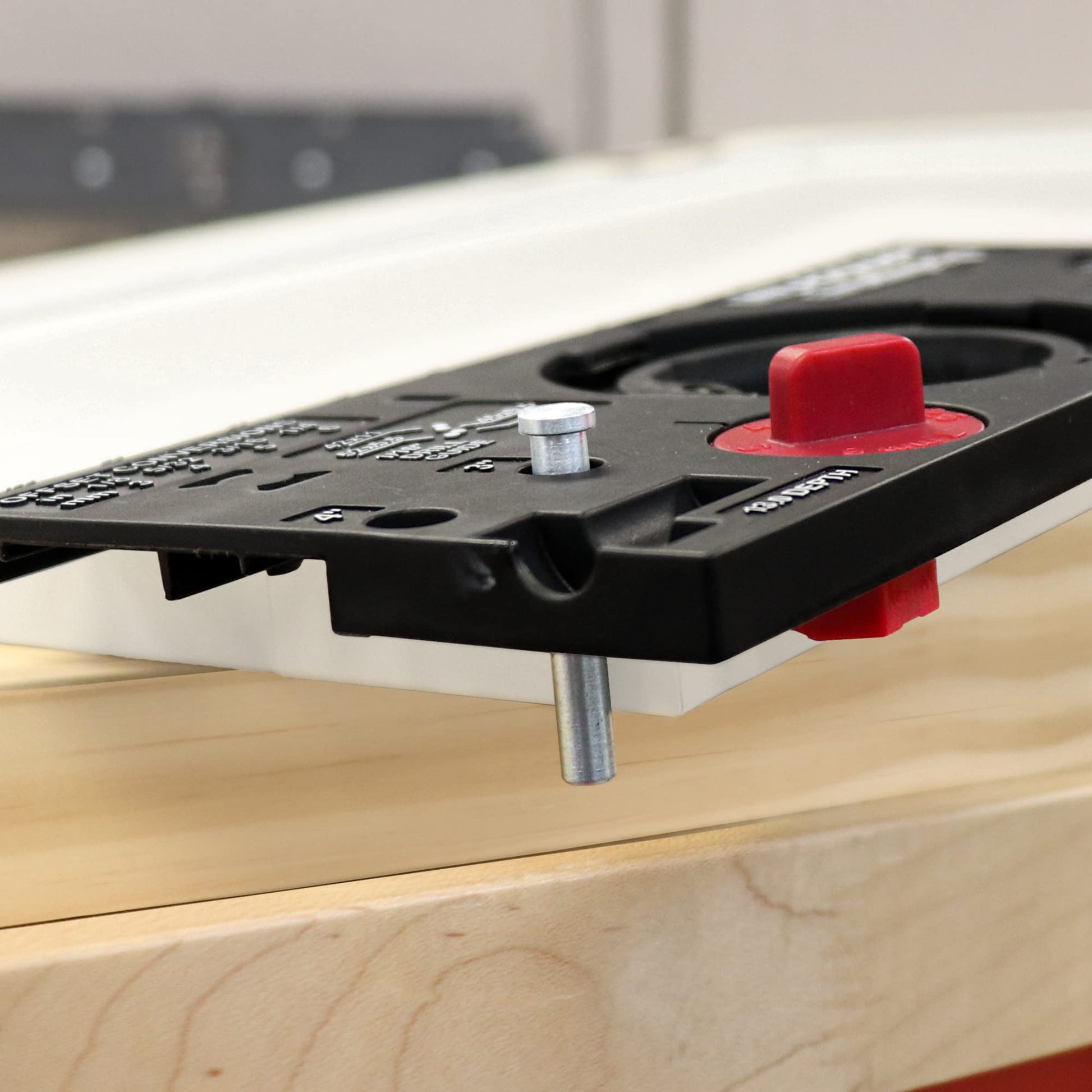

• Two edge alignment knobs position the cup hole from the edge of the door, while the edge pin sets the distance from the top/bottom.

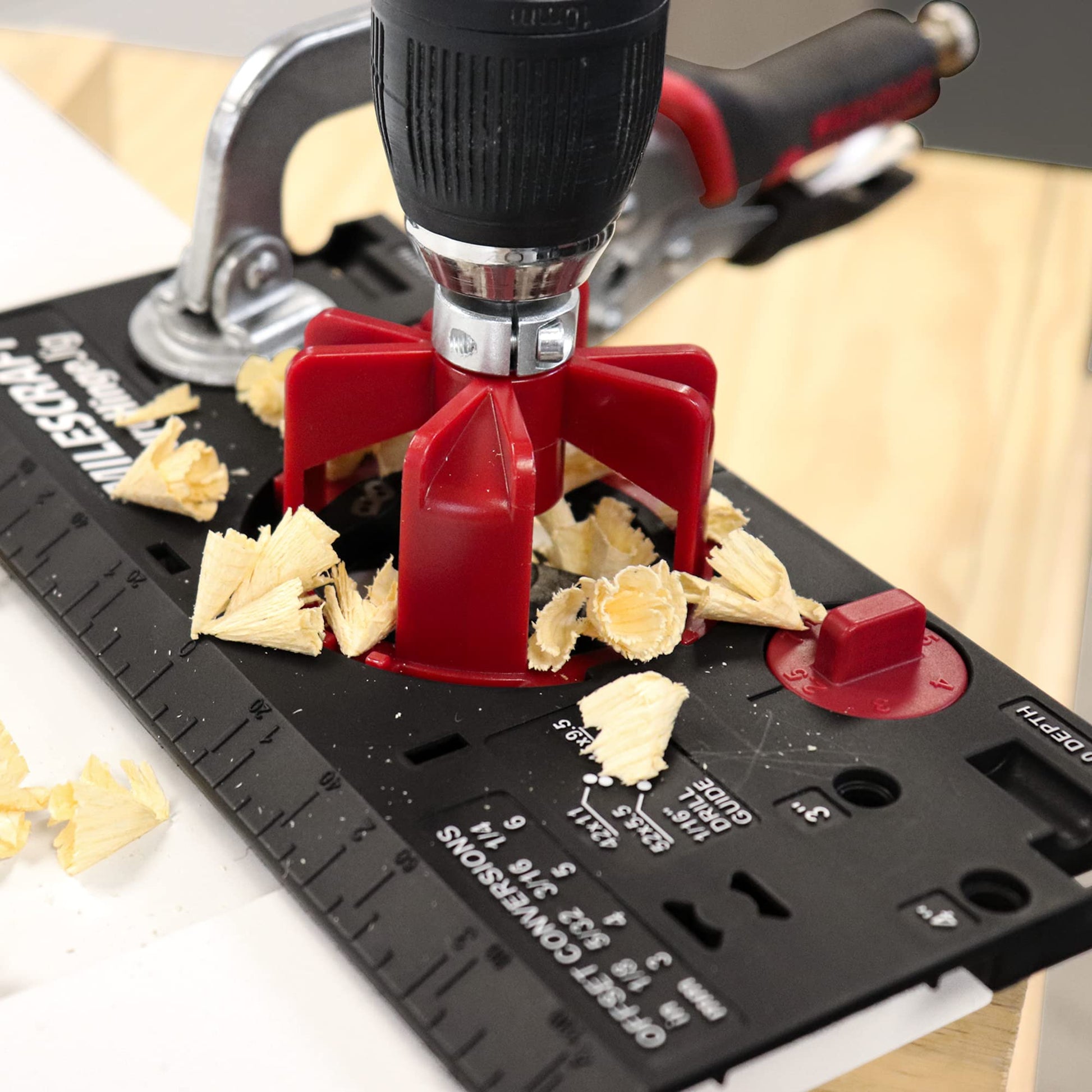

• The drill guide with metal bushing locks into jig and creates a perfectly straight hinge cup hole
• Guide bushings built into body of drilling jig leta you pre-drill pilot holes in 4 common locations, making sure hinges are straight and door closes true. The 1/16" diameter drill bit for pilot holes is included.
• Easily set your cup hole depth on the included 35mm drill bit using the built-in depth setting fixtures on the left and right side.

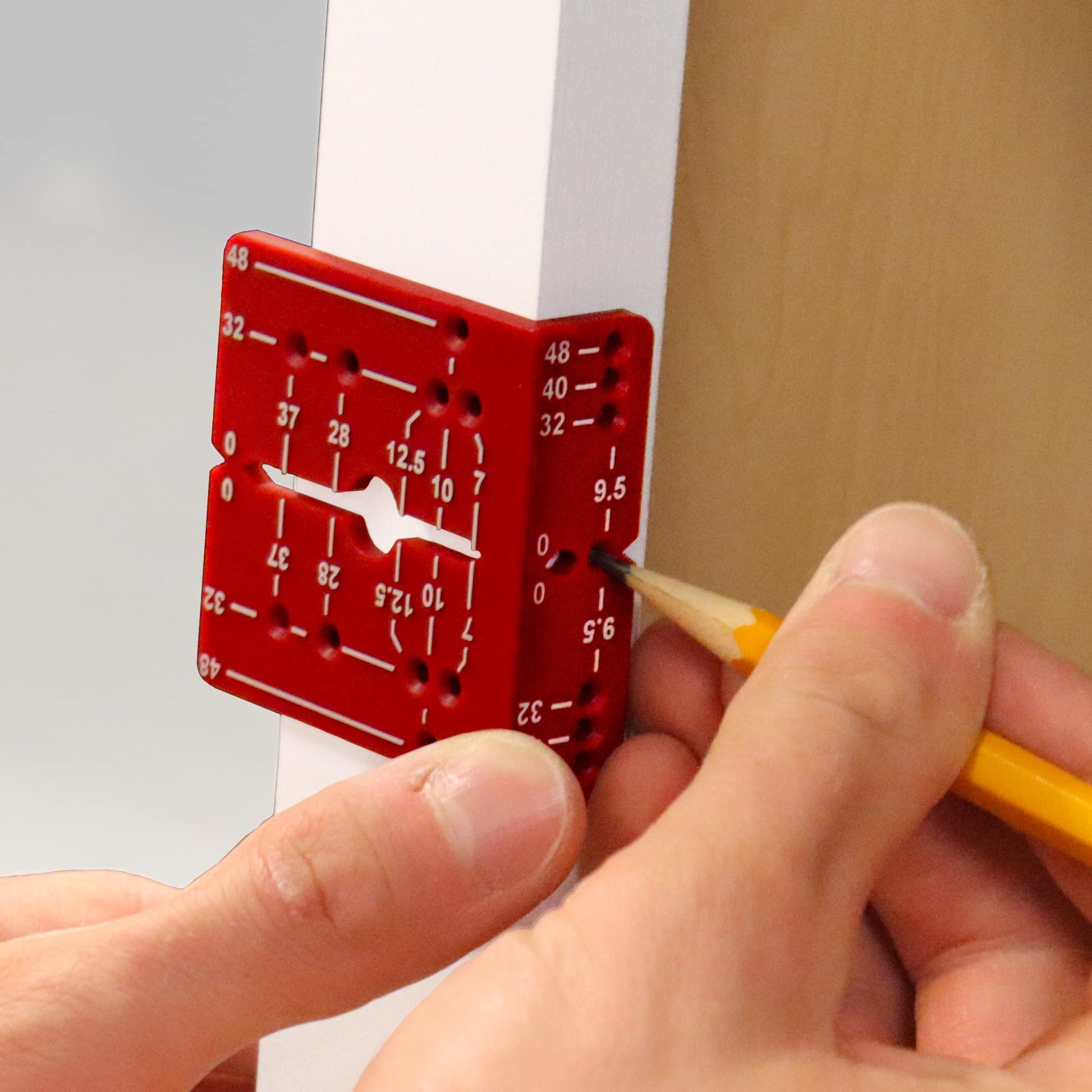

• The hinge marking guide detaches from bottom of jig and allows you to transfer and mark center lines and hinge location to cabinet wall or frame

model number: 1342

Part Number: Milescraft - 1342

EAN: 0737888134205

Package Dimensions: 13.5 x 5.2 x 2.4 inches
