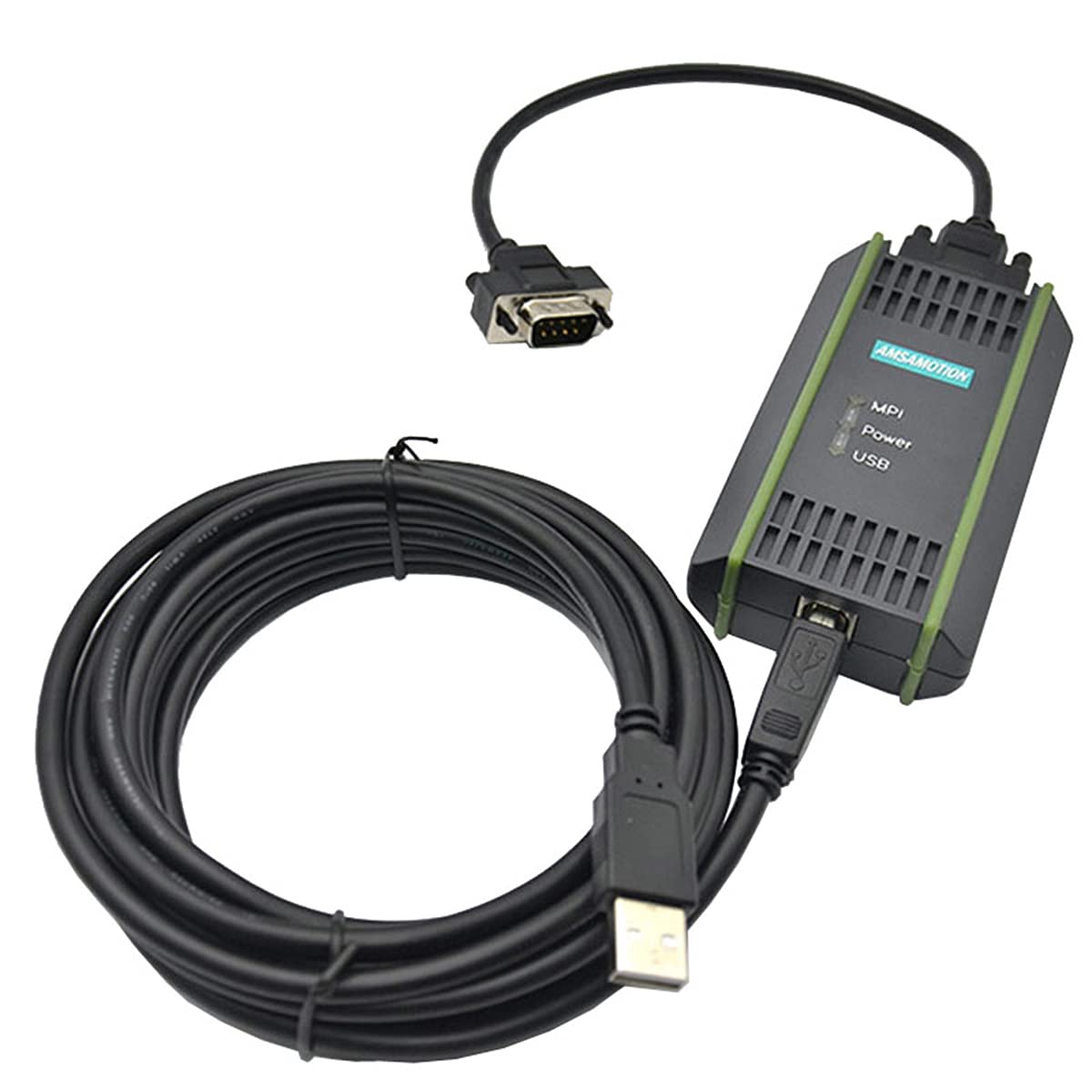

MIFXIN PLC Cable Compatible with Siemens S7 200/300/400 6ES7 972-0CB20-0XA0 USB-MPI+ PC USB-PPI

Brand: MIFXIN

Color: Black

Features:

• Compatible with Siemens S7-200 / 300/400 PLC communications. The signal partially isolated by high-speed optical coupling.
• Support for MPI and DP multi-master communication, compatible with Siemens touch screen. Support 840D CNC system programming.
• The installation of Siemens original driver, without generating serial, USB direct selection. Support for multi-master communication 200PLC and ET200 communications, and PPI.
• Support WIN7 32 and 64 series, support V5.5 software (no need to install the drive in V5.5). Support a variety of high-end communication Siemens PLC.
• There are soft shell protection, anti-pressure, drop. The choice of PTC resettable fuse, overvoltage, overcurrent, short circuit case well protected internal circuitry.

model number: cnc0112

Part Number: cnc0112

Details: Main parameter:
1. Support 0CB20 eight generations of operating systems: Windows2000/ Win 2003 / Windows XP / Vista / windows 7 32bit / 64 bit
2. Support 0CB20 eight generations of programming software version: STEP7 V5.2 and higher, STEP7 Micro / Win 4.0 and above
3. Full-speed USB device interface, compatible with USB V2.0 specification
4. Power: USB bus powered, power consumption of about 100mA, with overcurrent protection and surge protection
5. Optical Isolation voltage: 1000VDC
6. USB port with anti-surge protection
7. Support for MPI baud rate: 19.2Kbps, 187.5Kbps automatically adapt
8. Support PPI baud: 9.6Kbps, 19.2Kbps, 187.5Kbps automatically adapt
9. Support for long-distance communications, the maximum communication distance of 1000 m (RS485 end, when the baud rate is 187.5Kbps)
10. LEDs with power, data reception indicator, the data transmission indicator
11. Each PC only supports a programming cable 0CB20 Yashiro
12. Working temperature: -20 ~ + 75℃
13. Cable length: 5 m
Package Included:
1 x Box
1 x 5m Electric Cable
1 x Interface Cable

EAN: 6920836620606

Package Dimensions: 7.2 x 5.6 x 1.8 inches
