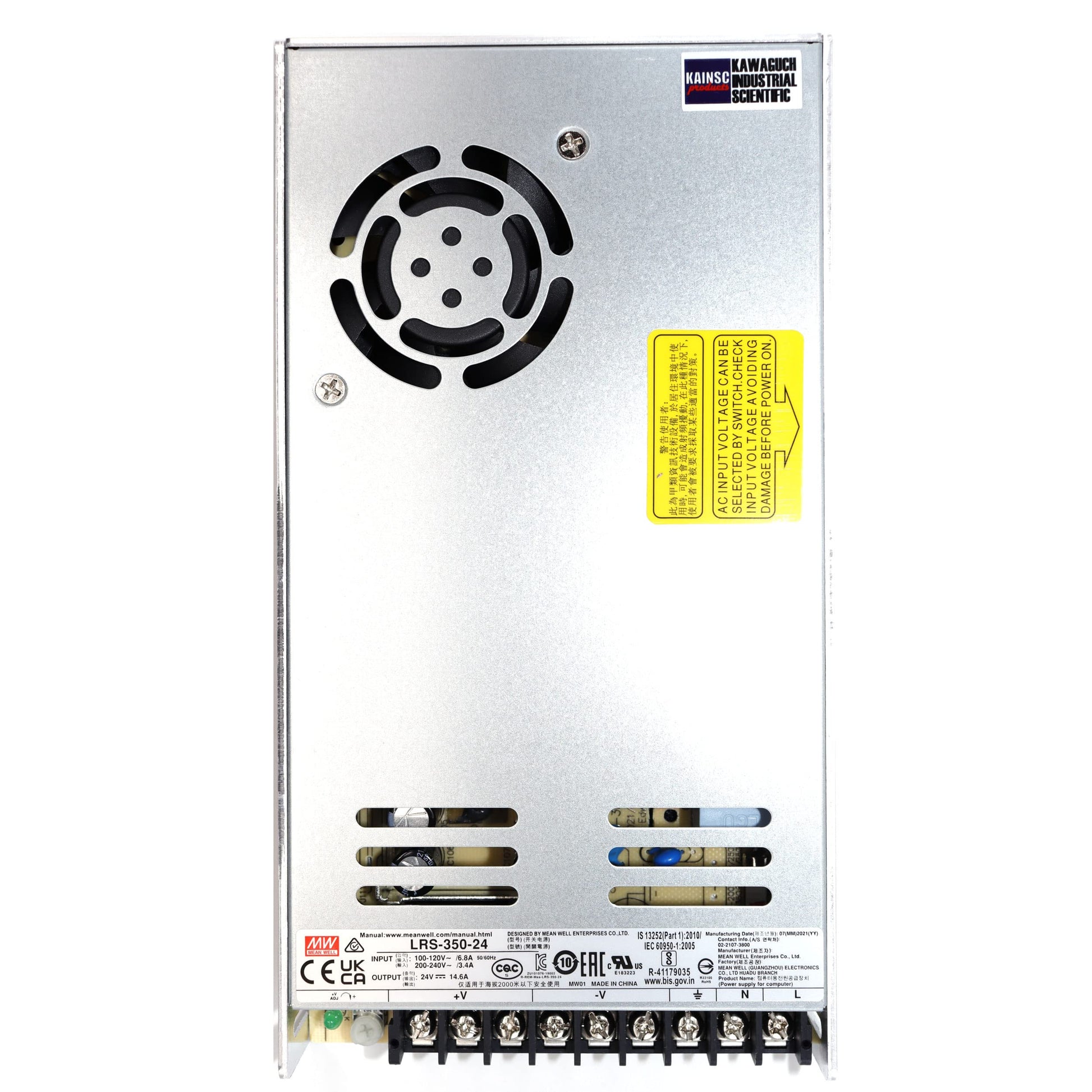

Mean Well LRS-350-24 AC/DC Switching Power Supply 350.4W 24V 14.6Amp Single Output Provided by KAINSC Products

Brand: KAINSC PRODUCTS KAWAGUCH INDUSTRIAL SCIENTIFIC

Features:

• Output Voltage: 24V; Rated Current & Rated Power: 14.6A, 350W
• Input Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC by Switch; Input Switch Default On 115VAC
• UL and CE Certificated; Output Voltage adjustable range: 21.6~28.8 VDC; Ripple & Noise (max.): 150mVp-p (measured at 20MHz of bandwidth by using 12” twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)
• Built-in cooling FAN ON-OFF control, RTH3 Reaches 50℃, FAN ON, Under 40℃, FAN OFF
• Full Protections: Short Circuit / Overload / Over Voltage /Over Temperature

model number: LRS-350-24

Part Number: LRS-350-24

Details: Ensure optimal performance of your 3D Printer or CNC machine with the use of this LRS-350-24 AC to DC power supply from MEAN WELL.
It has a voltage of 24 V and maximum output power of 350.4 W.
This part's single output can handle a current up to 14.6 A.
This part has a temperature range of -30 °C to 70 °C.
EU RoHS: Compliant
ECCN (US): EAR99
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 14.6
Output Power (W): 350.4
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5%
Load Regulation: 0.5%
Maximum Input Current (A): 6.8(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV(Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 760
Pin Count: 9
Mounting: Chassis
Package Height: 30mm
Package Length: 215mm
Package Width: 115mm

EAN: 0645312123339

Package Dimensions: 11.3 x 6.0 x 3.0 inches
