MC4 Solar Connectors 30 Pairs/60pcs Solar Panel Cable Connectors Waterproof IP67 1000V 30A Male/Female Connector with 2 Pack Wrenches

Brand: LEPITERY

Color: Black

Features:

• PACKAGE INCLUDED: 30 pairs of solar panel connectors (Male & Female) and 30 pairs of solar connector pins (Male & Female) + 2pcs spanners
• MATERIAL: Made of PPO insulation material, contact material is tin-plated copper. It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load
• HIGH CARRYING CAPACITY: 1000V DC rated voltage, 30A rated current, IP67 water proof level, Flamebility rating is UL94-V0. The waterproof ring on the connection is perfect to seal out water and dust to prevent corrosion
• COMPATIBLE CABLE: Solar Male/Female Connectors, compatible with different insulation diameters (2.5 m㎡~6 m㎡/AWG14-10), which is applicable to PV system installation programs
• EASY INSTALLATION: Quick and simple assembly processing and simple removal of plugs. Widely applied for household photovoltaic, small photovoltaic, and industrial photovoltaic power cable connection

model number: LPSP-012

Part Number: LP012

Details: LEPITERY 30Pairs / 60PCS Solar Connectors - Male & Female IP67 Waterproof Solar Connector

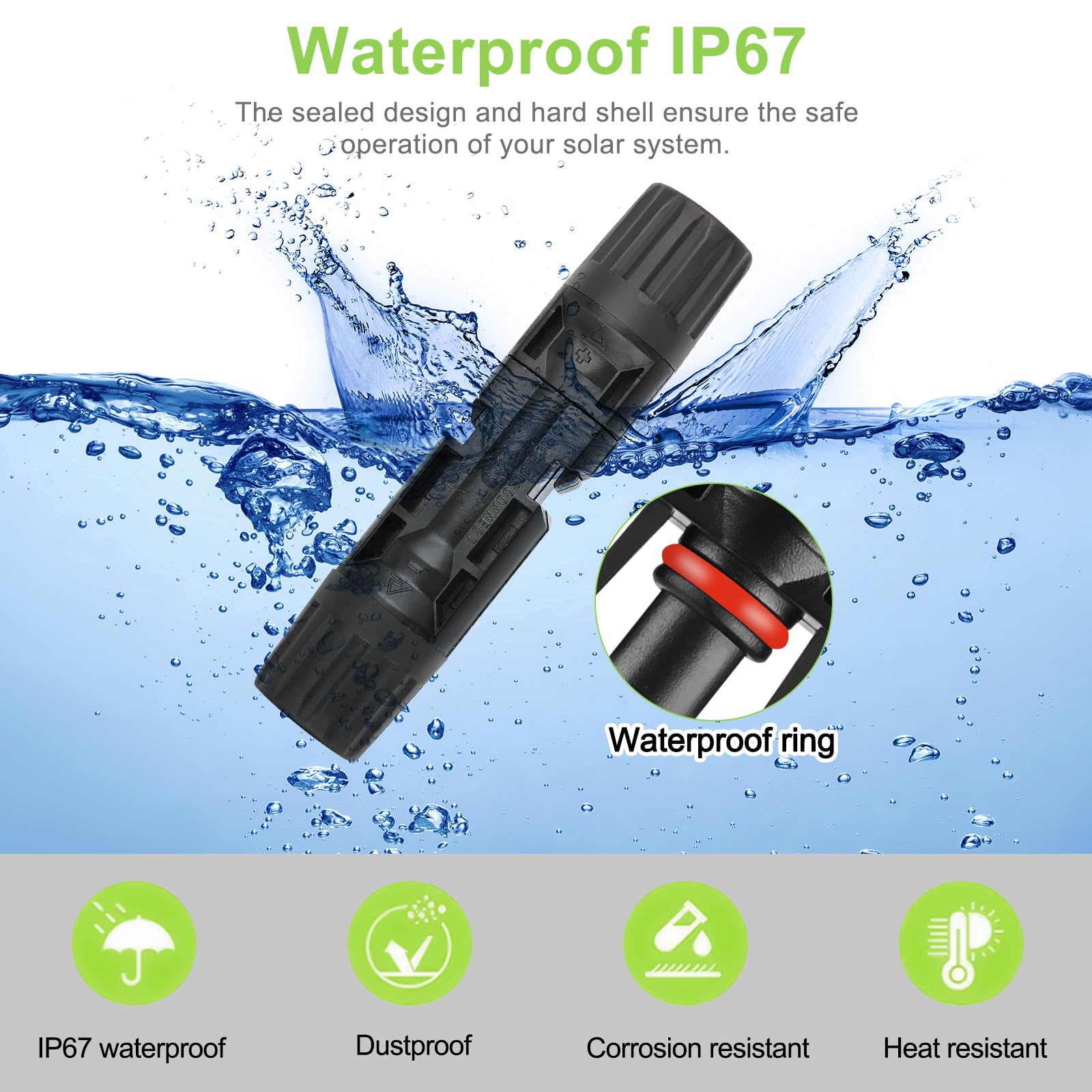

IP67 waterproof-The waterproof ring ensures that water and dust will not enter the connector during long outdoor use.

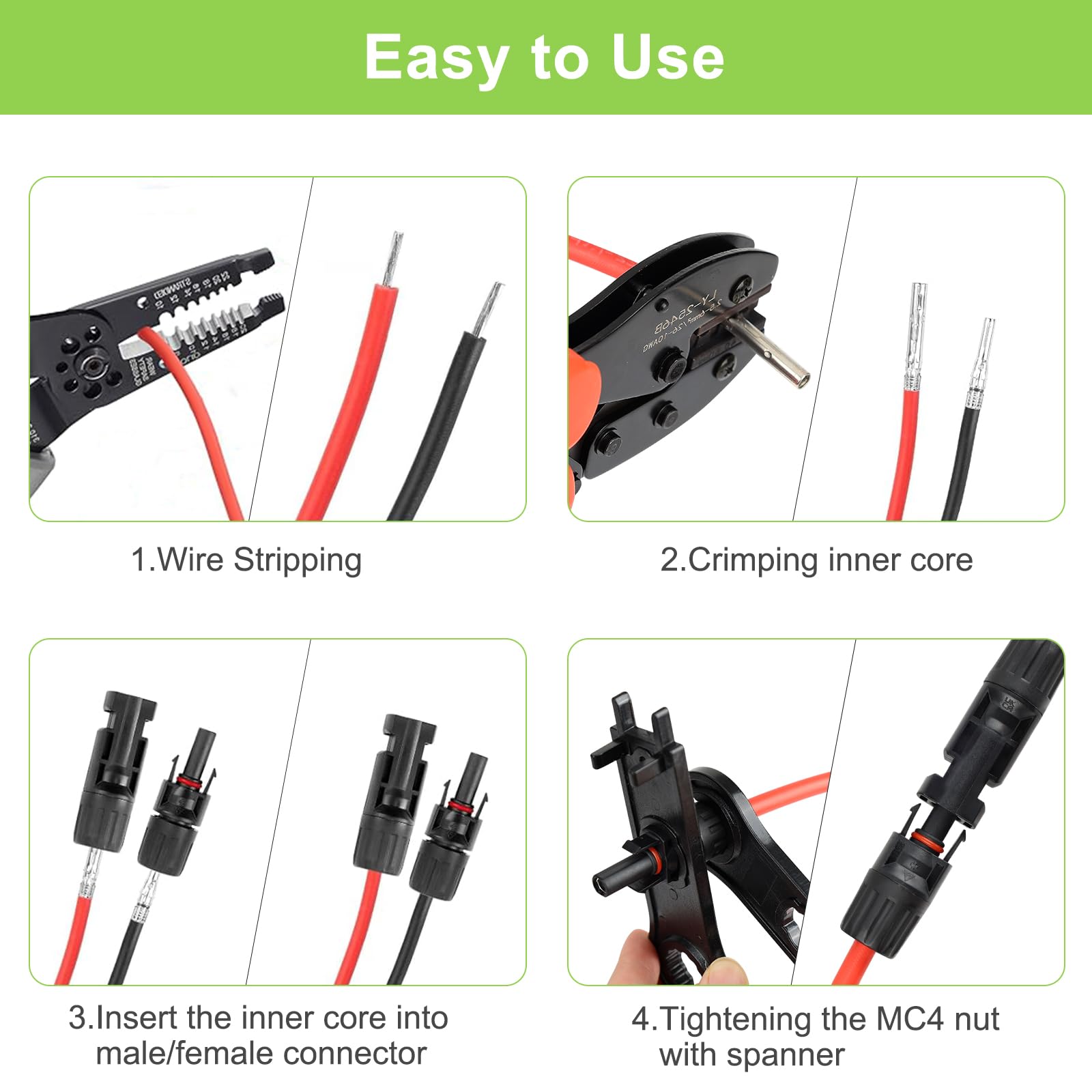

Plug and play-putting the male and female connectors facing each other and pushing in. Pressing the two sides of the built-in lock and pulling the male and female connectors.

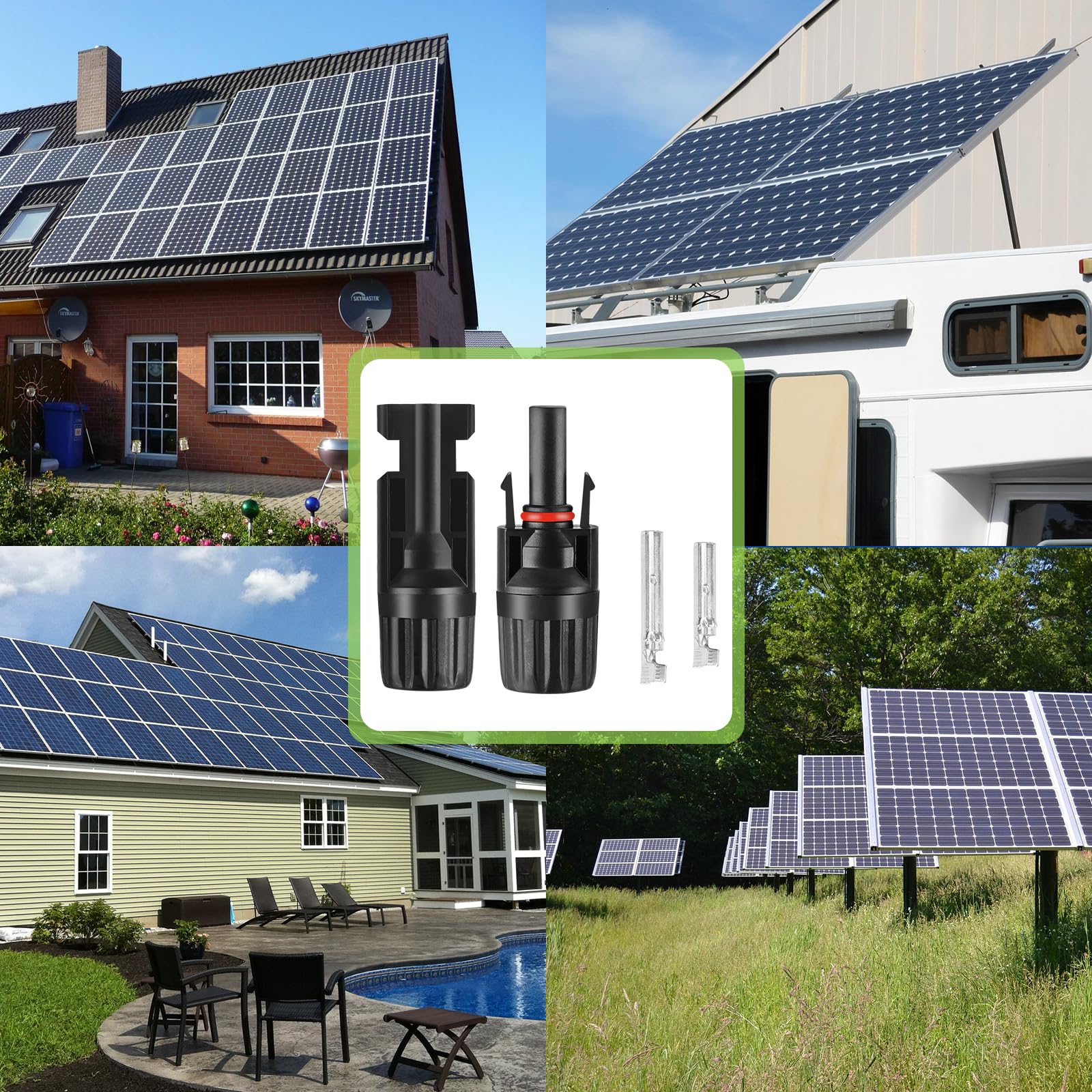

Wide applications-This connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions.

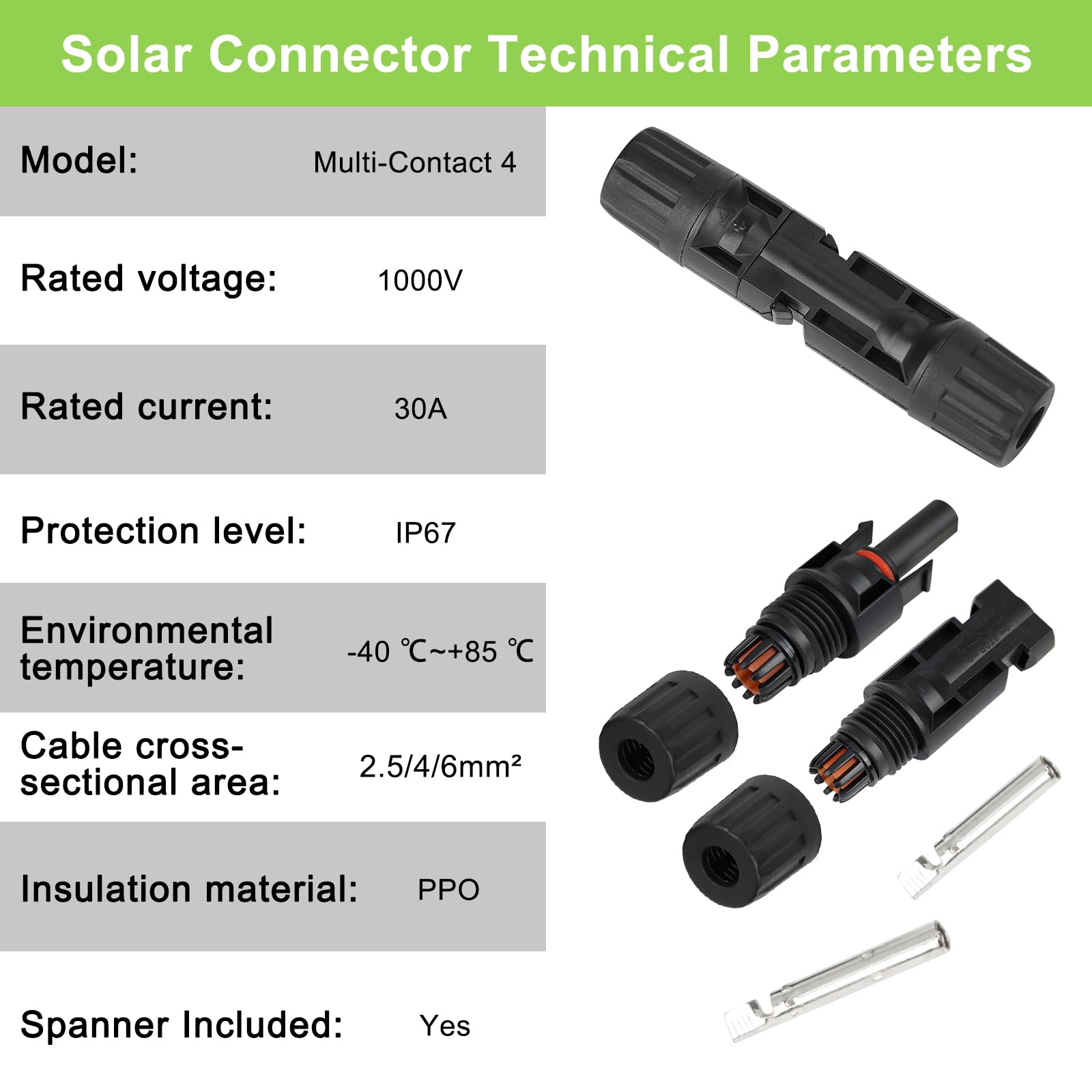

Specifications:
Insulation Material: PPO
Maximum working voltage: DC 1000V
Rated Current: 30A
Flame class: UL94-V0
Waterproof Class: IP67
Safety Class: Ⅱ
Operating Temperature Range: -40°C~ +85°C

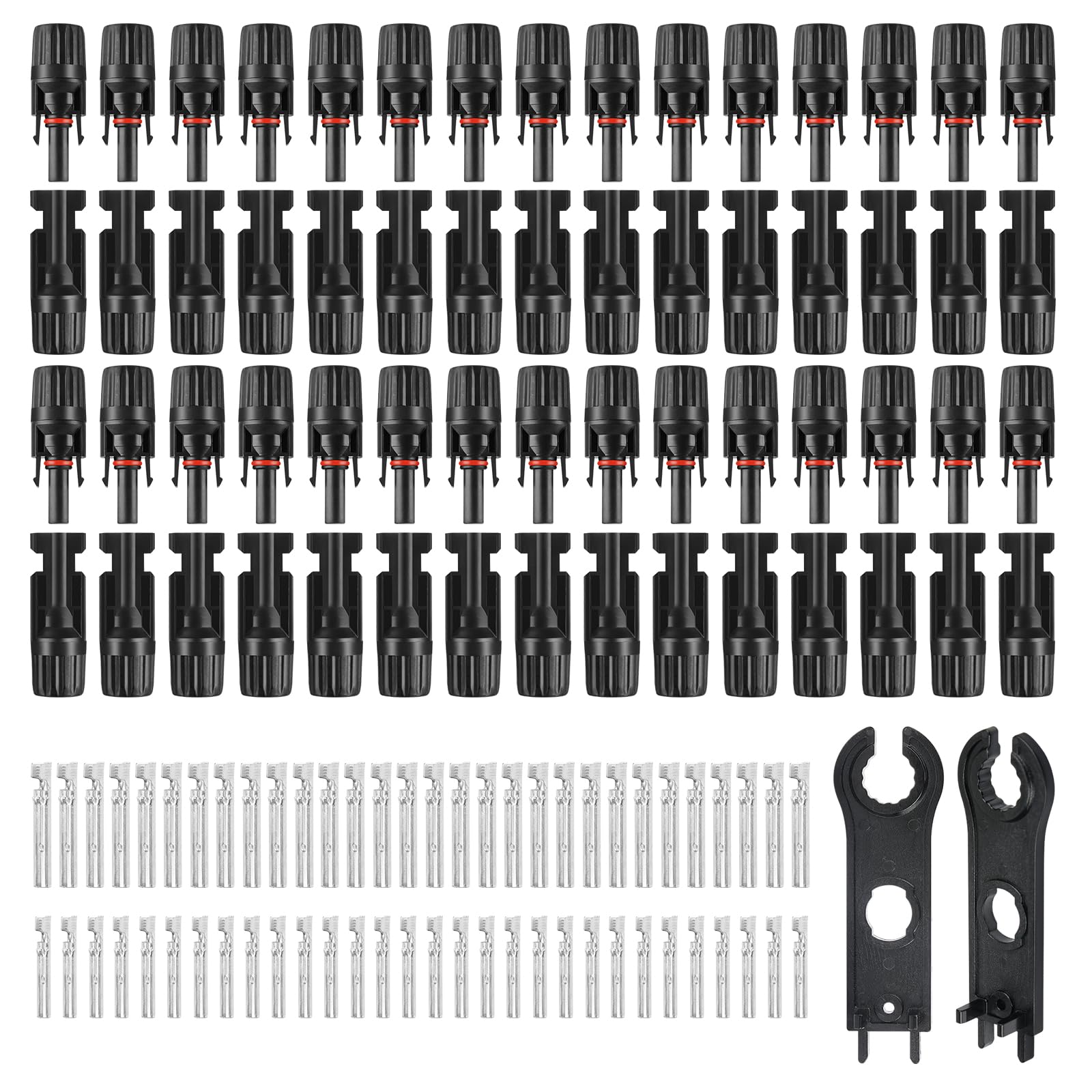

Package:
30 pairs of MC4 Male/Female Solar Cable Connectors
2pcs Spanners

Package Dimensions: 8.8 x 5.5 x 2.4 inches
