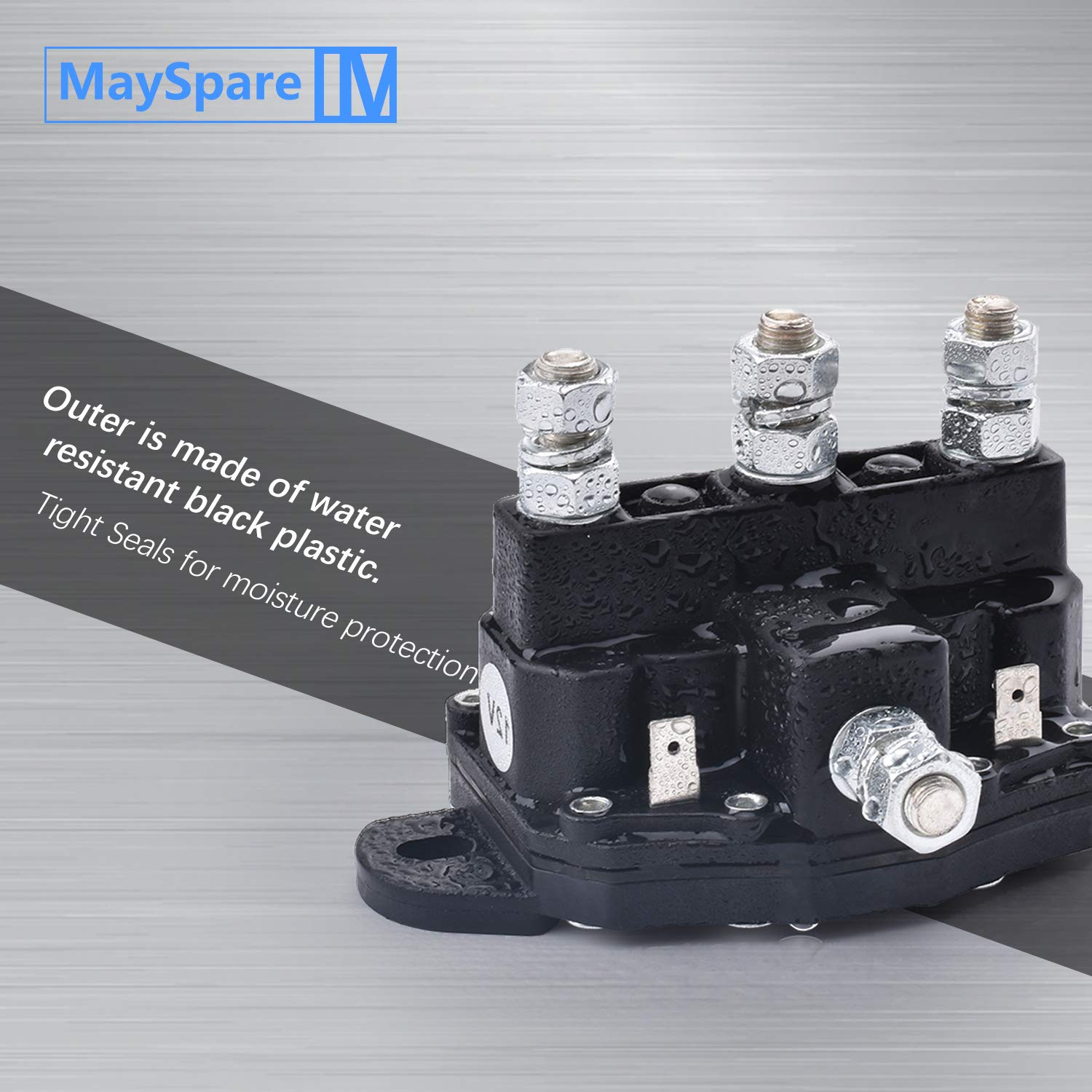

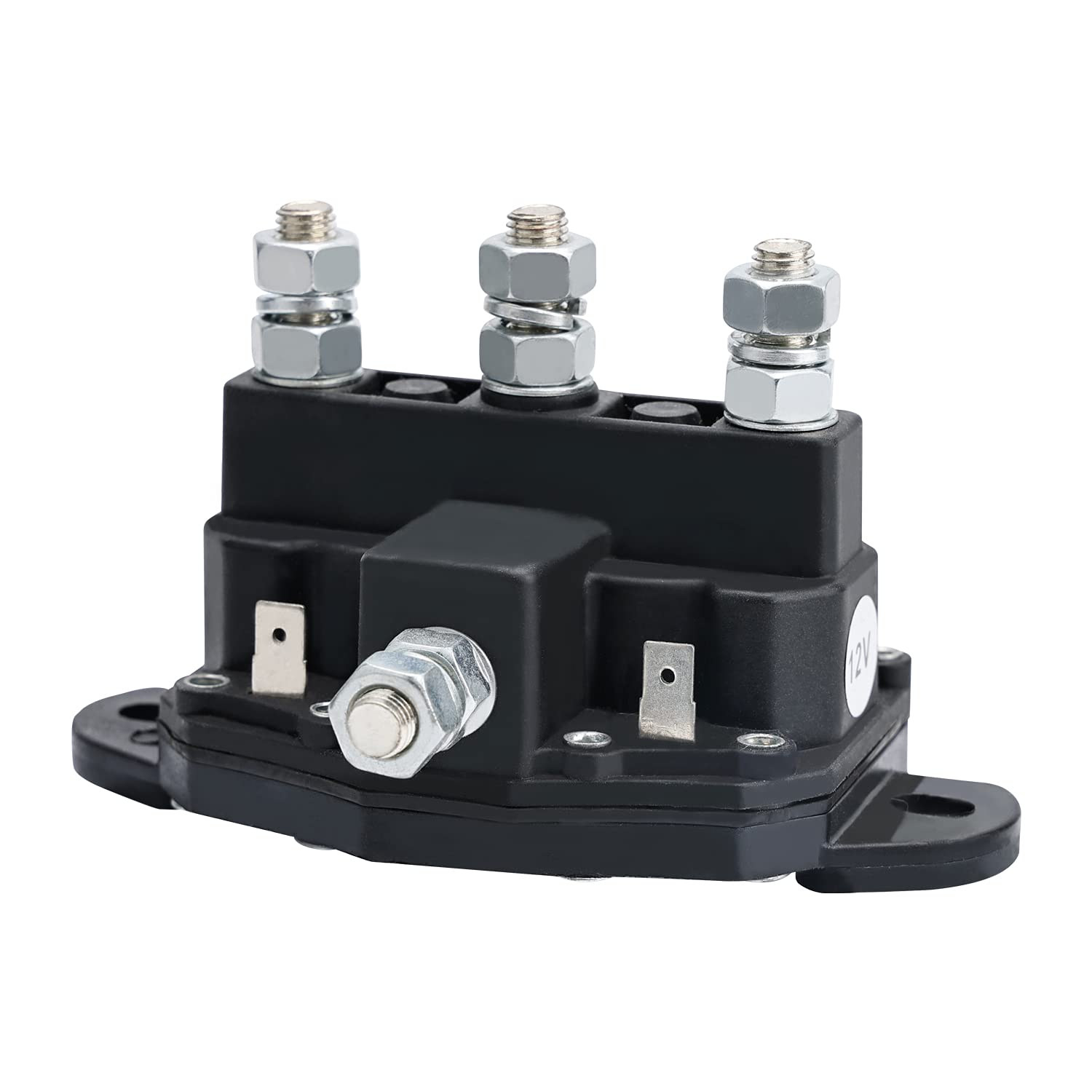

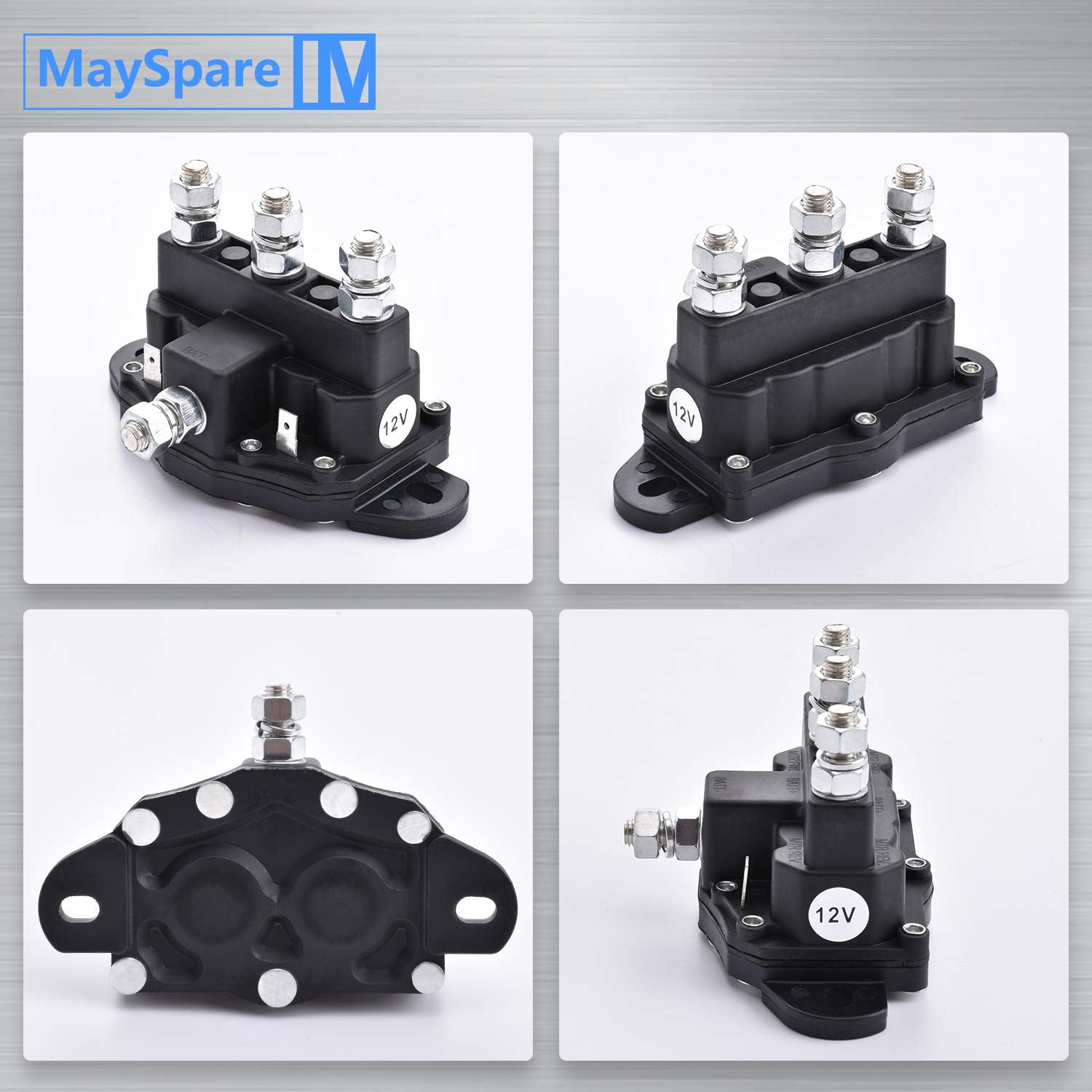

MaySpare Winch Motor Reversing Solenoid Switch Intermittent Duty Trombetta 214-1231-A11 6 Terminal 12VDC

Brand: MaySpare

Color: Black

Features:

• Voltage: 12VDC, Surge Amps: 150 A; 75 Amps for 5 Minute/ DPDT Motor Reversing
• OEM Reference: Cole Hersee 24450, 24450BX / Trombetta: 214-1211A11, 214-1211A11-06, 214-1211A51, 214-1211A61, 214-1231A11, 2141211A11, 2141211A11-06, 2141211A51, 2141211A61, 2141231A11

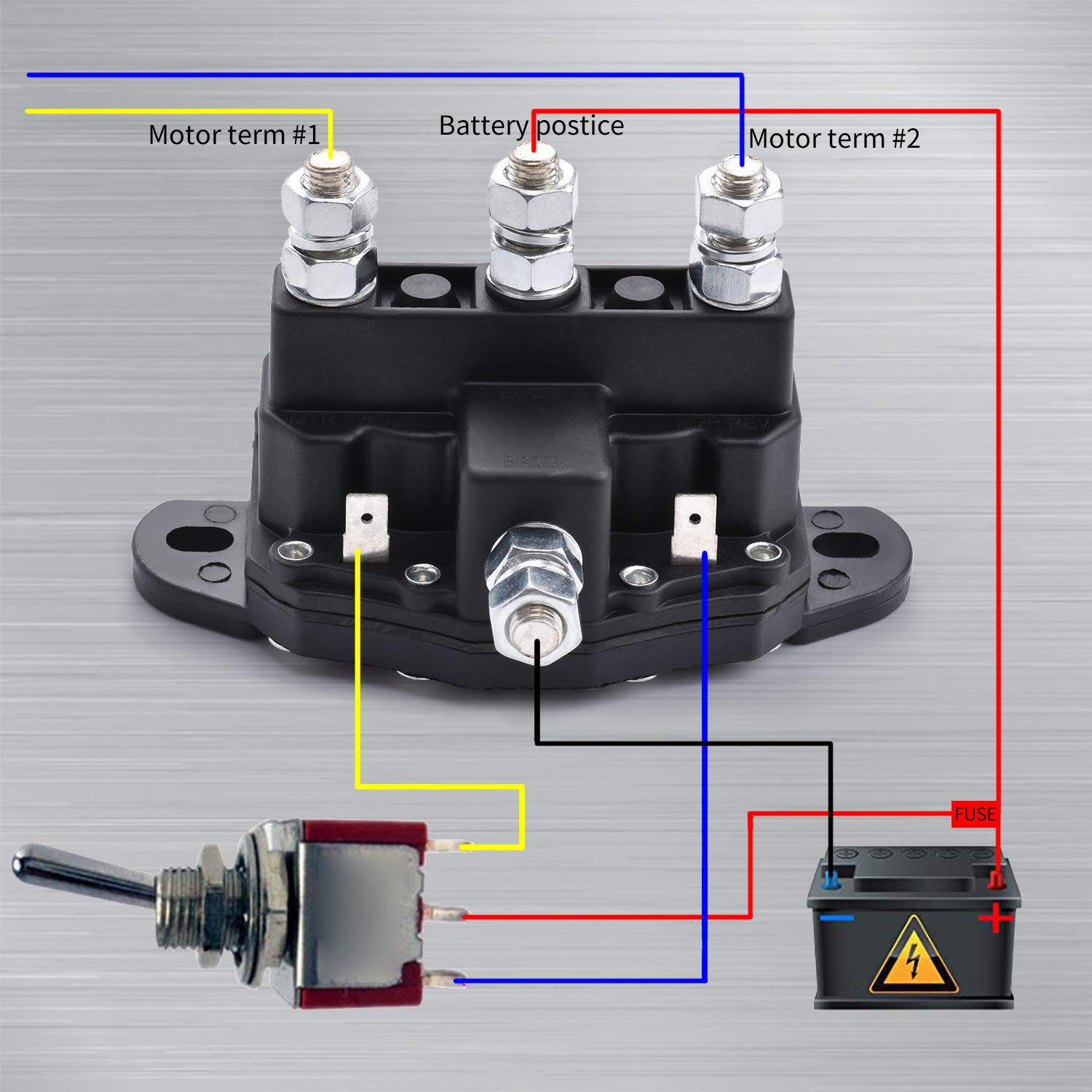

• This solenoid is used to reverse polarity on Permanent Magnet winch motors with 2 terminal post.
• Note: This solenoid ONLY works with Permanent Magnet motors. Will not work with older style motors with copper wound fields.
• **Allow 5 minute cool down time after pushing solenoid to maximum limit!**

model number: US-6 Terminal Winch

Part Number: US-6 Terminal Winch

EAN: 0727196532299

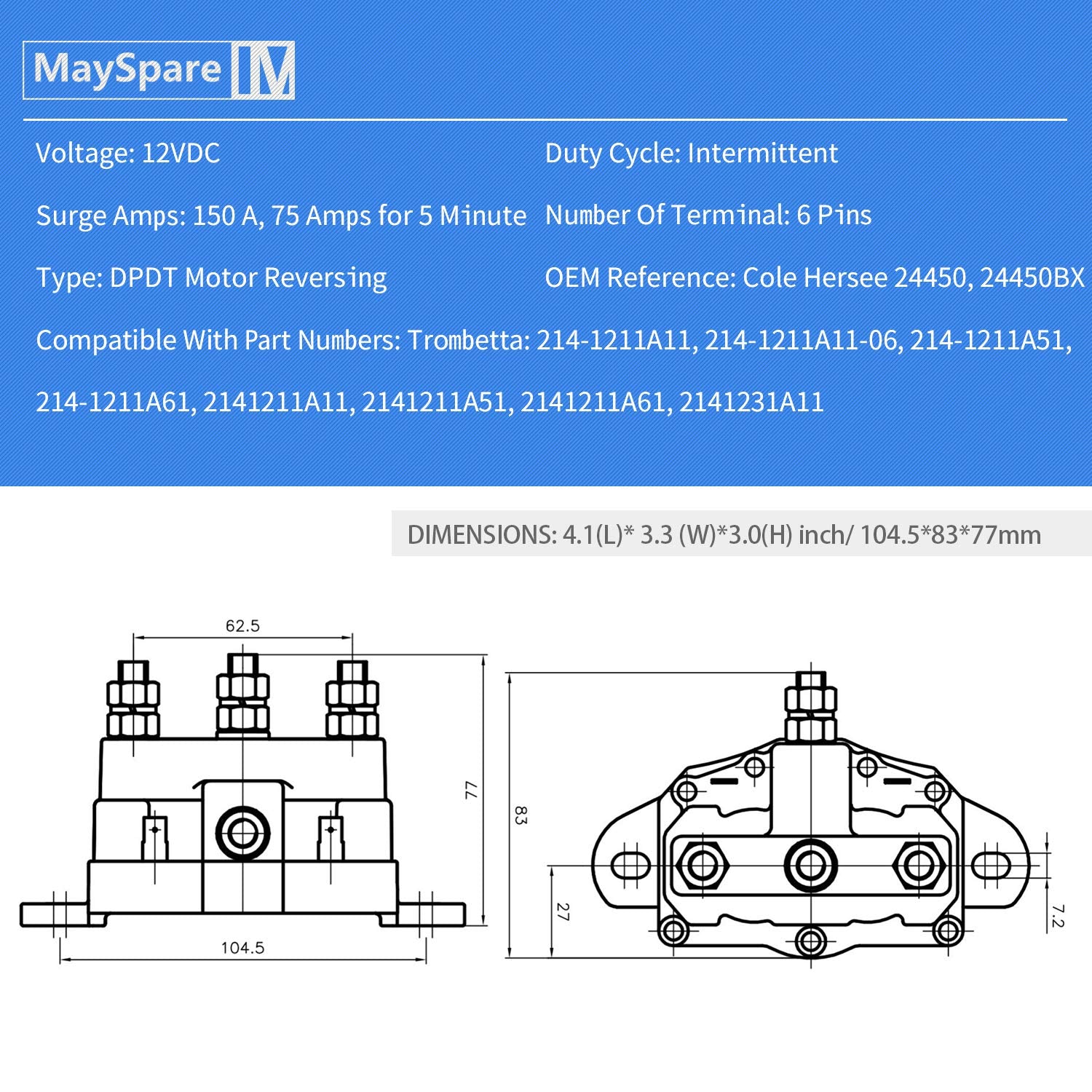

Package Dimensions: 5.1 x 3.7 x 3.4 inches
