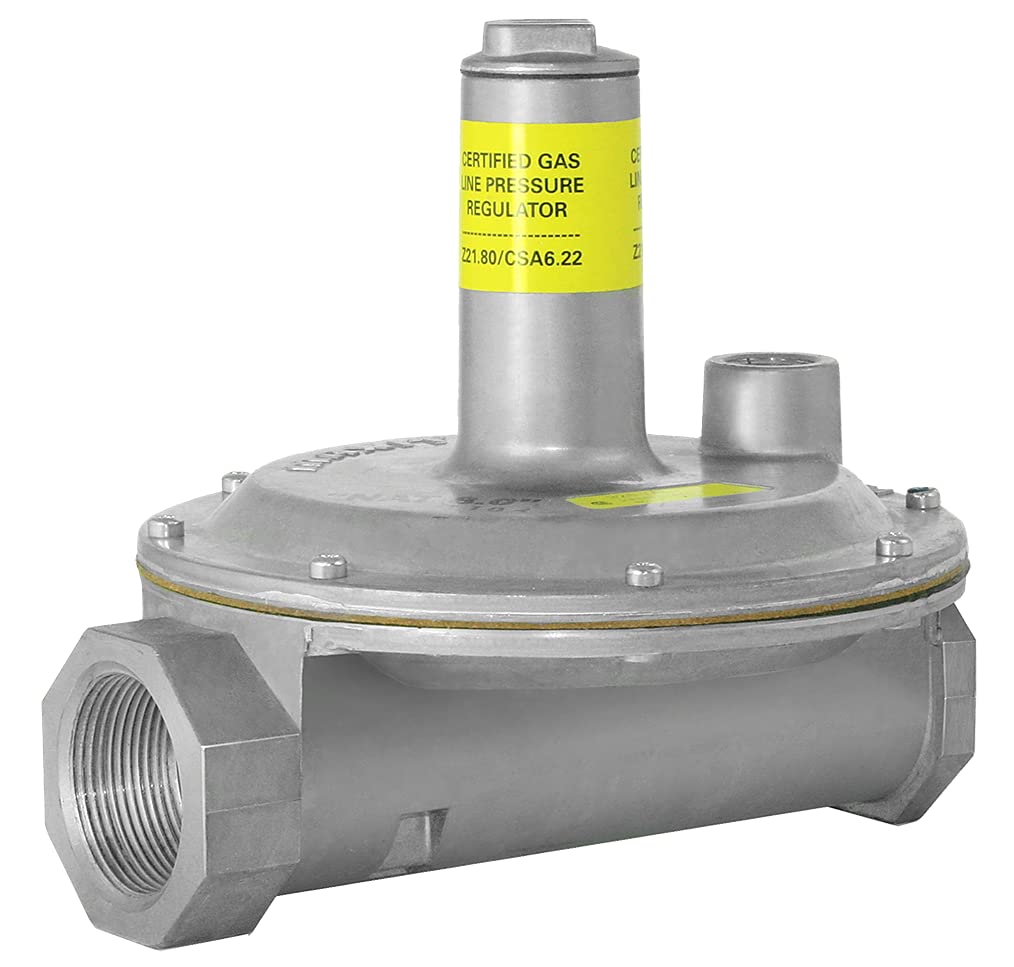

MAXITROL 325-3L (1/2" W/12A09) Regulator,Gas Pressure

Brand: MAXITROL

Features:

• ✔ Certifications: ANSI Z21.80/CSA 6.22 Line Pressure Regulators.
• ✔ Gas Types: Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.
• ✔ Maximum Inlet Pressure: 2 psi (13.8 kPa)
• ✔ Minimum Inlet Pressure: 1 psi (6.9 kPa)
• ✔ Capacity: Total load of multiple appliance combined 325-3L (3/8”, 1/2”): 250,000 Btu/h

Binding: Tools & Hardware

model number: 5824072684

Part Number: 325-3L (1/2" W/12A09)

Details: 325-L SERIES Lever Acting Design for 2 psi Piping Systems
Maxitrol’s 325-L Series line pressure regulators are for 2 psi piping systems. 325 Series regulators are for use on residential, commercial, and industrial applications. The 325 Series features a high leverage linkage assembly to deliver positive dead-end lockup. The regulators are capable of precise regulating control from full flow down to pilot flow.
MODEL: 325-3L 1/2"
Specifications
✔ Housing Material: aluminum.
✔ Mounting: Suitable for multi-positional mounting. If ball check vent limiting device is installed, mount in an upright position only. NOTE: All Maxitrol gas pressure regulators should be installed and operated in accordance with Maxitrol Safety Warning Instructions (see GPR_CSA_2PSI_MI_EN.FR).
✔ Certifications: ANSI Z21.80/CSA 6.22 Line Pressure Regulators.
✔ Gas Types: Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.
✔ Maximum Inlet Pressure: 2 psi (13.8 kPa)
✔ Minimum Inlet Pressure: 1 psi (6.9 kPa)
✔ Emergency Exposure Limits: 65 psi (450 kPa) (inlet side only)
✔ Capacity: Total load of multiple appliance combined 325-3L (3/8”, 1/2”): 250,000 Btu/h
✔ Ambient Temperature Ranges: -40 to 205°F (-40 to 96°C)
✔ Minimum Regulation: Suitable for pilot flow applications. (Circle P) (0.15 CFH NG).
✔ Imblue Technology™: 325-3L, 325-5L, 325-7AL, 325-9L models may be ordered with Imblue Technology™. Imblue Technology™ increases corrosion resistance and provides extra protection against the elements for regulators used in outdoor applications. Add suffix letter “B” to model number when ordering.

EAN: 0094700500700

Package Dimensions: 5.8 x 5.2 x 3.7 inches
