MAXECO-AC110V Self Priming Water Pressure Diaphragm Pump 40PSI 4.5GPM 17L/min,Soft & Noiseless Booster Pump Sprayer for Home/Misting/Caravan/RV/Boat/Marine (Ship from Canada,Tax Included

Brand: MAXECO

Color: Black

Features:

• 1.Technical Parameters: Voltage-110V/1AMP ; Max Shut off Pressure-40PSI ; Max Open Flow-17LPM /4.5GPH ; Maximum head-25m.
• 2. Self-priming 9 Feet: Allows for usage even if located above water tank. Positive displacement diaphragm pump, capable of being run dry.

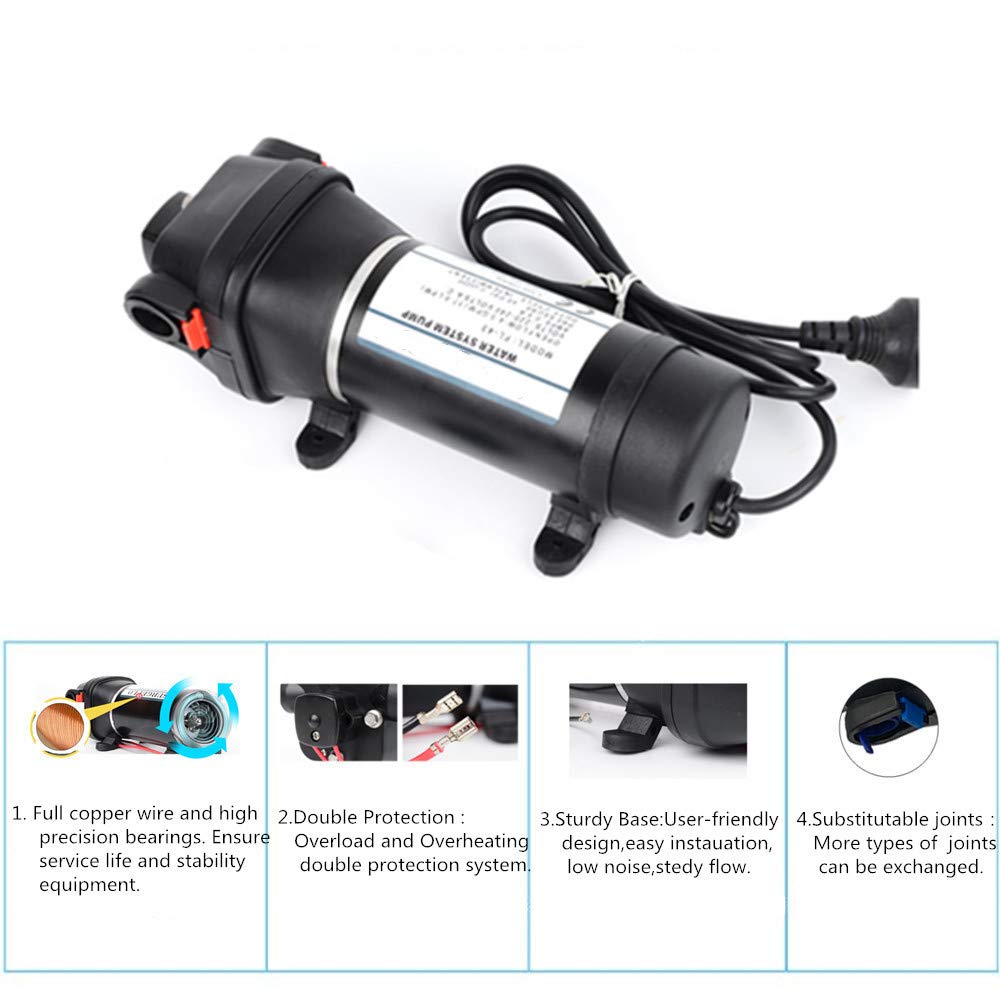

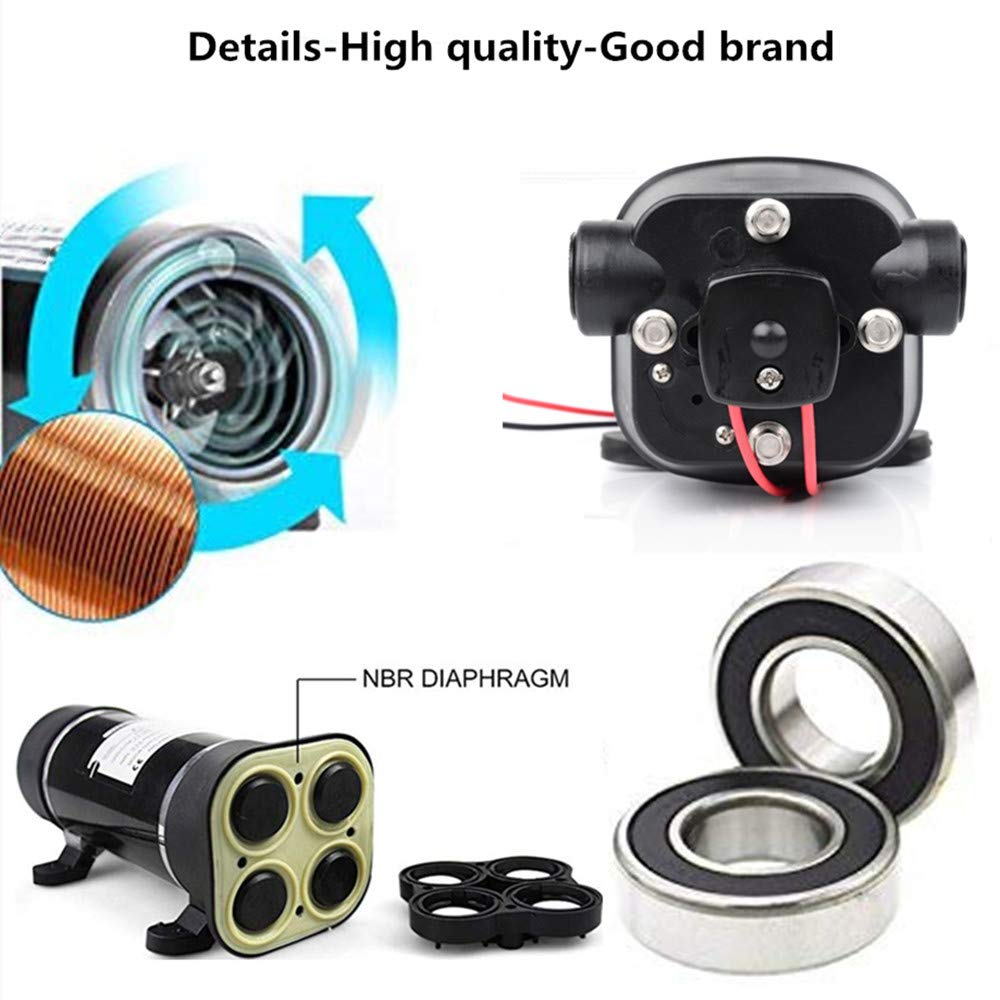

• 3. High Quality : 100% full copper wire high-quality motor,long service life, no leakage, quiet operation. Changeable pressure switch. Spare parts supported.
• 4. Double Protection: Sealed pressure switch automatically turns the pump off when pressure builds up.Built-in thermal protector.Thermal overload protection automatically stops motor should it overhear due to overload, with auto re-start feature.
• 5. Application:Marine yachts, RVs,automobiles,household,general industry, agricultural misting ,catering services,distillation equipment,boats, and vans.

model number: AC110V

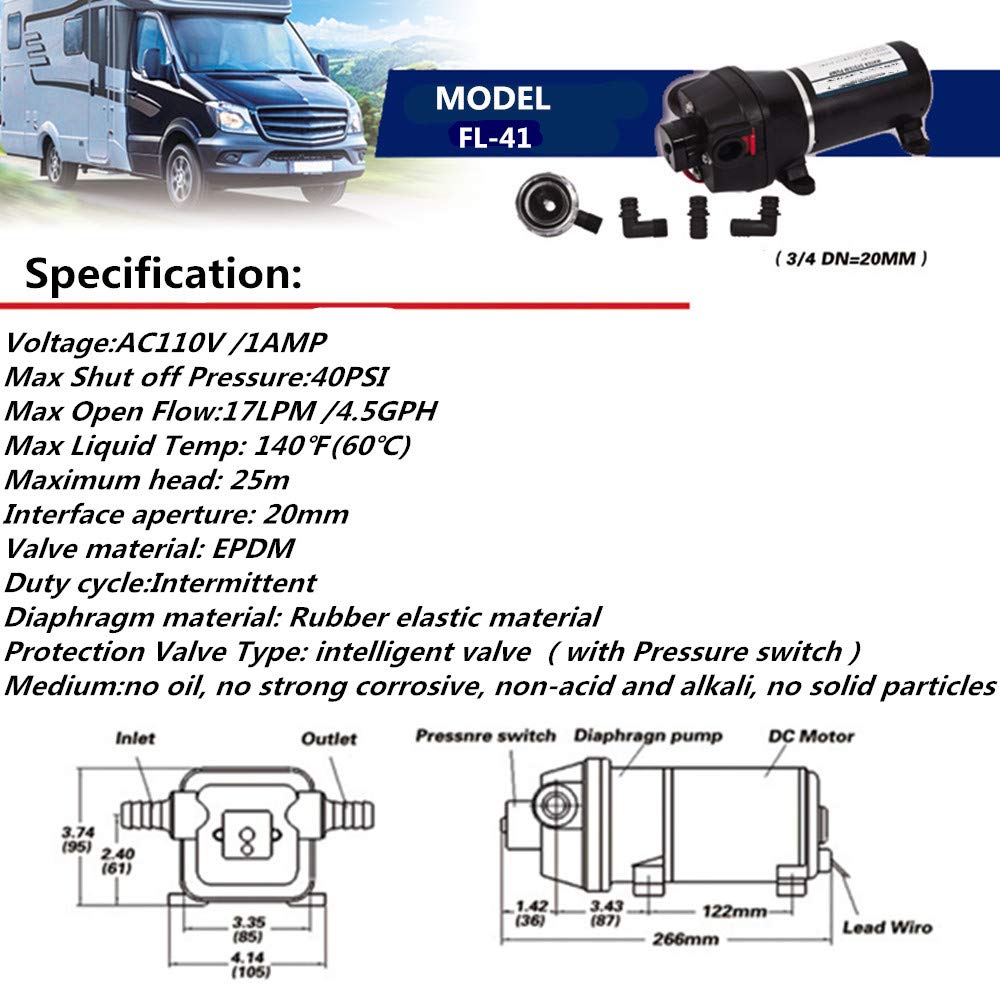

Details: Specification:
Voltage:AC110V /1AMP
Max Shut off Pressure:40PSI
Max Open Flow:17LPM /4.5GPH
Max Liquid Temp: 140℉(60℃)
Maximum head: 25m
Interface aperture: 20mm
Valve material: EPDM
Duty cycle:Intermittent
Diaphragm material: Rubber elastic material
Protection Valve Type: intelligent valve （with Pressure switch）
Medium:no oil, no strong corrosive, non-acid and alkali, no solid particles

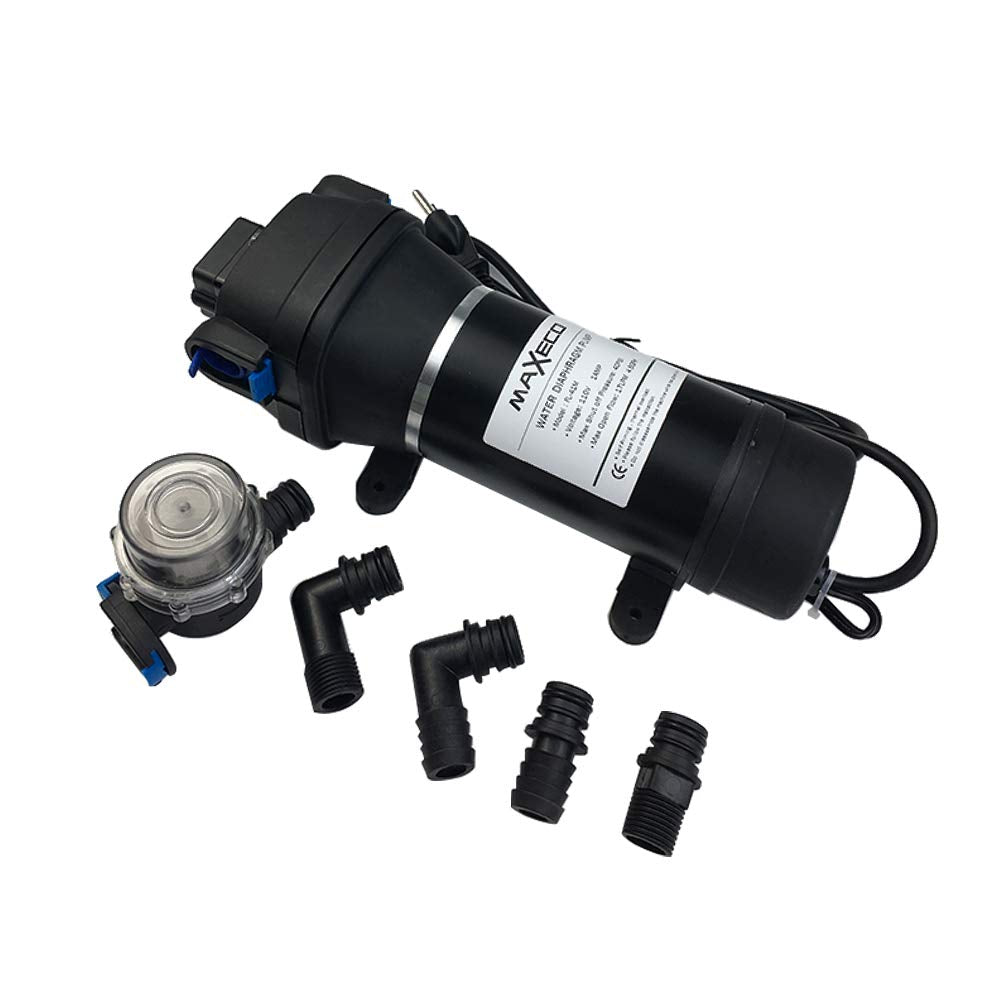

Package includes:
◆Water diaphragm pump
◆ Instruction
◆3/4"Pagoda-Type 90 degree Bending joint
◆3/4"Thread-Type 90 degree Bending joint
◆3/4"Pagoda-Type straight joint
◆3/4"Thread-Type straight joint
◆3/4 "The Filter of Connector
Features:
-Runs dry without damage.
-Overload and overheating double protection system.

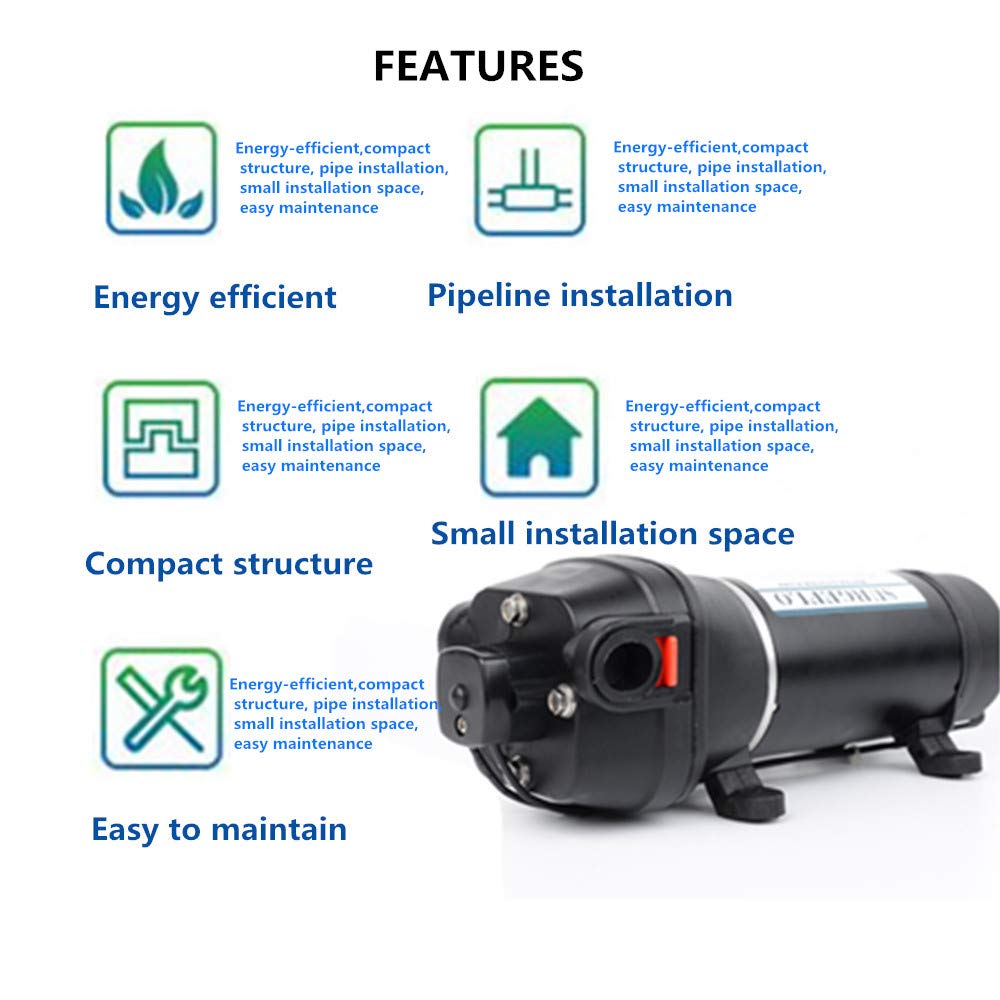

-Light and small,low noise,high flow,sturdy base, energy efficient,steady operation.
-Numerous fittings options for greater mounting flexibility.
-Positive displacement pump,industry standard mount pattern.
-Application:marine yachts, RVs, automobiles,household,industry, agricultural misting etc.
Note:
▲Please clean it regularly in case of debris blockage.
▲Provide appropriate pressure adjustment to the switch.
▲Never use a high pressure for your flow pump to fit a thin sprayer. Can not dry for extended periods of time.
▲Intermittent work. Built-in thermal protector.A single continuous work 60-90 minutes, cooling 15-20 minutes to work again.
▲Improer Pressure may cause server overload or vibration. Keep the pressure value not lower than 40 PSI, otherwise the device will start and stop frequently, which will cause motor damage.
▲Rated flow is 4.5GPH. Long time operation at small flow/leakage would damage pressure switch very quickly. Choose the correct pump according to system flow and pressure when you use it for same application.

EAN: 0791313260778

Package Dimensions: 14.4 x 5.4 x 4.2 inches
