LINOVISION POE Ethernet Over Coax EOC Converter Max 1000m Power and Data Transmission Max100Mbps Over Regular RG59/6 Coaxial Cable for Upgrading to IP Surveillance System in Elevator/School/Cinema etc

Brand: LINOVISION

Color: White

Features:

• 【PoE & IP OVER COAX CONVERTER】LINOVISION’s POE IP Over Coax converter can be used to upgrade analog system to IP surveillance system while using existing coaxial cable. Compatible with RG59, RG6, RG11 cables. Supports POE standards 802.3af (PoE) and 802.3at (PoE+). EOC Receiver MUST be powered by POE switch or POE injector while Transmitter should be connected with POE devices or NON-POE devices

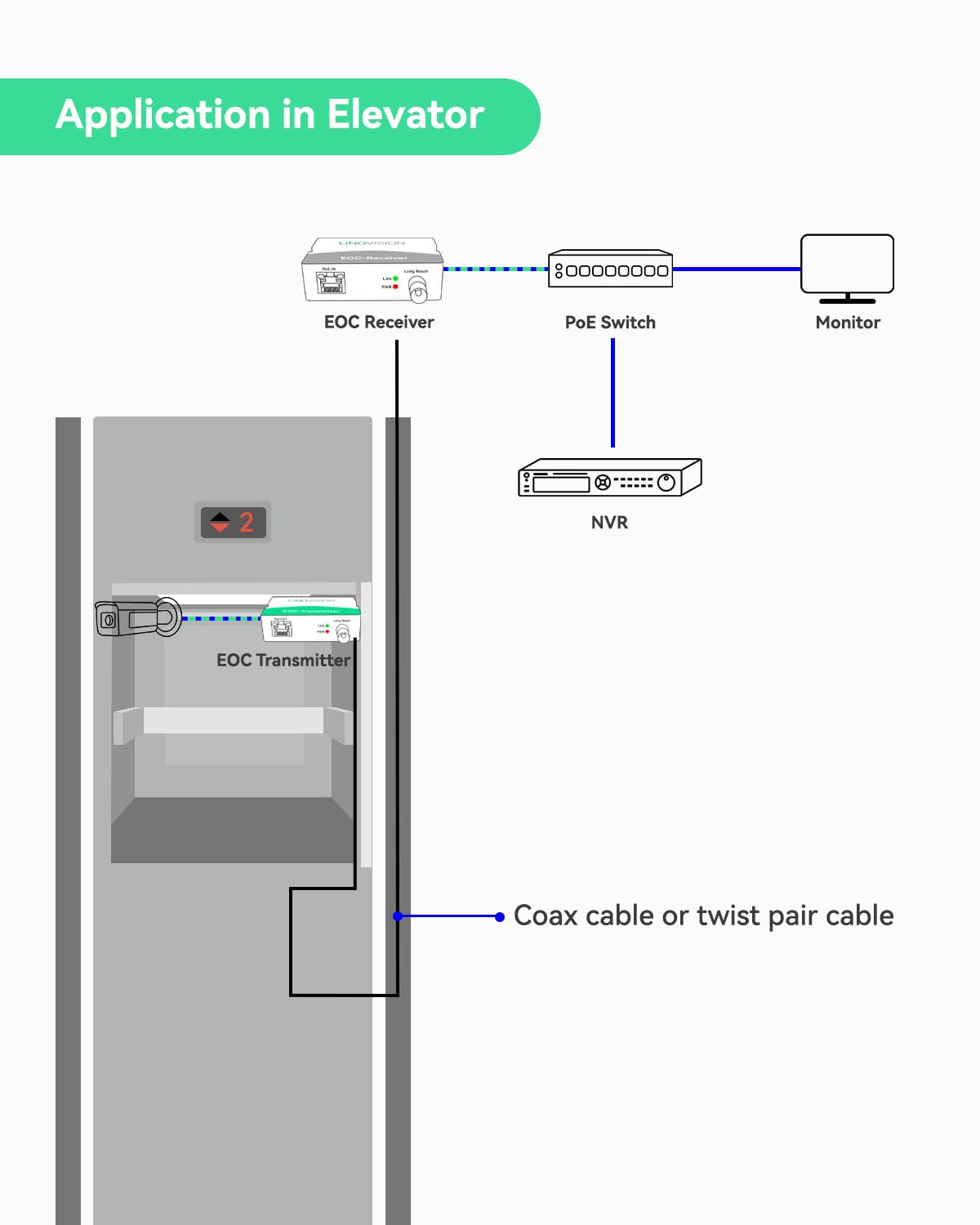

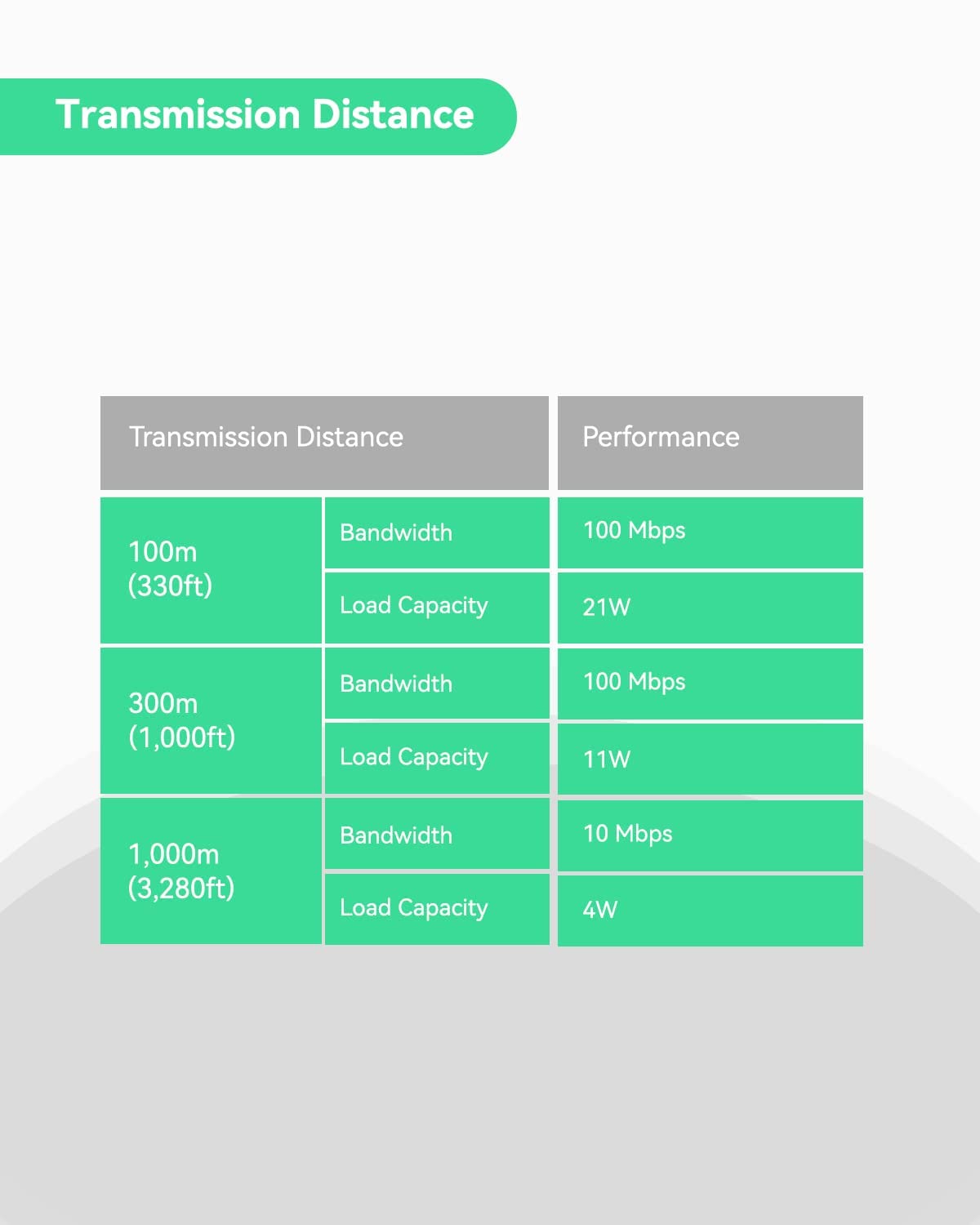

• 【POE & IP OVER TWIST PAIR CONVERTER】Each pair of EOC Converter is equipped with 2 BNC to Twist Pair connectors, which enables POE over Twist Pair transmission. 100Mbps bandwidth over 330ft(100m) regular twist pair cables while 10Mbps over 1485ft(450m) for both POE or NON-POE devices. It’s ideal for the CCTV system in elevator cart.

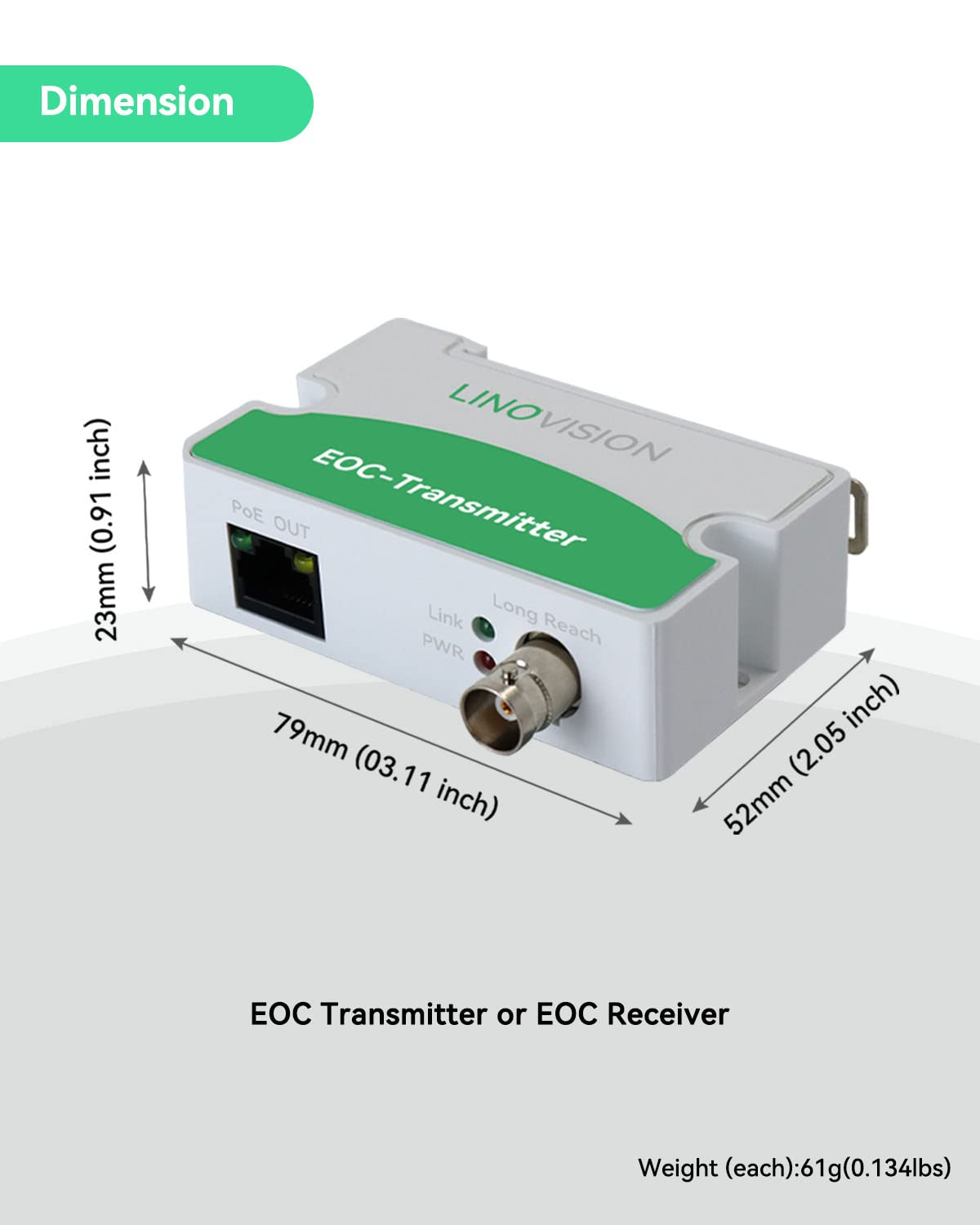

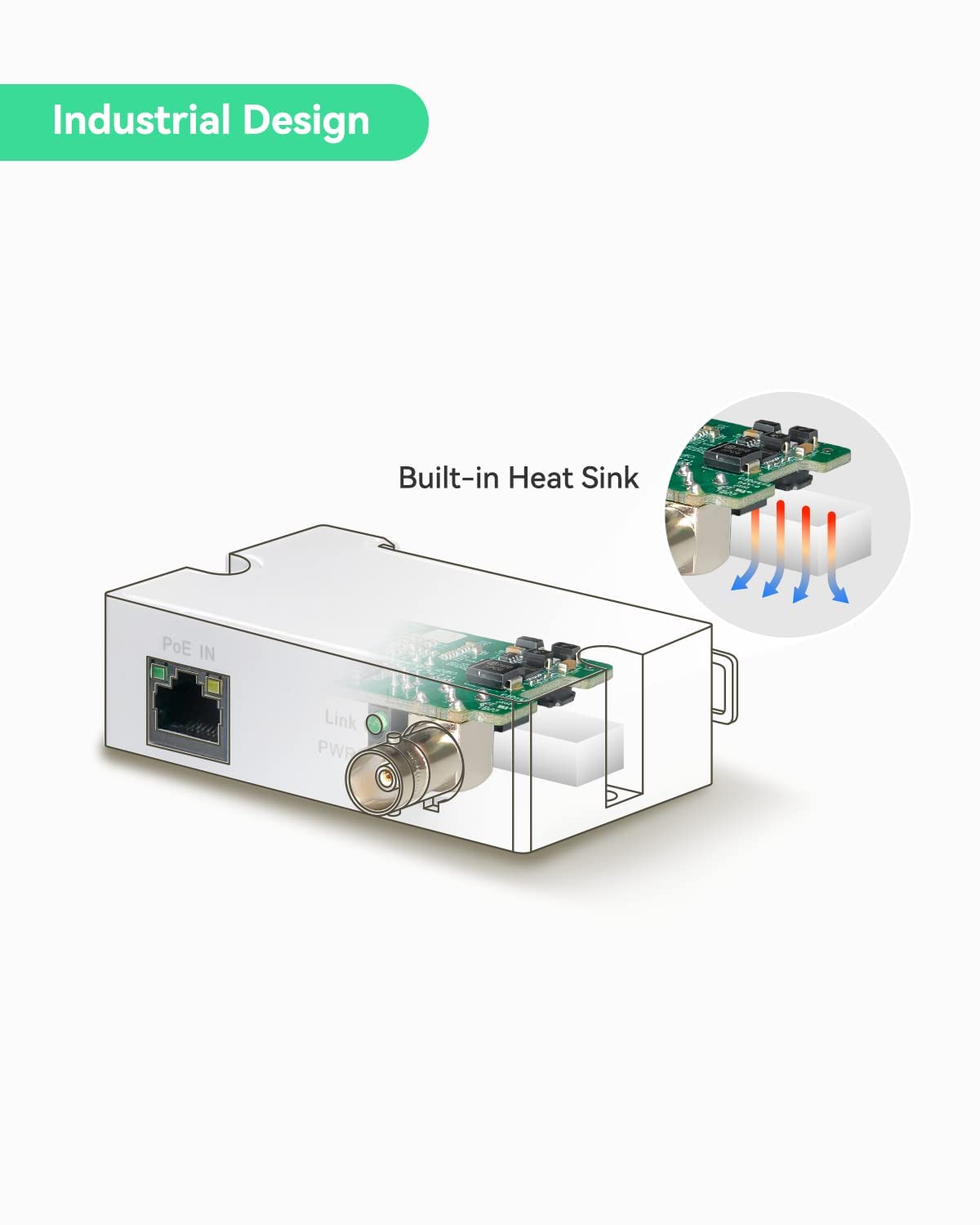

• 【INDUSTRIAL DESIGN WITH BUILT-IN HEAT SINK】Industrial design, with built-in heat sink, ensure super reliability and hassle free transmission. Indoor use ONLY. Plug-and-play, configuration free, makes installation simplest. Small design (3.1"x2.0"x0.9") and light weight
• 【POINT TO POINT CONNECTION ONLY】Act as MoCA (Multimedia over Coax) in point-to-point connection, transmit video/audio/data/control signal over coaxial cable, so as being used with twist pair. EOC Receiver should be powered by POE switch or POE injector while Transmitter should be connected with POE devices or NON-POE devices.

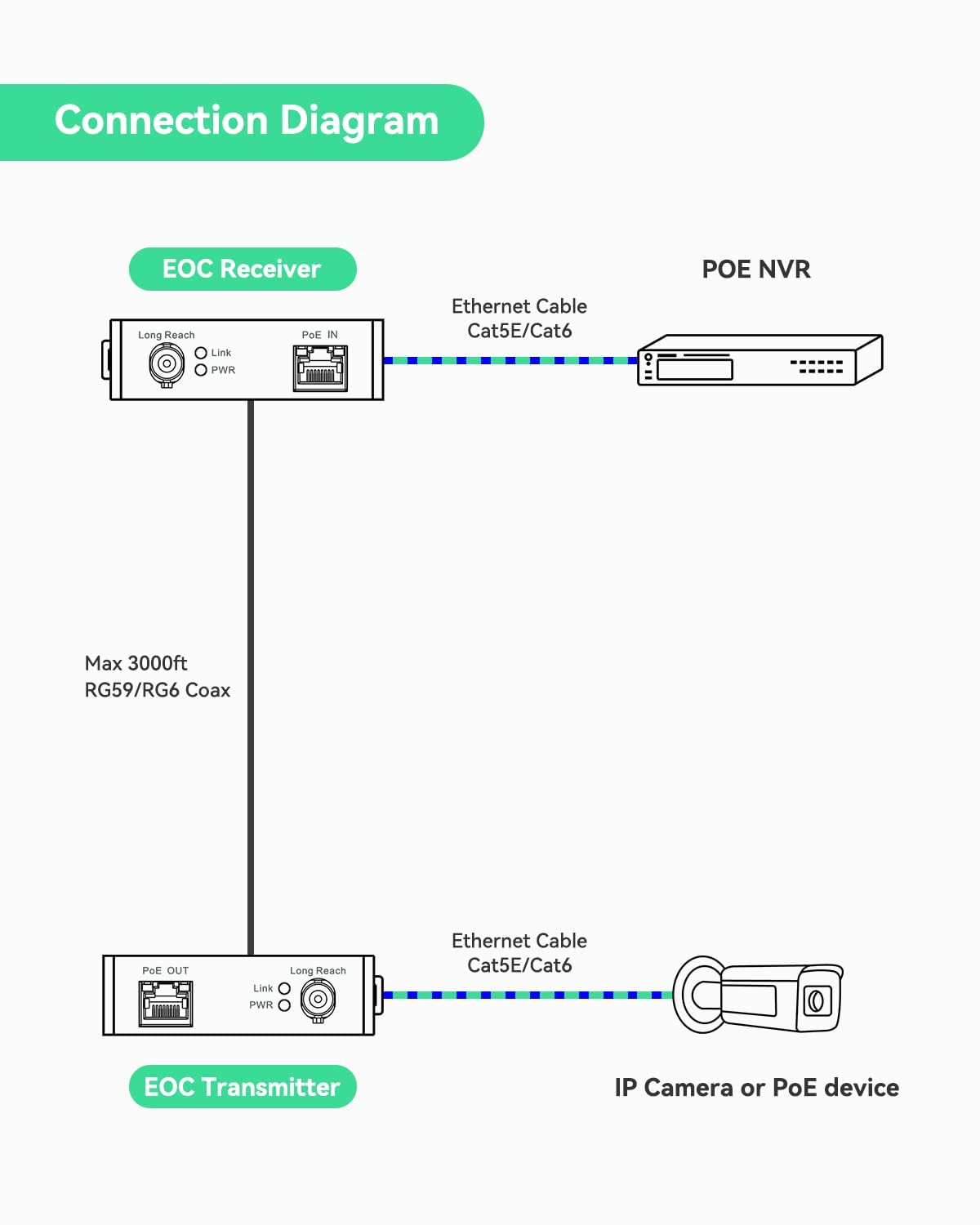

• 【PLUG-N-PLAY】The installation is very easy and no configuration or expertise is required. Just plug the EOC Receiver to an POE switch or POE injector, and then connect to EOC Transmitter via Coaxial cable or twist pair cable. IP camera or VoIP phone will then get POE power and data transmission from this EOC Transmitter
• 【NOTIFICATION】 For multiple PoE over coax cables application in one system, please use EOC-Switch KIT(ASIN: B0BMG63JZ6) to avoid potential signal interference. For installing the product outdoors, please use dedicated waterproof box: B0D9Y7CT1C

Binding: Electronics

model number: Conv-EOC

Part Number: EOC Converter

EAN: 0736900932201

Package Dimensions: 8.1 x 4.6 x 2.0 inches
