LIMICAR LED Trailer Lights, Boat Trailer Submersible Lights, Red/Amber LED Marker Lights, 3rd Brake ID Bar, LED Trailer Lights Kit for Utility Trailer

Brand: LIMICAR

Color: Square Trailer Tail Lights Trailer Marker Lights

Features:

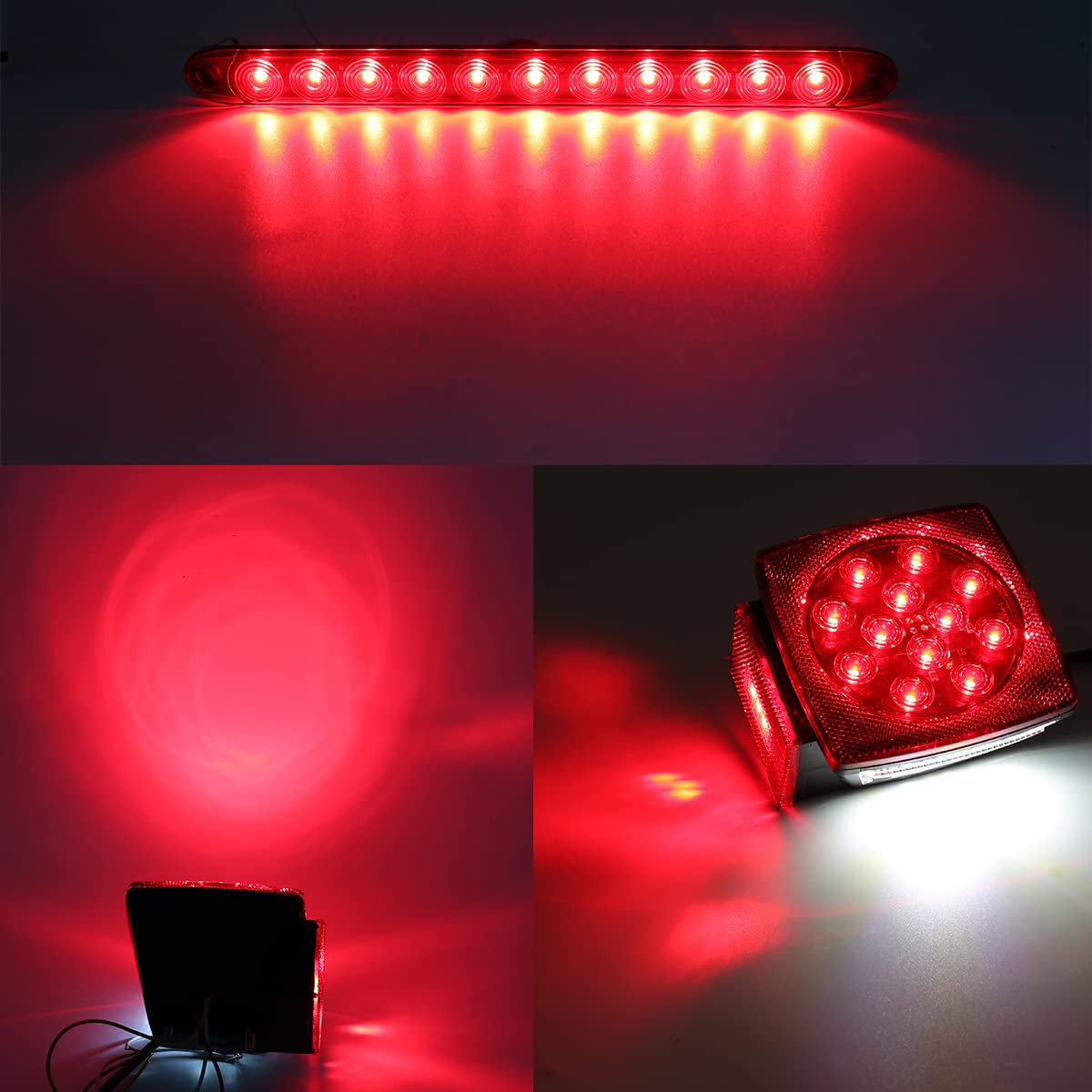

• BRIGHT LIGHTING: This LED Trailer Lights Adopts 15 Diodes ( 12 Red+3 Red ) LED Combination stop turn tail side marker light; 19 Diodes ( 12 Red+3 Red+4 White ) LED Combination stop turn tail side marker light with license plate lamp; No glare, much brighter and more energy-efficient than halogen bulbs. Side lens lights and side marker lights are all LED lights as well. Ultra bright but energy-efficient.

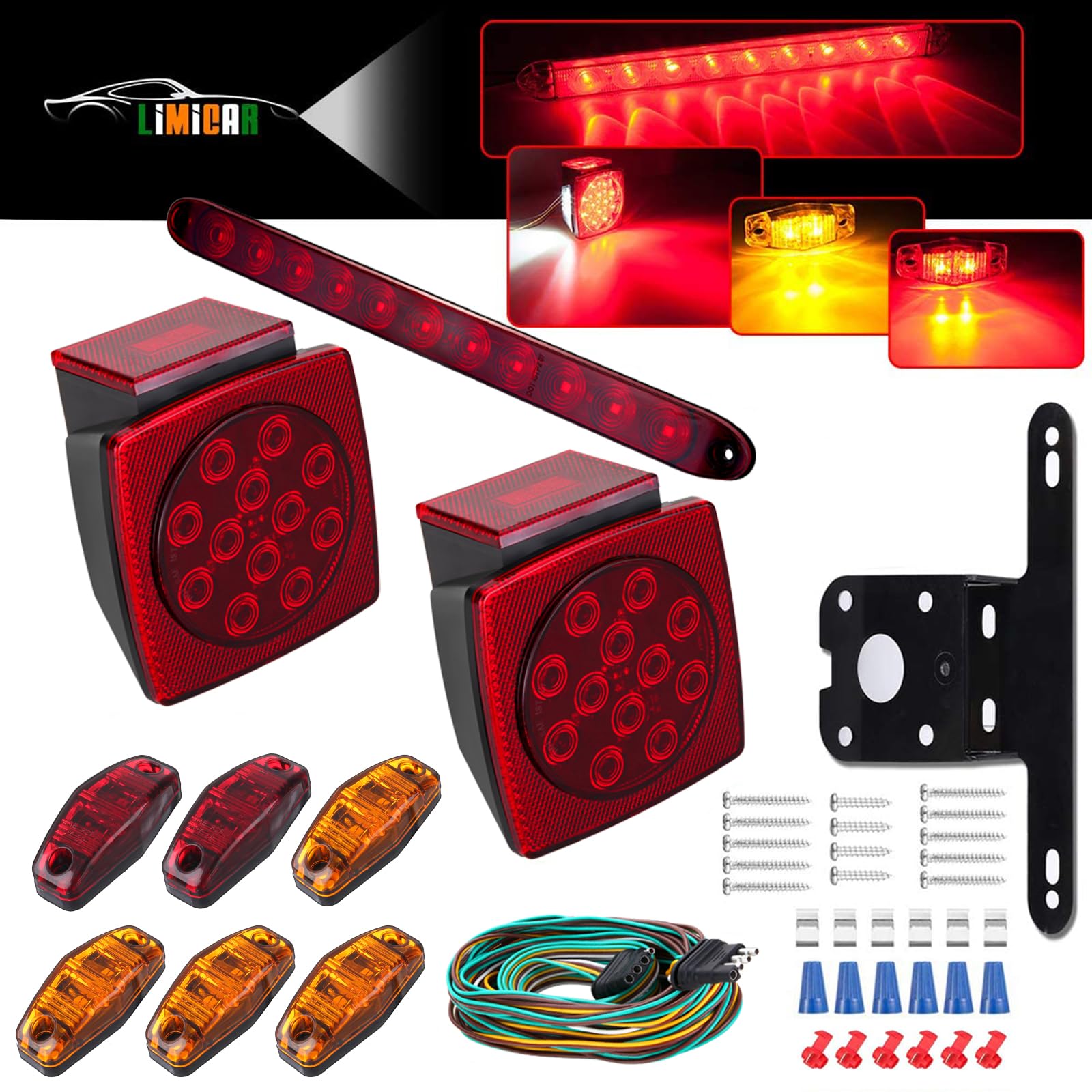

• PACKAGE INCLUDES: Includes 2 Square LED Trailer Light Kit, 4 Amber 2 Red Fender Marker Lamps, 11LED 3rd Brake Identification Light Bar, 25ft Trailer Wiring, License Plate Bracket, Mounting Hardware.
• PRACTICAL FUNCTIONS: Trailer Lights LED Kit Functions as running light, stop light, brake light, turn signal light, reverse light, flash light, rear reflex reflector, side marker light, side reflex reflector, license plate illuminator, clearance Light, identification light bar.
• WATERPROOF: IP67 Waterproof. This Boat Trailer Lights LED Submersible Kit is completely sealed. LED Trailer Lights Adopts welding technology for better waterproof performance. The screws have been removed from the lampshade to prevent water invasion better, effectively protects the trailer lights from sand, dust, dirt, water or snow.
• UNIVERSAL FIT: LED Trailer Lights Suitable for most vehicles equipped with 12V, such as Trailers, Trucks, Campers, RVs, Boat, Dump Truck, Snowmobile, Tractors, Semi-trailer, Bus and other vehicles with a width of 80 inches (more or less).

model number: F-200307

Part Number: F-200307

Details: Features
1. 100% compliant with DOT standards.
2. All lamp beads are LEDs, much brighter, light faster and serve longer than incandescent bulbs.Effectively save energy and your every penny. Provide maximum visibility and safety in inclement weather.
3. Made of high quality ABS housing and PC lens, effectively protects the tail light from dust, sand, moisture, rain and other impact of inclement weather. Serve your vehicles with superior illumination and long-term durability.
4. Compatible with most 12V vehicles such as trailers, tractors, trucks, RV, camper, bus, UTV, etc.

Installation

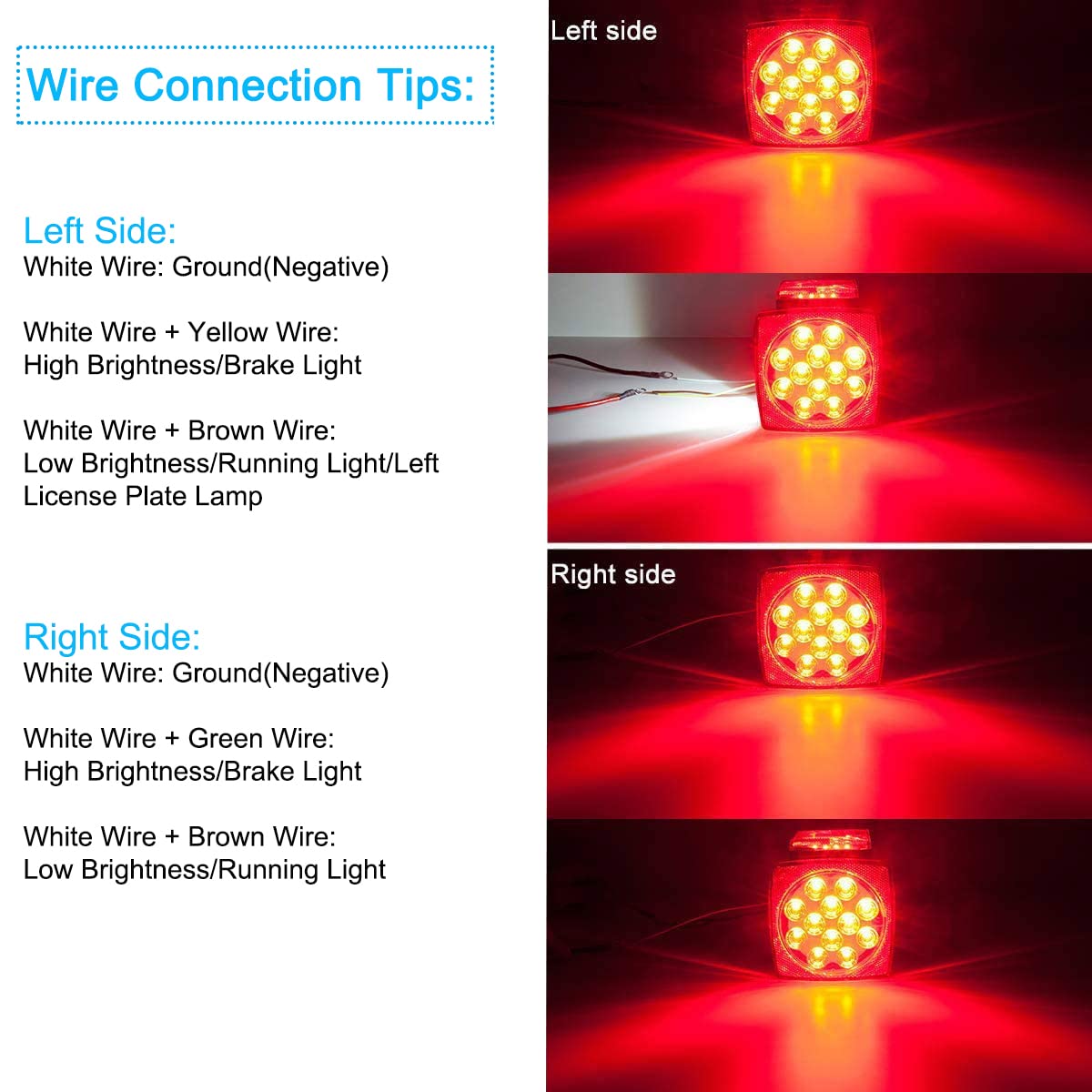

Square Lights:
Left Side:
White Wire: Ground(Negative)
White Wire + Yellow Wire: High Brightness, used as Brake Light
White Wire + Brown Wire: Low Brightness, used as Running Light/Left License Plate Lamp

Right Side:
White Wire: Ground(Negative)
White Wire + Green Wire: High Brightness, used as Brake Light
White Wire + Brown Wire: Low Brightness, used as Running Light

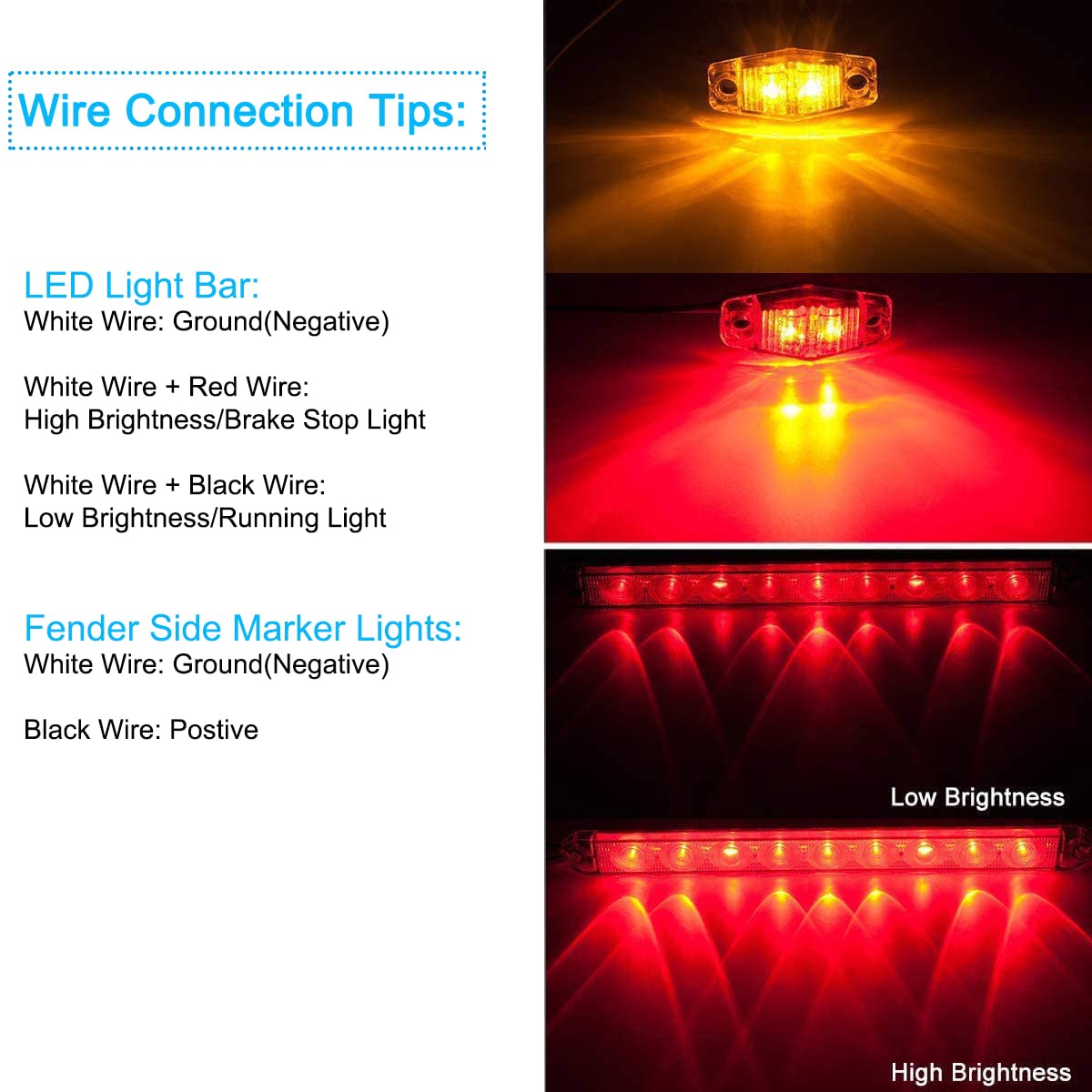

Side Marker Lights:
White Wire: Ground(Negative)
Black Wire: Positive

ID Light Bar:
White Wire: Ground(Negative)
White Wire + Red Wire: High Brightness, used as Stop & Turn Light
White Wire + Black Wire: Low Brightness, used as Running Light

Specification
Voltage: DC 12V
Waterproof Rate: IP67
Light Color: Red / White / Amber
Square Light Dimension: 4.65*5.12*2.76 Inch
Side Fender Light Dimension: 2.50*1.10*0.70 Inch

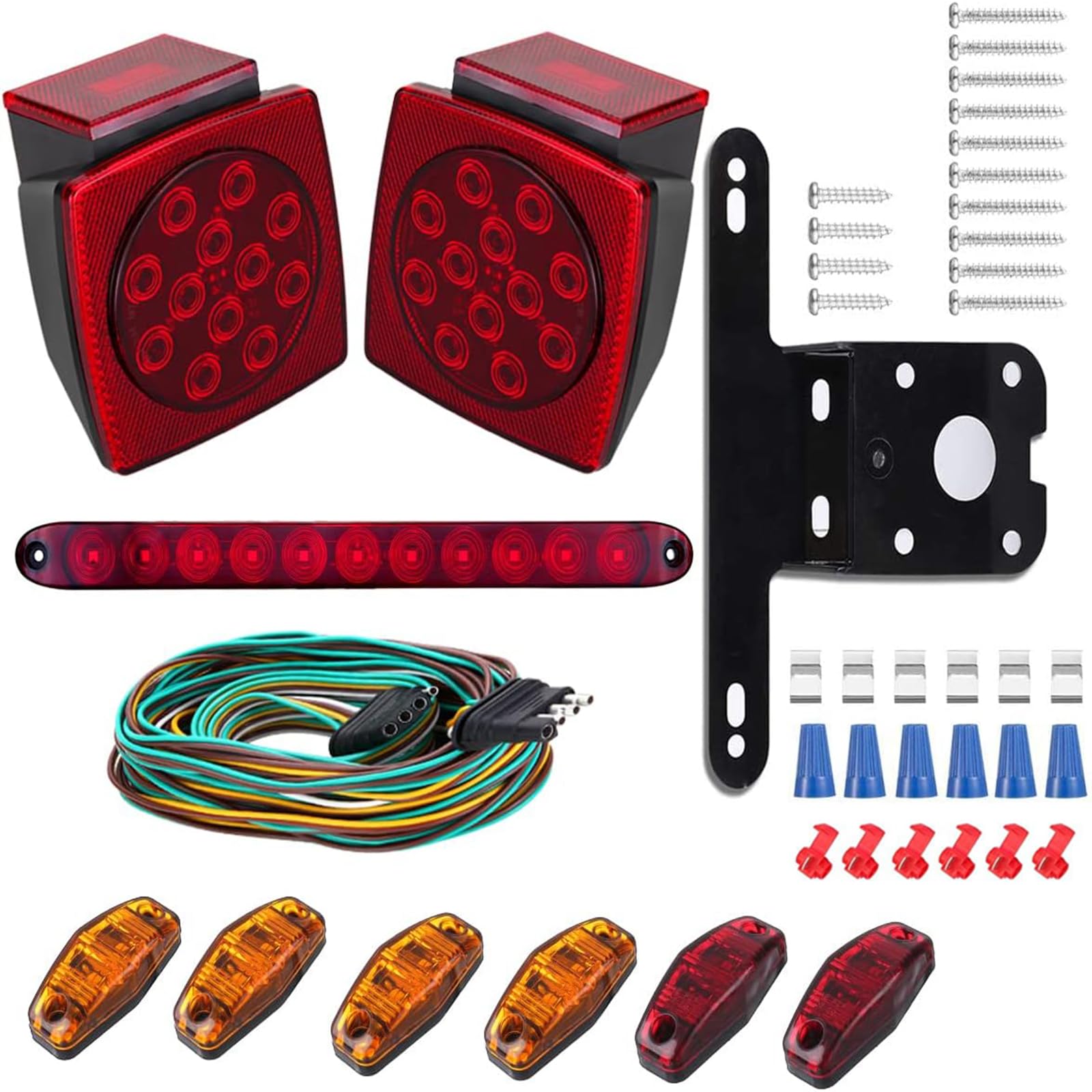

Package Includes
2 * LED Trailer Lights
6 * LED Side Fender Marker Light
1 * 3rd Brake 11LED ID Light Bar
1 * Wiring Harness
1 * License Plate Bracket
1 * Mounting Hardware

Package Dimensions: 16.2 x 5.4 x 5.1 inches
