Kreg

Kreg Concealed Hinge Jig - 35mm Cup Drilling Jig - Adjustable Cabinet Door Installation Tool - KHI-Hinge

Kreg Concealed Hinge Jig - 35mm Cup Drilling Jig - Adjustable Cabinet Door Installation Tool - KHI-Hinge

Regular price $45.00 CAD
Regular price Sale price $45.00 CAD
Sale Sold out
View on Amazon

Brand: Kreg

Color: Blue

Features:

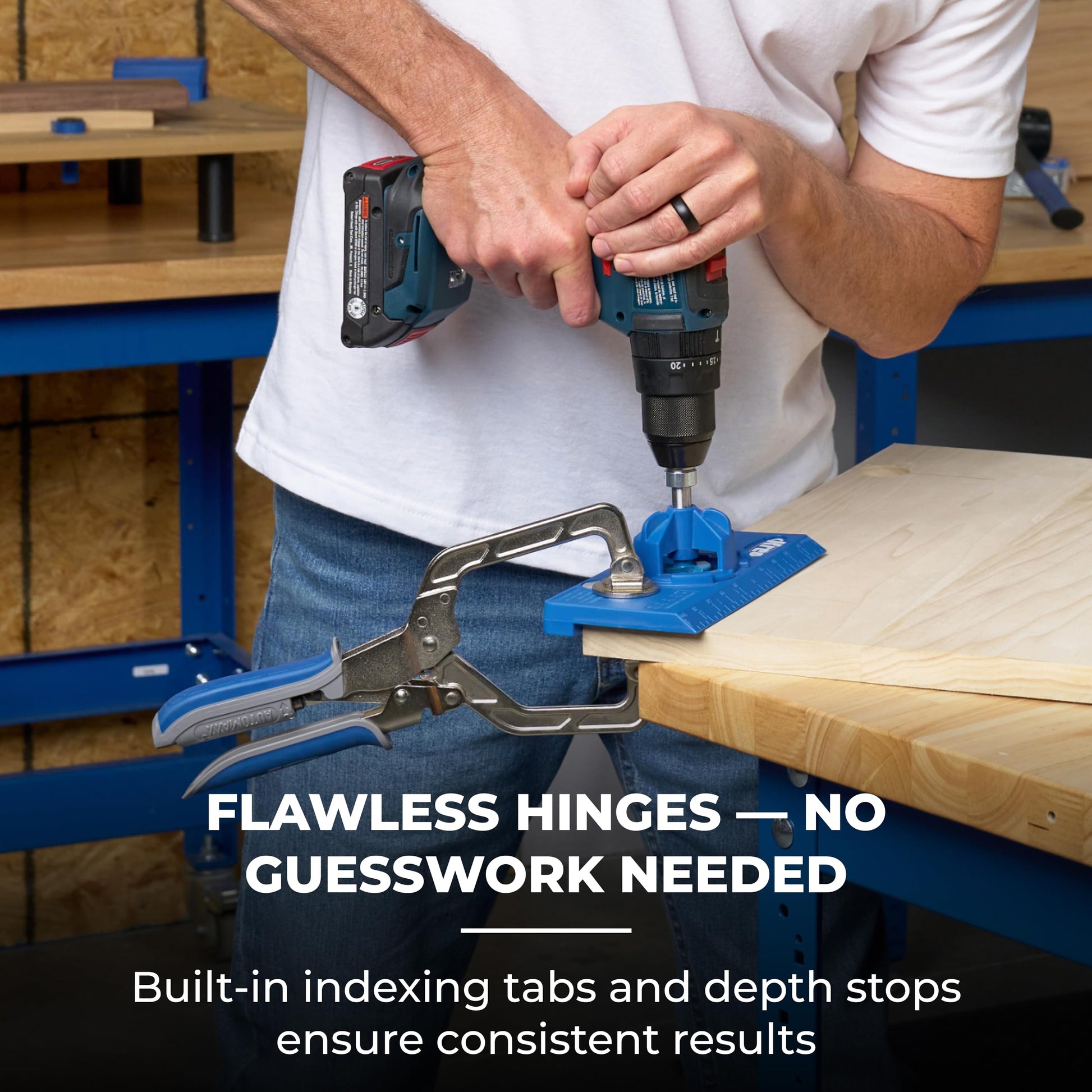

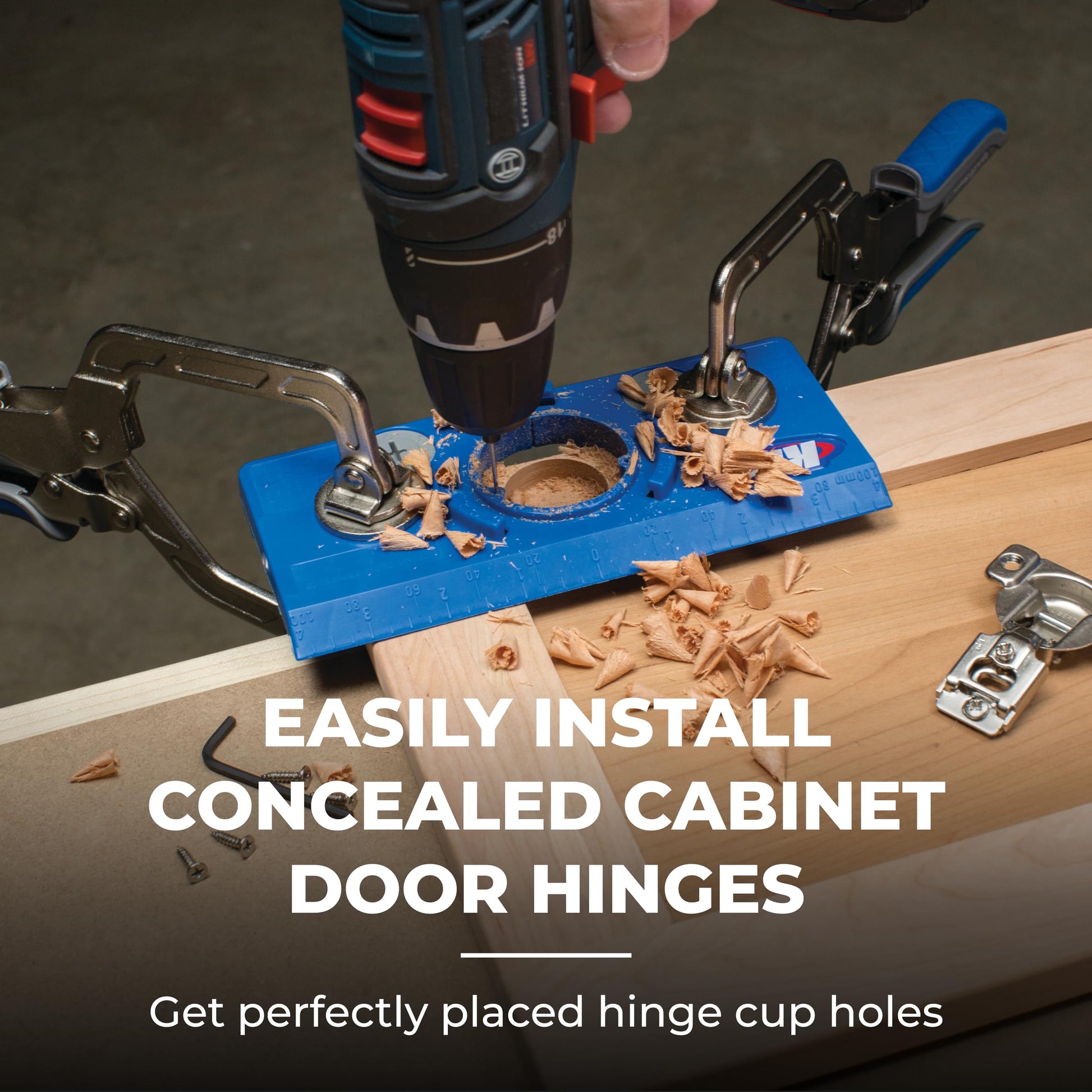

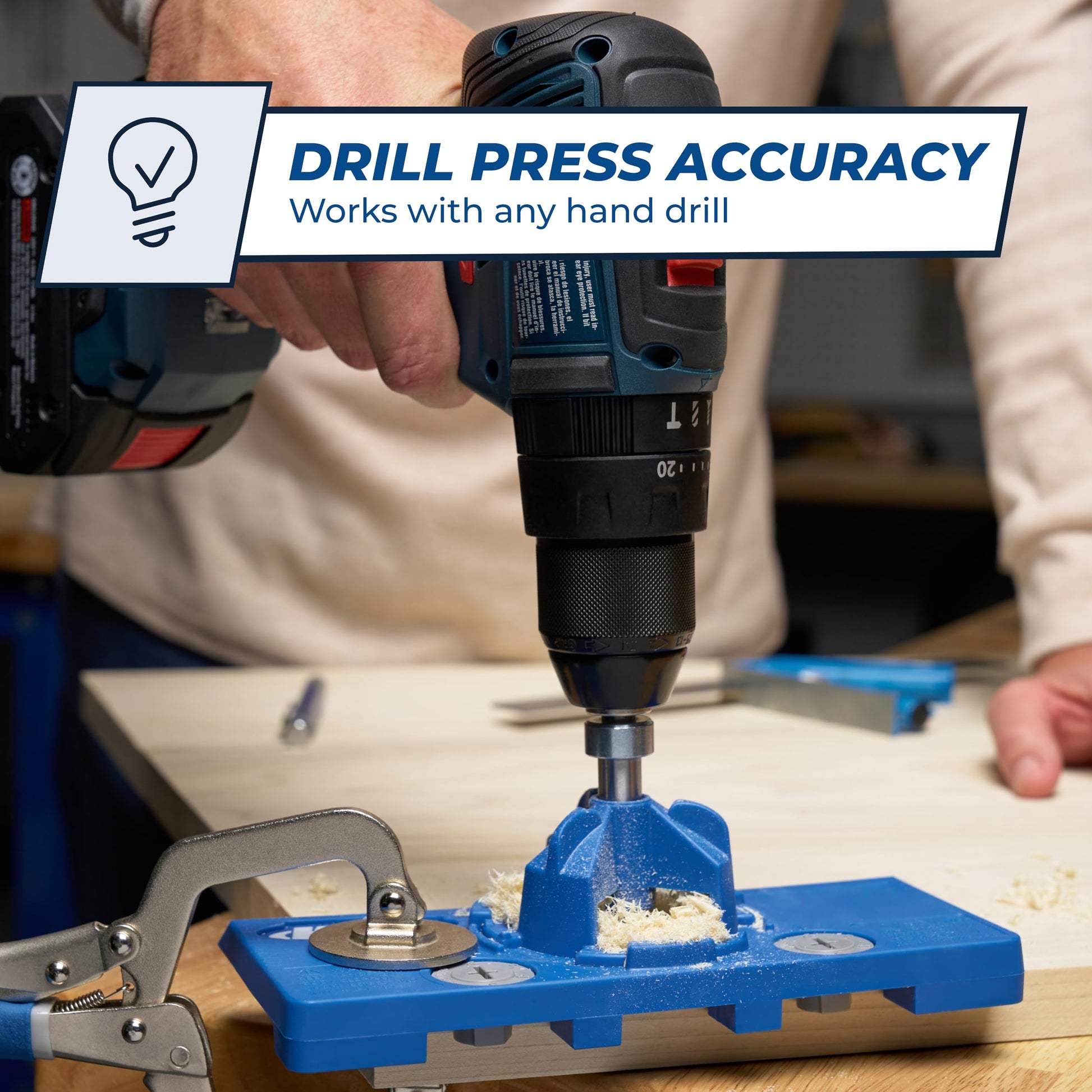

  • Concealed Hinge Jig: Dedicated jig for drilling precise 35mm cup holes for European-style concealed cabinet door hinges using any hand drill

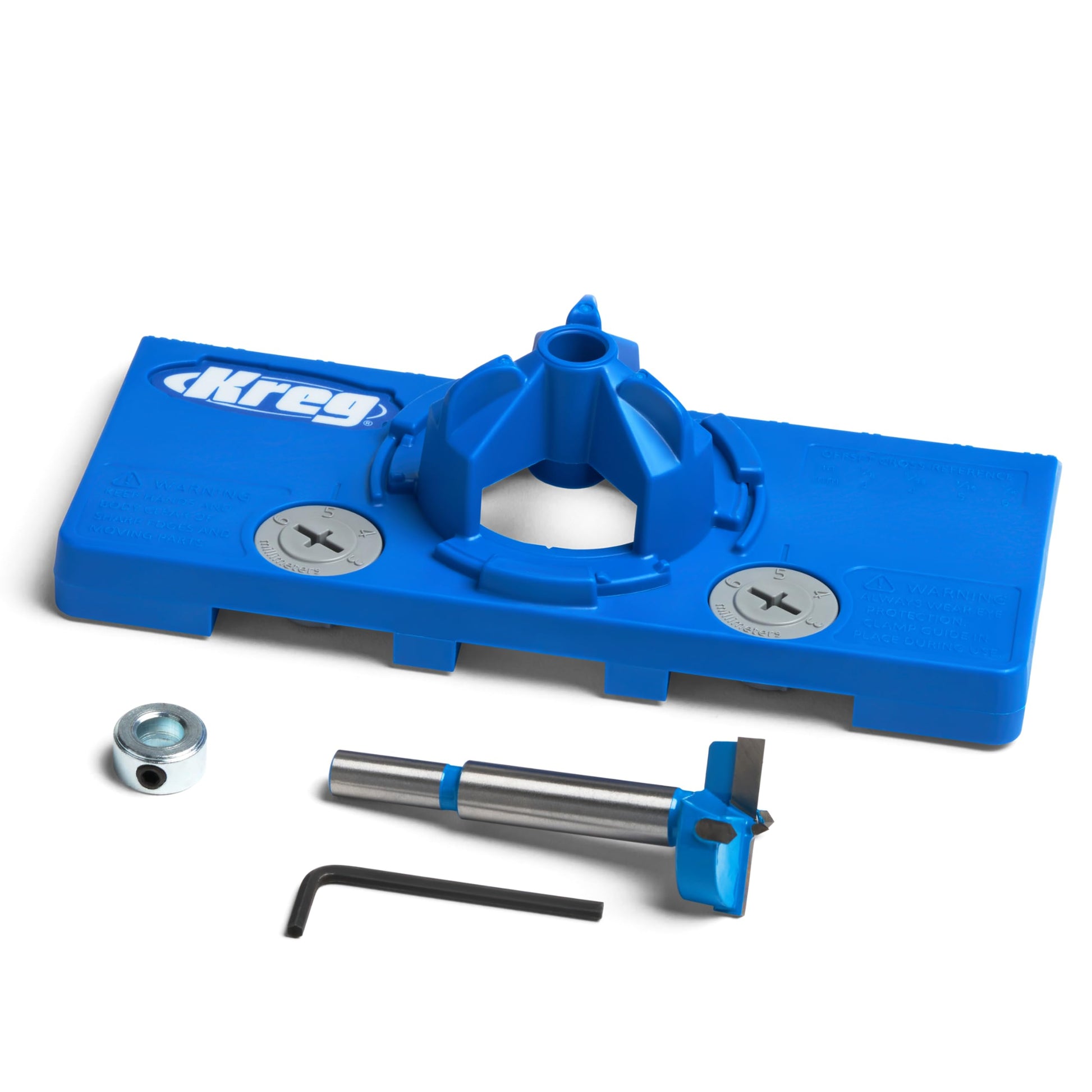

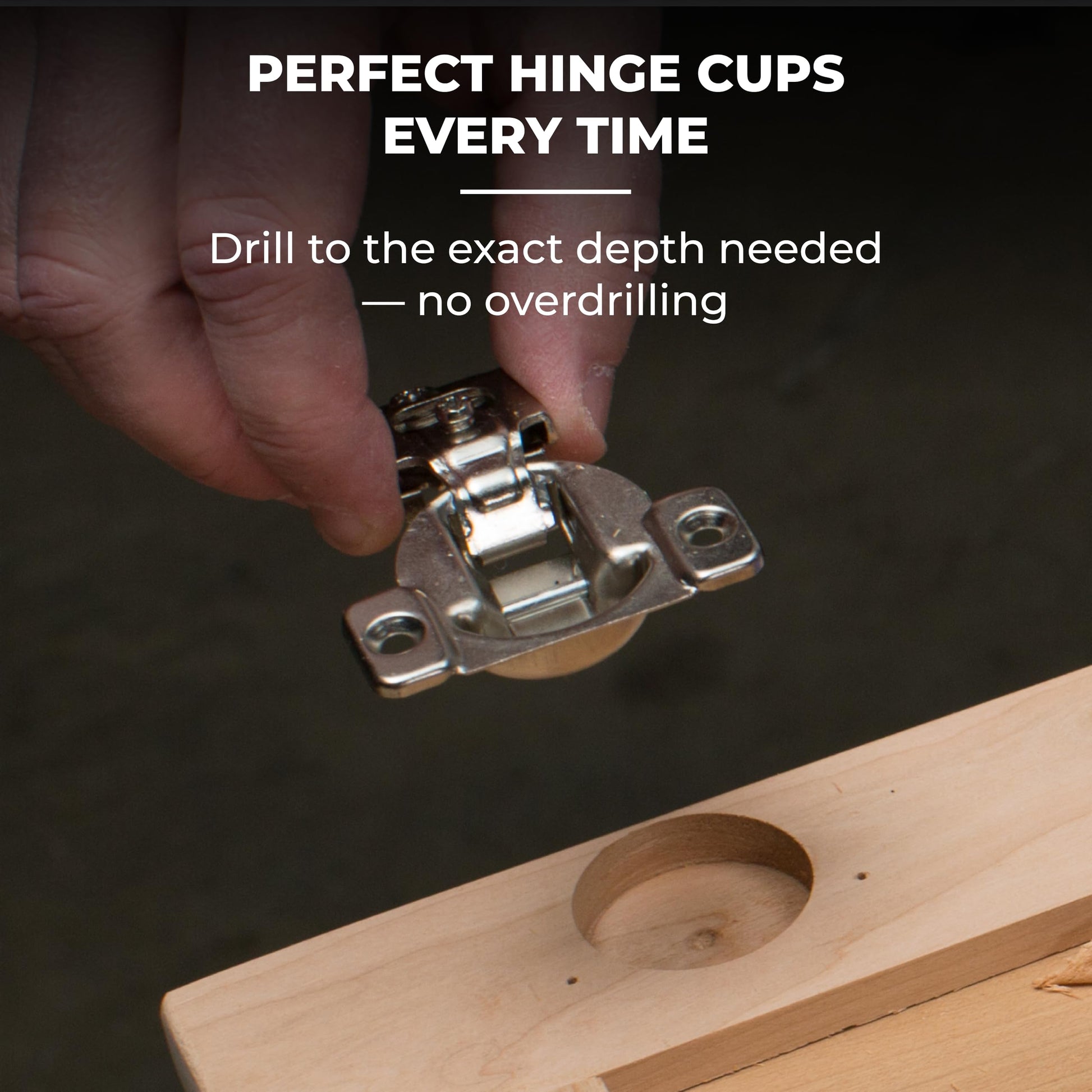

  • Precision 35mm Boring System: Four-cutter carbide-tipped bit with stop collar drills clean, accurate hinge cup holes with controlled depth

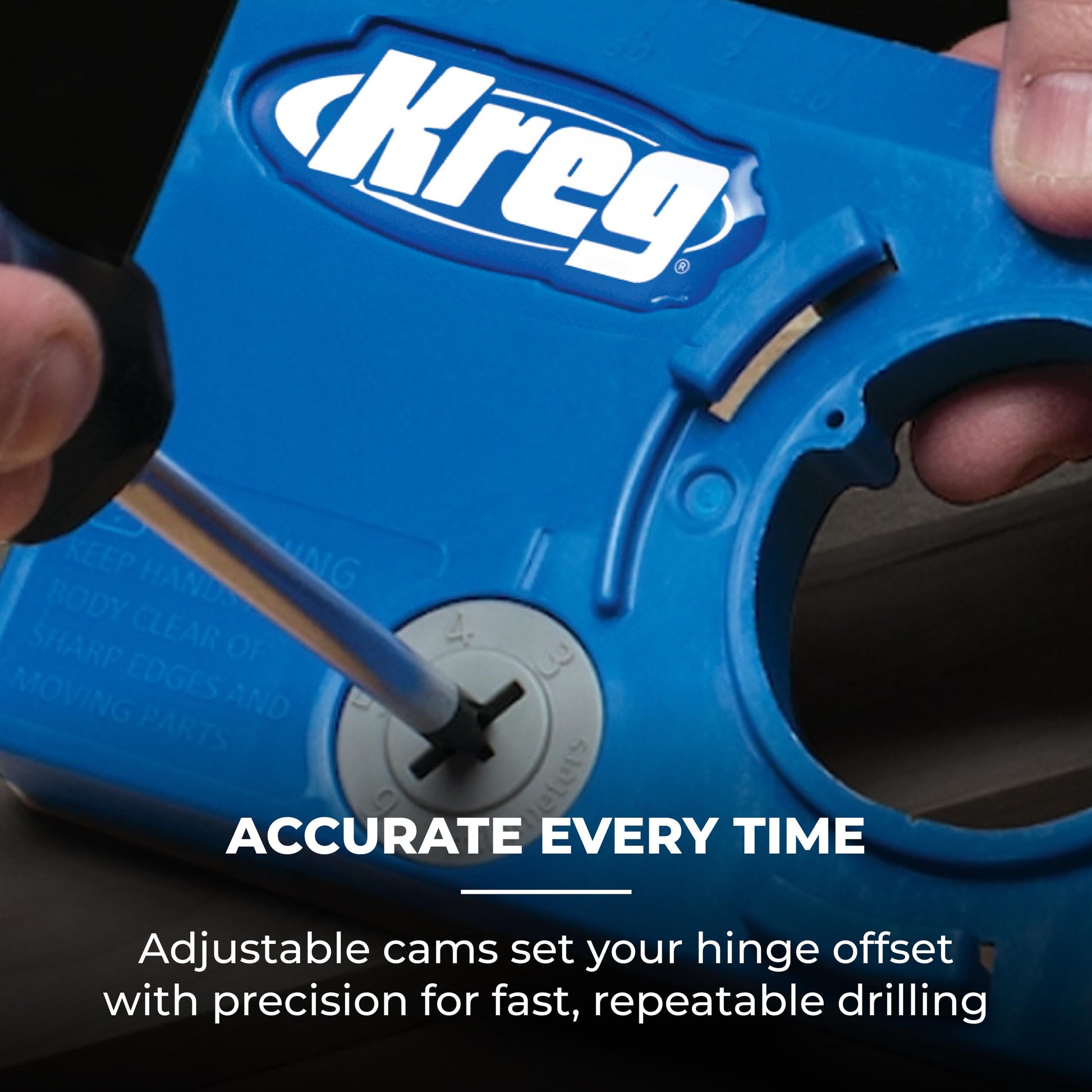

  • Adjustable Hinge Positioning: Supports 3mm, 4mm, 5mm, and 6mm hinge offsets with adjustable placement on the door
  • Flexible Door Layout: Allows hinge positioning from 2 in (50mm) from the door edge to unlimited spacing for custom cabinet designs
  • Premium Kreg Tools: We offer products that help woodworkers close the gap between idea and outcome

model number: KHI-HINGE

Part Number: KHI-HINGE

Details: The concealed hinge jig takes the guesswork out of installing cabinet doors using concealed hinges. This economical, easy-to-use jig ensures accurate hinge alignment, so you can install doors that fit great and work well. Plus, the concealed hinge jig works with an ordinary drill and the included carbide tipped bit. The concealed hinge jig allows you to drill cup holes for concealed cabinet door hinges (sometimes called "Euro hinges") using just a drill. The jig positions an included carbide-tipped bit exactly at the proper position and offset and drills to the ideal depth every time thanks to a depth stop collar. The jig is simple to use and it ensures that you can mount cabinet doors that fit great and work properly.

EAN: 0647096806651

Package Dimensions: 8.9 x 8.3 x 2.2 inches
