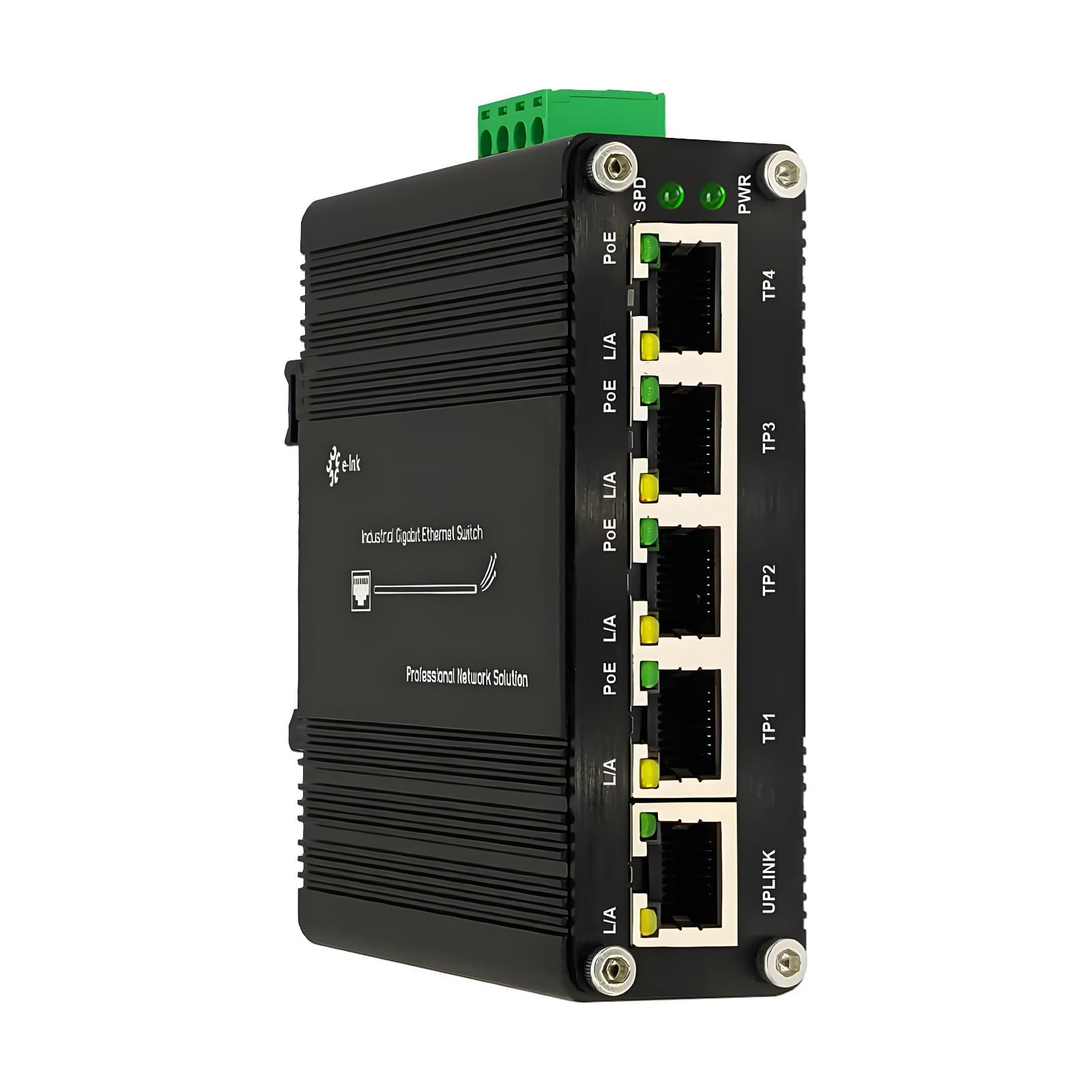

Industrial Passive 24V 5 Ports PoE Switch Gigabit RJ45 Din Rail 10/100/1000Mbps Ethernet Switch Unmaneged Switch PoE Switch 12-24V Input 24V Output Passive Switch

Brand: StarRoute

Color: Black

Features:

• 【12-24V DC Input】- The passive PoE switch supports 12-24V DC input and increases voltage to 24V PoE output. It will solve the problem that you only have 12-24V without 24V centralized power supply.
• 【10/100/1000Mbps Ethernet】– The industrial passive 5 ports Ethernet PoE switch has 5 RJ45 ports 10/100/1000Mbps.
• 【3.74x2.76x1.18in Ultra Small】 - The passive 5 ports Ethernet PoE switch has smaller size than other switches, it only need small space to place it. Convenient and easy to install.
• 【Din-Rail & Wall Mount】- The passive gigabit PoE switch come with 35mm din-rail mounting bracket and wall mount accessory.
• 【About】- We will provide perpetual customer service, so don't hesitate to contact us about product related questions. And if the product has quality problems within one year, you can contact us for a new one.

model number: Industrial Passive 24V 5ports PoE Switch

Part Number: Industrial Passive 24V 5ports PoE Switch

Details: Features:
5 x 10/100/1000BASE-T ports
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with PoE Injector (Port-1 to Port-4)
12~24VDC range power input, 24V PoE output

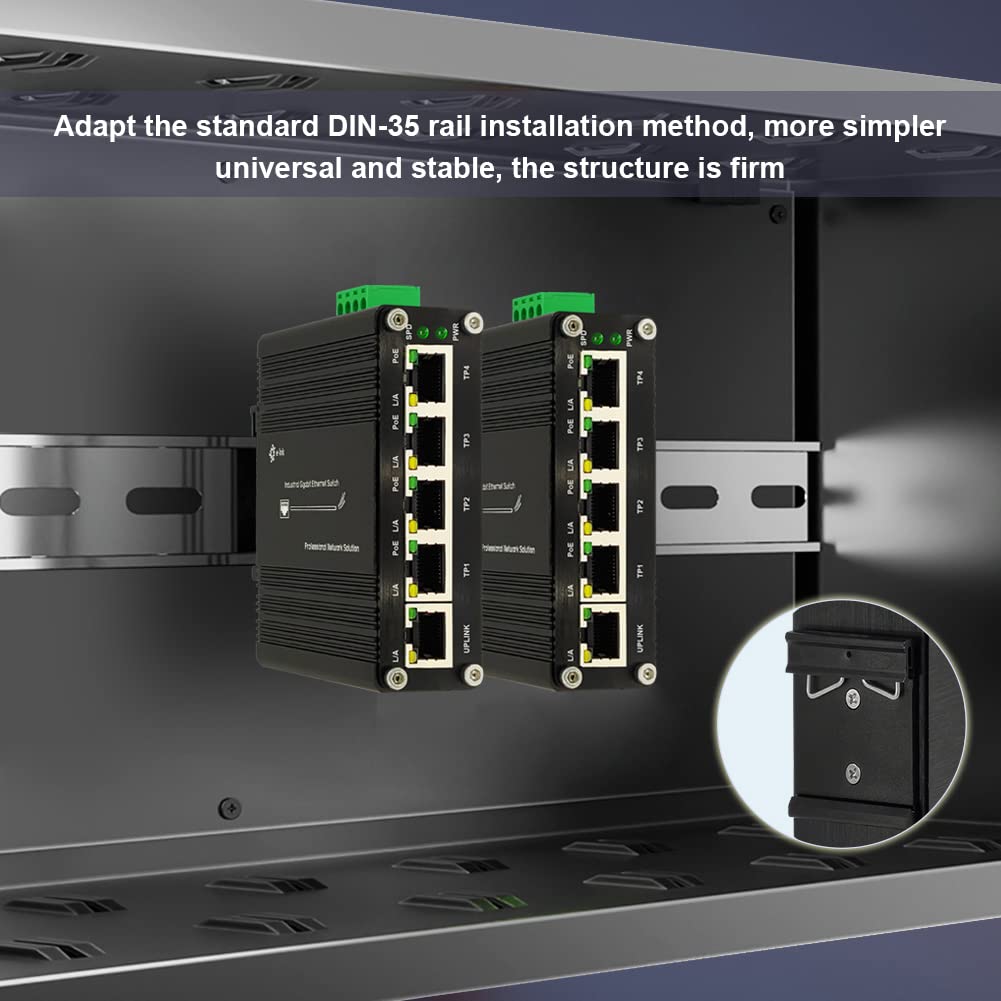

Supports DIN-Rail and Wall-mount installation
Industry standard design, dustproof and close design IP40, rugged high-strength metal case

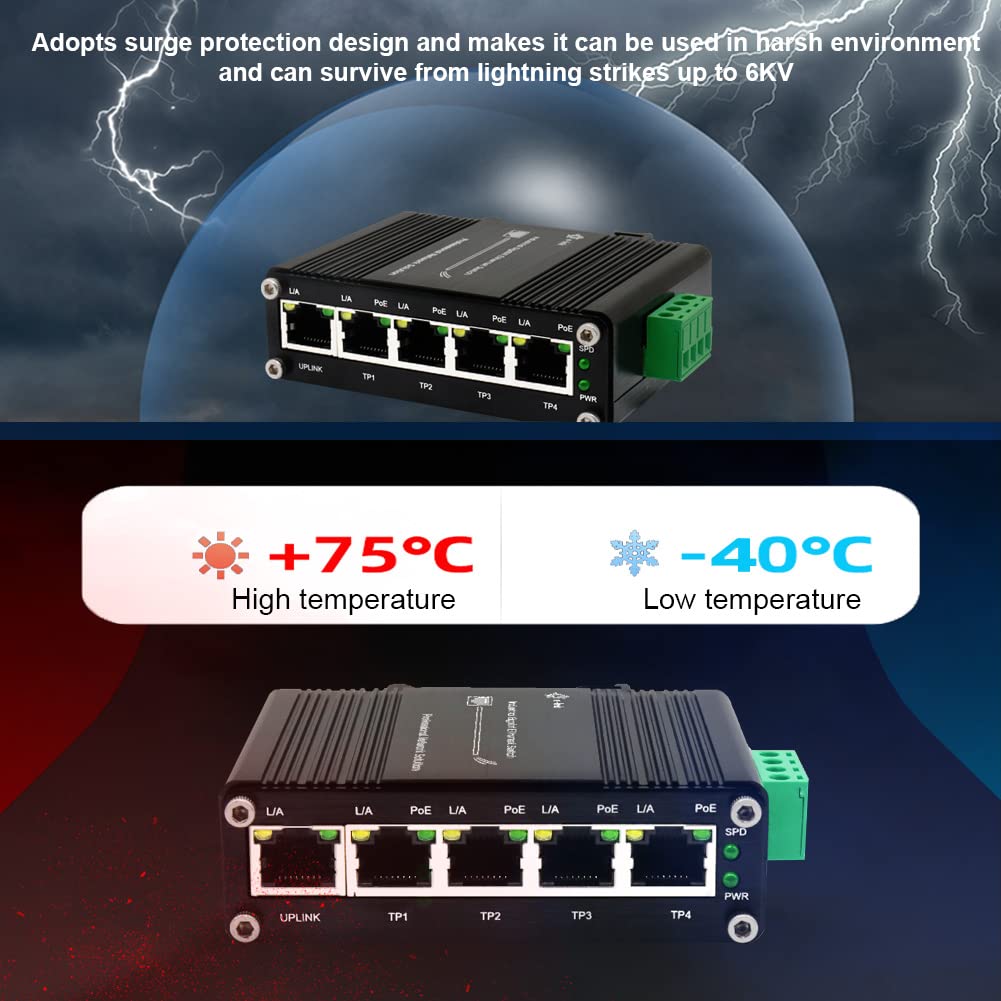

-40°C to 80°C (-40°F to 176°F) operating temperature
Specifications:
Packet Buffer: 1Mbits
Packet Length: 9K
MAC Address Table: 4K
Forward & Filtering Rate: 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)

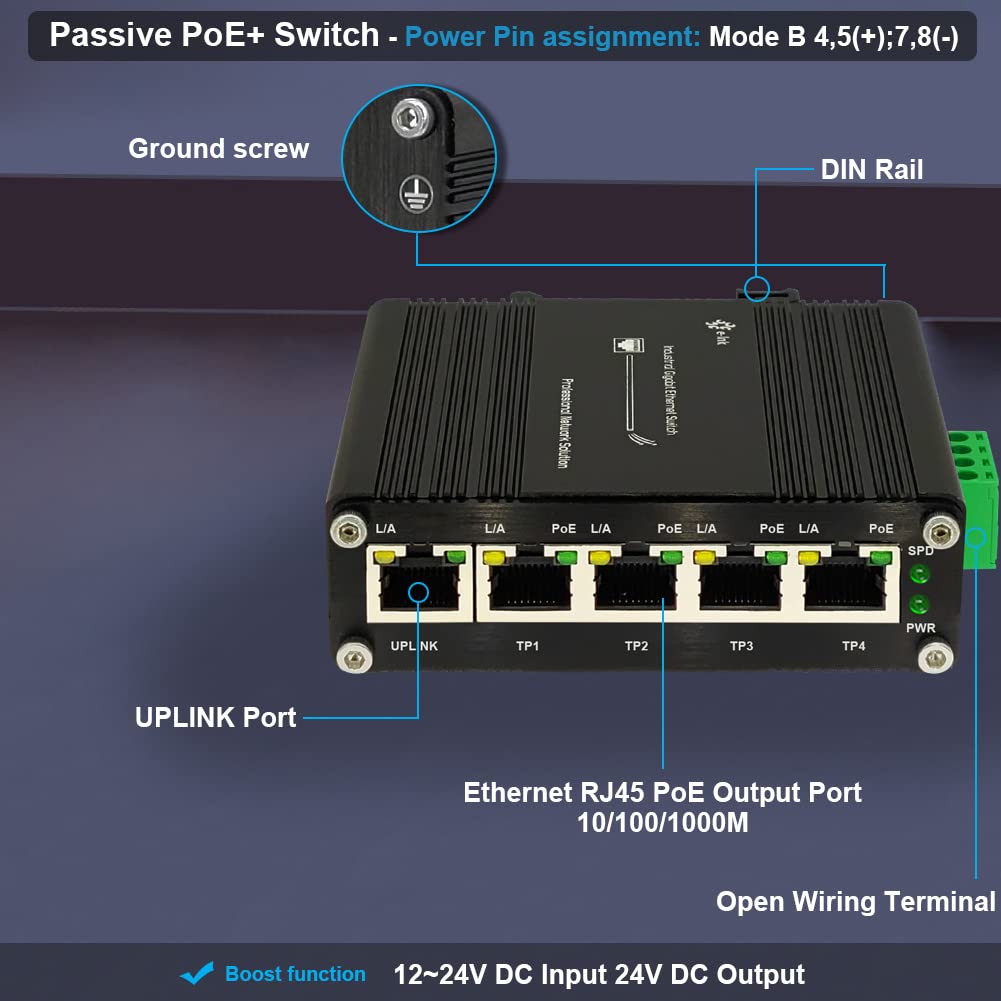

Power Pin Assignment: 4/5(+), 7/8(-)

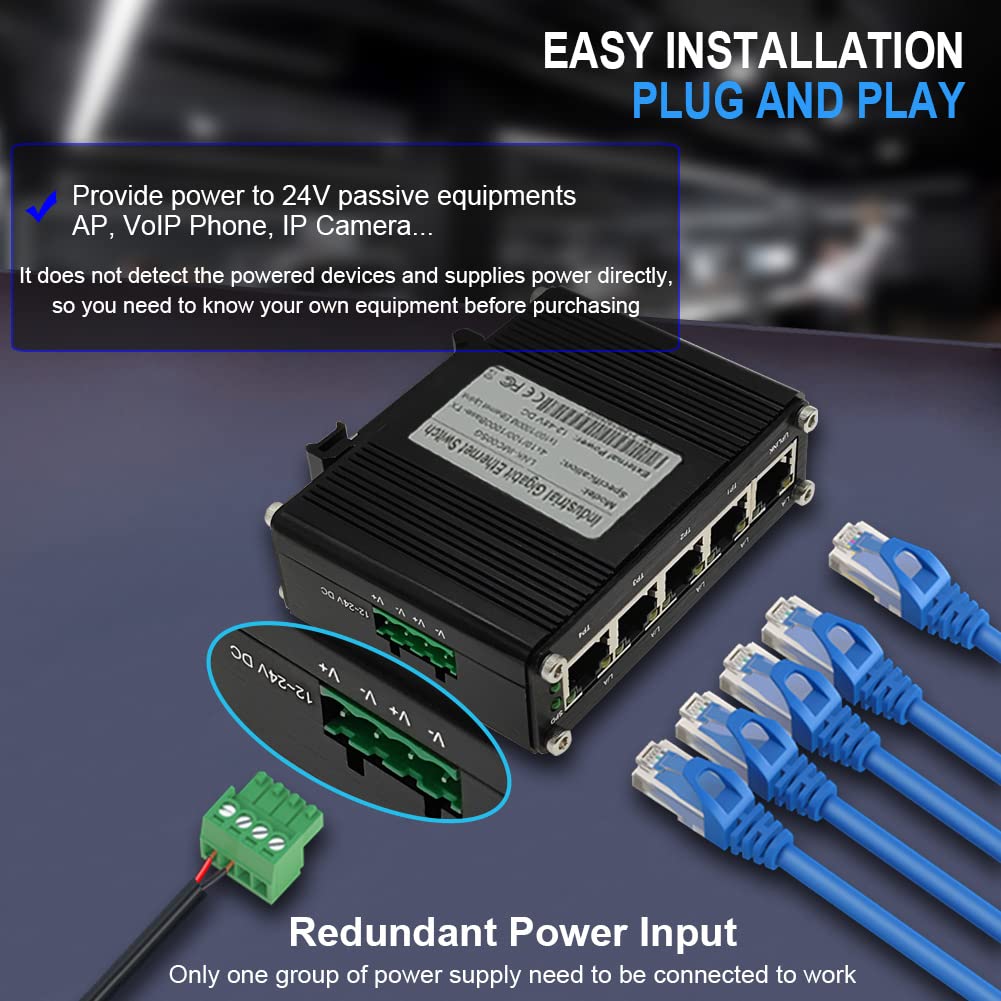

Input Power: 12~24VDC (Terminal Block)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Power Consumption: 78W Max. (PoE in use) & <5W (Non-PoE)
Material: Aluminum Case

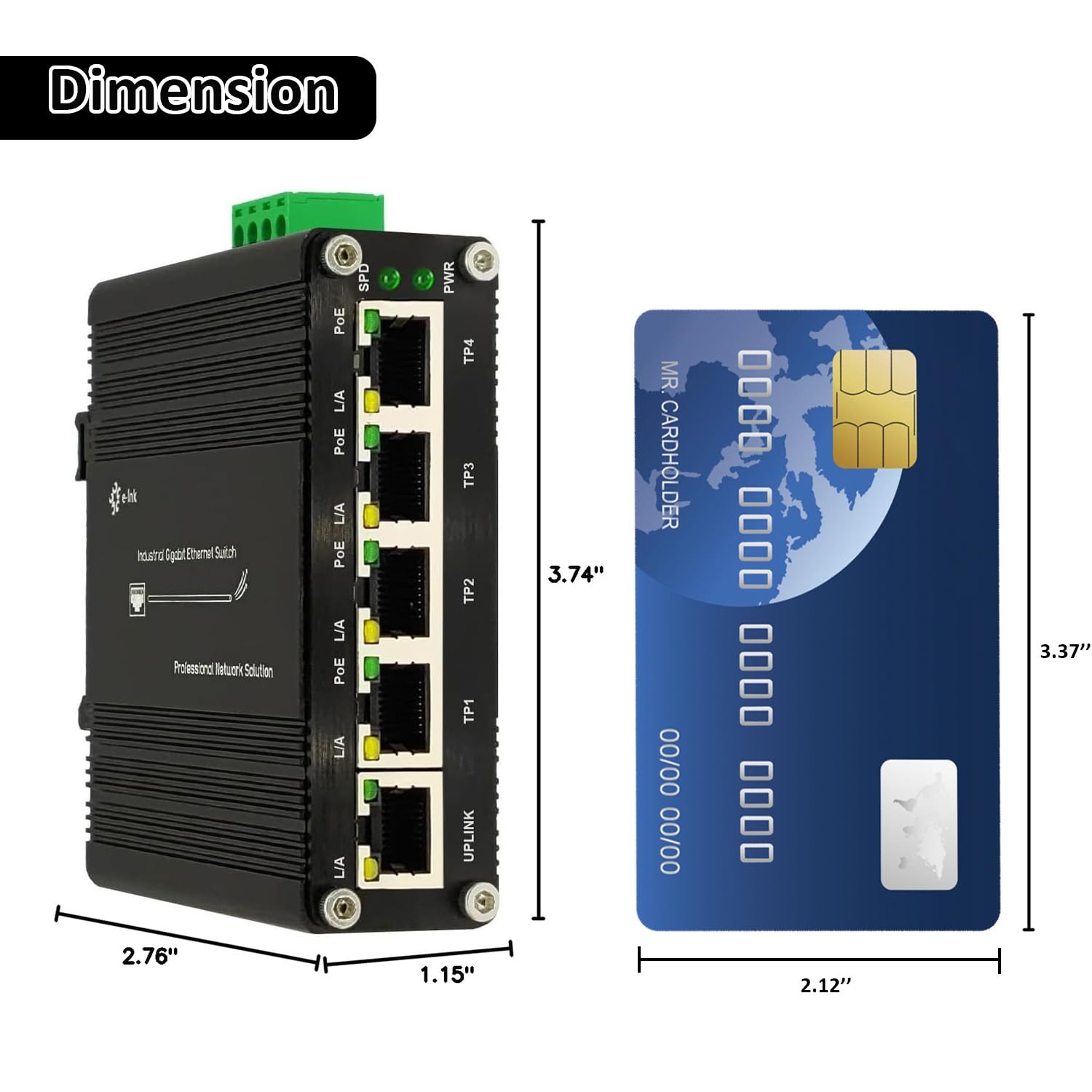

ltem Dimensions LxWxH :3.74x 2.76 x 1.15 inches
Mounting Type: DIN Rail

Package Dimensions: 7.2 x 5.4 x 2.4 inches
