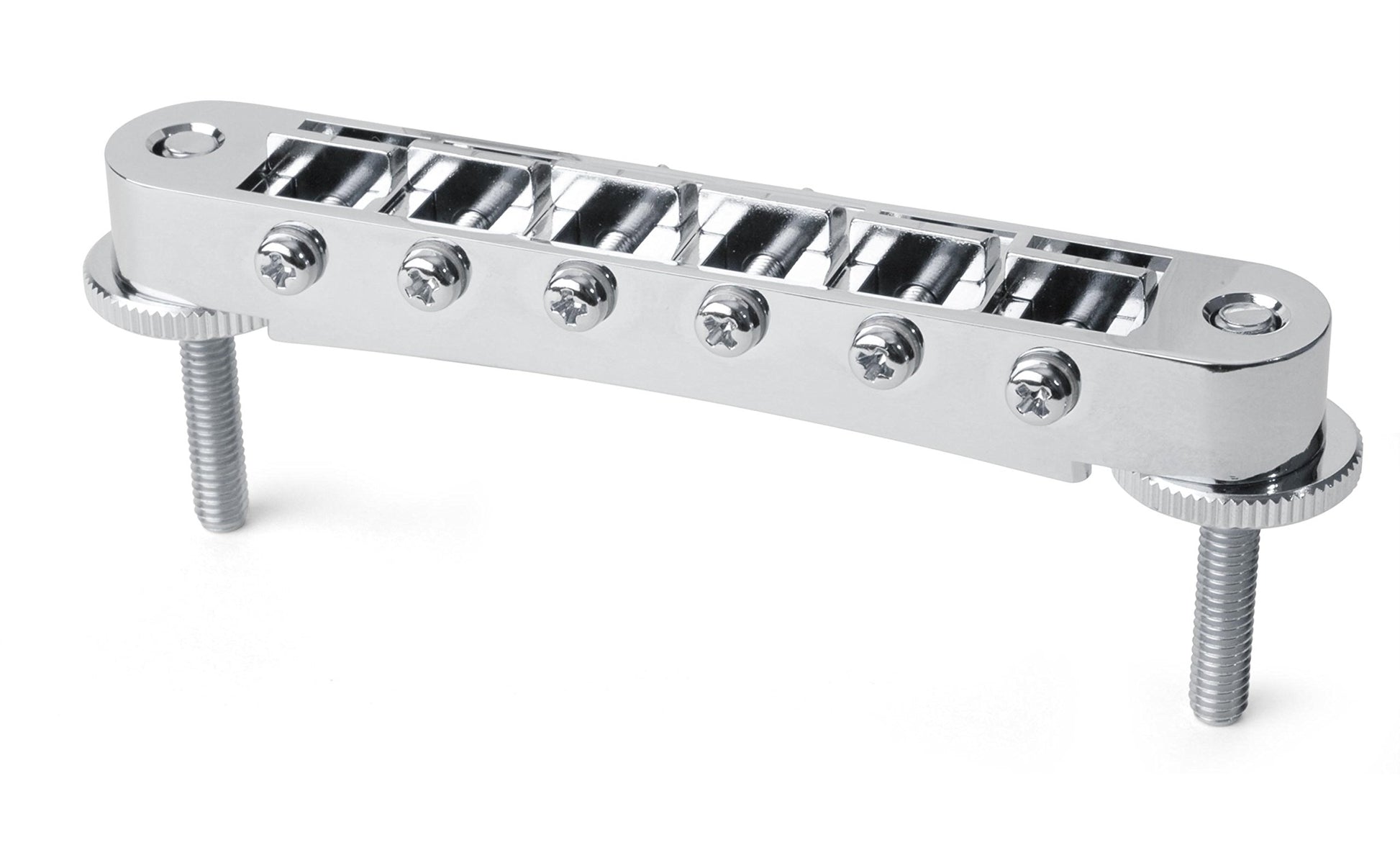

Gotoh Tune-o-matic Bridge with Standard Posts, Chrome

Brand: Gotoh

Color: Brown

Features:

• A popular modern version of the Tune-o-matic for solidbody guitar
• Saddles are pre-notched with individual saddle intonation screws retained by mini hex nuts
• Saddle radius: 12"
• String spread is 2-1-16", and post spacing is 2-29/32"; stud threads are M4 x .7

model number: #AN0167

Part Number: AN0167

Details: This Gotoh Tune-o-matic Bridge with Standard Posts is a popular modern version of the Tune-o-matic for solidbody guitar. Saddles are pre-notched, with individual saddle intonation screws retained by mini hex nuts.
Knurled height adjustment thumbwheels and threaded mounting posts are included.
Specs: String spread: 2-1/16" (51.99mm) Saddle radius: 12" (304.80mm) Stud spacing: 2-29/32" (73.99mm) Stud threads: M4 x .7
About bridge & tailpiece measurements: String spread is the distance between the centers of the outer strings on a bridge or tailpiece. Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard. Stud/post spacing is the distance between the centers of the mounting posts of a bridge or 'stop' tailpiece.

Package Dimensions: 6.7 x 4.7 x 0.5 inches
