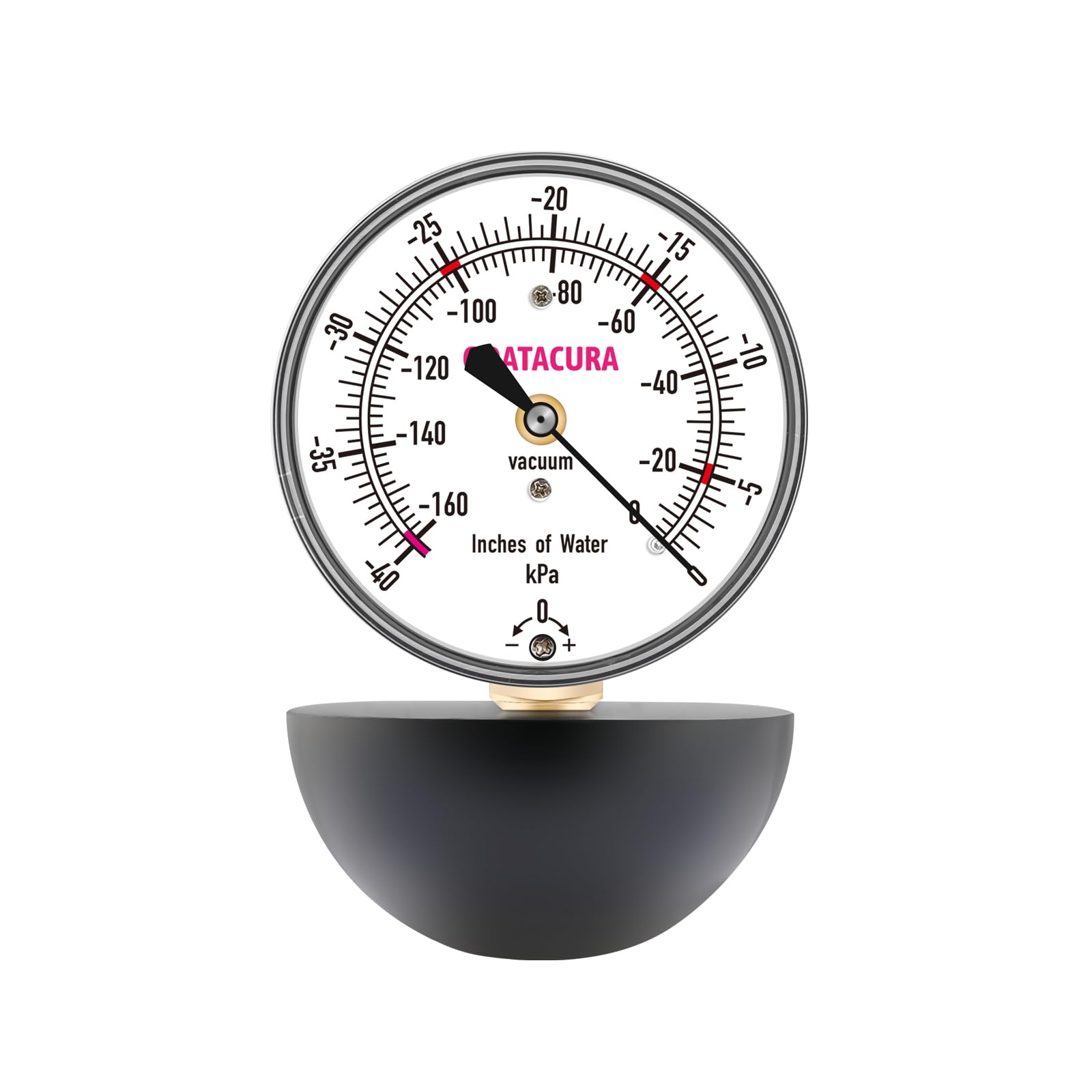

GOATACURA 0-160 Inches of Water Vacuum Cleaner Suction Gauge, 2-1/2" Dial Size, Water Lift Test Gauge, with High Accuracy, for Measuring Vacuum Cleaner Suction Power

Brand: GOATACURA

Features:

• 【Application】For measuring and testing the sealed vacuum pressure of a ducted vacuum system. Great for detecting leaks and blockages. Suitable for household vacuum cleaners and central vacuums.
• 【Features】Black steel case is durable, with a rubber adapter designed to fit easily at the inlet of the vacuum cleaner hose. Dial with micro adjustable screw.
• 【Parameter】2-1/2" dial size, with a rubber adapter
• 【Range】-160inH2O-0/-40kpa-0, dual scale
• 【Accuracy】+/-3-2-3%, comply with ANSI B40.1 (Grade B) standard, with accuracy test report.

model number: GA078

Part Number: GA078

Details: Description
GOATACURA vacuum cleaner suction gauge for measuring and testing the sealed vacuum pressure of a ducted vacuum system. The returned values will range between 0 and 160 inches of water lift, with drops indicating a problem somewhere in the system. Great for detecting leaks and blockages. Suitable for household vacuum cleaners and central vacuums.
Dial Size: 2-1/2"
Adapter: With a round rubber adapter designed to fit easily at the inlet of the vacuum cleaner hose.
Pressure Range: -160inH2O-0/-40kpa-0, with micro adjustable screw
Accuracy: +/-3-2-3%, comply with ANSI B40.1 (Grade B) standard, with accuracy test report
Capsule: Beryllium diaphragm type capsule, ensure high accuracy, stable performance
Connection Location: Lower mount
Connection Material: Brass
Case: Black steel case is durable, not easy to damage
Bourdon Tube: Copper alloy
Movement: Brass
Dial: Aluminum, white
Pointer: Aluminum, black
Window: Snap plastic window, easy to removable
Ingress Protection: IP54
Working Temperature: -4 to 140 deg F/-20 to 60 deg C
Ambient Temperature: 140 deg F/60 deg C maximum

GOATACURA is committed to research, develop and produce of temperature, pressure equipment etc suitable for various fields. GOATACURA pursues high-quality, high-accuracy and better service. We pay high attention to the feedback and needs of users. We continue to learn and innovate, and create better products.

Package Dimensions: 5.2 x 3.9 x 3.8 inches
