FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester Resistance Capacitance Inductance Continuity Diode Test Measurement Tools

Brand: FNIRSI

Color: Black

Features:

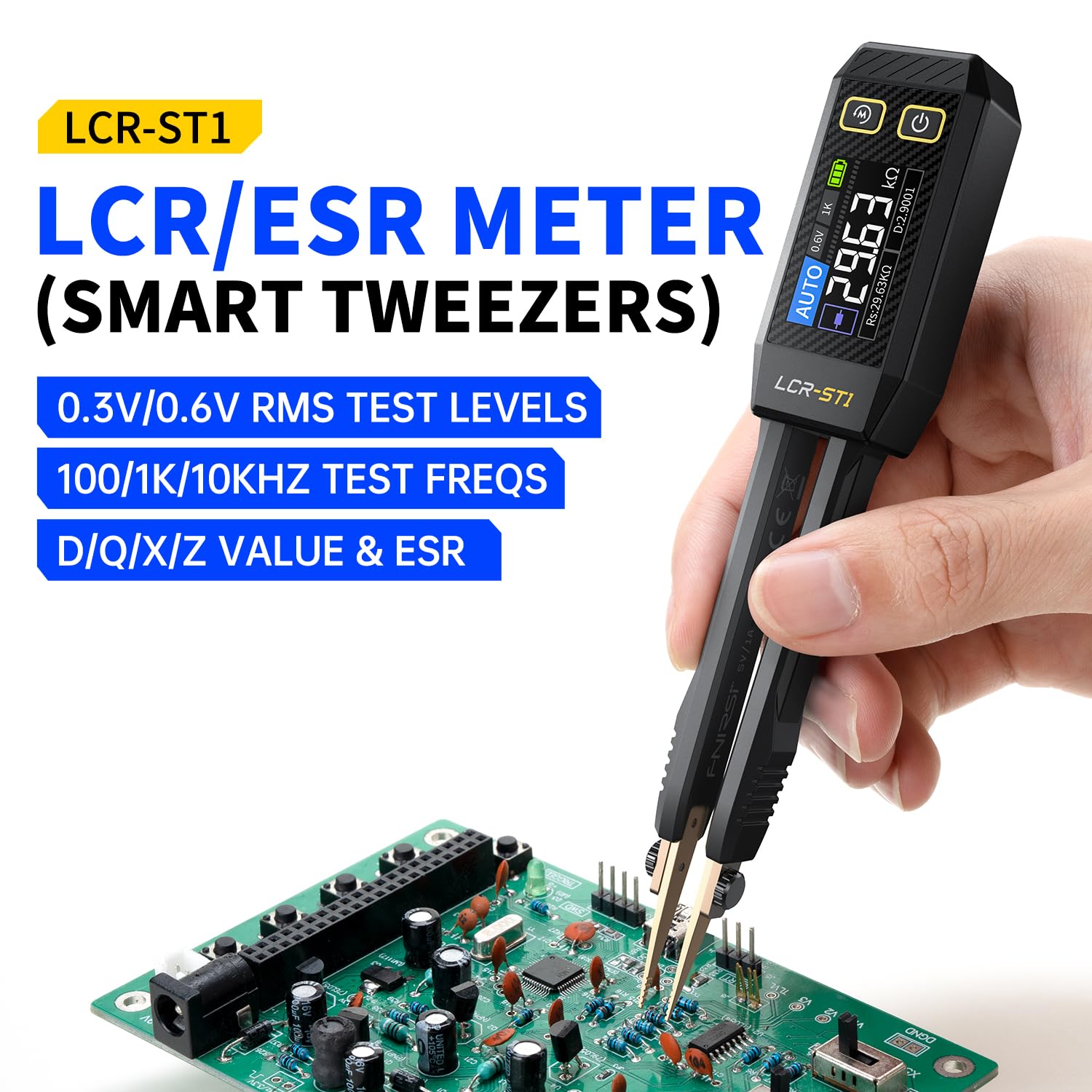

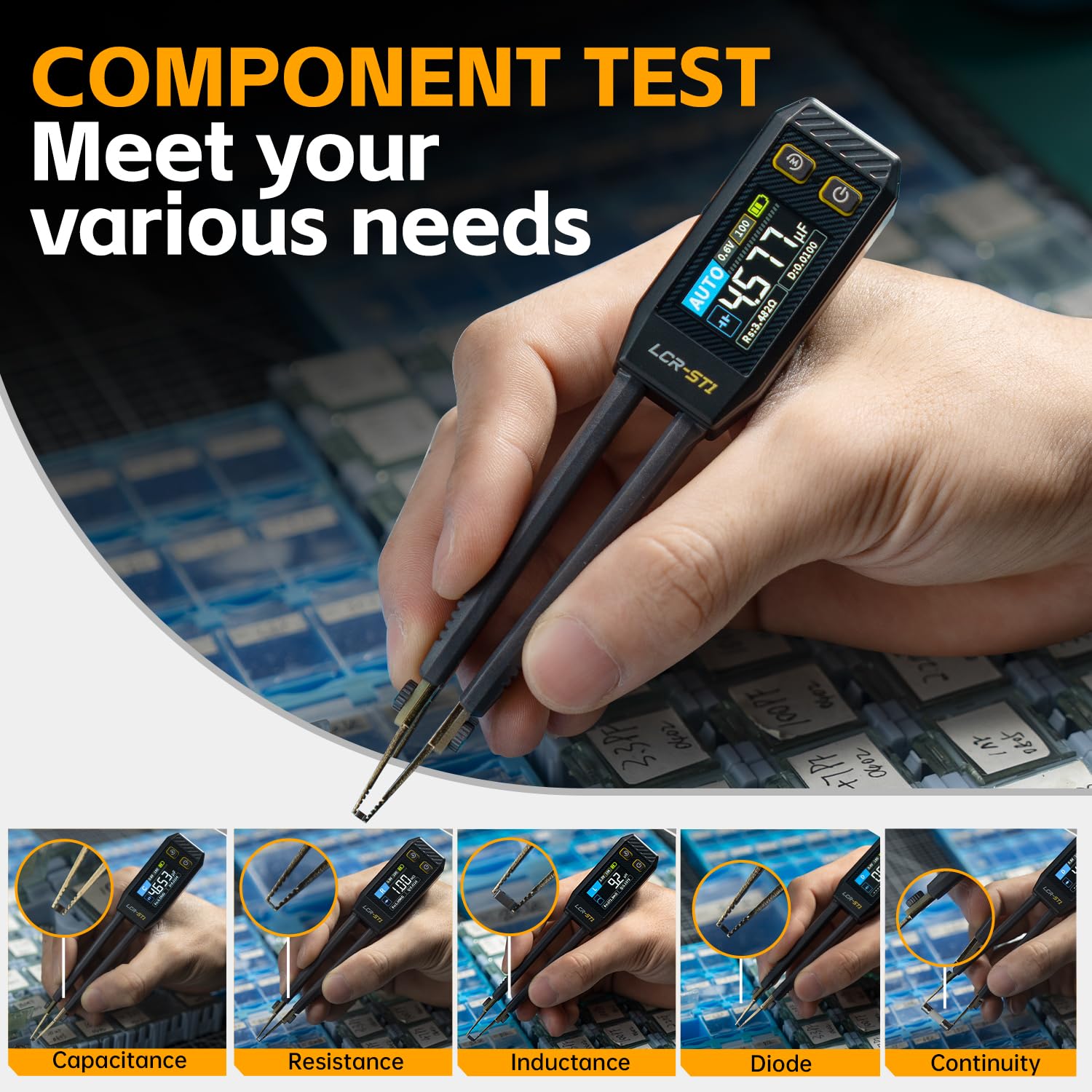

• 【LCR Tweezer Tester】The FNIRSI LCR-ST1 is a multifunctional and portable testing instrument that supports precise measurement of resistance, capacitance, inductance, and diodes

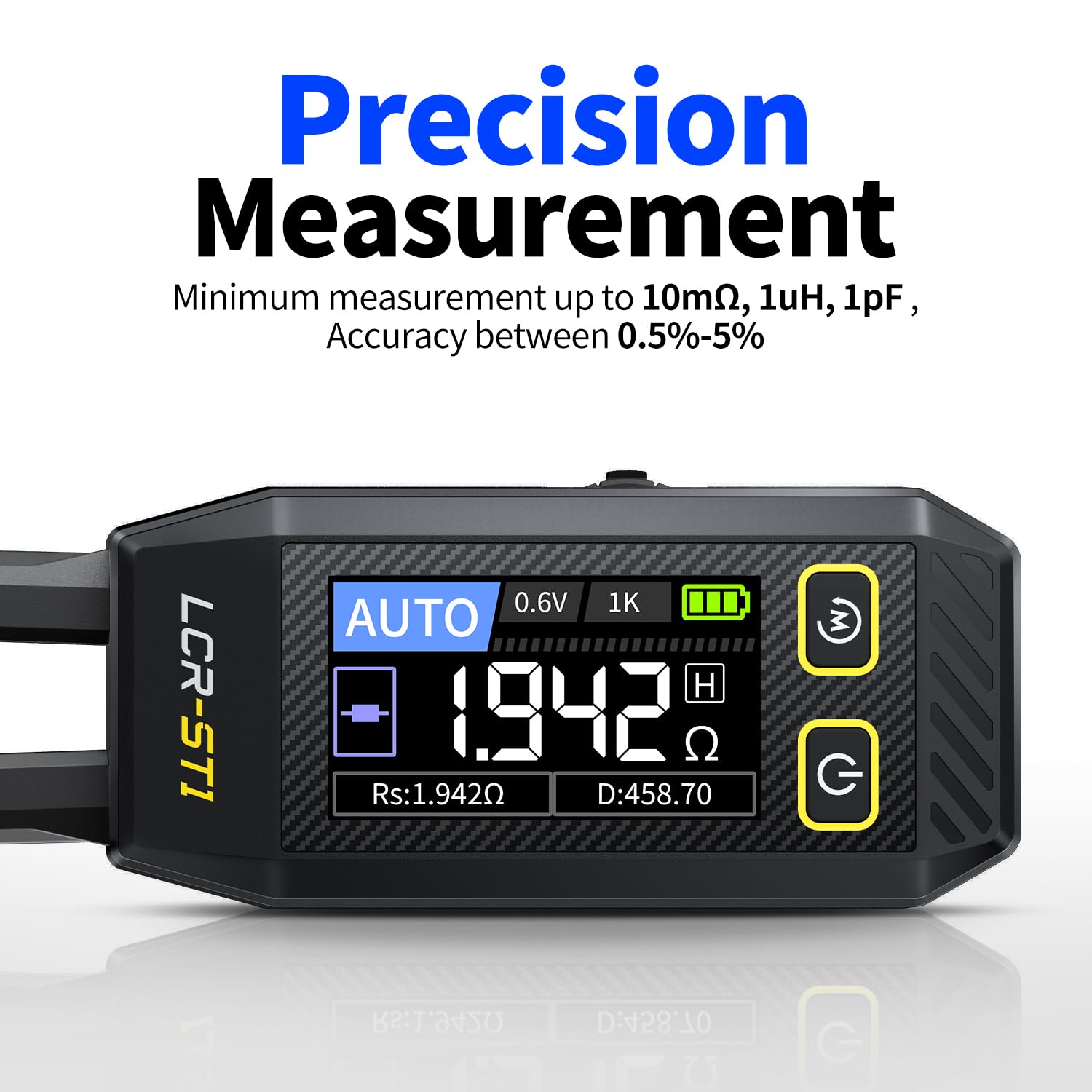

• 【Measurement Range】3 test frequencies – 100 Hz, 1 kHz, 10 kHz. 2 test voltage - 0.3 Vrms, 0.6 Vrms. R: 10 mΩ to 10 MΩ / C: 1 pF to 22 mF / L:1 uH to 10 H

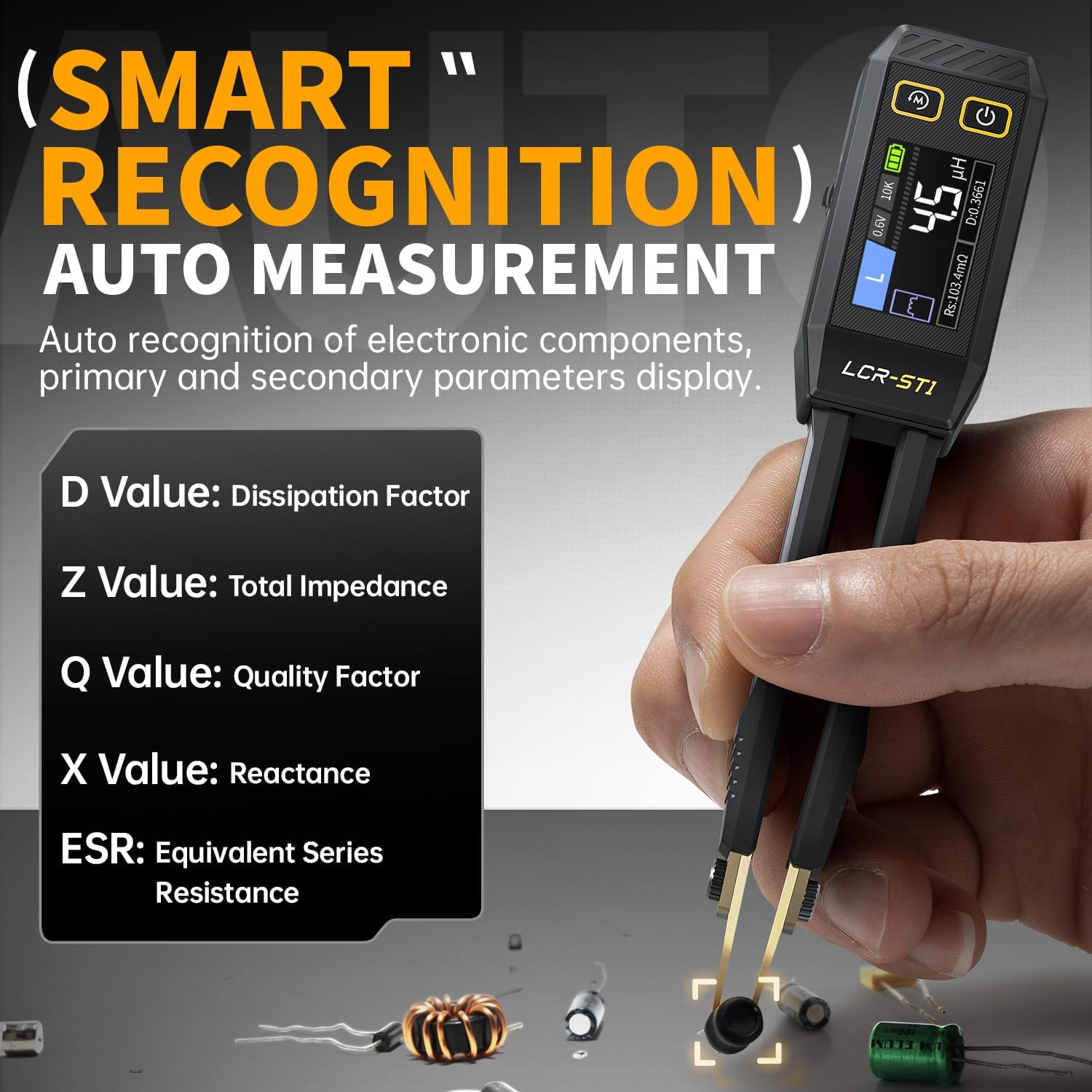

• 【Multiple functions】D, Z, Q, R, ESR value reading. Auto recognition of elecronic components, primary and secondary parameters display. 1.14'' HD color display, is easy to operation

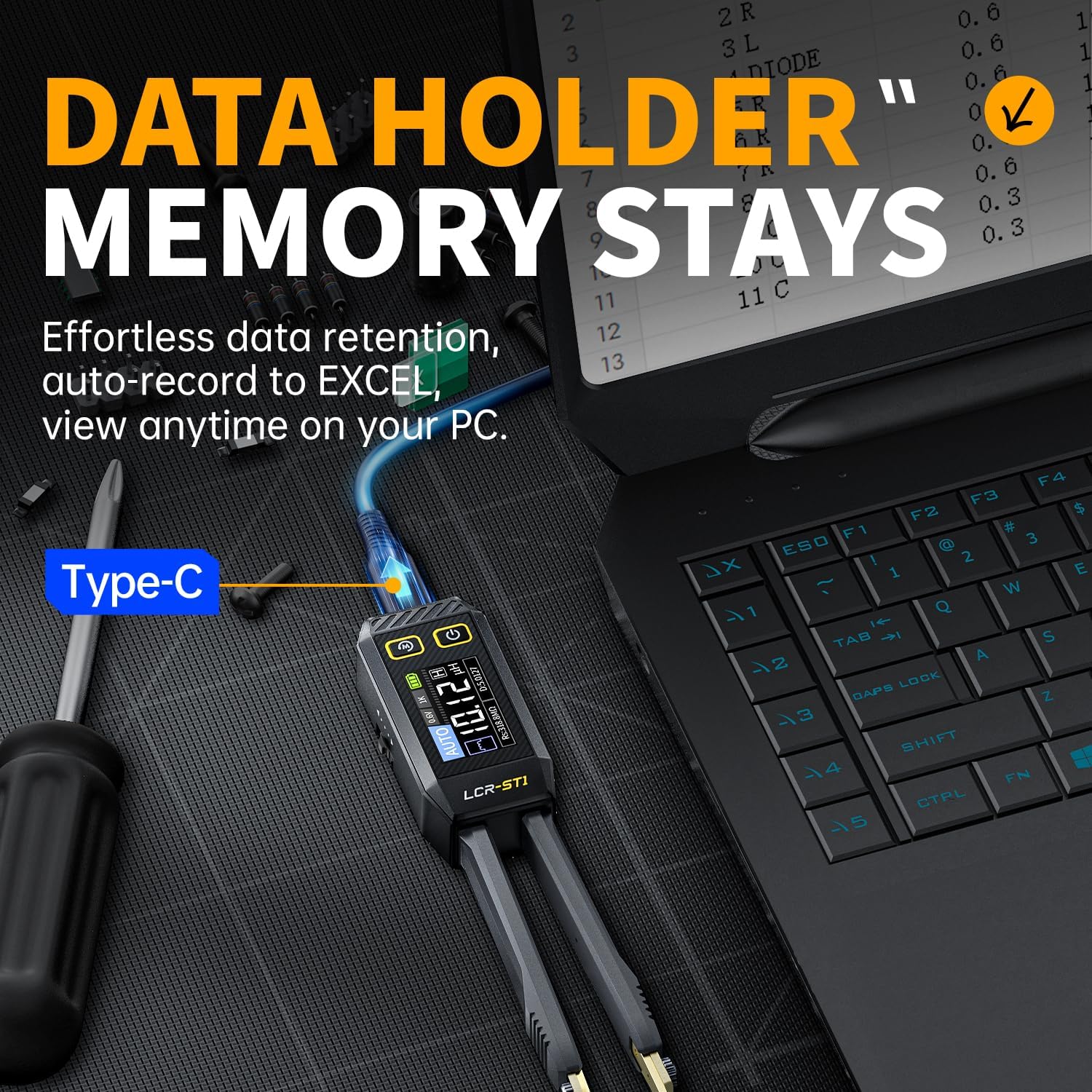

• 【Data Storage and Export】The LCR tester can automatically save the test records. And you could connect the tester to your PC and transfer all the data to PC via EXCEL

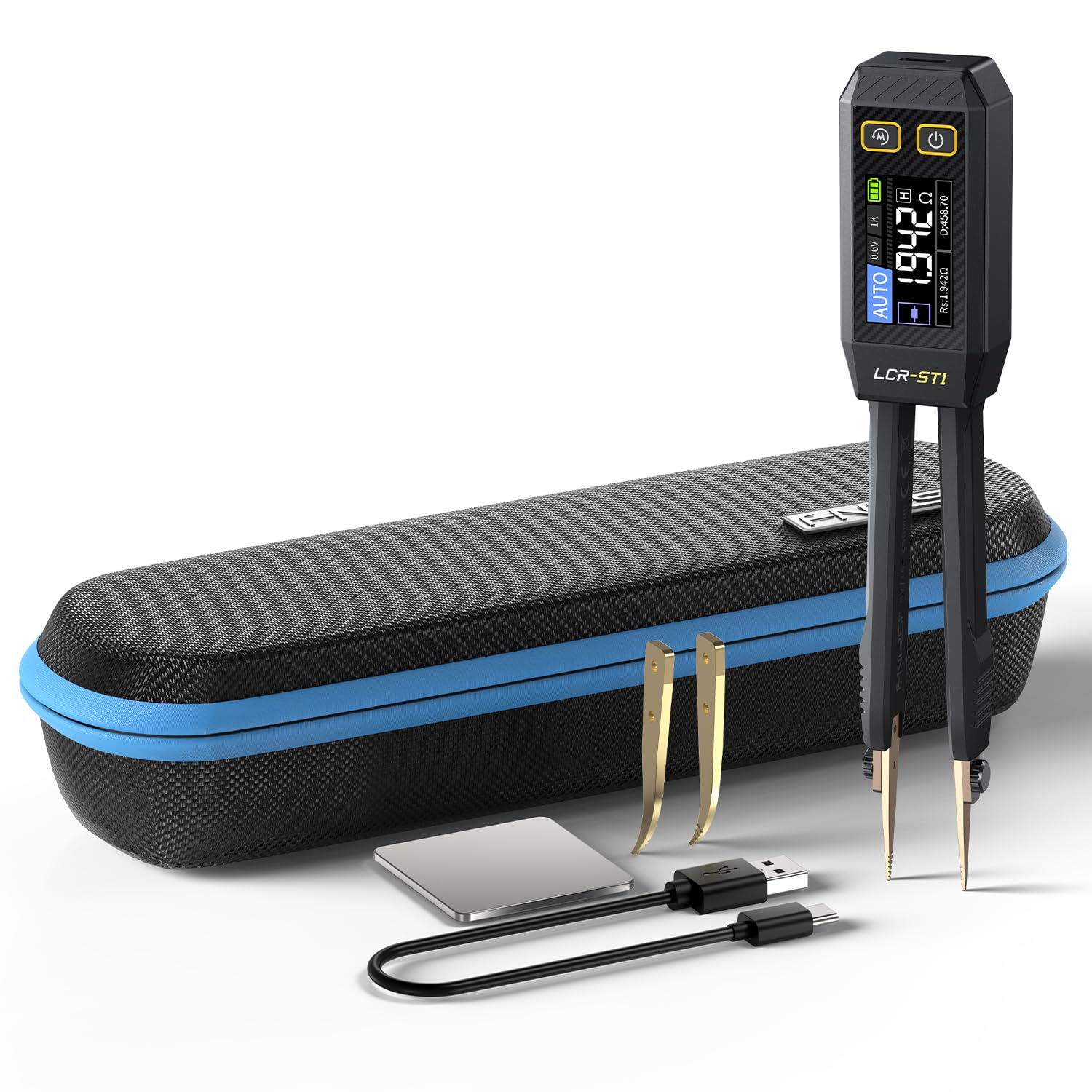

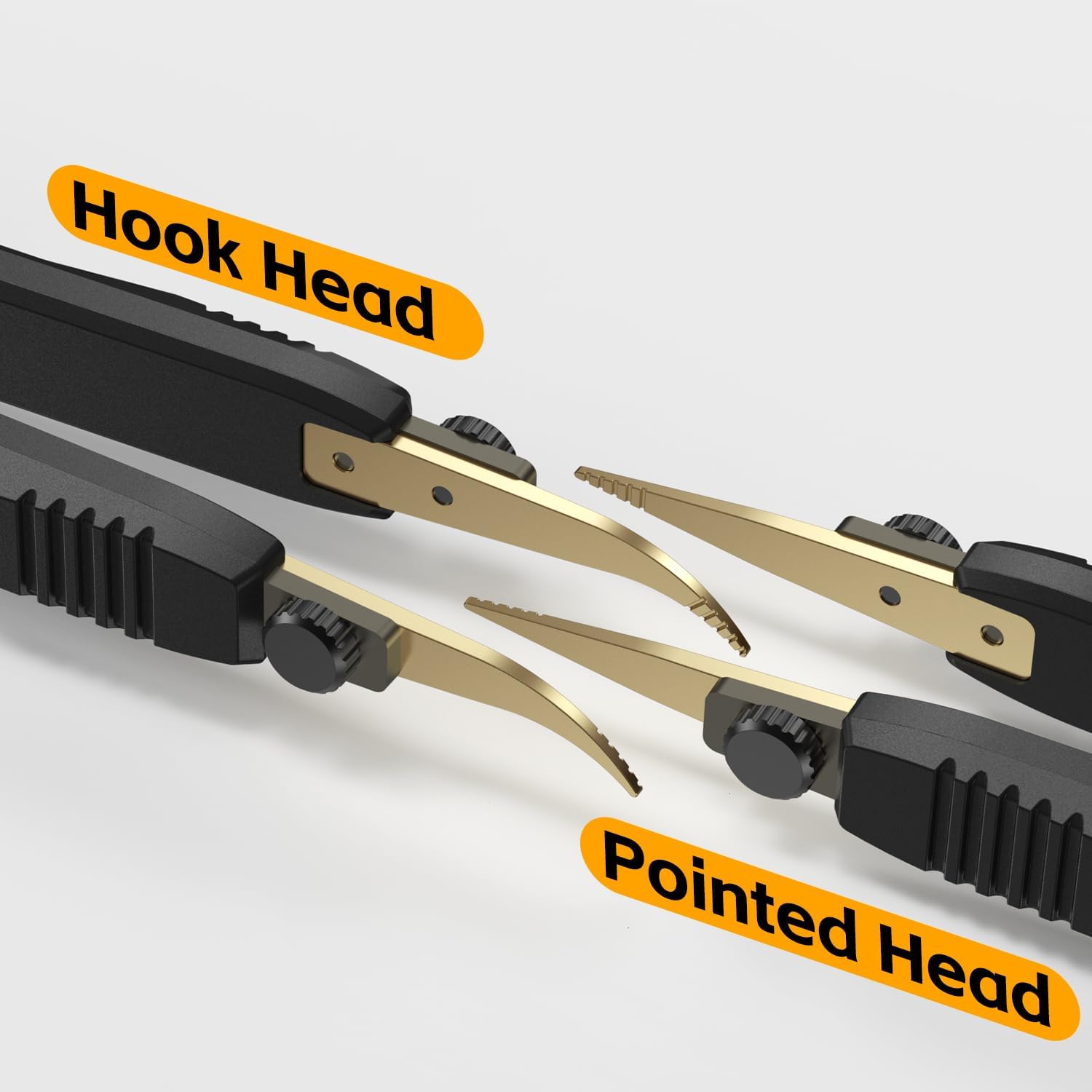

• 【2 Types of Tweezer Heads】With pointed head and hook head, it is convenient to test different types of products. It is equipped with a storage bag and can be charged via a data cable
• 【Wide Application】Quickly detects defective components, perfect for SMD repairs, efficiently locates circuit board faults, and easily recovers parts from used boards
• 【Note】This product adopts a fixed screen design that does not support flipping or rotating.

model number: FNIRSI-LCR-ST1

Part Number: LCR-ST1

Package Dimensions: 8.0 x 2.4 x 2.1 inches
