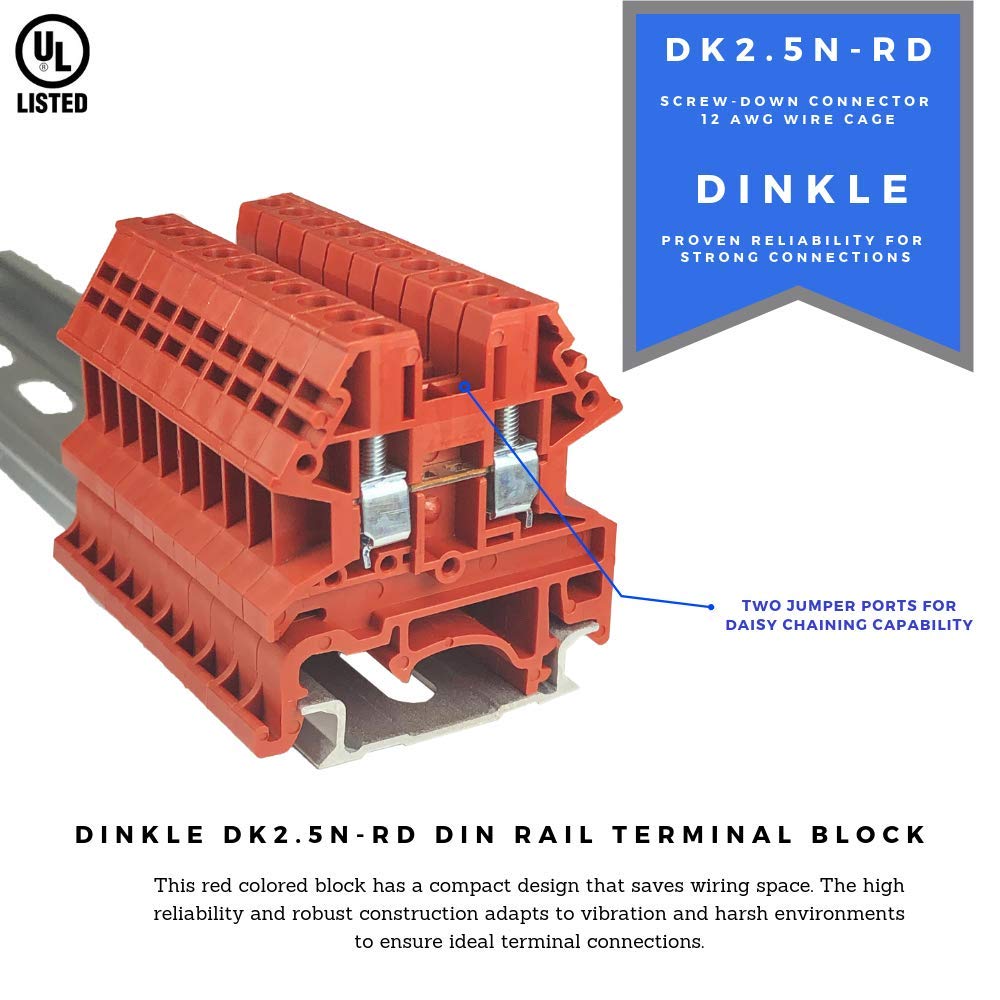

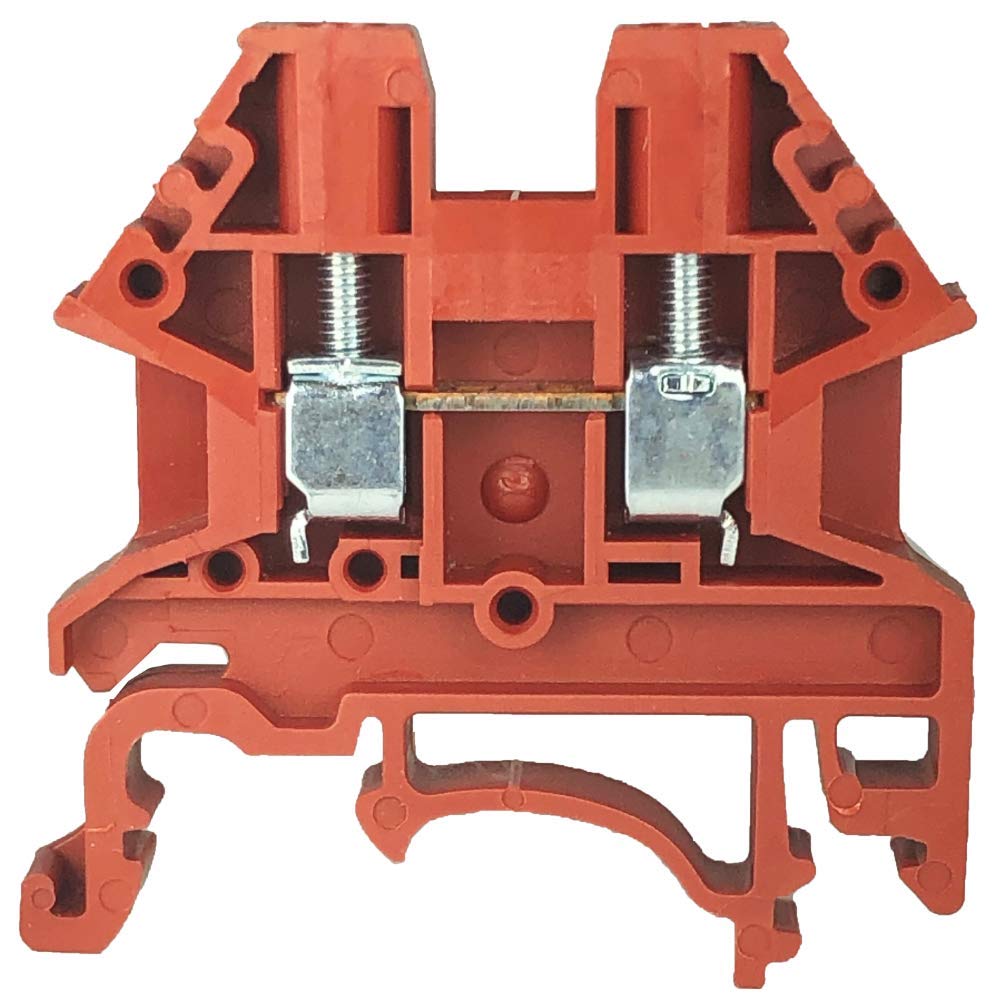

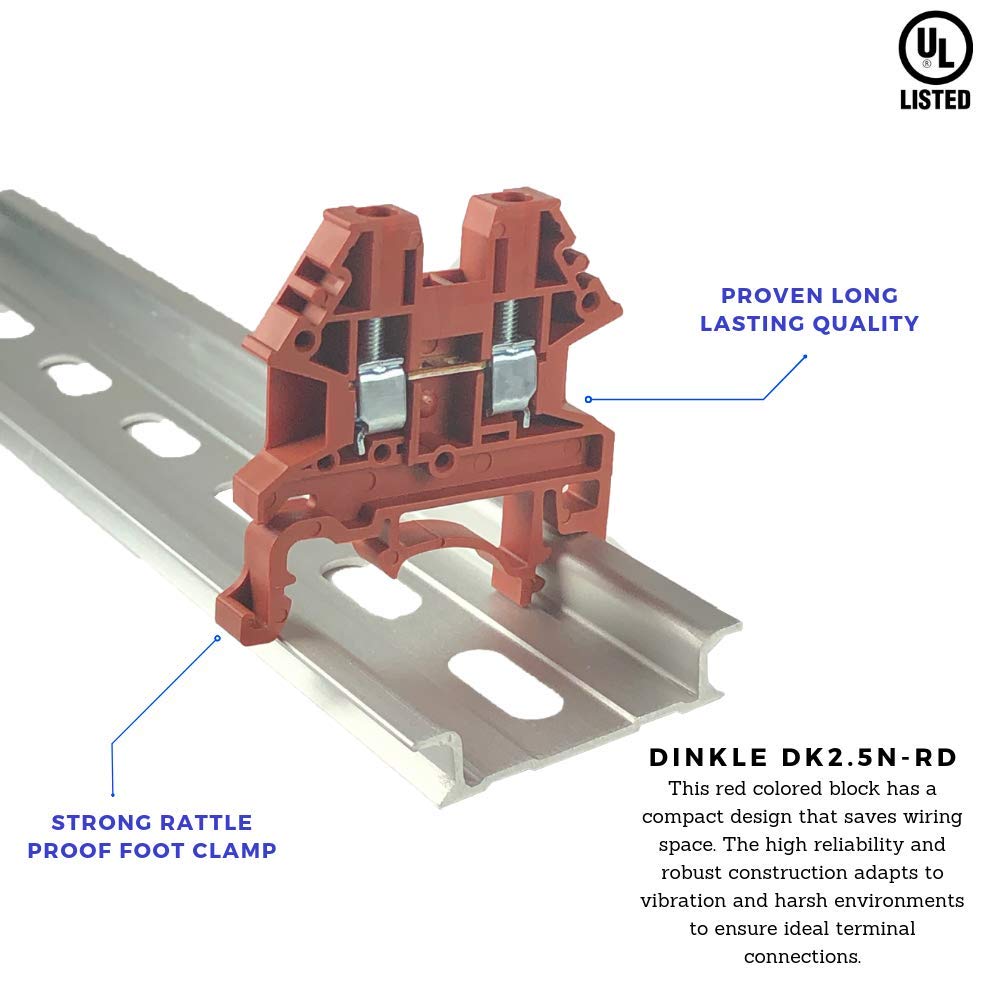

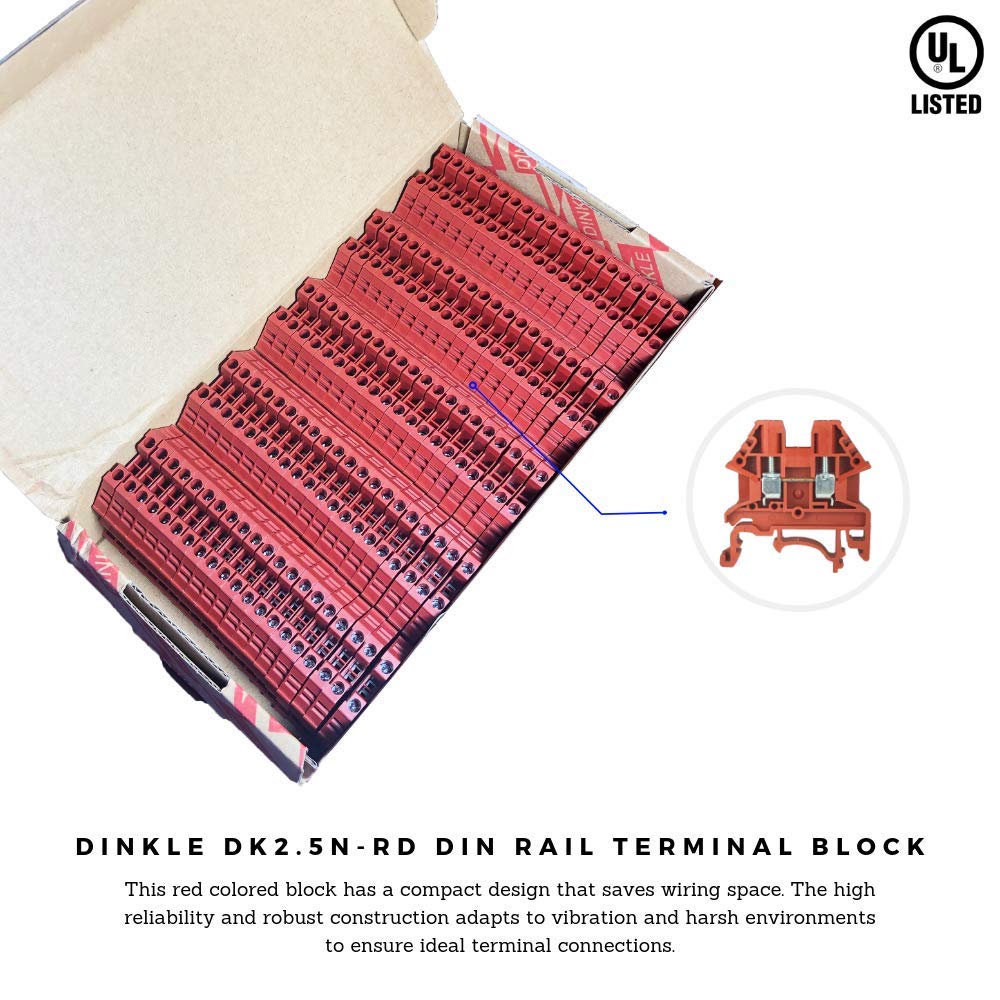

Dinkle DK2.5N-RD DIN Rail Terminal Blocks (Pack of 100)

Brand: International Connector

Color: Red

Features:

• Ul 600v rated
• Ul 12-22awg rated
• High reliability and robust design adapts vibration and harsh thermal variation
• Compact design that saves wiring space

model number: DK2.5N-RD

Part Number: DK2.5N-RD

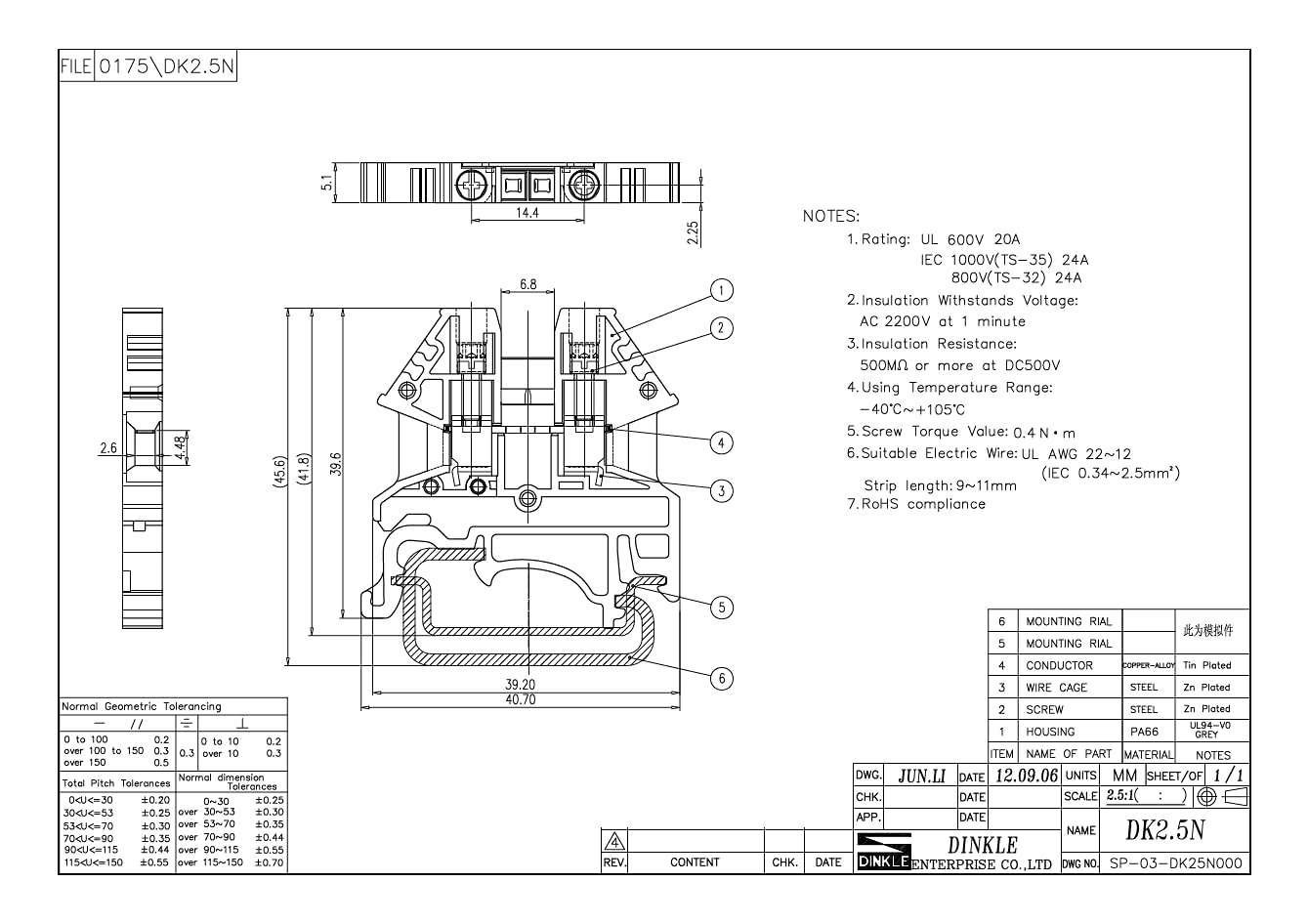

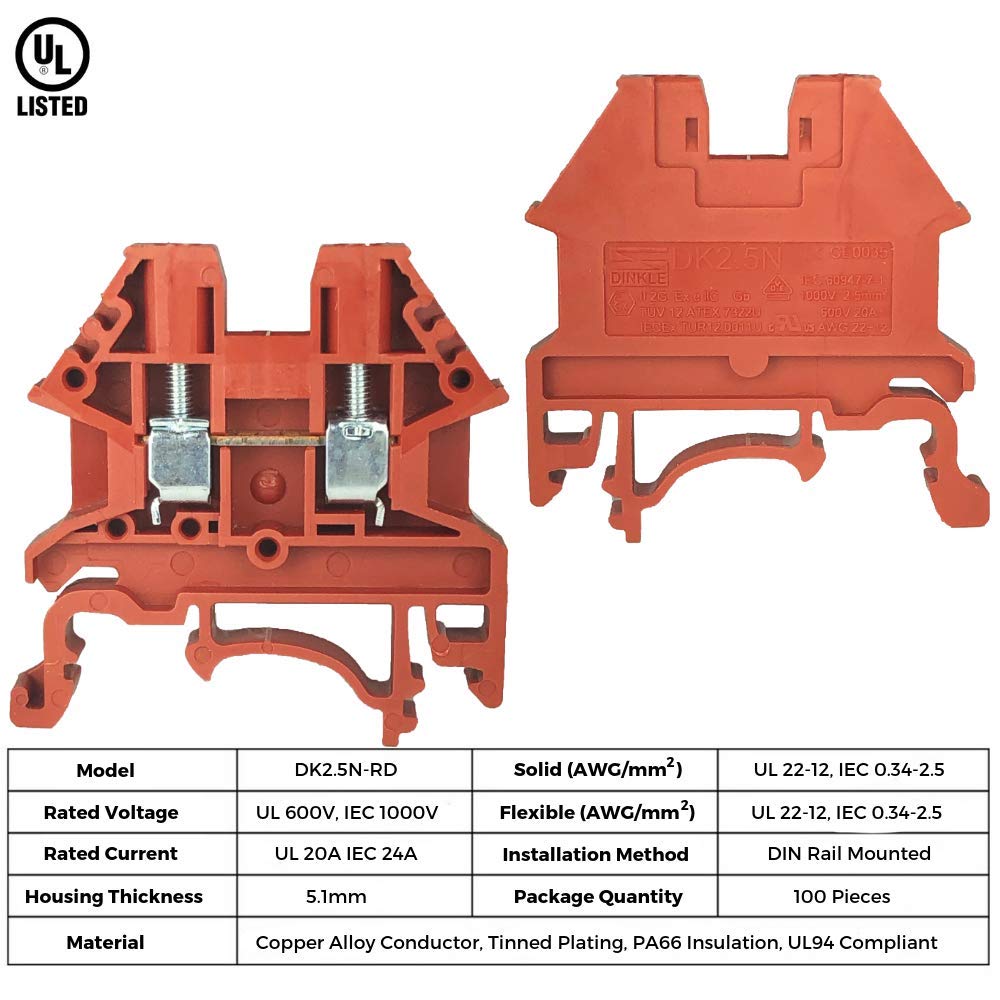

Details: Dinkle DK2.5N-RD red color block has a compact design that saves wiring space. The high reliability and robust design adapts vibration and harsh thermal variation to prevent terminal connection fault. Rated voltage: UL 600V, IEC 1,000 V. Rated current: UL 20A, IEC 24A. Conductor cross-section, solid(AWG/mm2): UL 22-12, IEC 0.5-2.5. Conductor cross-section, flexible(AWG/mm2): UL 22-12, IEC 0.5-2.5. Rated impulse withstand voltage: 6KV. Torque(N-m): 0.4. Screw: M2.5. Wire strip length: 9-11mm. Insulating material: PA. T x H x W(mm): 5.1 x 39.6 x 40.5. End cover DK4NC-RD. Partition DKNSPS-005. Jumper DSS2.5N-02P, DSS2.5N-10P. Marking label TM08W, TM26W.

EAN: 0737123110612

Package Dimensions: 8.6 x 4.3 x 1.7 inches
