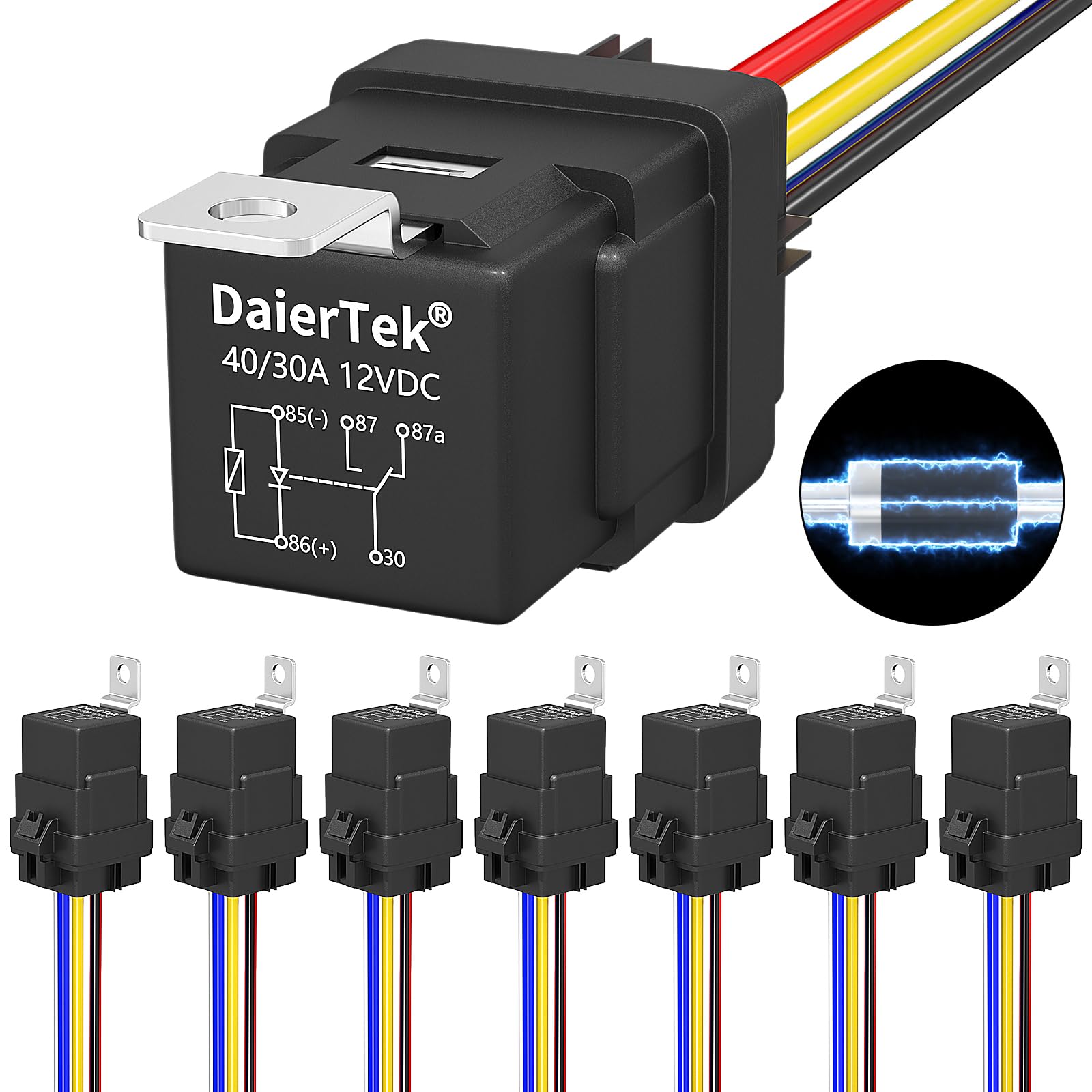

DaierTek 12V Relay with Built-in Diode & 12 AWG Harness Socket 30A/40A Heavy Duty SPDT 5 Pin Relay Switch Waterproof for Automotive Car Marine Boat -8pcs

Brand: DAIERTEK

Features:

• 【30A/40A Relay】 - These 5 pin relays are rated at 12v 30A/40A (NO: 40A, NC: 30A), spdt heavy duty design relay switch.

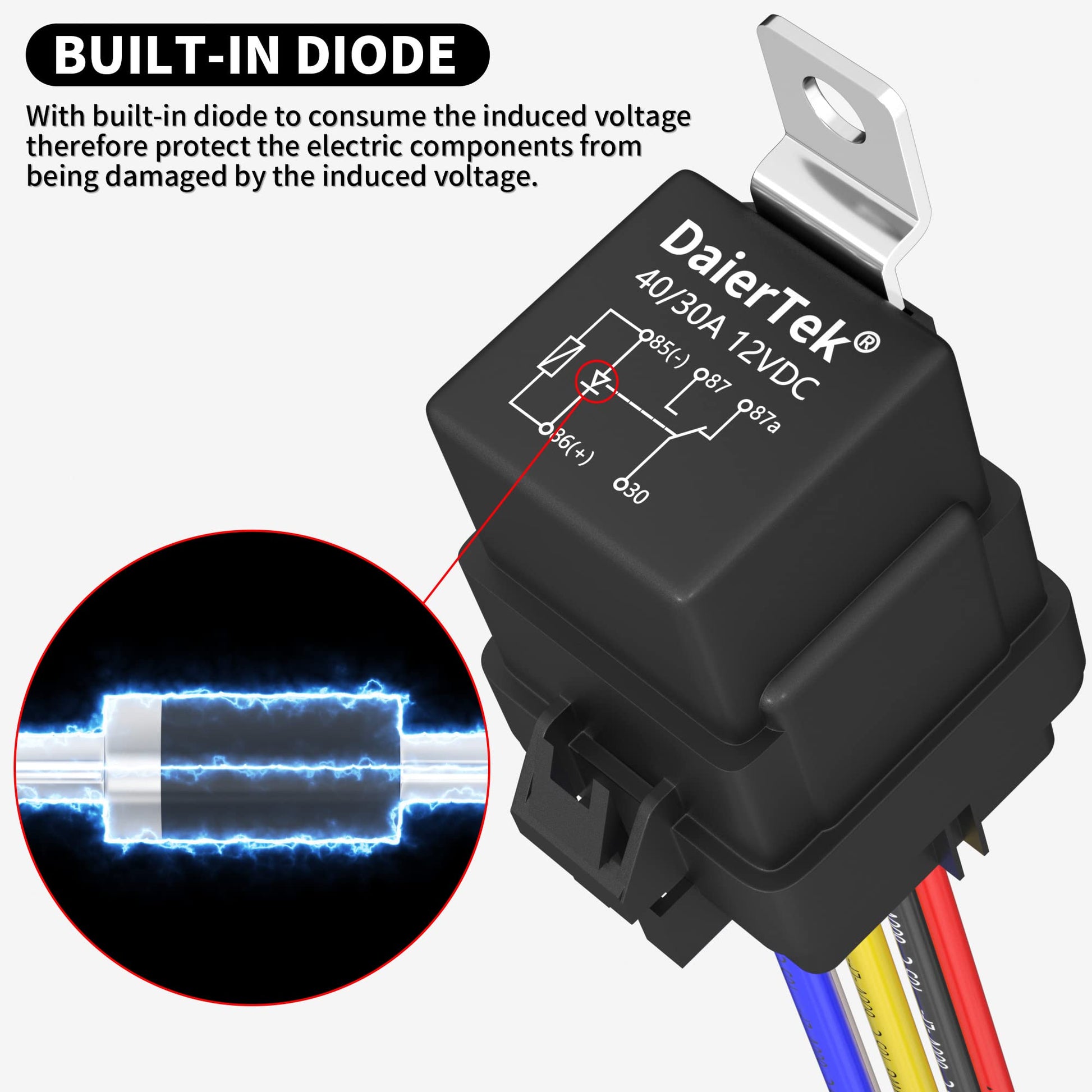

• 【Built-in Diode】 - This 12 volt relay has a built-in diode, which aims to consume the induced voltage that is generated by the coil while switching the status of relay, and therefore protect the electric components from being damaged by the induced voltage.

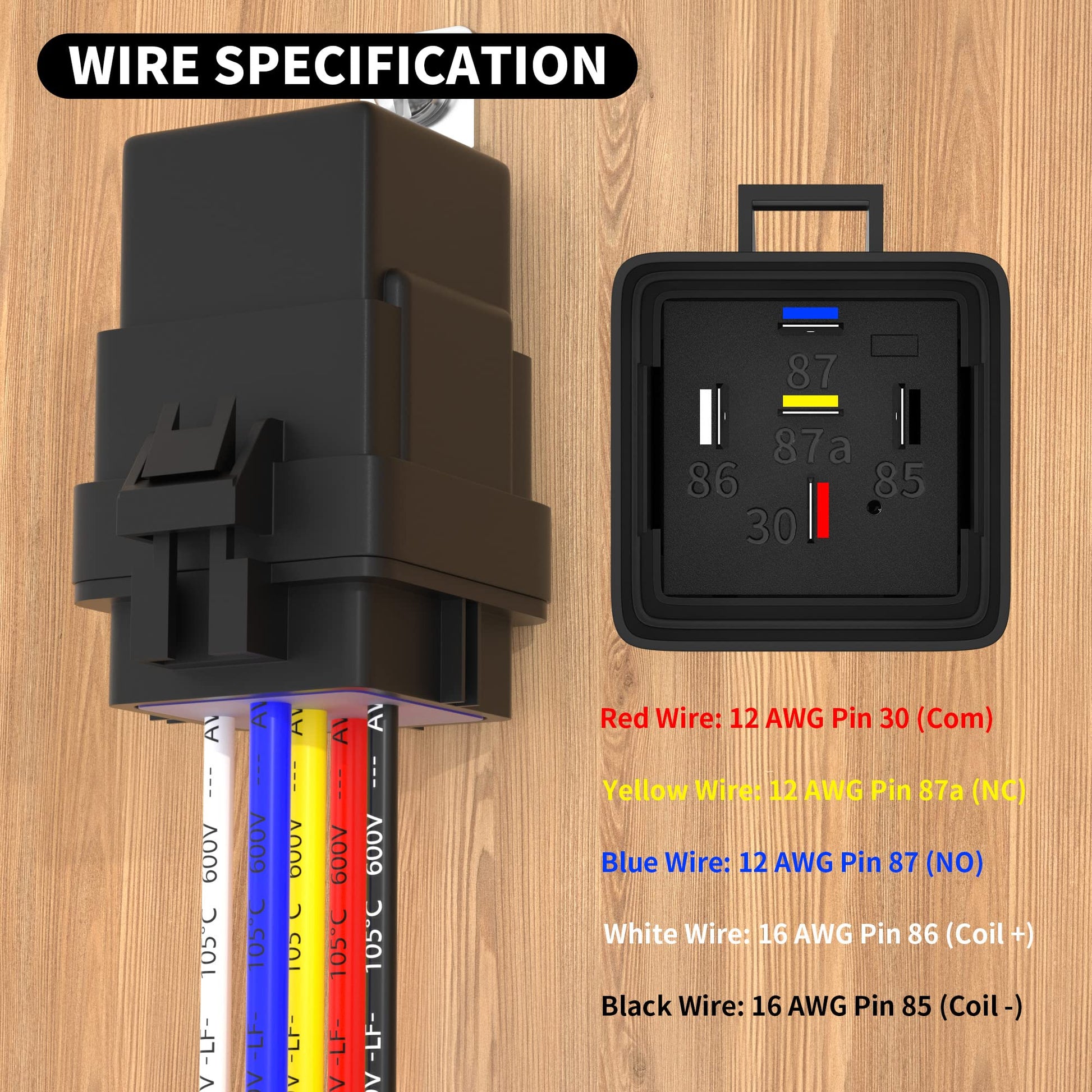

• 【12AWG Harness】 - The wires which come with this relay socket are 12AWG/16AWG design, the 12 awg wires include red, blue and yellow wires which are the wires for high power terminals of the spdt relay; and 16 awg white and black wires for the coil terminals.

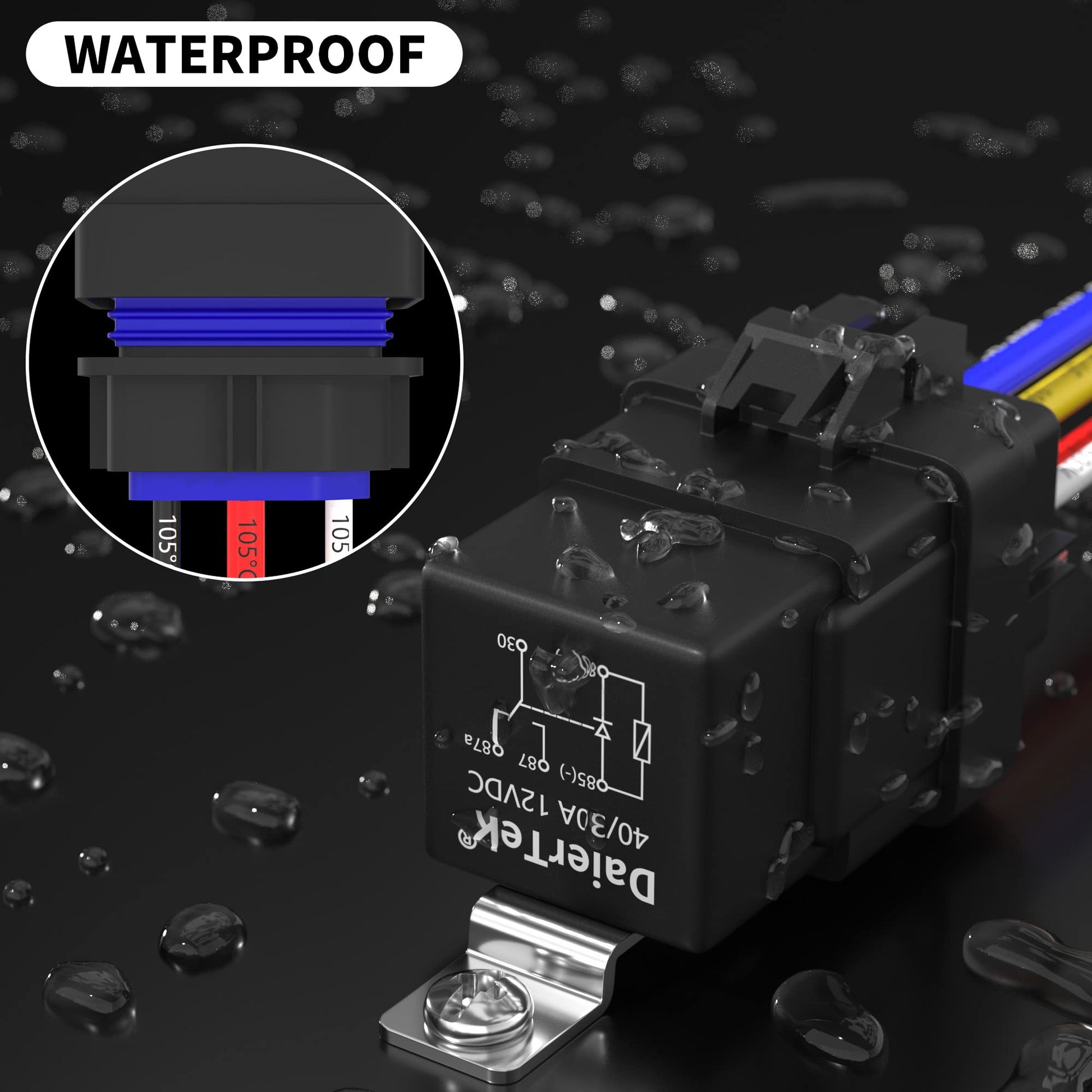

• 【Waterproof】 - This 5 pin relay 12v has seal ring inside the harness socket to improve its waterproof performance, makes it much safer under moist environment use.

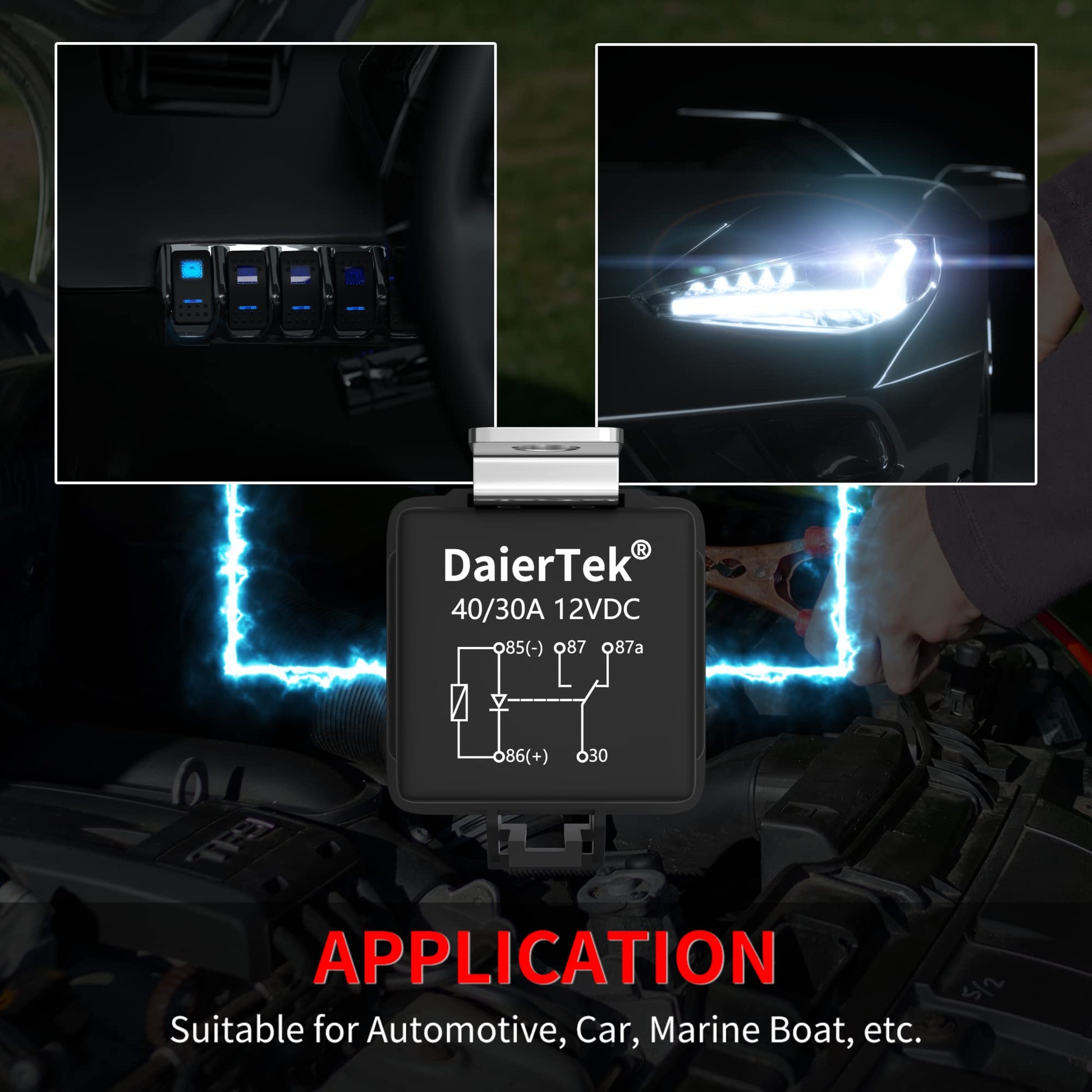

• 【Wide Application】 - The waterproof relay 12v acts as a bridge between switches and devices, which helps to achieve controlling high rating devices by small rating switches, suitable for auto, car, truck, marine boat, etc.

model number: JD1914-W12V-8Pcs

Part Number: JD1914-W12V-8Pcs

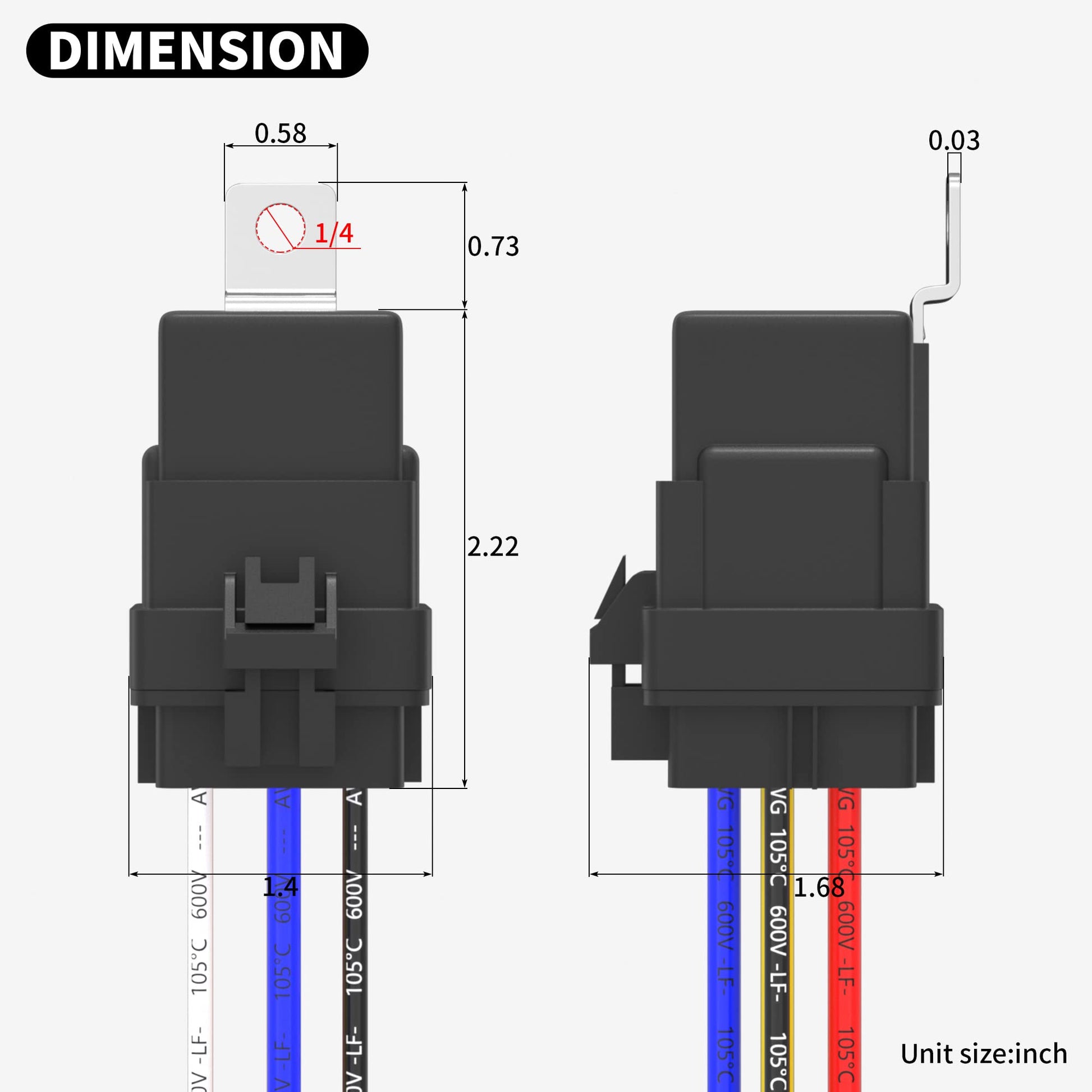

Package Dimensions: 9.8 x 5.3 x 2.3 inches
