BEP 701 Battery Disconnect Switch

Author: BEP Marine

Brand: BEP

Color: Assorted

Features:

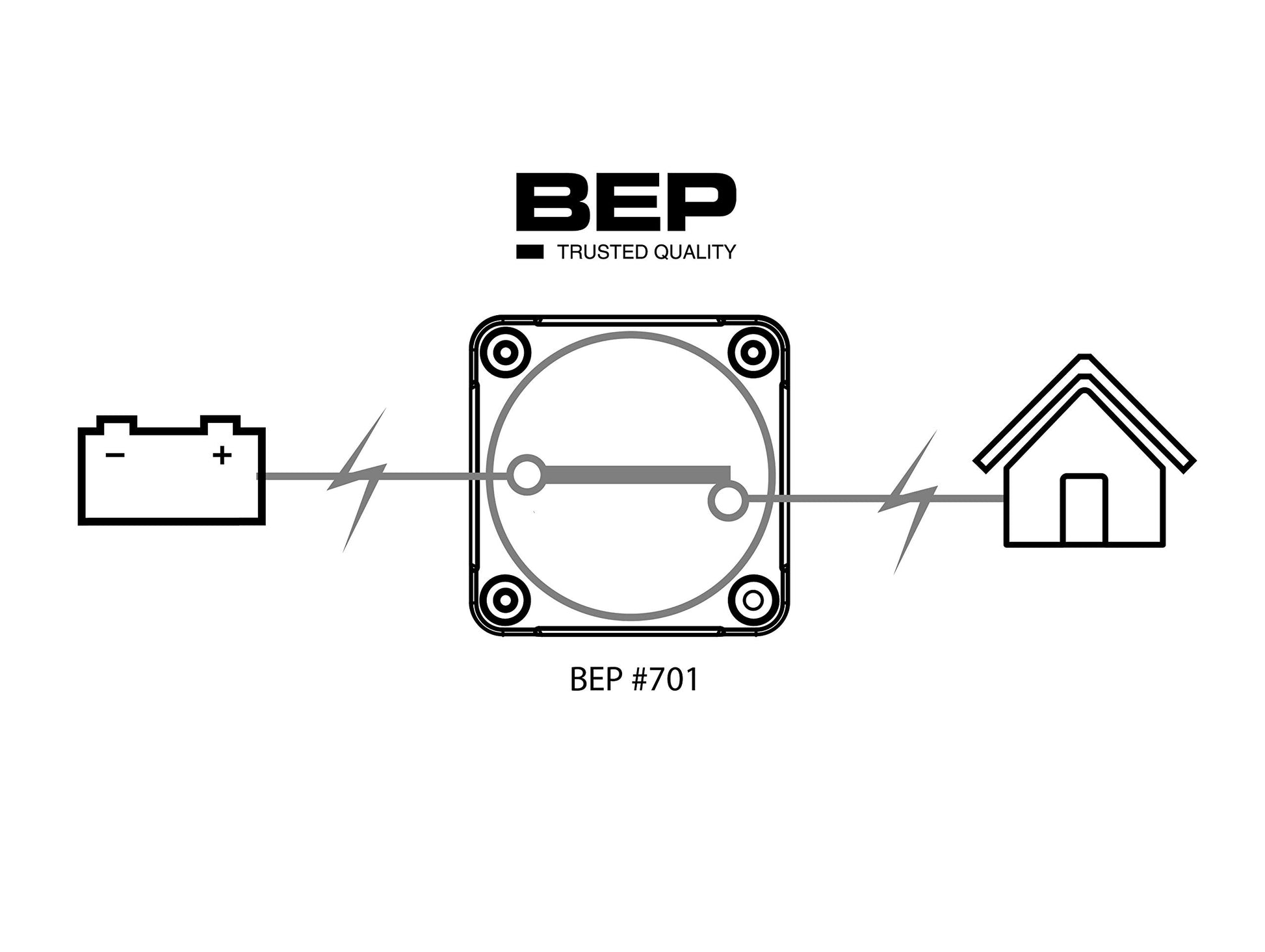

• Operation: On/Off, Rating: 275A DC Continuous (1hr) , 455A DC Intermittent (5 min), 1250A DC Cranking (10 sec), Voltage: 48V DC, Stud Size: 2x3/8" (10mm)
• Patented Contour Locking System allows switch to be a stand alone unit, or locked together with other switches
• Control knob can be removed by switching to counter-clockwise 45° position
• Tin-plated copper studs and nuts

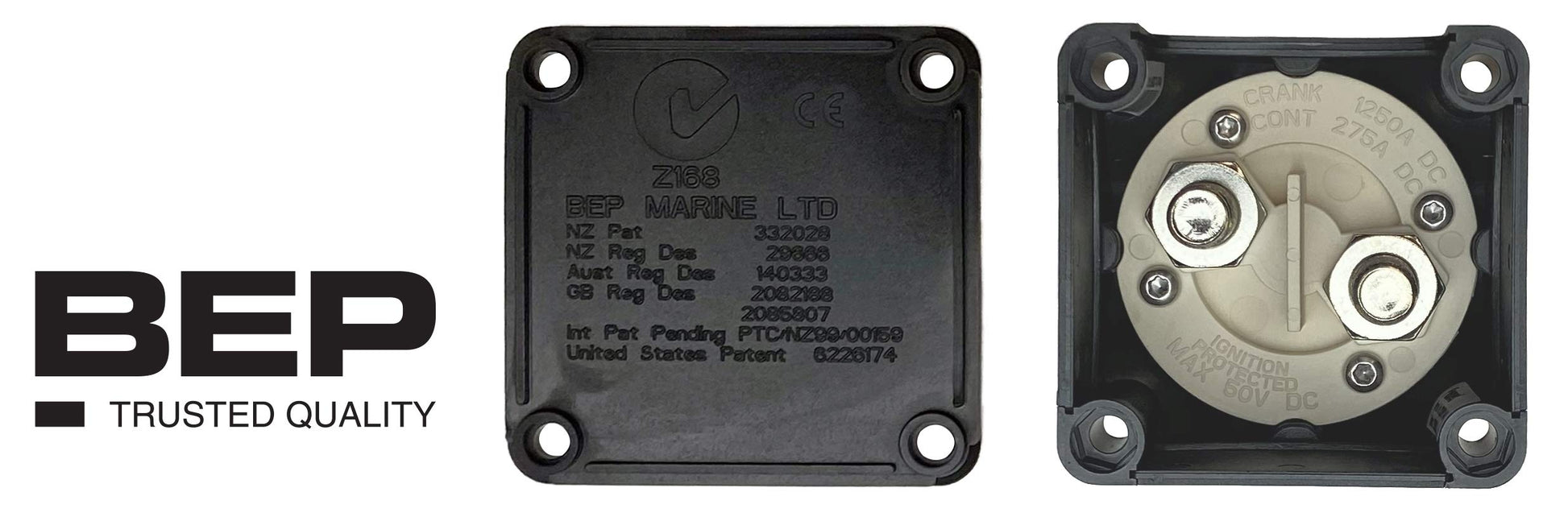

• Three removable side plates for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits. This ensures the switch meets ABYC requirements. Ignition protected

Binding: Apparel

Release Date: 18-02-2014

model number: 701

Part Number: 701

EAN: 0870216000015

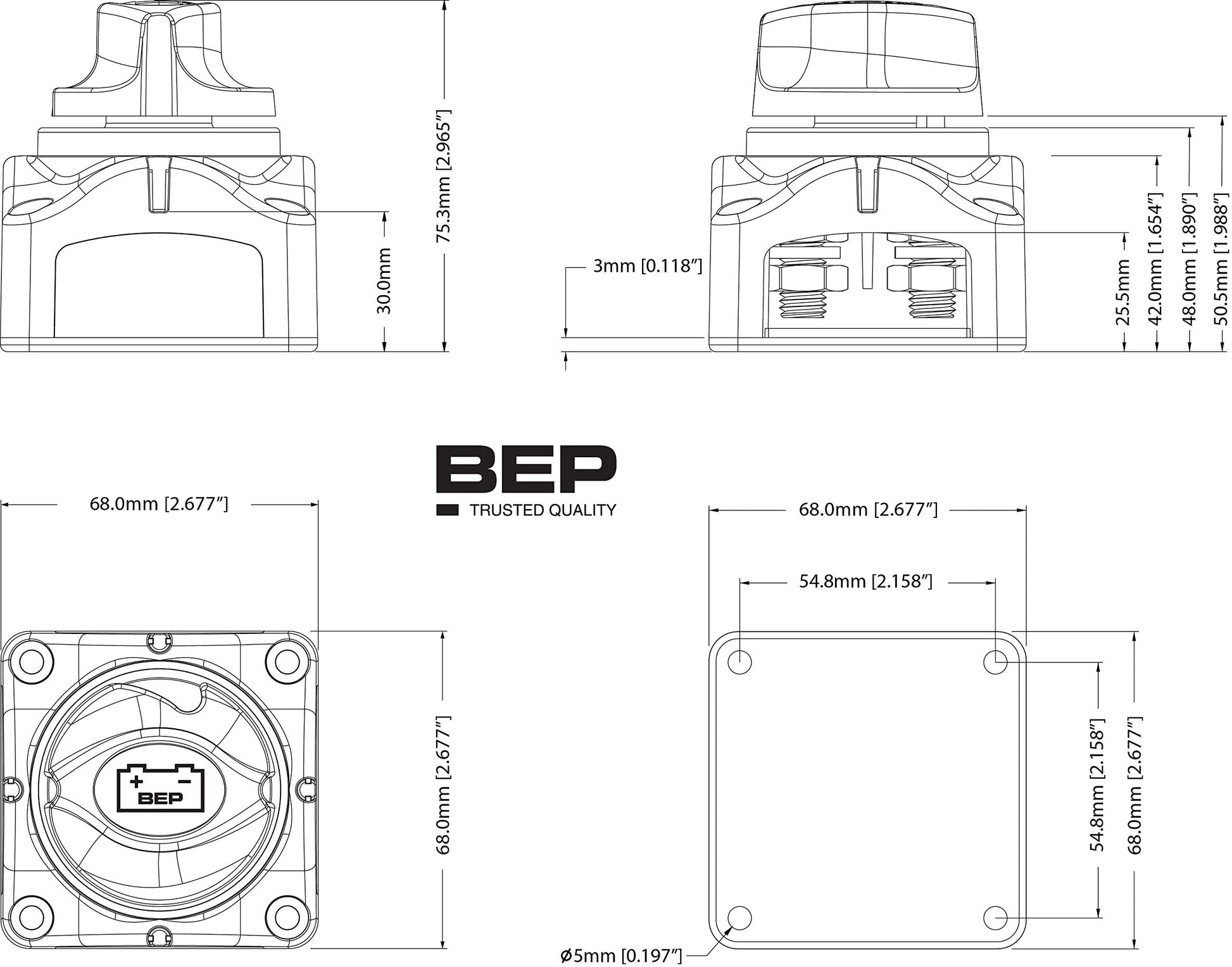

Package Dimensions: 5.7 x 3.9 x 3.5 inches
