ANNIMOS 45KG Brushless RC Servo Arduino Steering Motor Digital Full Metal Gear Waterproof

Brand: ANNIMOS

Features:

• Fast / Strong / Unbelievably Precise Maximum Torque of 49kg-cm (680 oz-in) and Speeds up to 0.1 sec/60° (8.4V)
• Waterproof IP67 /Brushles /Digital
• Durable: Constructed with a robust metal gear train for long-lasting performance.
• Versatile: Compatible with most RC models, including cars, trucks, boats, and planes.

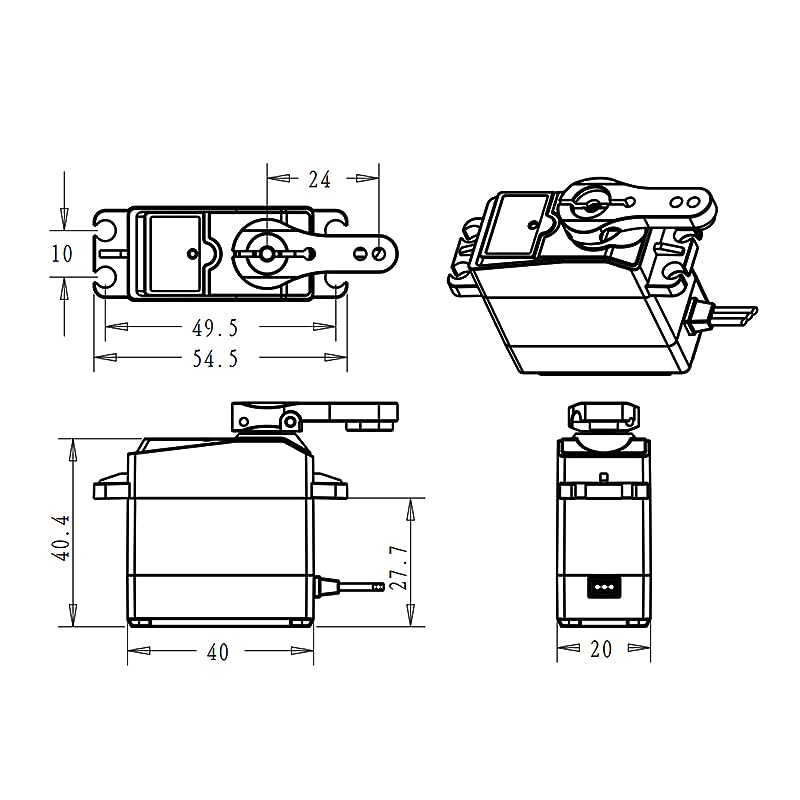

• Dimension：40*20*37.5mm (1.57*0.79*1.48in), Suitable For 1/8 1/10 1/12 RCs

Binding: Toy

model number: BLS3245A

Part Number: BLS3245A

Details: Product Specification:
Suitable for: for 1/8 1/10 1/12 Scale RC Cars, Trucks
★Motor Type: Brushless Motor

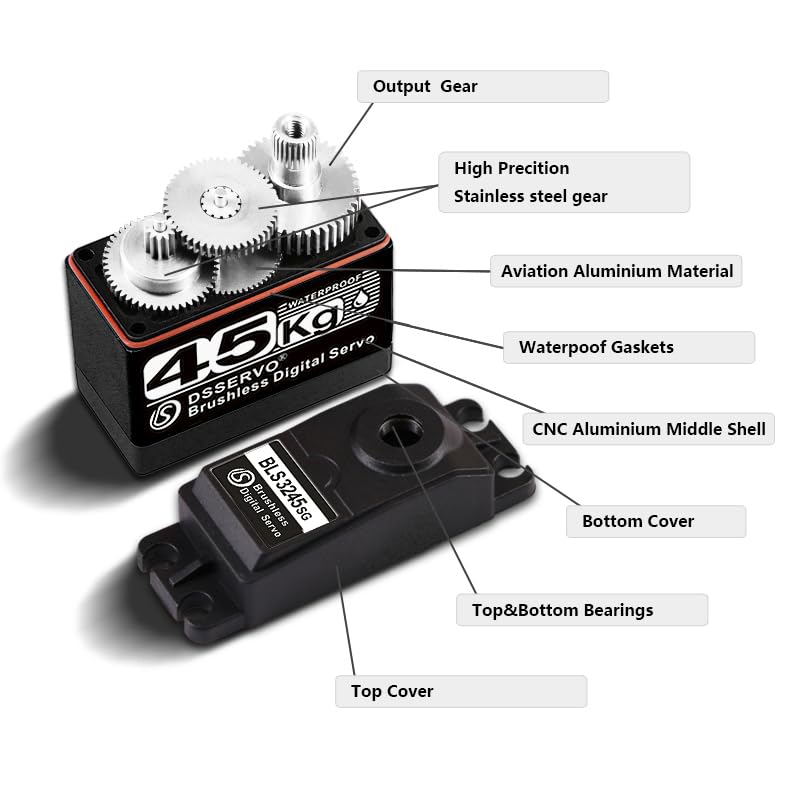

Gear Type: Stainless Steel
Spline:25 Tooth
Gear ratio: 361
Bearing：Double Bearing
★Waterproof Performance：IP67
CE /RoHs: Yes
Connector Wire: 17.7in (450mm)

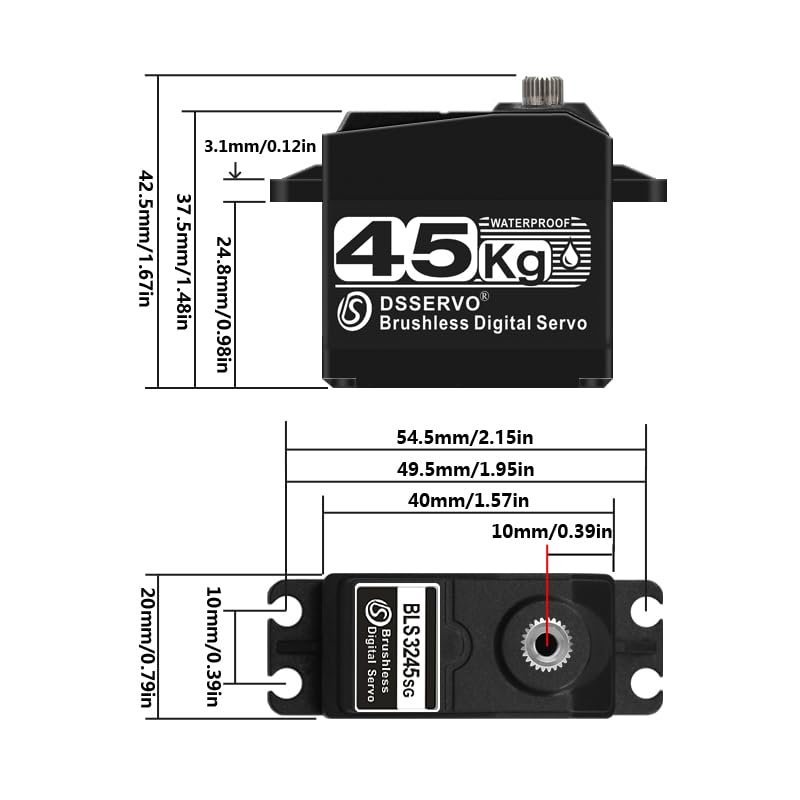

Size: 1.57*0.79*1.48inch（40 * 20 * 37.5mm）
Weight: 2.12oz (60g)

Electrical Specification：
Operating voltage range: 5-8.4 Volts
Operating speed at no load ( 4.8V ): 0.15 sec/60°
Operating speed at no load ( 6V ): 0.13 sec/60°
Operating speed at no load ( 7.4V ): 0.11 sec/60°
★Operating speed at no load ( 8.4V ): 0.1 sec/60°
Stall torque at locked ( 4.8V ): 31kg.cm(430oz-in)
Stall torque at locked ( 6V ): 36kg.cm(499.9oz-in)
Stall torque at locked (7.4V ): 43kg.cm(597oz-in)
★Stall torque at locked (8.4V ): 49kg.cm(680oz-in)
Stall current at locked ( 4.8V ): 3.2A
Stall current at locked ( 6V ): 4A
Stall current at locked ( 7.4V ): 5.2A
★Stall current at locked ( 8.4V ): 6.2A
Idle current at stopped (4.8/6/7.4/8.4V): 5mA

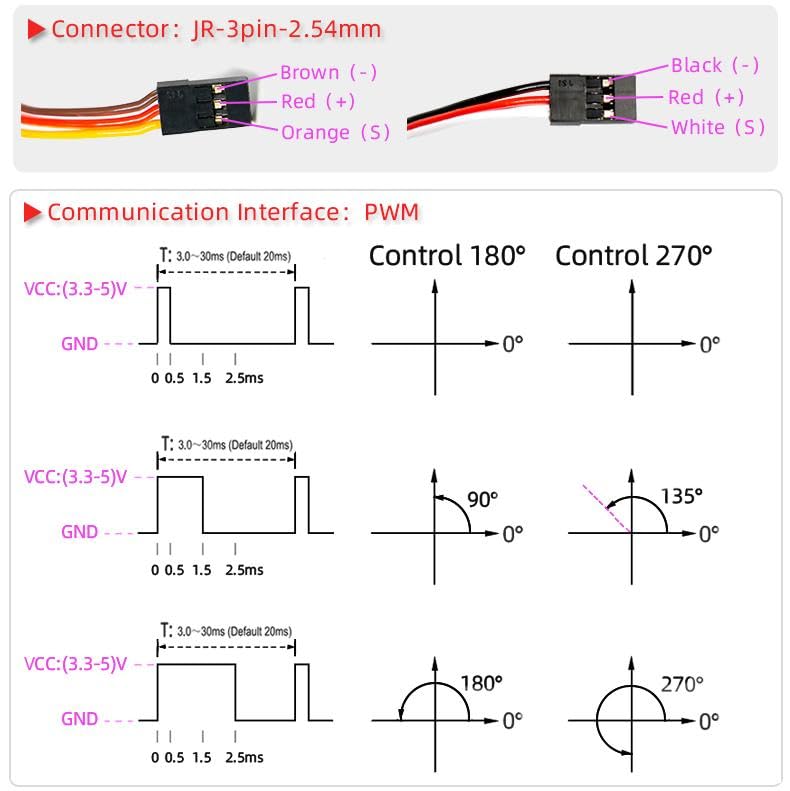

Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 270° (when 500-2500μsec)
Dead band width: 2μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (When 1500-2500μsec)

Apply Environmental Condition:
Storage Temperature Range:-30°C~80°C
Operating Temperature Range:-25°C~70°C

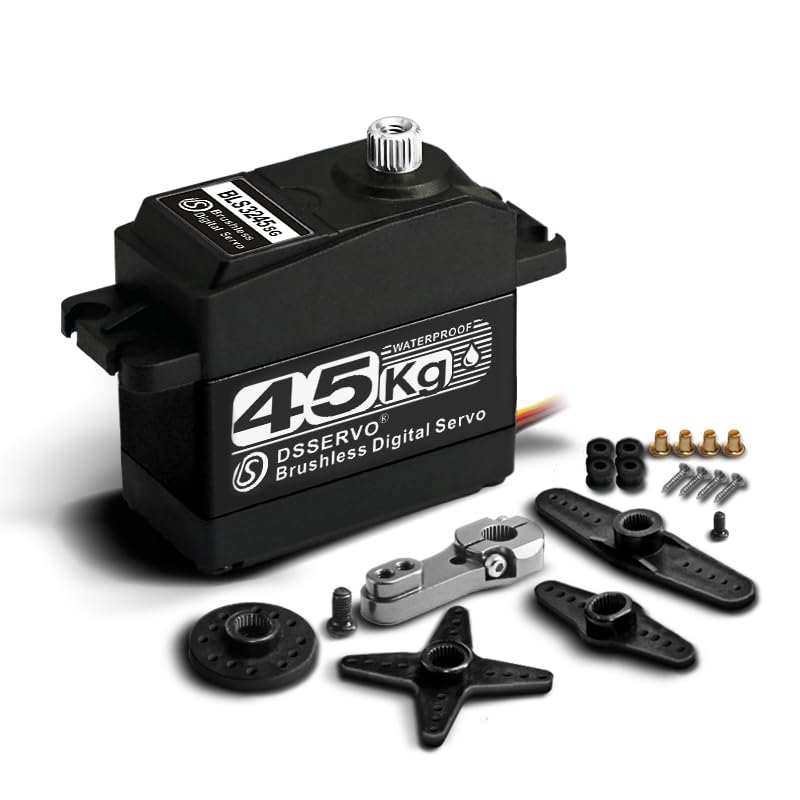

Packing List:
1 x BLS3245 45kg Servo （270° ）
1 x 25T Adjustable Aluminum Horn
1 x Accessories Set (As Shown on The Picture)

Package Dimensions: 3.5 x 2.6 x 0.8 inches
