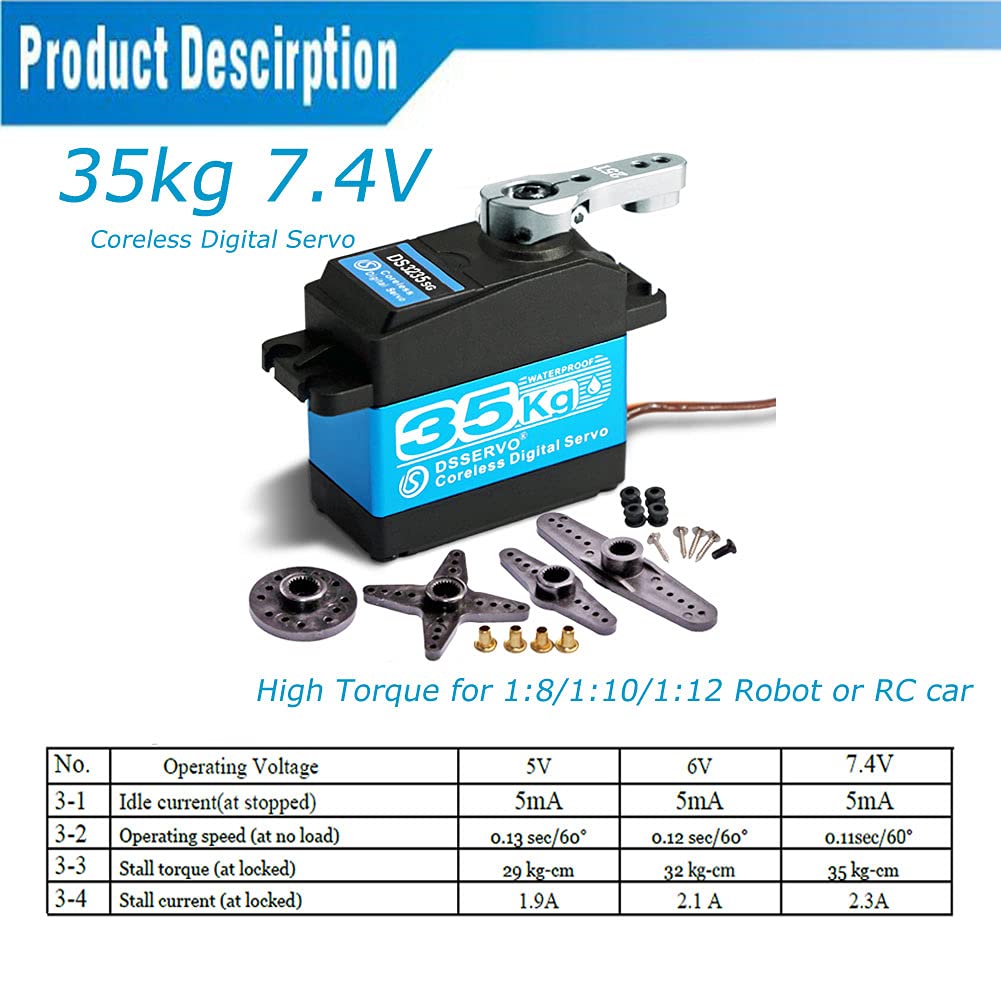

ANNIMOS 35KG Coreless Digital Servo Motor HV 7.4V Stainless Steel Gear High Torque Waterproof Standard Baja Servos for Robotic DIY RC Cars - 270 Degrees

Brand: ANNIMOS

Color: Blue

Edition: 270 Degrees

Features:

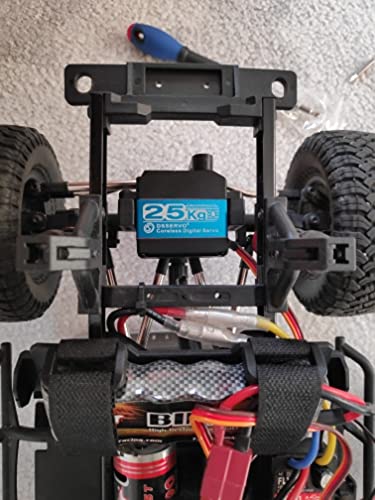

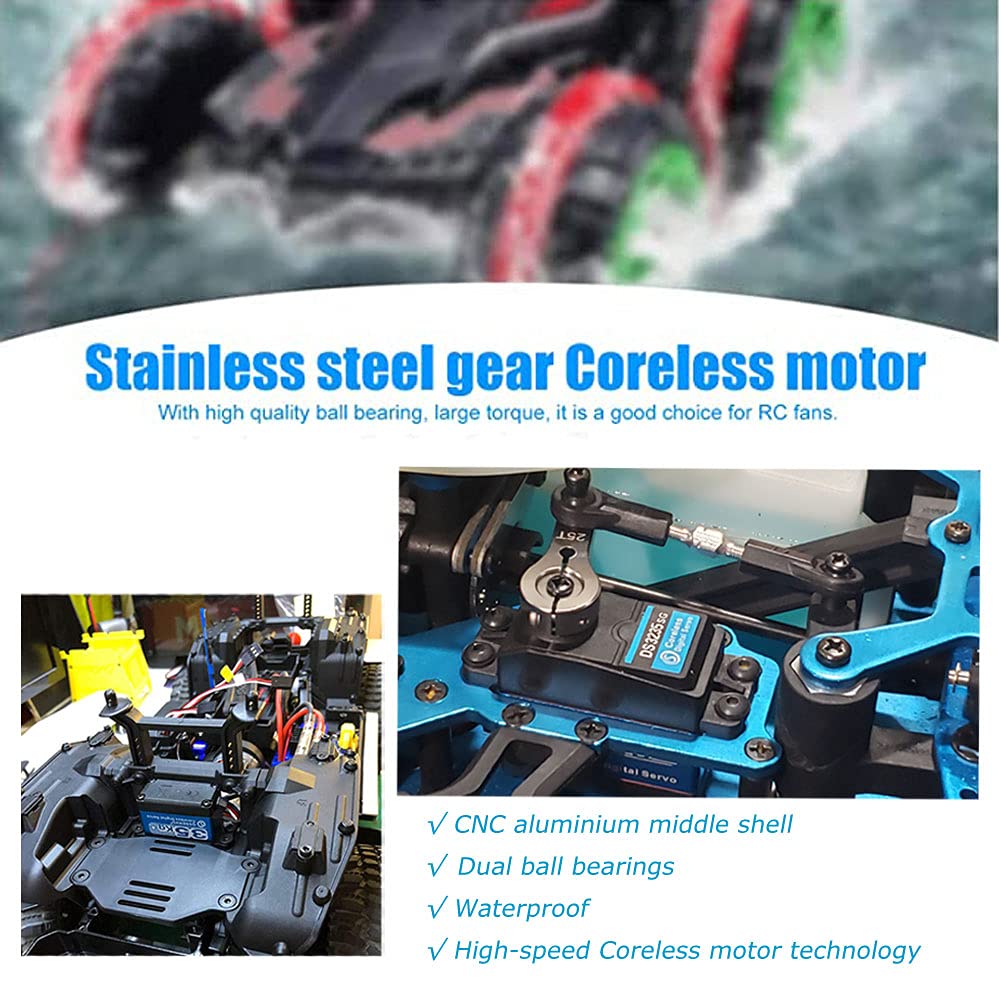

• Suitable for: 1/10 1/8 scale RC Crawler / Buggy / Truck and any application where waterproof standard servos.
• High precision potentiometers and High-resolution digital chip, stable performance, strong anti-interference ability, fast response, control is more delicate and smooth operation.
• Full waterproof servo to maintain good water tightness in wet conditions.

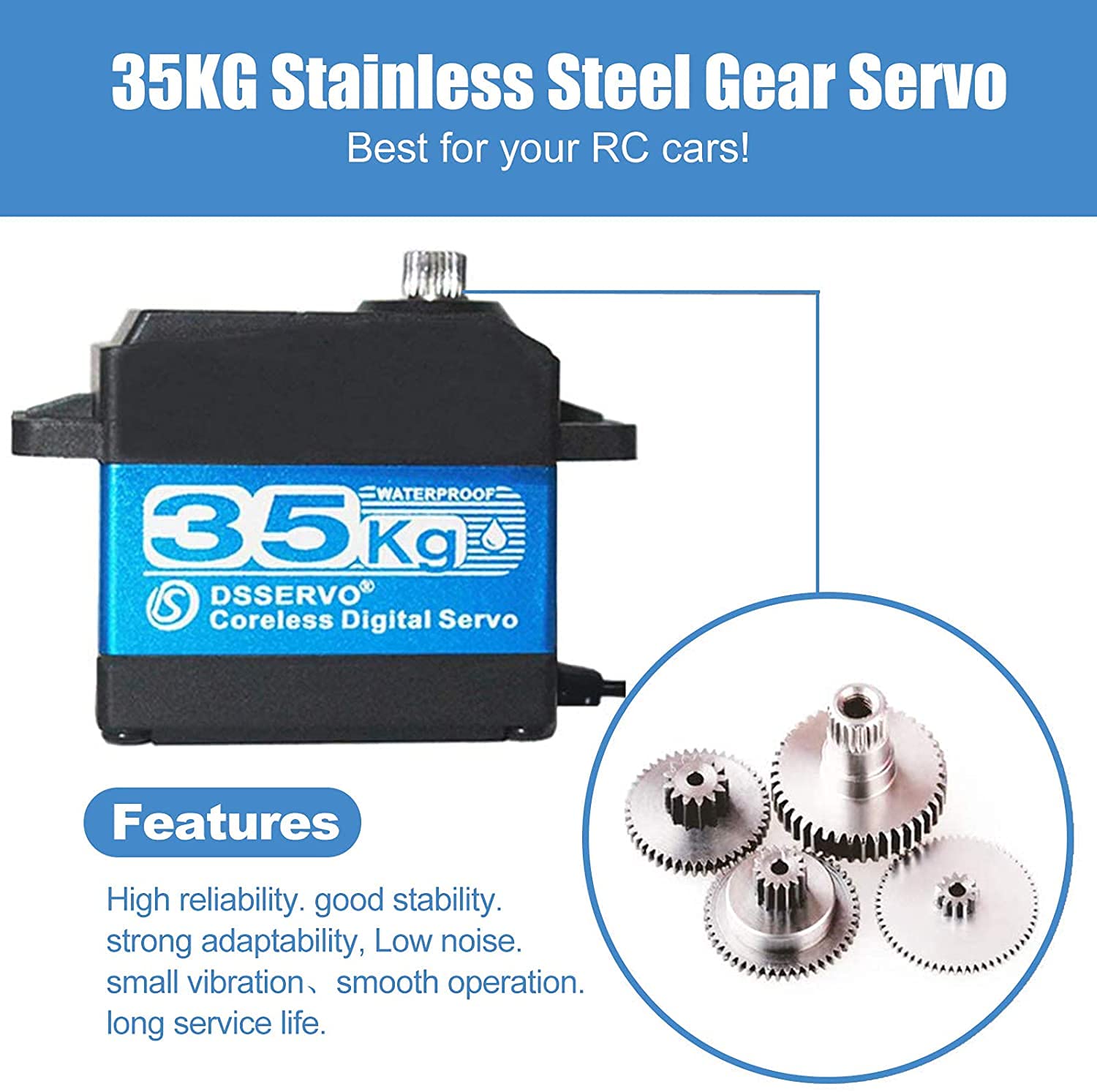

• Gear type is Stainless Steel & Aluminum. The Coreless motor provides high speed, response, incredible efficiency and low power consumption.

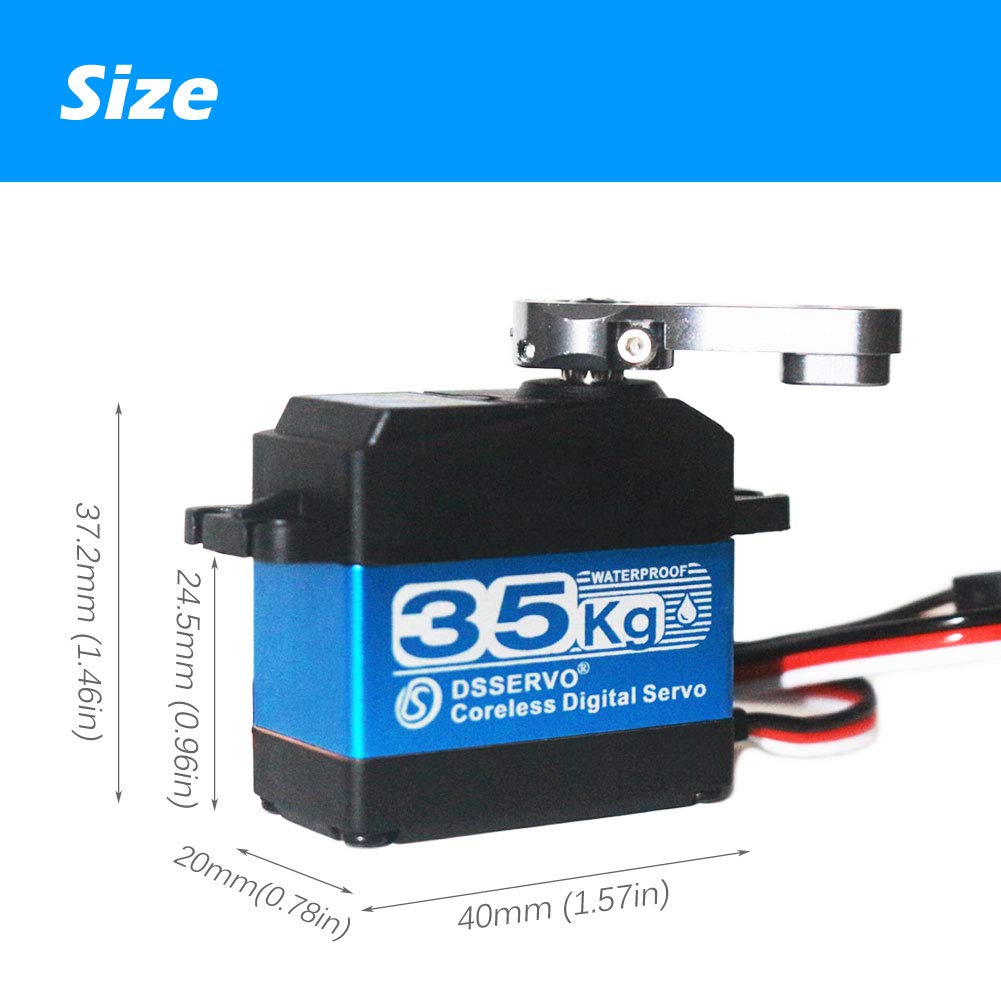

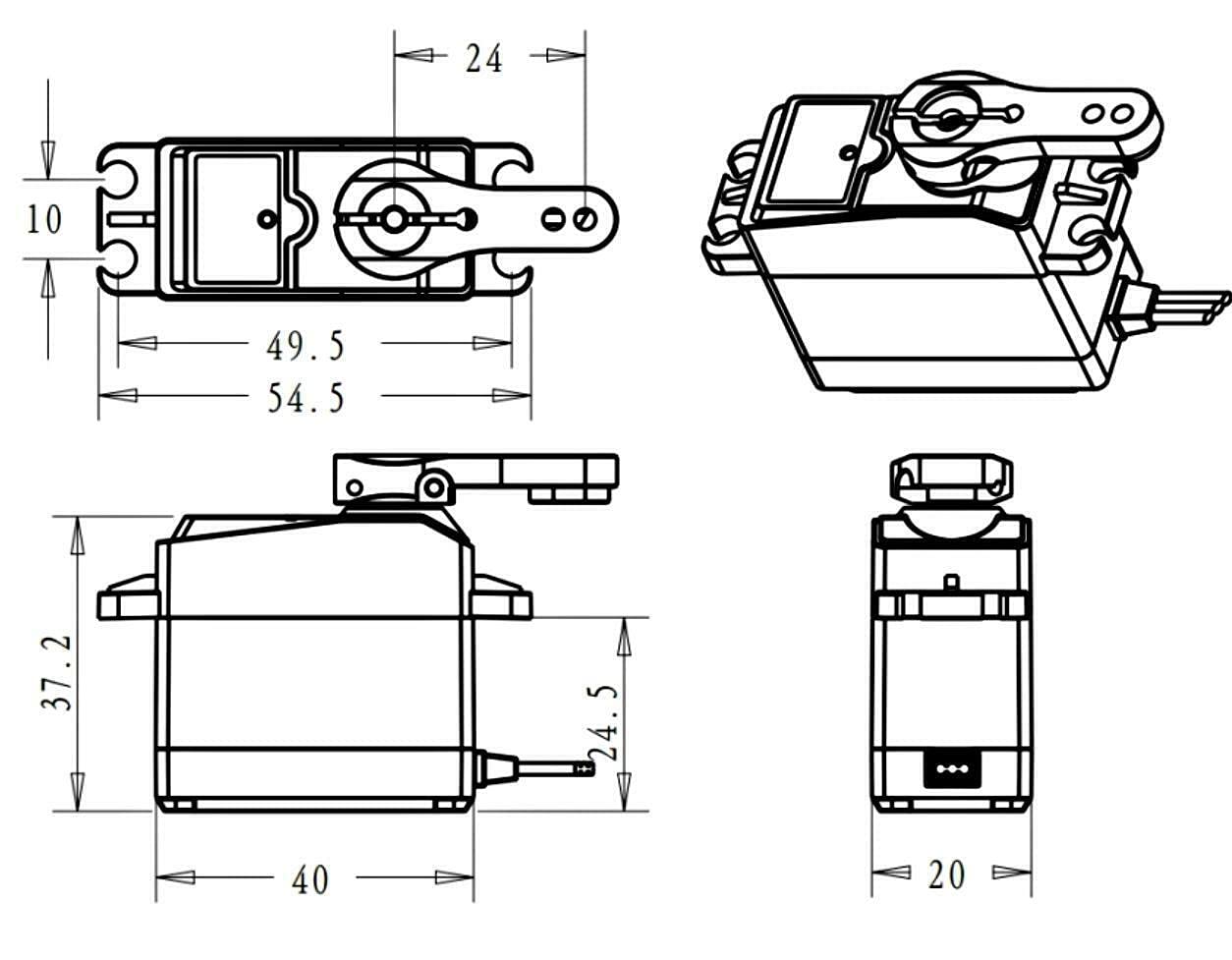

• Dimension: 40*20*38.5mm (1.58 x 0.79 x 1.50 in)

Binding: Toy

model number: DS3235SG270

Part Number: DS3235SG270

Details: Specification:
Operating voltage range: 5-7.4V
Operating speed: 0.1 3sec/60 degree @5.0V
Operating speed: 0.12 sec/60 degree @6.0V
Operating speed: 0.11 sec/60 degree @7.4V
Stall torque: 29kg/cm @5.0V
Stall torque: 32kg/cm @6.0V
Stall torque: 35kg/cm @7.4V
Stall current(at locked): 1.9A @5.0V
Stall current(at locked): 2.1 A@6.0V
Stall current(at locked): 2.3A@7.4V

Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 180° (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)

Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)

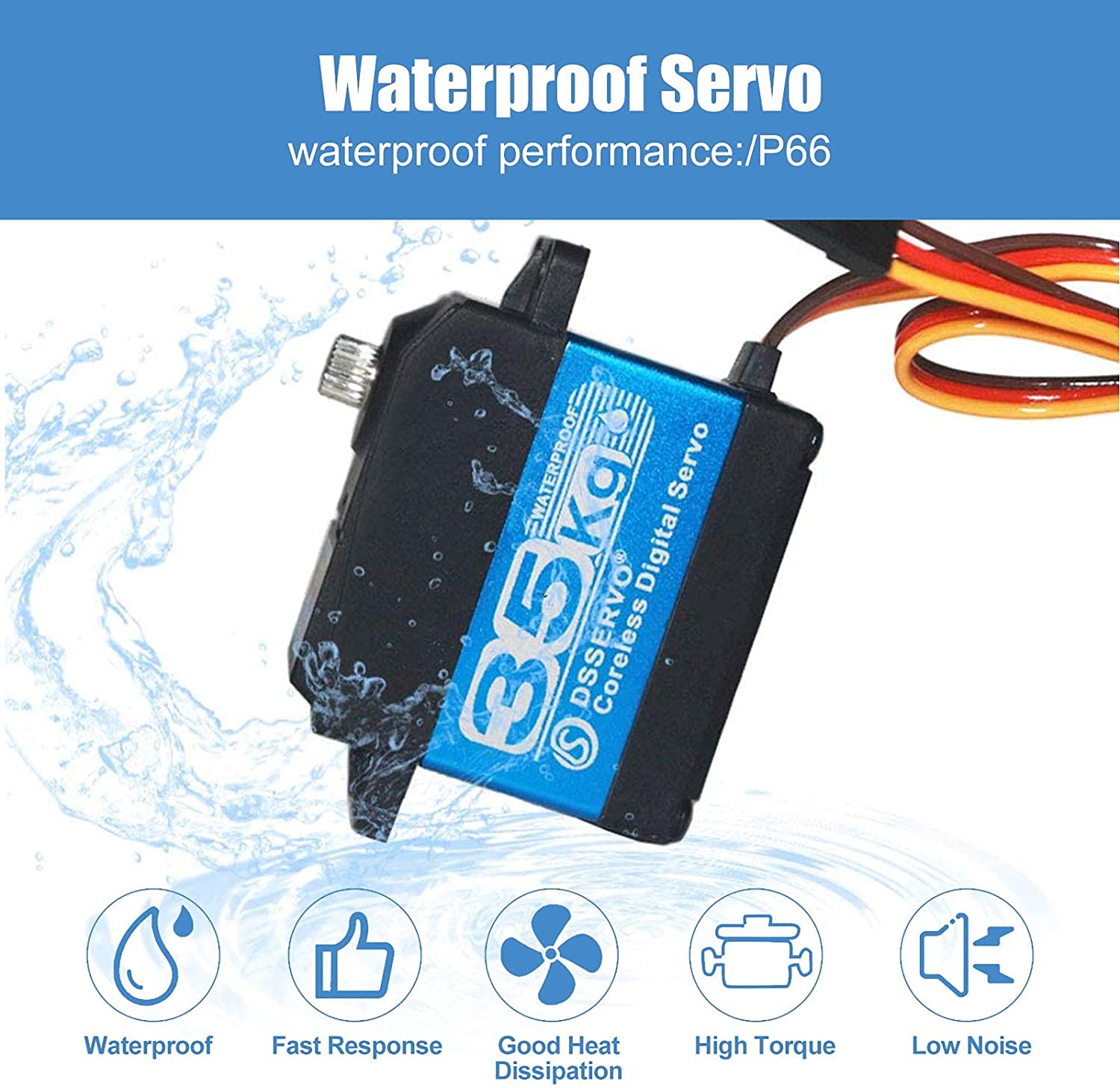

Waterproof performance: IP66
CE/RoHS:Yes

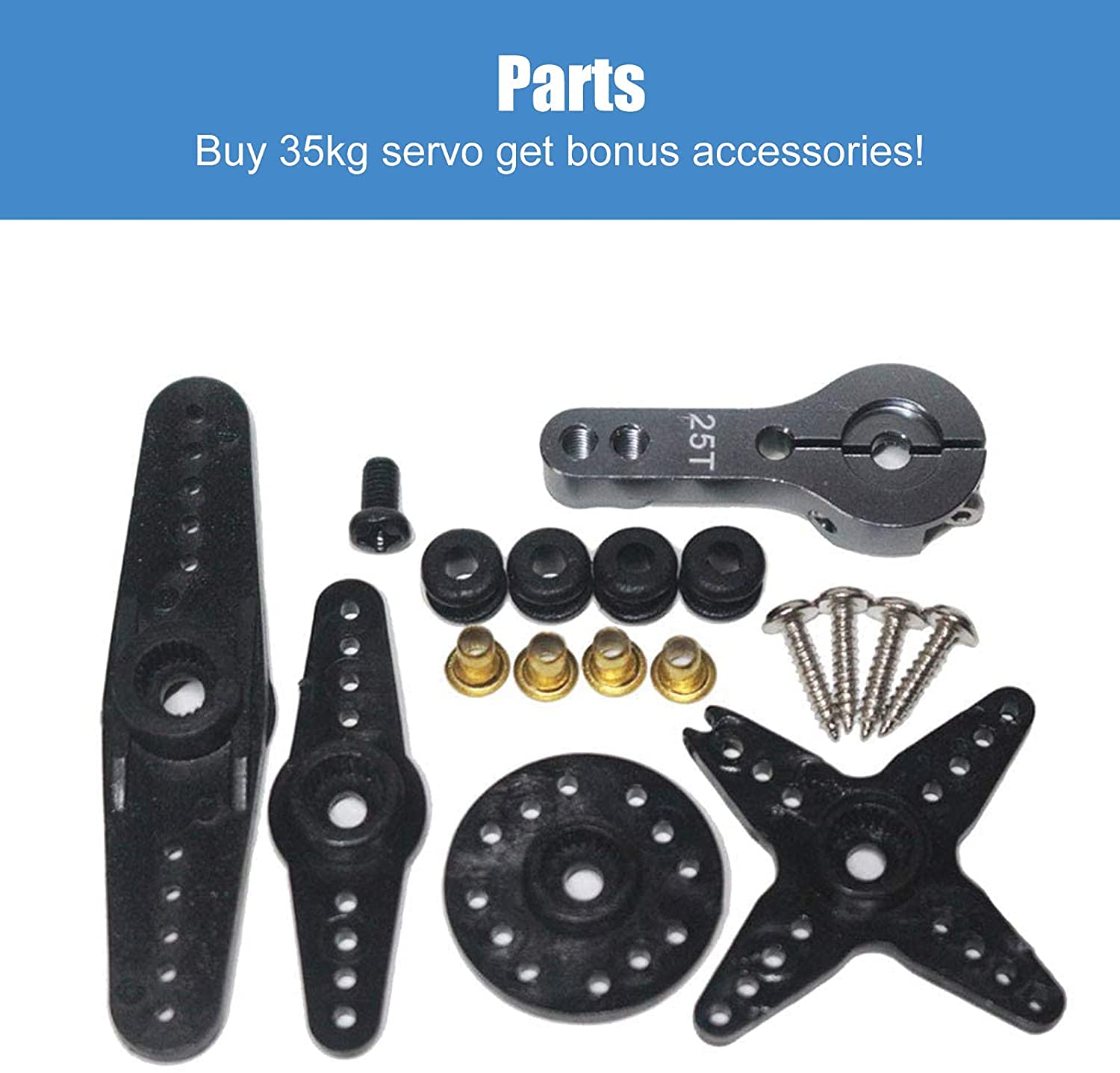

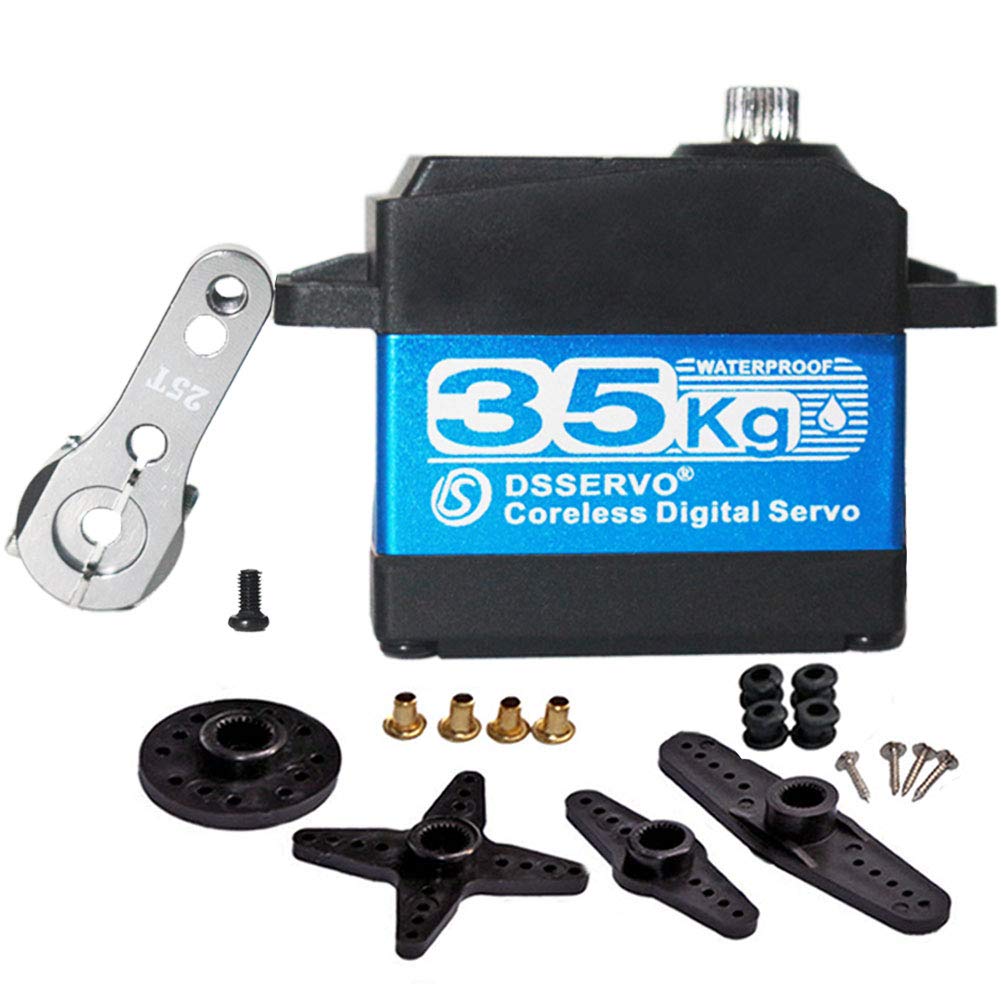

Package:
1 x DS3235SSG coreless servo
1 x 25T Adjustable metal servo arm
1 x set of accessories (as shown as picture)

More options:
✔20KG Control Angle 270°,please search ASIN: B076CNKQX4
✔20kg Control Angle 270°(PRO Version), ASIN: B07KTSVSSJ
✔25KG Control Angle 270°,please search ASIN: B07GK1G5FV
✔60kg Control Angle 270°,Please search ASIN:B07KTSCN4J

EAN: 6427832790376

Package Dimensions: 3.7 x 2.8 x 0.8 inches
