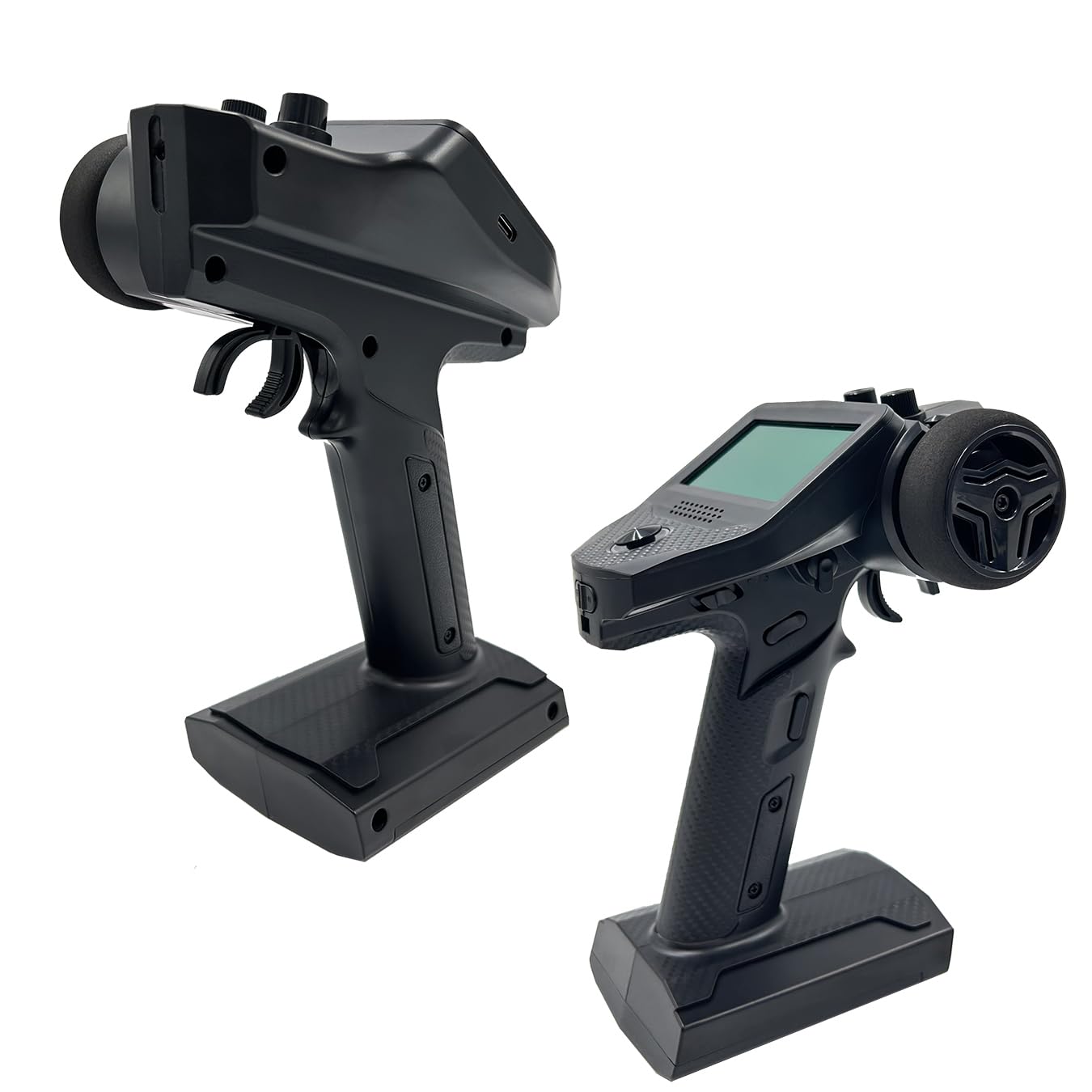

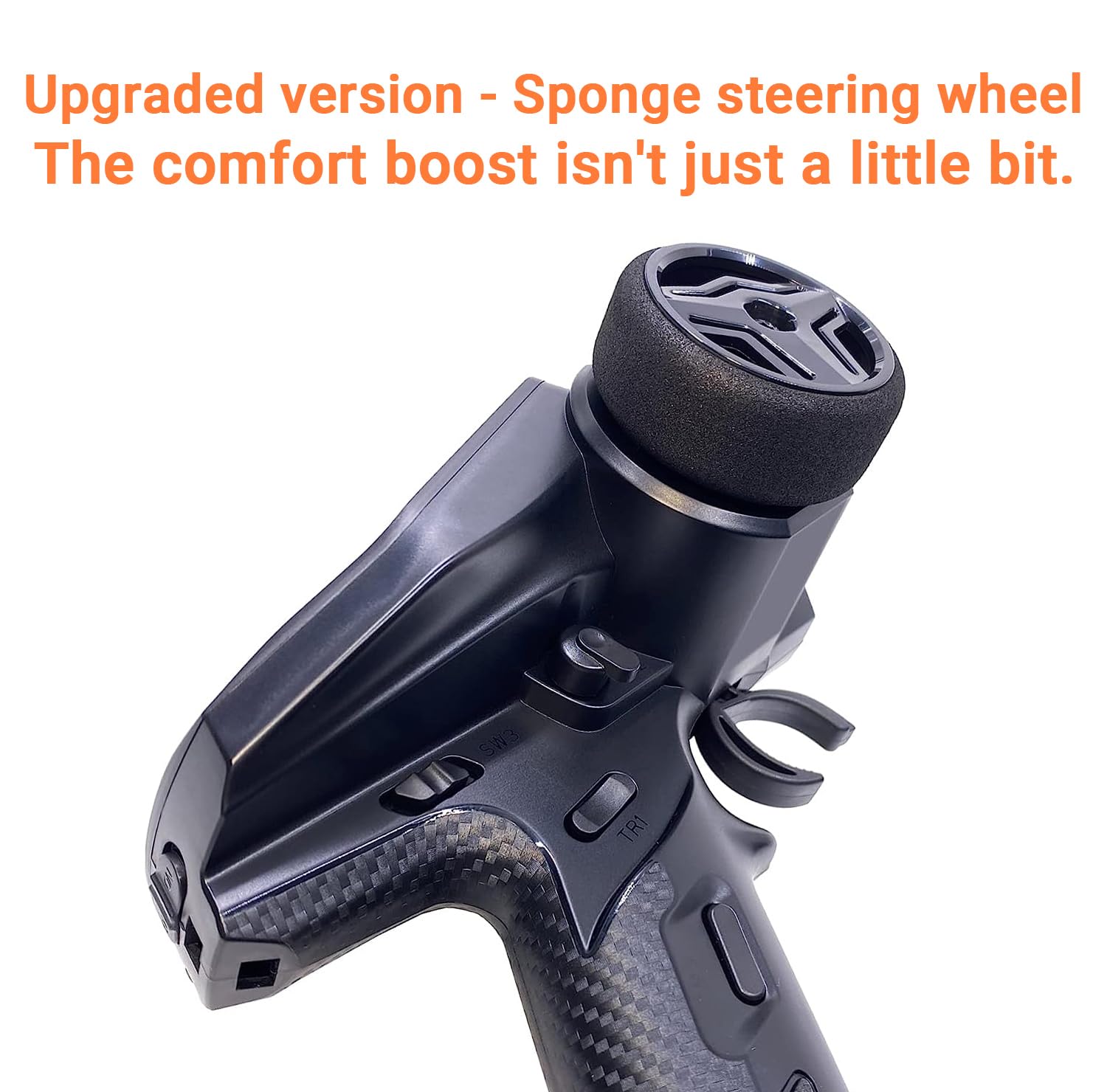

Alaohu FS-G7P 7 Channels RC Transmitter and Receiver FS-R7P Fly 2.4GHz Sky Surface Radio Controller System for RC Crawler, Buggy, Cars and Boats (Upgrade Sponge Steering Wheel)

Brand: Alaohu

Color: Black

Features:

• 7 Channel transmitter and receiver. Multiple channels can remotely control more model actions, achieving more creativity. Alaohu FS-G7P and FS-R7P use FLY 2.4GHz SKY more professional radio control system The signal is more stable and the use is more reassuring.
• TWO-way data transmission: signal strength can be sent back. For the standard receiver FS-R7P, it supports the back transmission of the detected BVD battery voltae.
• Powerful Mixed control function: 5 groups of programming Mixed control + 1 group of steering Mixed control, track professional Mixed control (dual engine Mixed control) and 4WS crawler special Mixed control.
• Support the switching between the one-way and two-way communication modes.

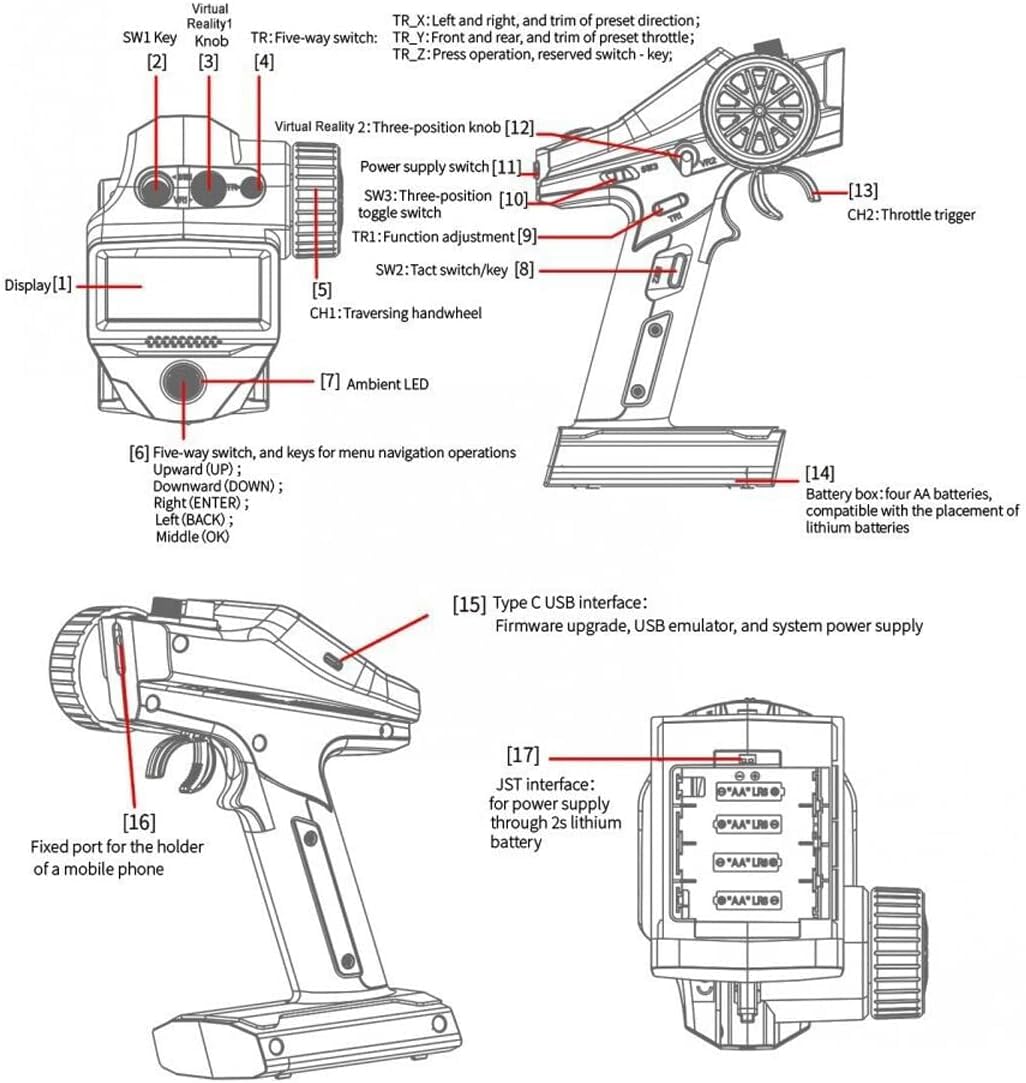

• The large screen UI design allows for more intuitive viewing of all content on the screen and facilitates the operation of transmitter settings, including code matching and BVD voltage calibration.

model number: FS-G7P

Part Number: G7P00

Details: FLY 7 Channel transmitter and receiver. SKY
Multiple channels can remotely control more model actions, achieving more creativity.
Alaohu FS-G7P and FS-R7P use 2.4GHz more professional radio control system
The signal is more stable and the use is more reassuring.

Specification:
FS-G7P Transmitter
Frequency: 2.4GHz
Color: Black
Channel: 7 Channels
Model Type: Cars, Boats
RF Frequency 2.4GHz ISM: 2.4G Protocol
Maximum Power: <20dBm（e.i.r.p.)(EU)
Reception Sensitivity: ≤-99dBm
Low Voltage Warning: YES
Date Output: PWM/PPM/i-BUS/S-BUS
Input Power: 4-9V/DC
Battery: 1.5AA*4/2S Lipo[JST] [NOT included]
Data Output: Type-C Interface
Charging Interface: NO
Antenna Type: Built-in Single Coaxial Cable Antenna
Display Mode: 128*64 LCD（Black and White Dot Matrix Screen)
Online Update: Assistant Update
Working Current: About 110mA/6V Temperature Range: -10℃~+60℃
Humidity Range: 20-90%
Weight:10.8 oz, 309g

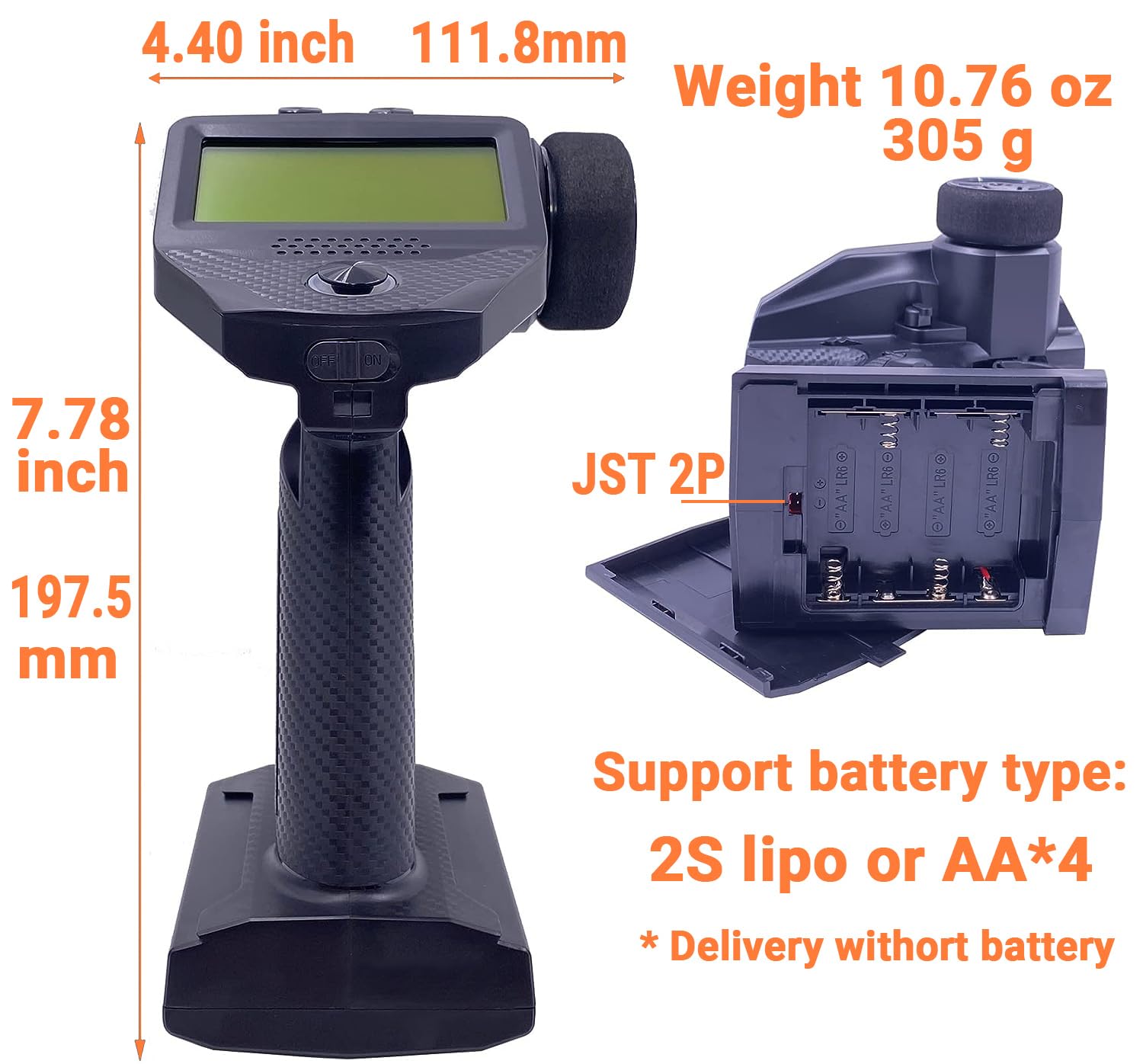

Size: 5.37*4.40*7.77inch, 136.4*111.8*197.5 mm

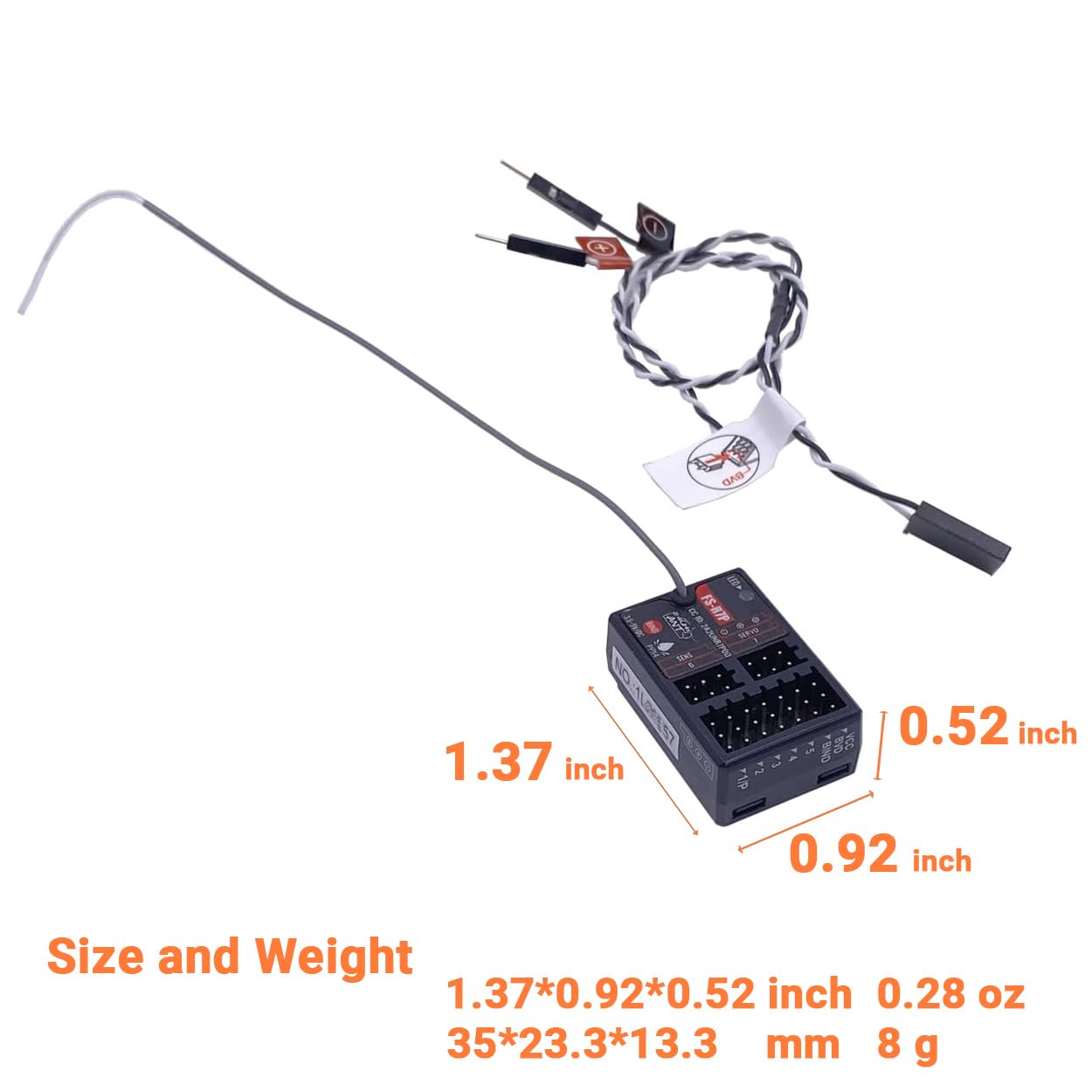

FS-R7P Receiver
【PWM, PPM, s.bus, i.bus selected through the transmitter menu, default PWM】
1.CH1-CH7 interface, output standard PWM signal;
2.CH1 interface, support PPM output function;
3.BVD interface, support external detection of BVD voltage;
4.BIND interface, power supply interface, support the function of pairing code line and code pairing button at the same time;
5.SENS interface, support IBUS sensor function;
6.SERVO interface. Support IBUS/SBUS output, support IBUS channel expansion;
7.Support high voltage. (3.5-9V DC).
8.Size: 1.37*0.92*0.52inch, 35*23.3*13.3mm
9.Weight: 0.28 oz, 8g.

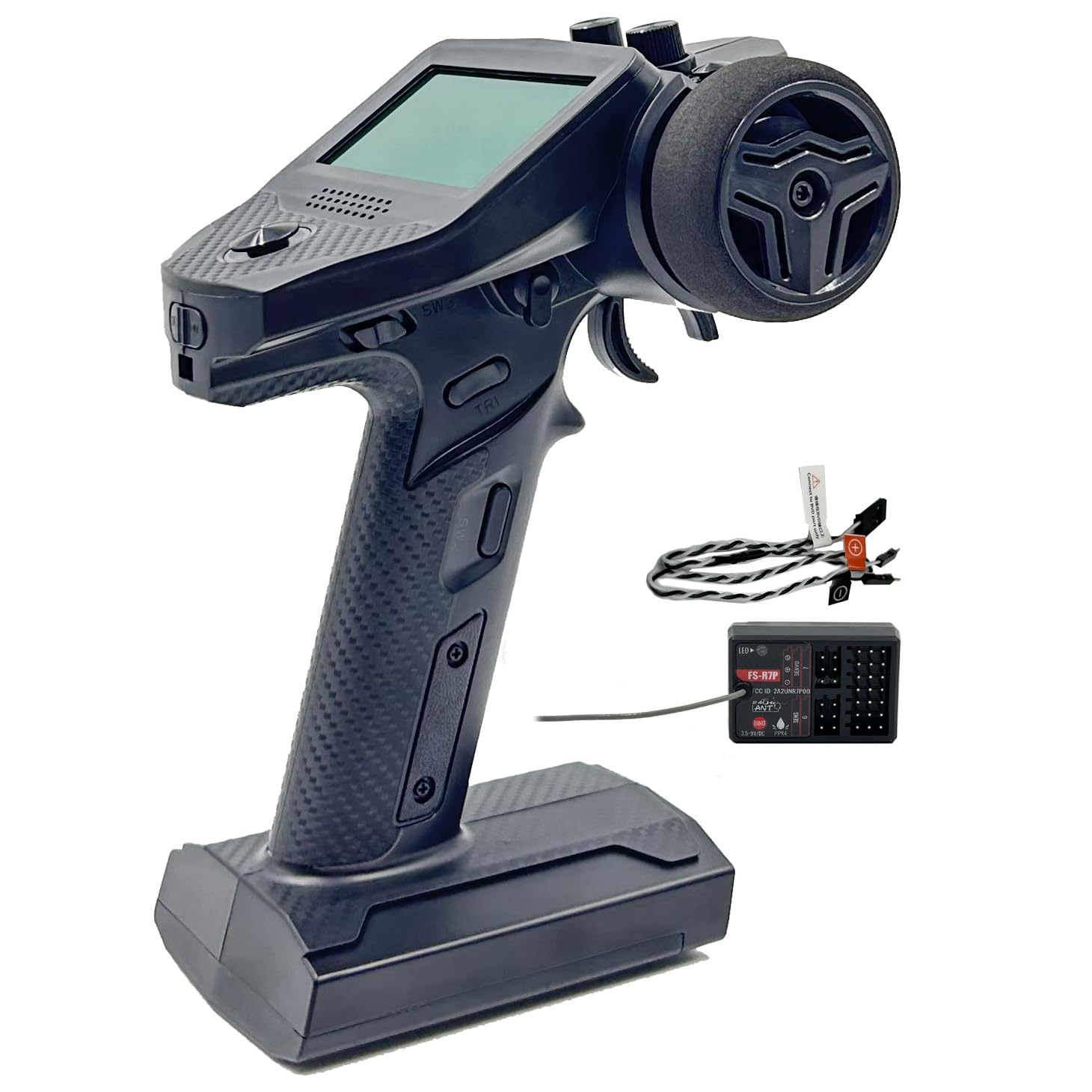

Packing List:
1* FS-G7P Transmitter
1* FS-R7P Receiver
1* User Manual

Package Dimensions: 8.5 x 6.8 x 5.0 inches
