Alaohu Flysky FS-i6X 6-10 Channels (Default 6CH) 2.4GHz RC Transmitter and Receiver FS-iA6B Radio Control System for FPV Multirotor Drone Fixed Wing RC Boats (Mode-2)

Brand: Alaohu

Color: Black

Features:

• The 2.4G AHDS2A has stable signal, long remote control distance and multiple functions, which is popular with users. It is compatible with AHDS2A series receivers.
• Output PWM/PPM/i-Bus/s-Bus, which can be selected through TX Menu - System - RX Setup Settings
• Applicable to RC multi rotor FPV Drone Fixed wing Helicopter Boat Car DIY
• FS-i6X transmitter can store 20 sets of model setting parameters
• Ahulao FLYSKY FS-i6X RC Transmitter and Receiver FS-iA6B

Binding: Toy

model number: FS-i6X

Part Number: I600

Details: FS-i6X Specifications:

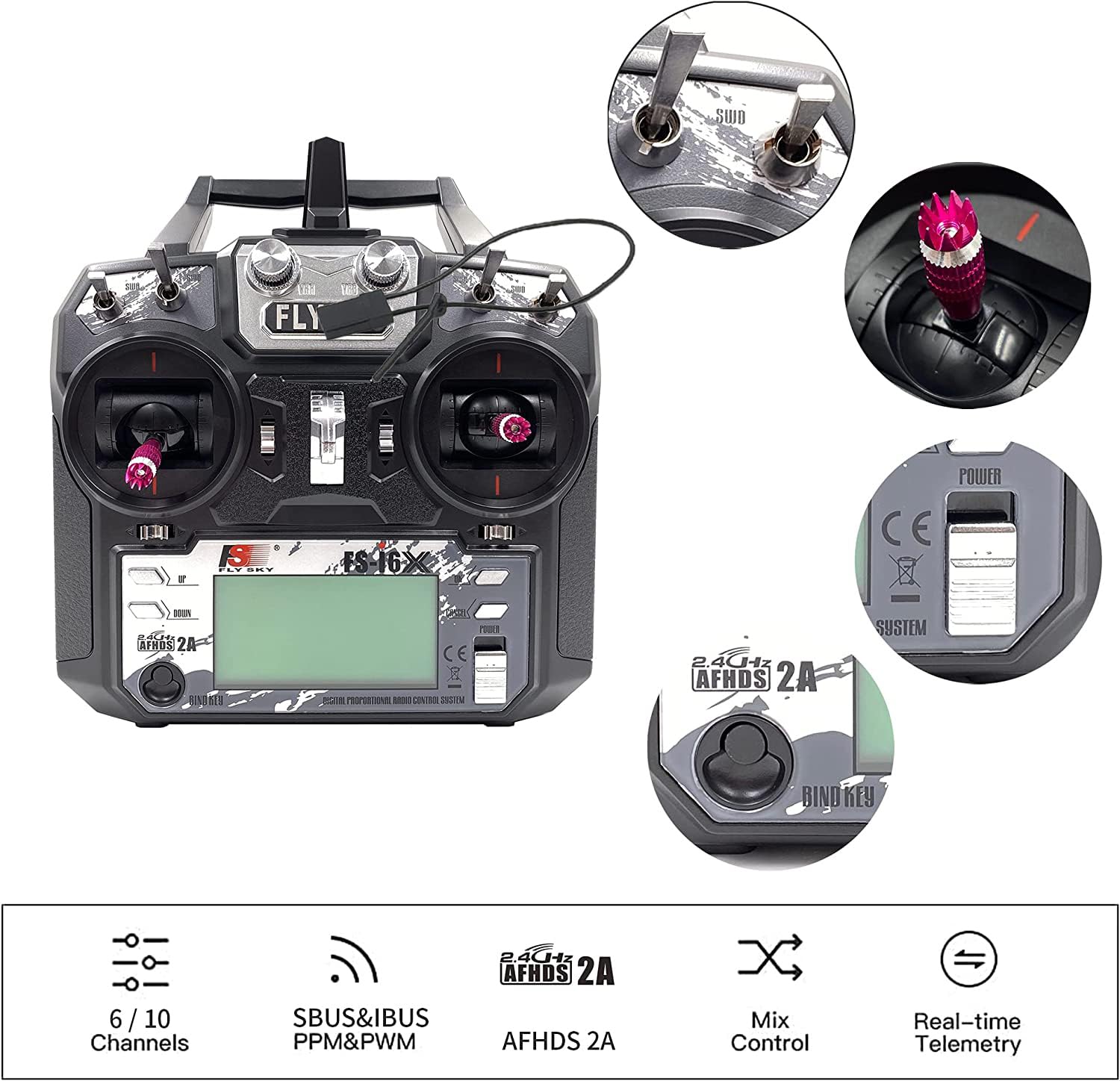

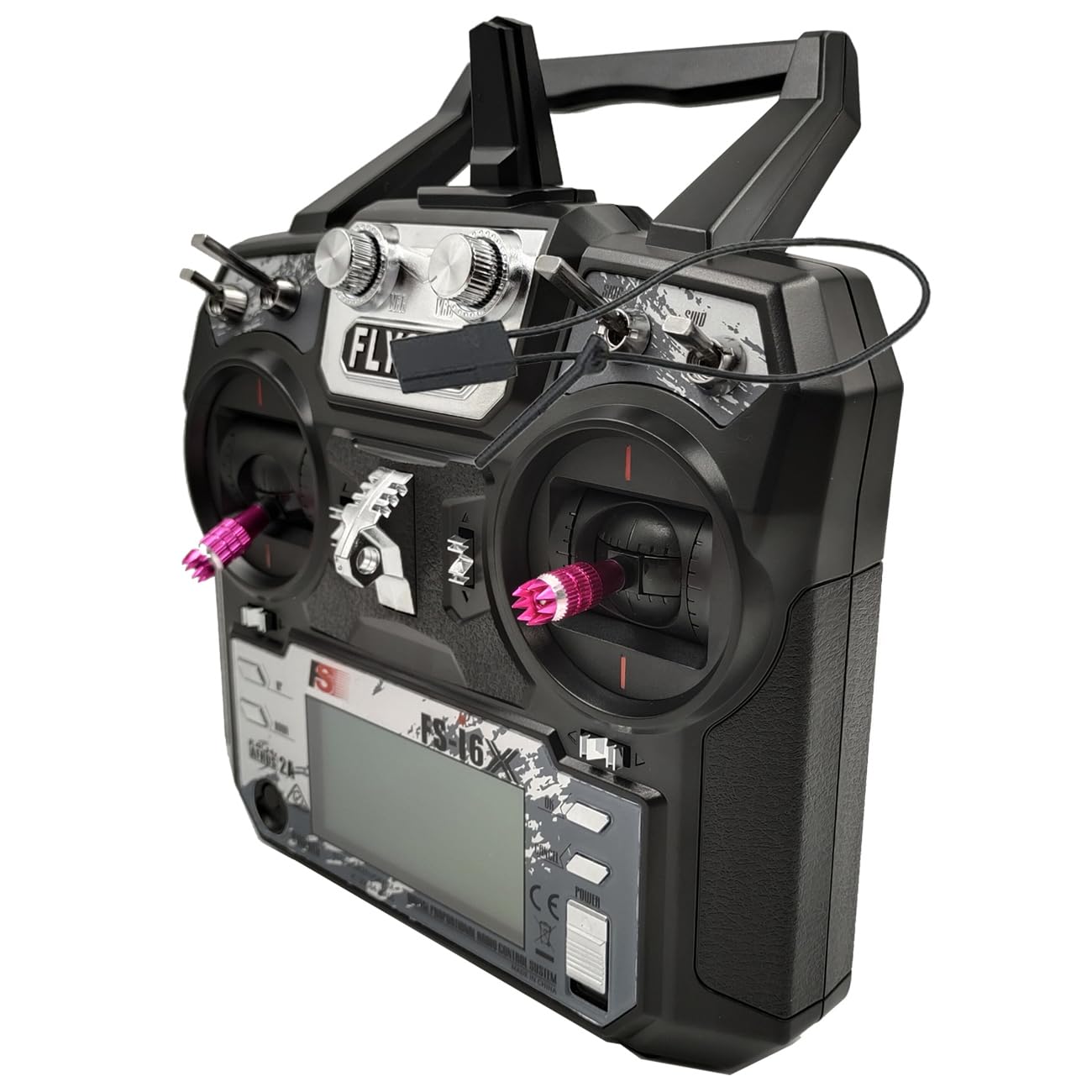

Item: FS-i6X RC Transmitter
Channels: 6-10CH (Default 6ch)

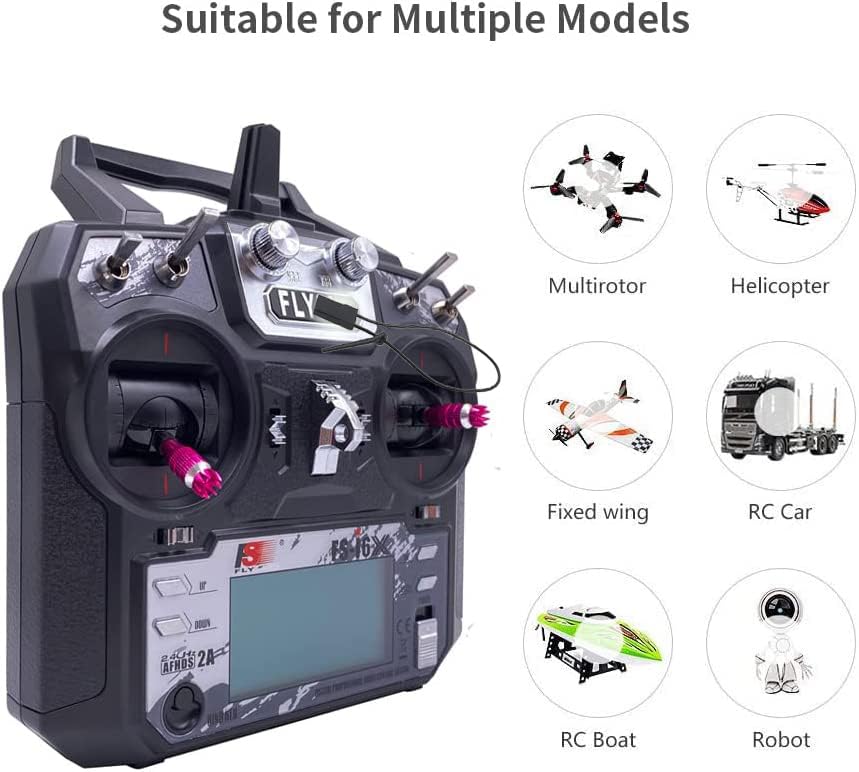

Model Type: Fixed-Wing/Glider/Helicopter, Can support RC quadcopter/car/boat even if these icons are not in the menu.
RF Range: 2.408-2.475GHz
RF Power: <20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Low Voltage Warning: <4.2V

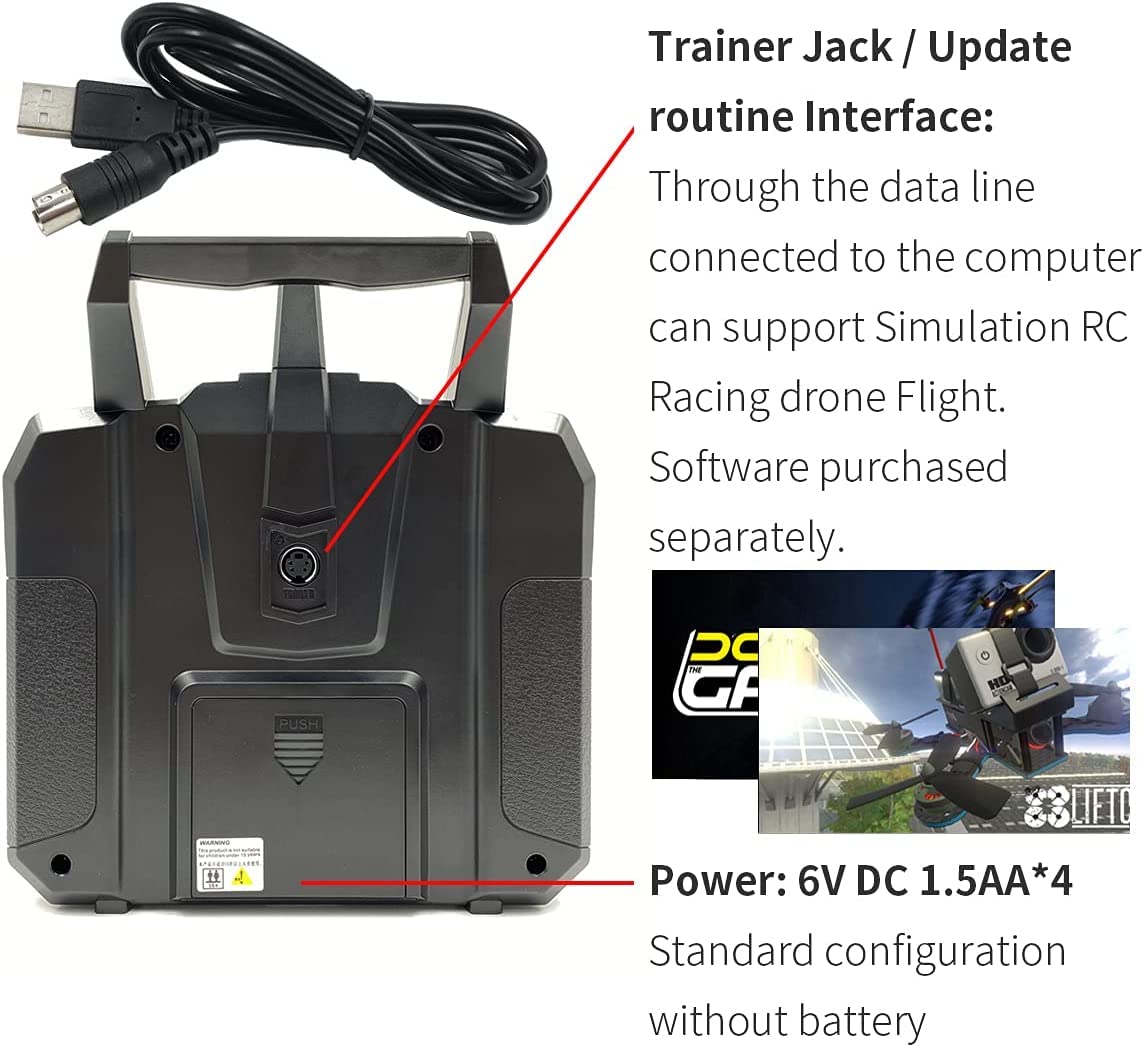

DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 1.02inch 26mm (Dual Antenna)
Weight: 13.83oz/ 392g

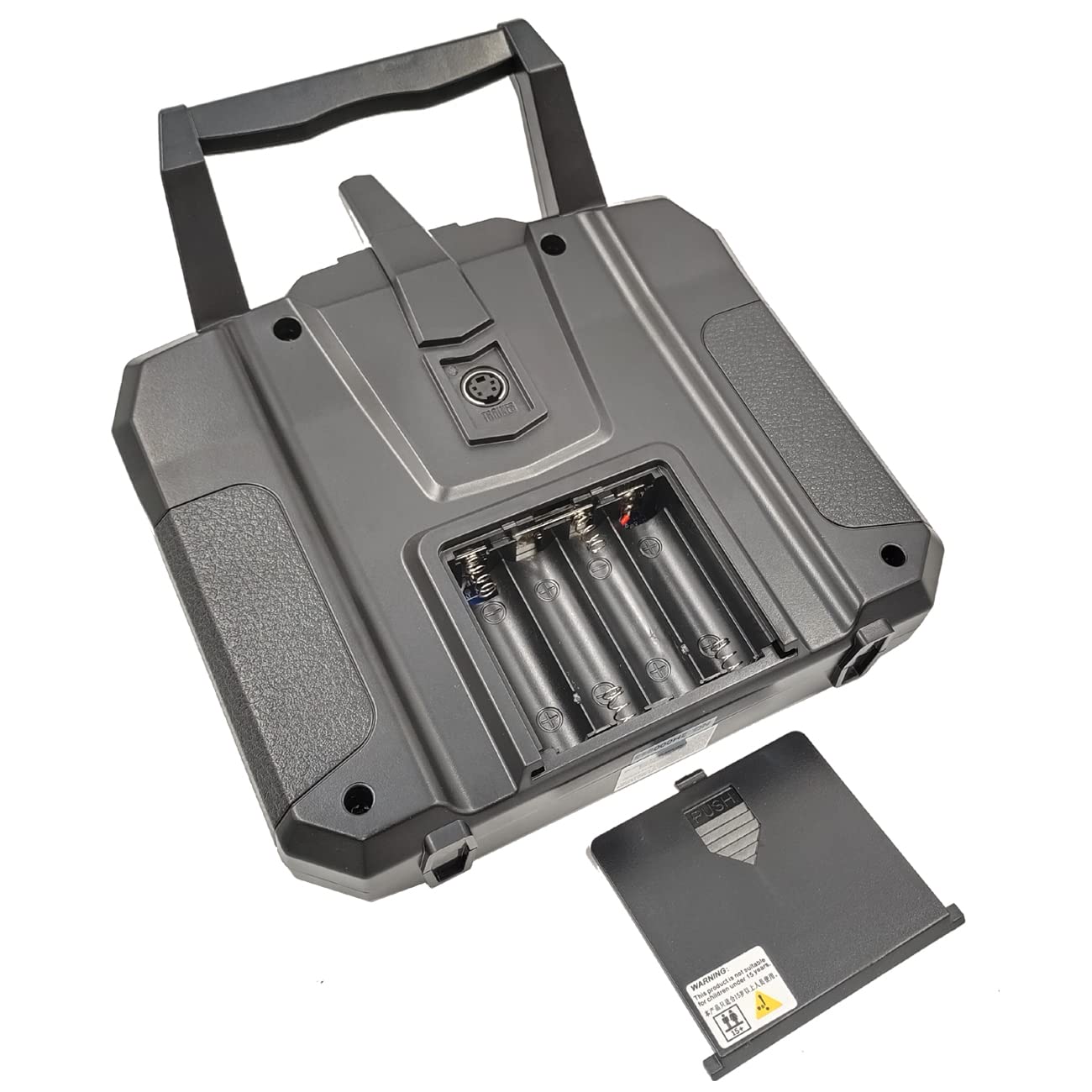

Power: 6V DC,4 * AA battery (NOT included)
Display: STNTransflective Display, LCD 128x64 Lattice,
VA 73x39mm, LCD with white backlight
Size: 6.85*3.5*7.48inch/ 174*89*190mm
On-line Update: Yes [Upgrade cable purchased separately]
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
Joystick mode: mode 2 [ left hand throttle, push the left joystick up and down,
will not automatically rebound to the center ]

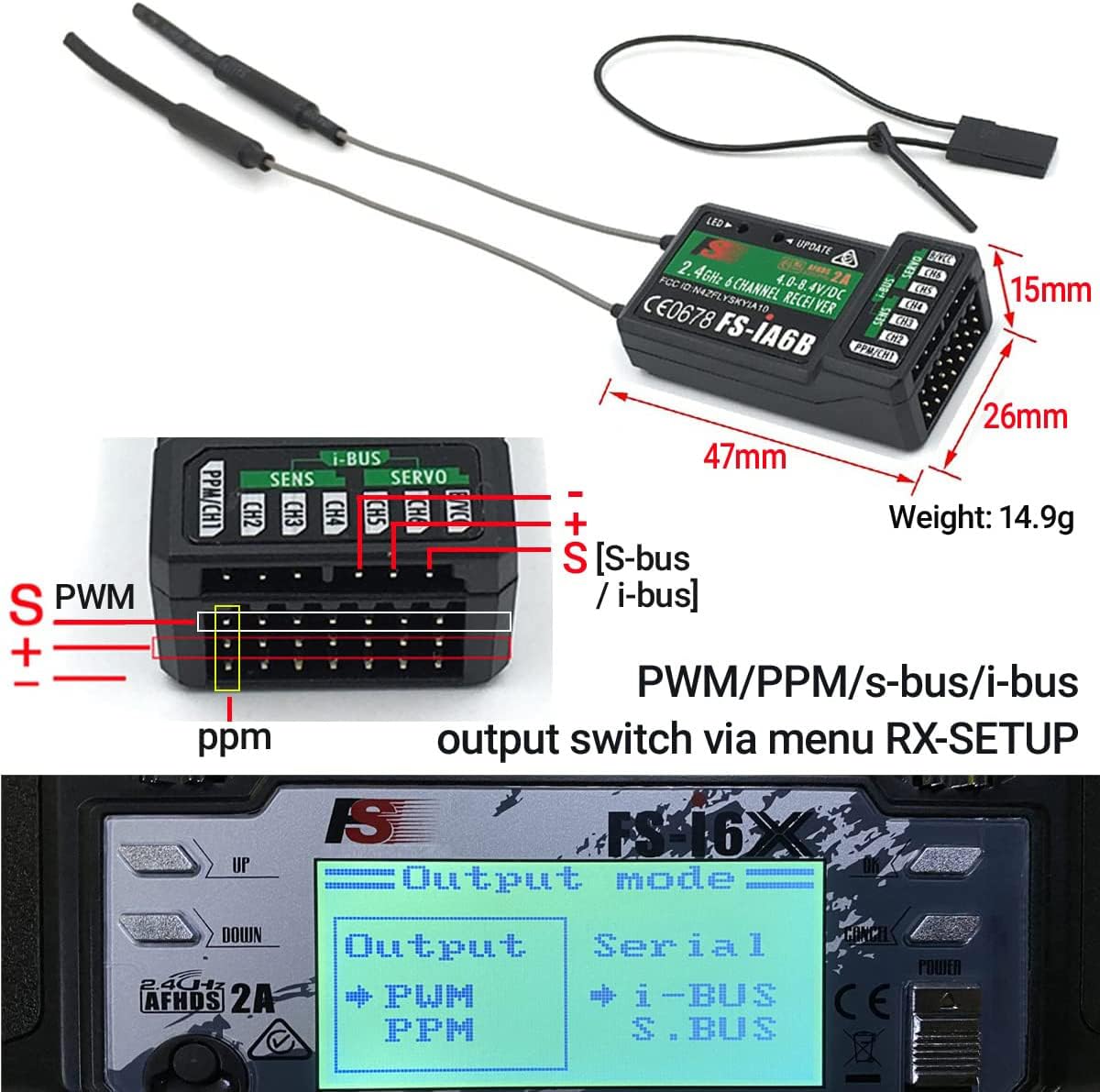

FS-iA6B Specifications:
Item: FS-iA6B Receiver
Channels: PWM 6CH/ PPM 8CH/ s.bus 10CH / i.bus 10CH
(Select from transmitter menu 'SYSTEN-RX setup-Outprt mode')
2.4GHz System: AFHDS 2A
Model Type: Fixed-Wing/Glider/Helicopter/Quadcopter/Car/Boat
RF Range: 2.4055-2.475GHz
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
Modulation Type: GFSK
Power: 4.2-8.4V DC
Antenna Length:1.02inch 26mm (Dual Antenna).
Antenna Total length:150mm*2
Weight: 0.53oz/ 14.9g
Size: 1.85*1.03*0.59inch/ 47*26.2*14.9mm
i-BUS Port: Yes
Data Acquisition Port: Yes
Color: Black
Certificate: CE,FCC

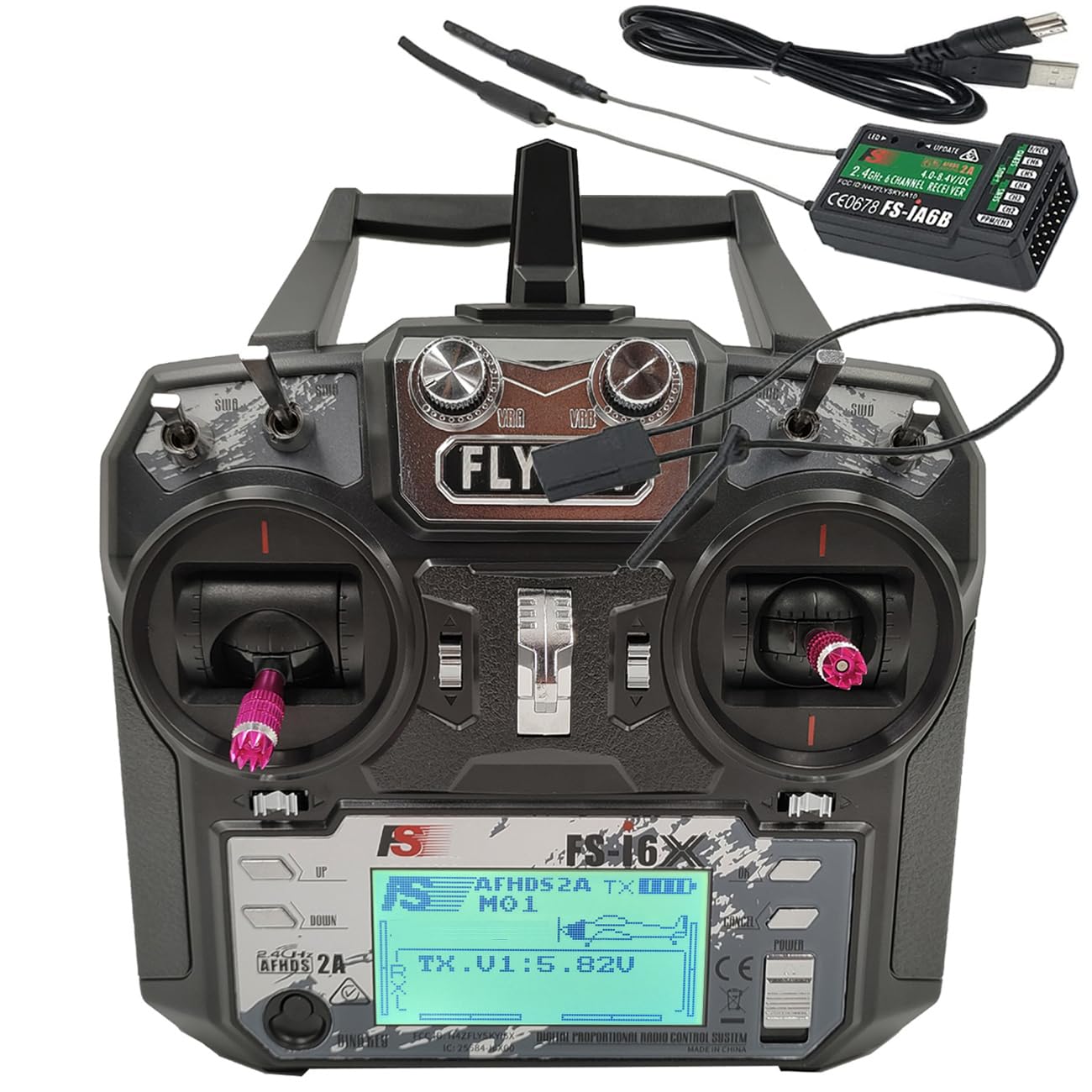

Package Included:
1X FS-i6X Transmitter
1X FS-iA6B Receiver
1X Bind plug
1X PS/2 to usb Cable
Delivery without batteries

Package Dimensions: 9.2 x 8.2 x 4.3 inches
