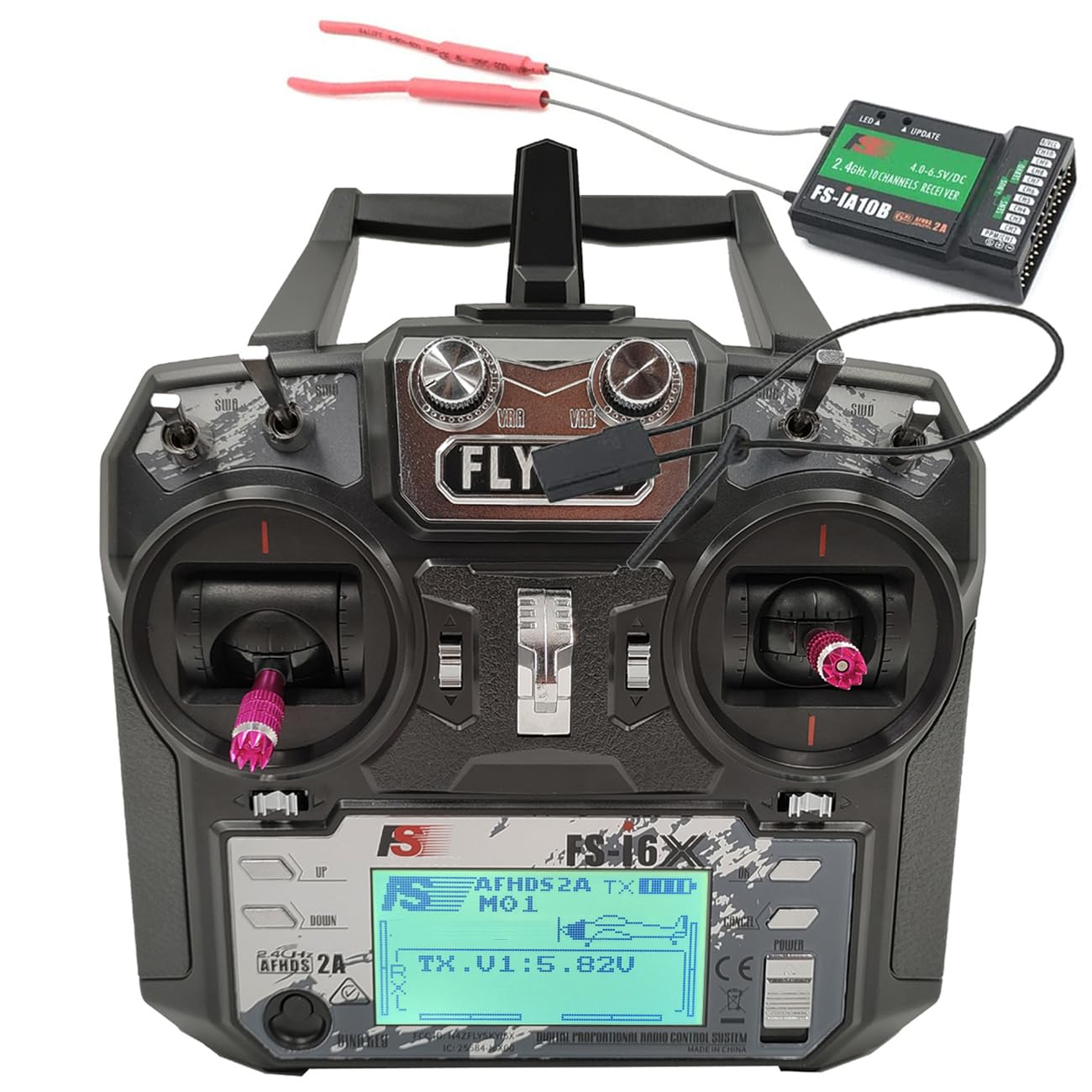

Alaohu Flysky FS-i6X 10CH RC Transmitter and Receiver FS-iA10B 2.4GHz AFHDS 2A for FPV Drone RC Car and Boat (Mode_2) Black

Brand: Alaohu

Color: Black

Features:

• RC controller Fast response, almost no delay felt.The 2.4G AFHDS2A has stable signal, long remote control distance and multiple functions, which is popular with users. FS-i6X is compatible with AFHDS2A series receivers. For example, compatible FS-iA10B FS-iA6B FS-A8S FS-X6B receiver.

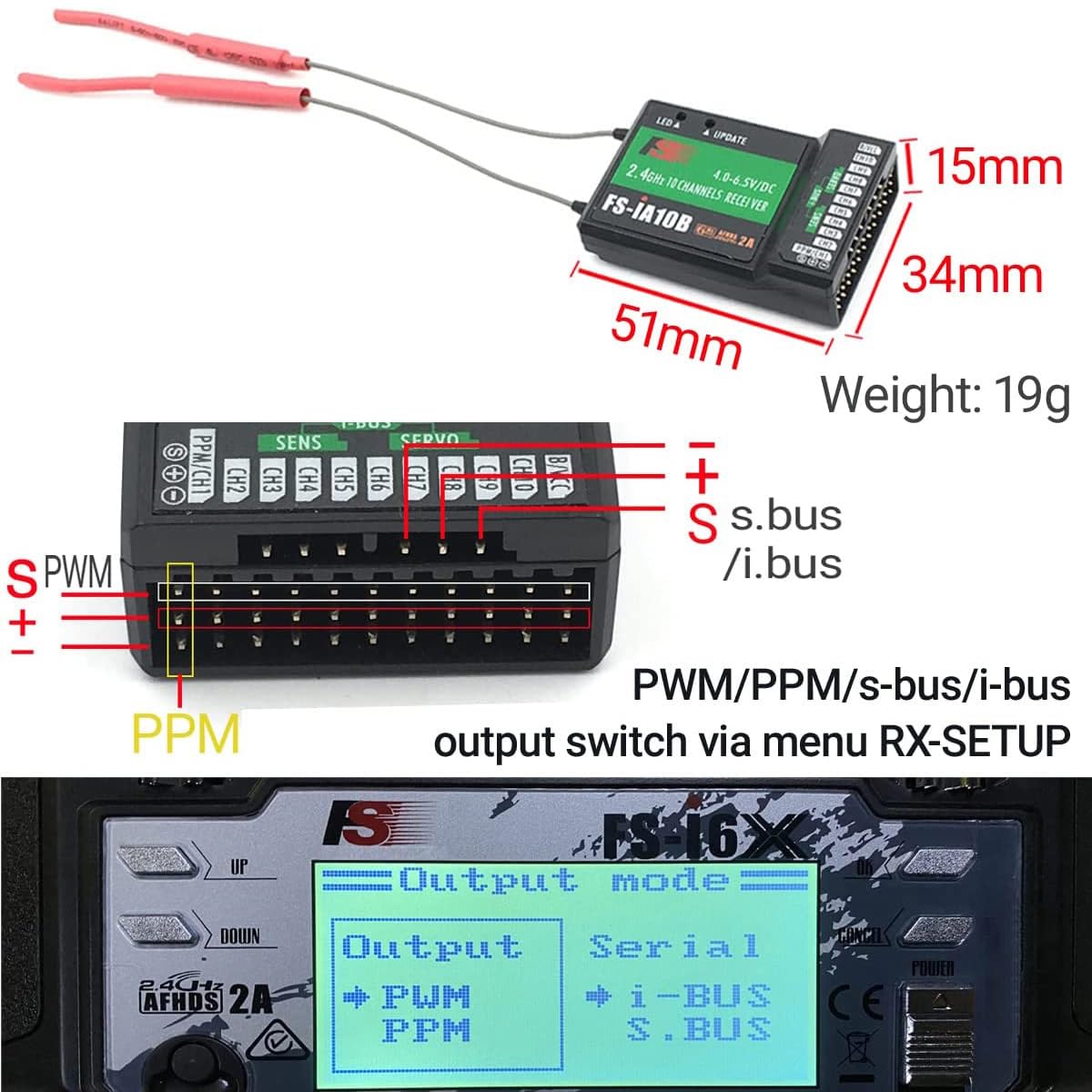

• FS-iA10B Output PWM 10CH / PPM 8CH / S.bus 10CH / i.bus 10CH (Select from transmitter menu 'SYSTEN-RX setup-Outprt mode'). Receiver is compatible with multiple RC aircraft and Car Boat connection modes.

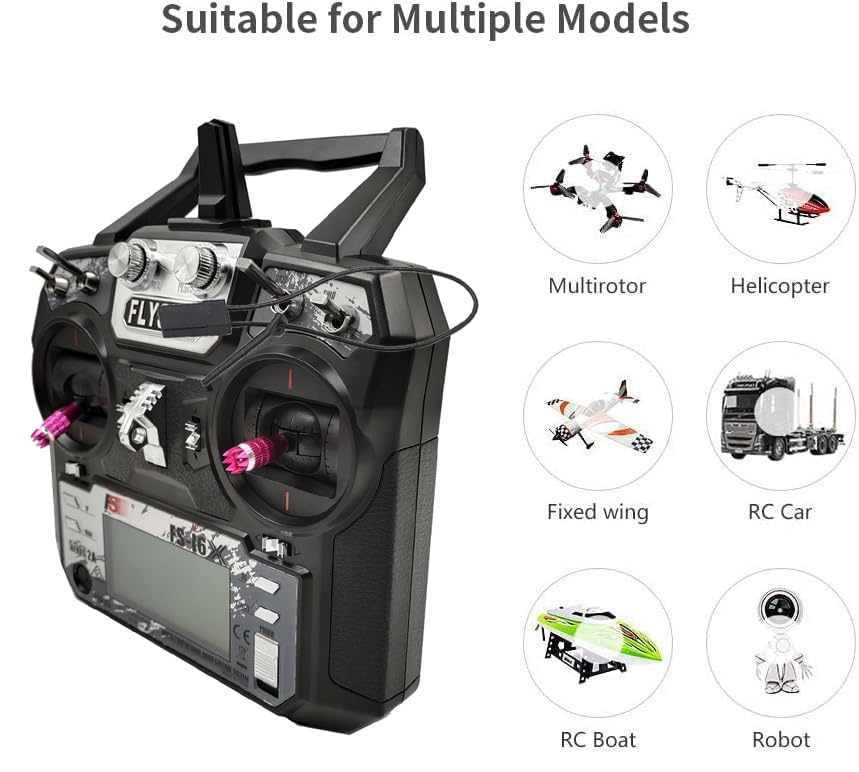

• Applicable to RC fixed-wing / glider / helicopter models. Can also support RC Quadcopter/Car/Boat, even if these icons are not in the menu.
• Mix#3, Throttle hold, Alaohu Flysky FS-i6X Transmitter can store 20 groups of models.

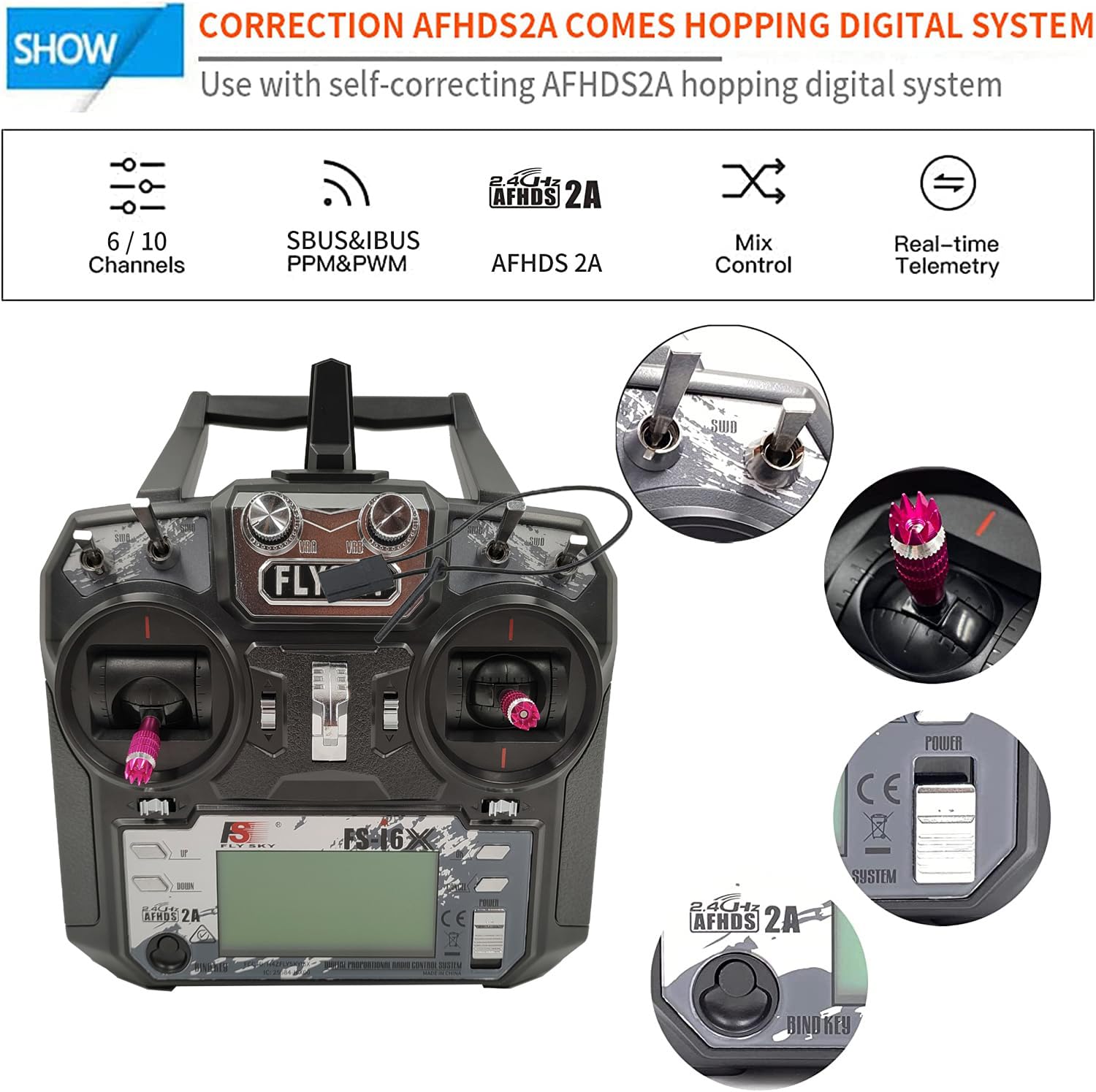

• Three 2-section switches and one 3-section switch, two knobs. LCD can display TX voltage value and RX voltage value. SigS1. Real-time understanding of model data.

Binding: Apparel

model number: FS-i6X

Part Number: i6X10B

Details: Description

Description:
Item: FS-i6X RC Transmitter
Channels: 6-10CH (Default 6ch)
Model Type: Fixed-Wing/Glider/Helicopter, Can support RC quadcopter/car/boat even if these icons are not in the menu.
RF Range: 2.408-2.475GHz
RF Power: <20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Low Voltage Warning: <4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 1.02inch 26mm (Dual Antenna)
Weight: 13.83oz 392g

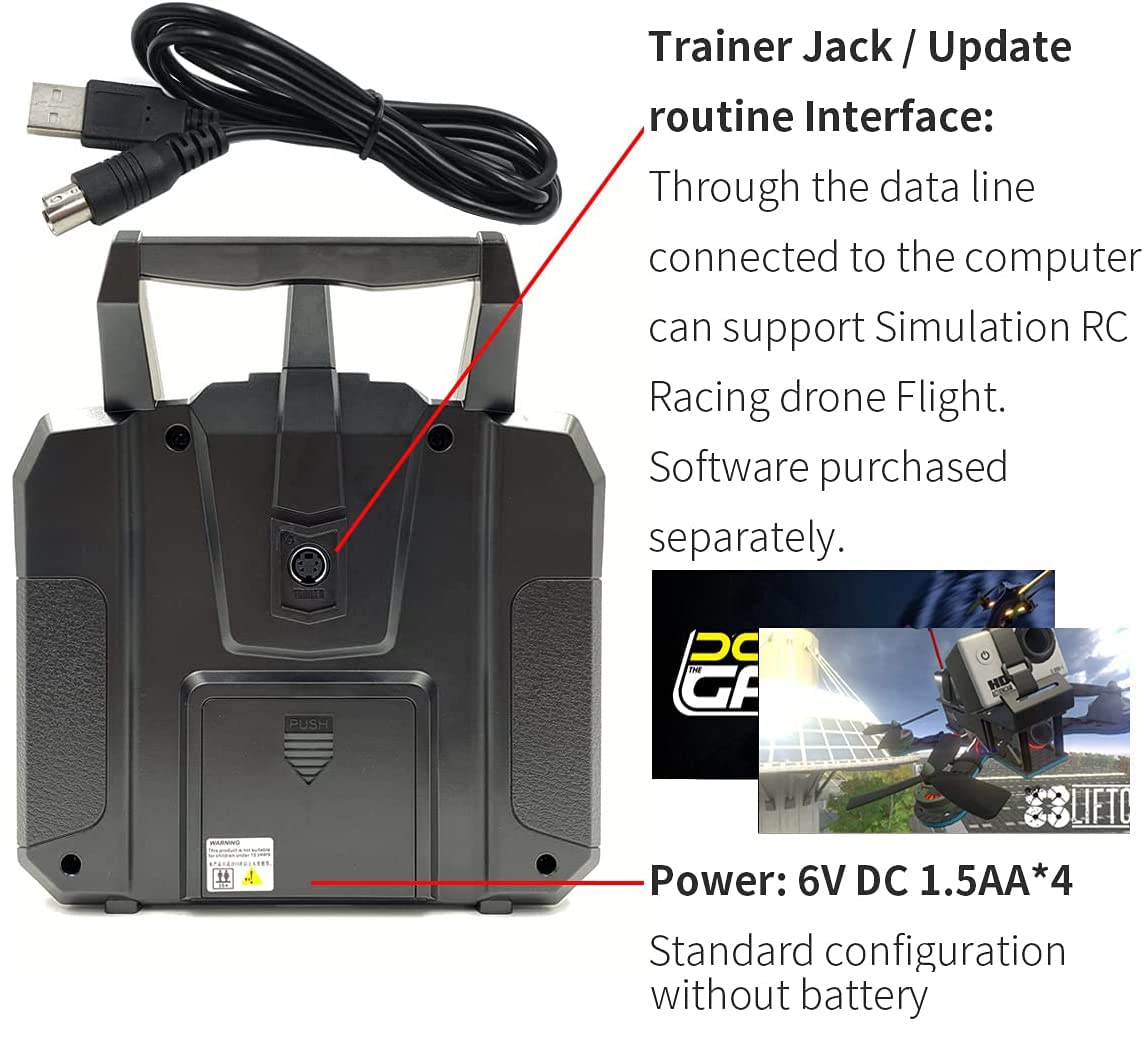

Power: 6V DC,4 * AA battery (NOT included)
Display: STNTransflective Display, LCD 128x64 Lattice,
VA 73x39mm, LCD with white backlight
Size: 6.85*3.5*7.48inch 174*89*190mm
On-line Update: Yes [Upgrade cable purchased separately]
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
Joystick mode: mode 2 [ left hand throttle, push the left joystick up and down,
will not automatically rebound to the center ]

FS-iA10B Specifications:
Item: FS-iA10B Receiver
Channels: PWM 10CH/ PPM 8CH s.bus 10CH / i.bus 10CH
(Select from transmitter menu 'SYSTEN-RX setup-Outprt mode')
2.4GHz System: AFHDS 2A
Model Type: Fixed-Wing/Glider/Helicopter/Quadcopter/Car/Boat
RF Range: 2.4055-2.475GHz
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
Modulation Type: GFSK
Power: 4.2-6.5V DC
Antenna Length:1.02inch 26mm (Dual Antenna).
Antenna Total length:150mm*2
Weight: 0.68oz 19.3g
Size: 1.99*1.37*0.59inch 50.6*34.9*14.9mm
i-BUS Port: Yes
Data Acquisition Port: Yes
Color: Black
Certificate: CE,FCC

Package Included:
FS-i6X Transmitter *1
FS-iA10B Receiver *1

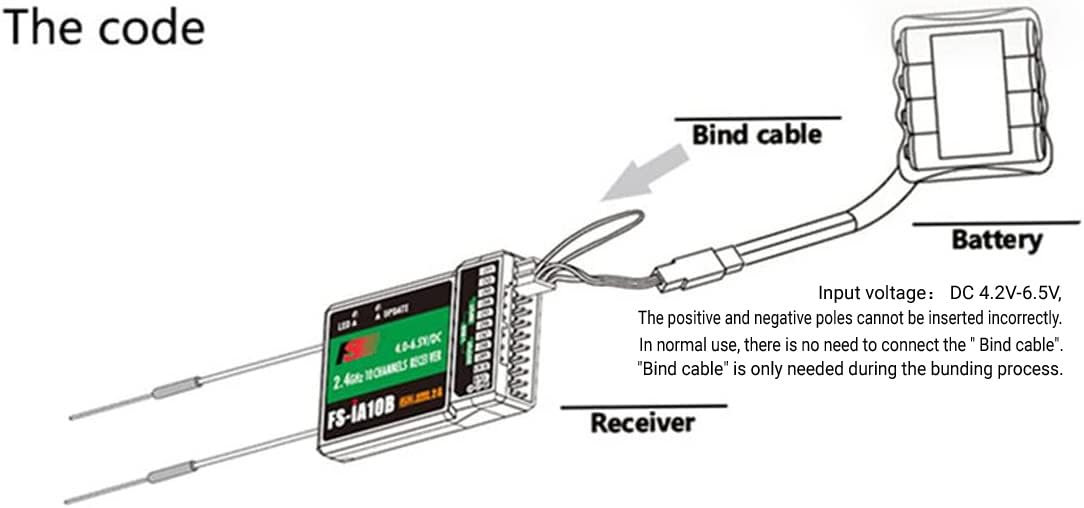

Bind Cable *1
PS/2 to usb Cable *1
Delivery without batteries

Package Dimensions: 9.1 x 8.2 x 4.2 inches
