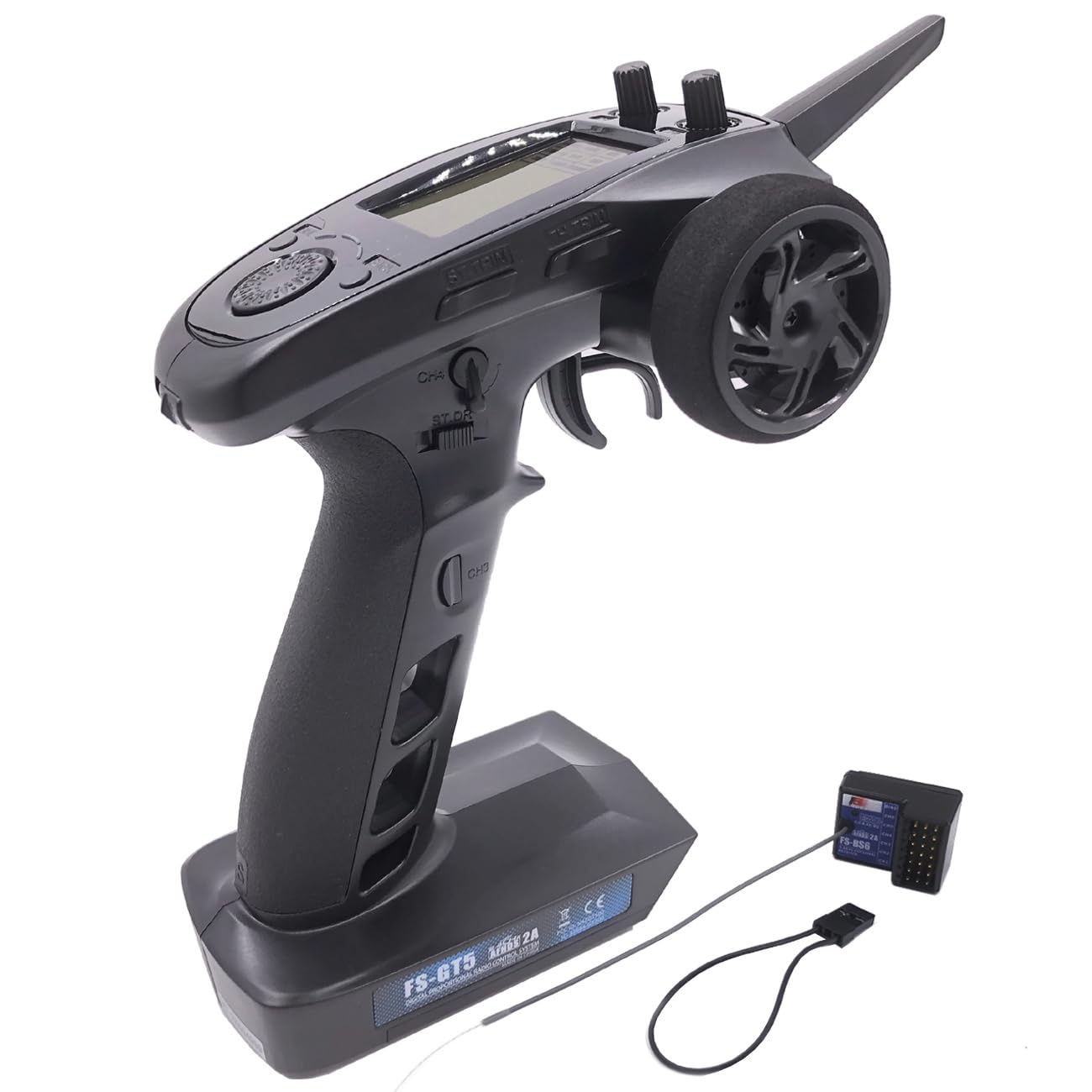

Alaohu Flysky FS-GT5 6 Channels RC Transmitter and FS-BS6 Gyro Receiver 2.4GHz AFHDS 2A Radio Control System for RC Car Boat

Brand: Alaohu

Color: Black

Features:

• 1. **Advanced 6-Channel Control**: The Flysky FS-GT5 Transmitter and FS-BS6 receiver operates on the reliable 2.4GHz AFDHS 2A protocol, offering precise control for a variety of RC Car/ Boat/ Truck. Beyond throttle and steering, four additional channels allow you to run auxiliary functions, perfect for crawler steering and other applications with mixer support.
• 2. **GYRO RECEIVER**: The FS-BS6 receiver built-in gyro can automatically recover unexpected offsets, making control more intelligent This feature is suitable for drifting and road vehicles. The gyro function can be turned off.
• 3.**ABS and CRAWL Functions for Superior Handling**: The FS-GT5 includes ABS function with six adjustable parameters for Better braking and cornering control on various tracks. Additionally, the CRAWL function provides revolutionary control optimization for RC crawler trucks, offering easier handling and more freedom in function distribution，used to create a crawler mix, meaning that the front and back wheels can move in different directions.
• 4.**With 20 Models Storage**: The FS-GT5 transmitter can store 20 sets of models (01-20), each of which can be individually set and saved with parameters to adapt to different model types or quickly call saved settings.
• 5. **Failsafe (F.SAFE)**: The out of control protection with 6 channels can be pre-set. When the receiver cannot receive the signal from the transmitter normally, move the servo arm to the pre-set position to protect the safety of the model and operators.

model number: FS-GT5

Part Number: GT5001

Details: The FS-GT5 is a 6-channel gun-style transmitter built for cars and boats.
It features the AFHDS 2A protocol, with 4 optional crawler car modes,
SVC functionality, and haptic feedback.
AFHDS 2A
6 channels
Steering wheel with bearing

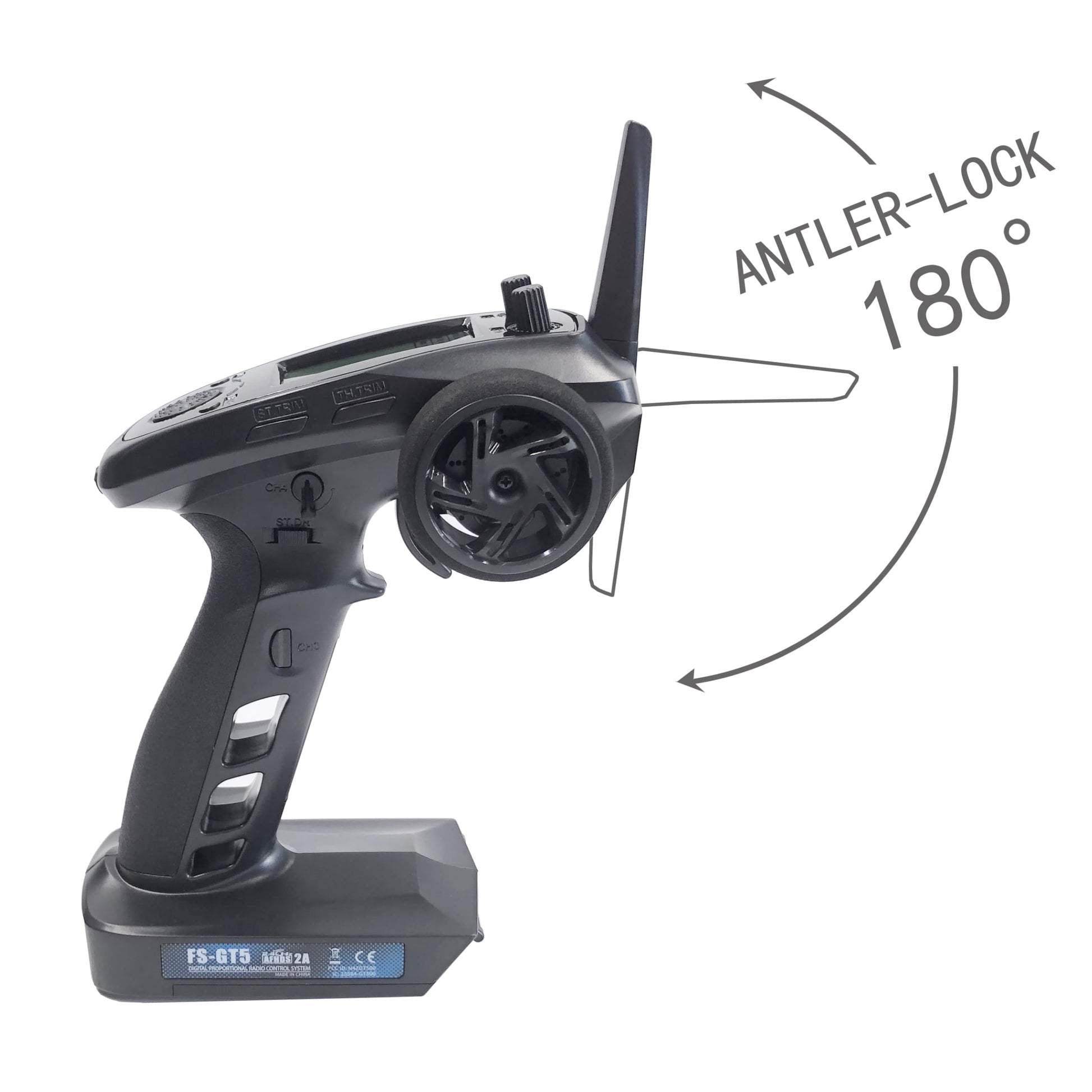

Foldable antenna
Crawler car modes, SVC functionality and haptic feedback
Gyro Receiver

FS-GT5 Transmitter Specification:
Channels: 6
Model Type: RC Car, RC Boat
RF Range: 2.408-2.475 GHz
Bandwidth: 500KHz
RF Power: <20 dBm
Receiving Sensitivity: -95dBm
2.4GHz Protocol: AFHDS 2A
Modulation Type: GFSK
Transfer Method: FHSK
Channel Delay: <15ms
Low Voltage Alarm: AA battery <4.4V, 2S lithium battery <7.4V

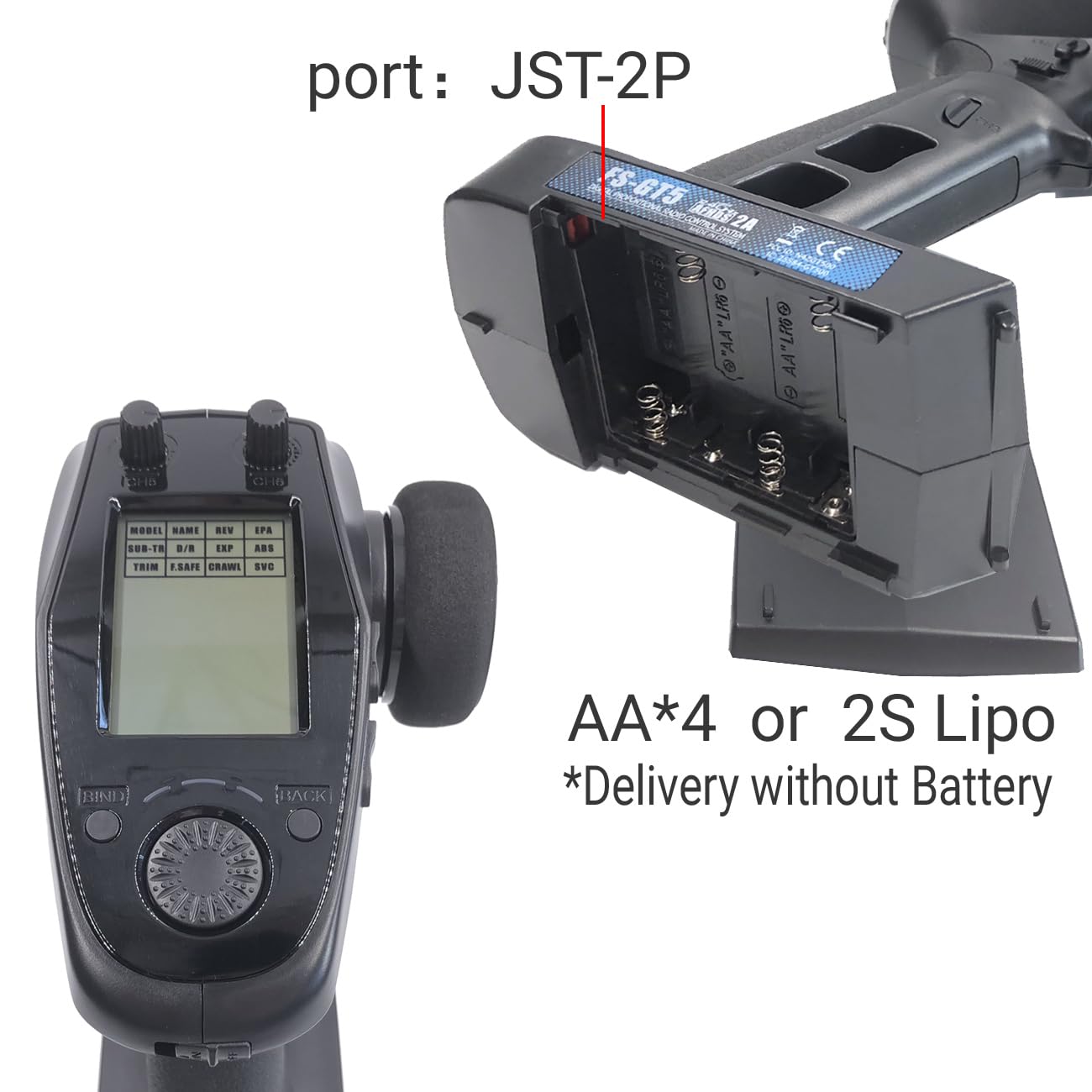

Power input: 4.2V-6.5V DC, AA * 4 (delivered without battery)
Data Output: None
Charging port: None
Antenna type: external single antenna，Foldable antenna
Display: NTN semi-permeable, segment screen, VA52.5 * 34mm LCD white backlight
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online update: None
RC Range (ground, no interference): 100-300m
Color: Black

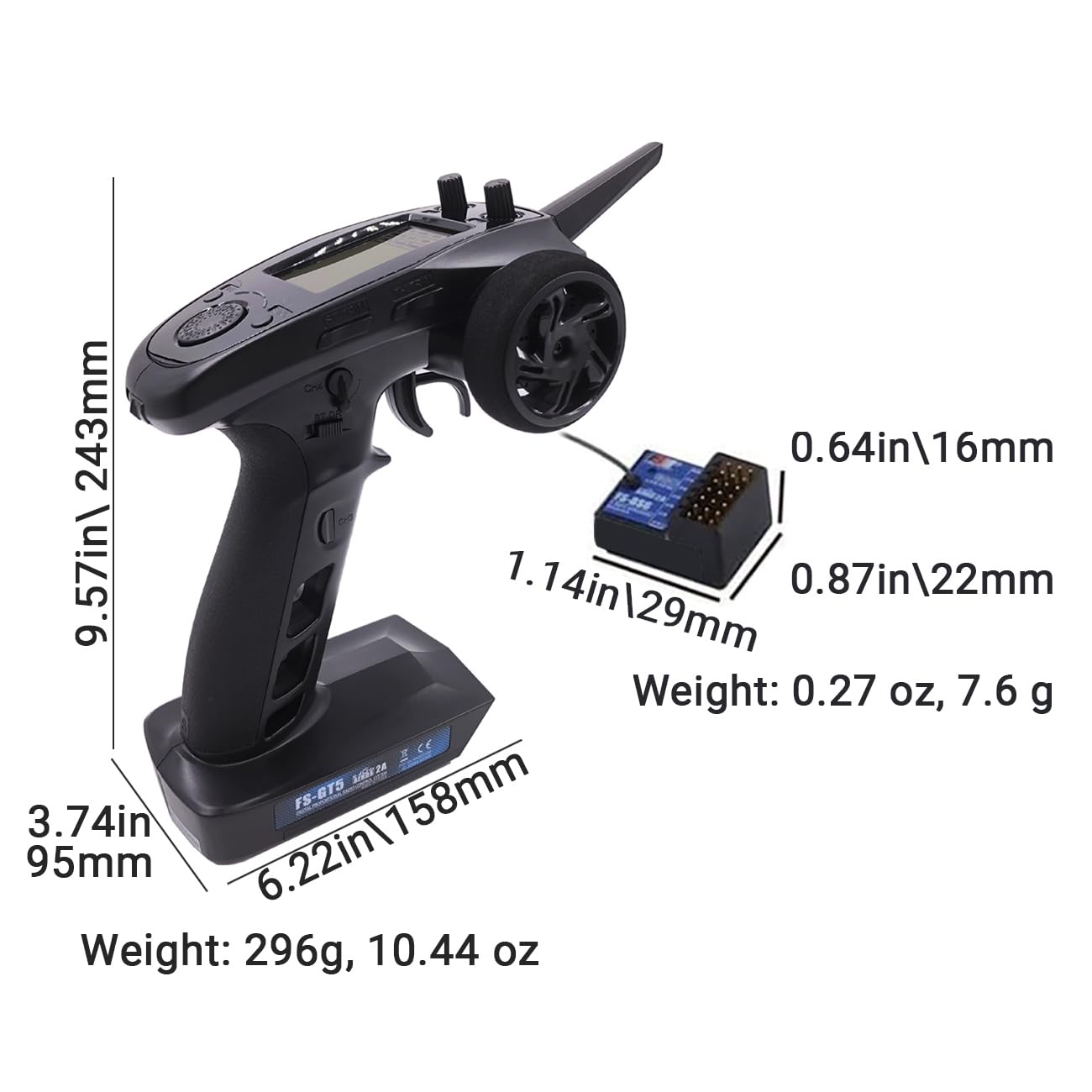

Dimensions: 158 * 95 * 243mm, 6.22*3.74*9.57 inch
Weight: 296g, 10.44 oz
Certification: CE, FCC ID: N4ZGT500

FS-BS6 Receiver Specification:
PWM channels: 6
Gyro: Yes
RF channel:135
2.4GHz system: AFHDS 2A
RF Power <20dBm
Modulation type: GFSK
Power input: 4.0 ~8.4 V DC
Antenna type: single antenna (180mm，7.08 inch)
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Dimensions: 29 * 22 * 16.2 mm, 1.14*0.87*0.64 inch
Weight: 7.6 g, 0.27 oz
Certificate: CE, FCC ID: N4ZBS600

Package Included:
FS-GT5 Transmitter *1
FS-BS6 Receiver *1

Package Dimensions: 10.9 x 8.4 x 5.1 inches
