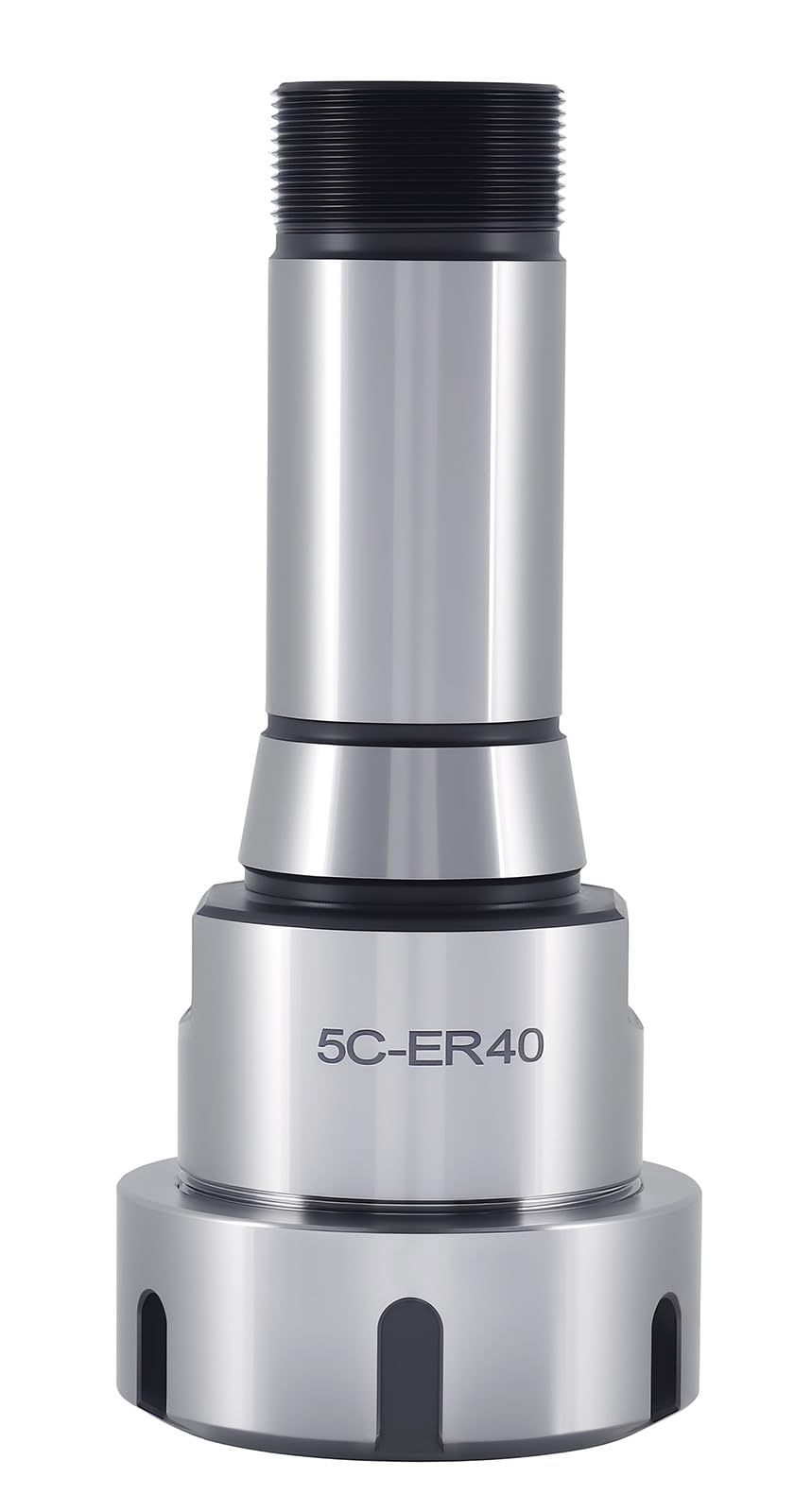

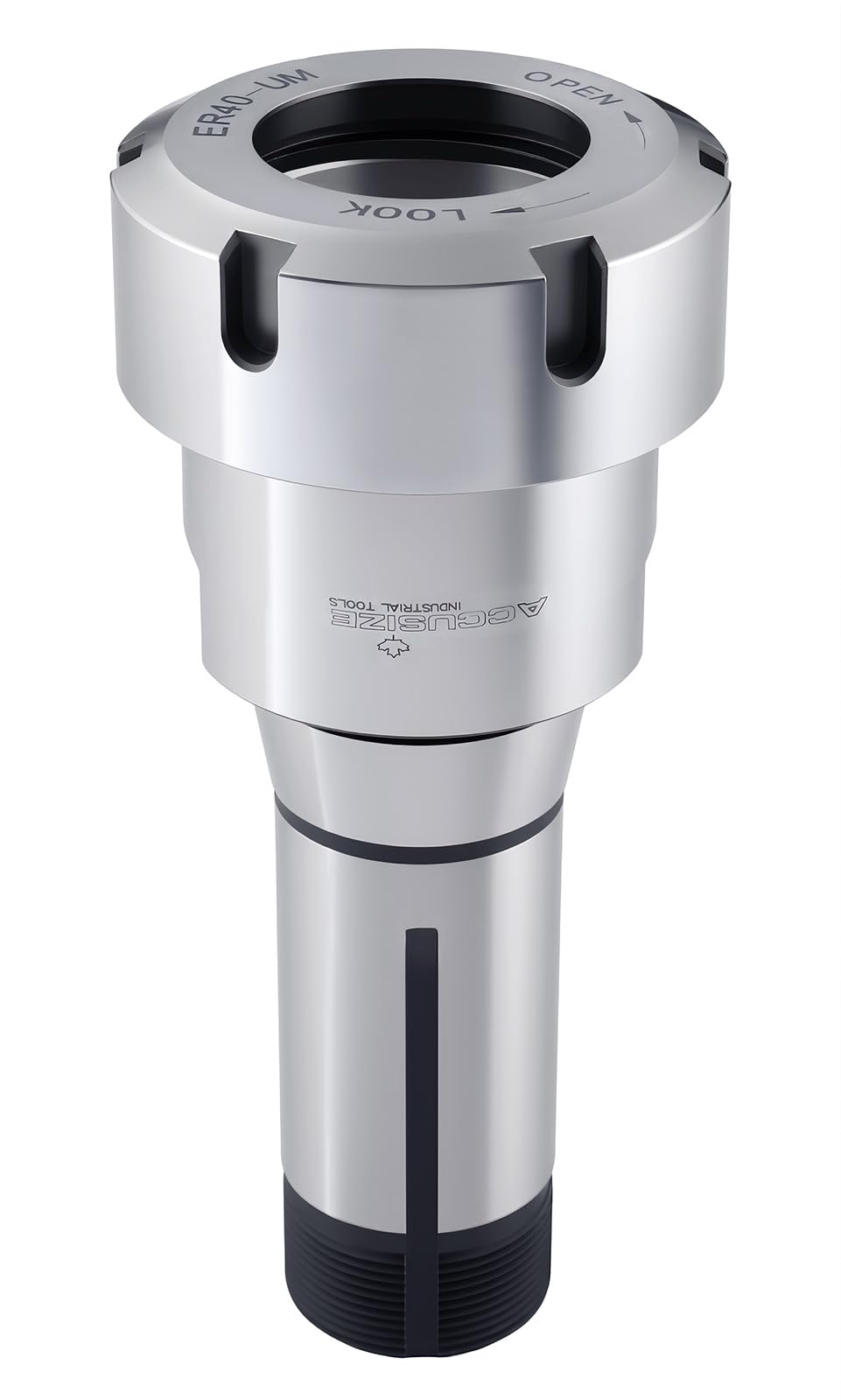

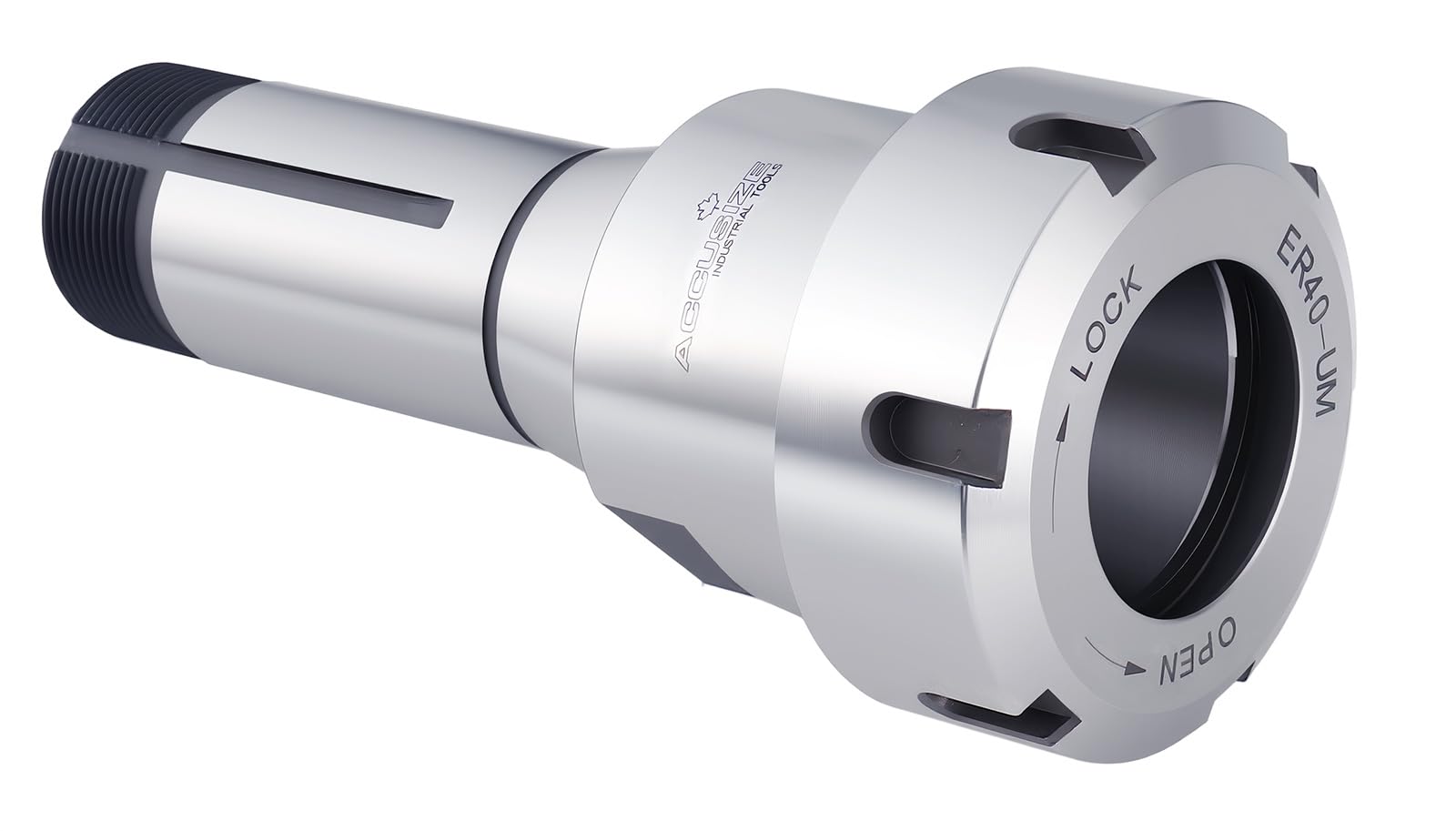

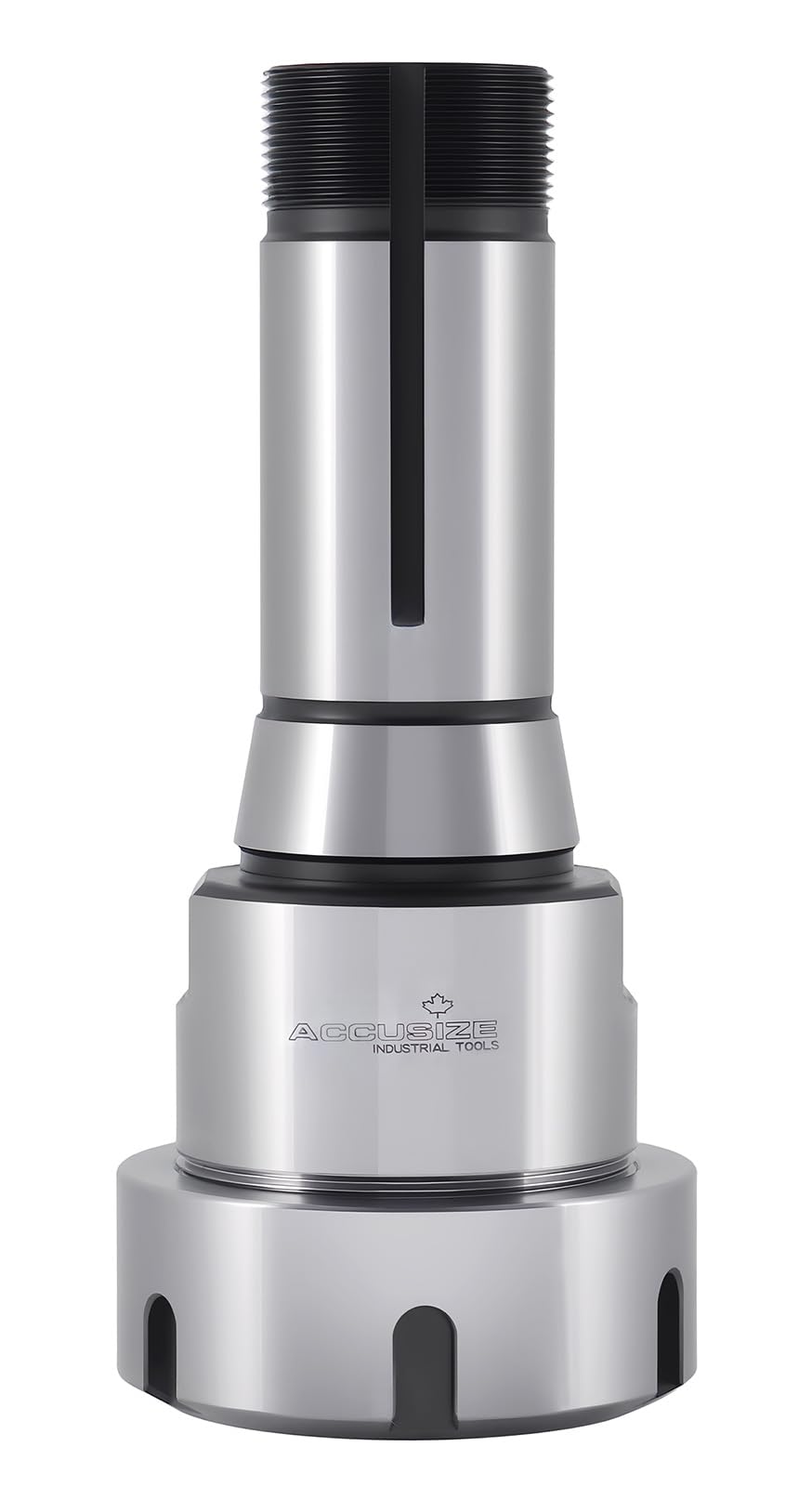

Accusize Industrial Tools 5C Shank ER40 Collet Chuck, 1.238''-20UNF External, 1.041''-24UNF Internal Thread, Max TIR 0.0002'', 0223-0246

Brand: Accusize Industrial Tools

Features:

• Made from premium 42CrMo tool steel, hardened and precision ground for long-lasting dimensional accuracy and structural integrity.
• ER40 collet series with a gripping capacity of 0.118" to 1.023", suitable for securely holding large-diameter round shank tools.
• Maximum Total Indicator Runout (TIR) of 0.0002" from O.D. to I.D. ensures excellent concentricity and reduced tool wear.

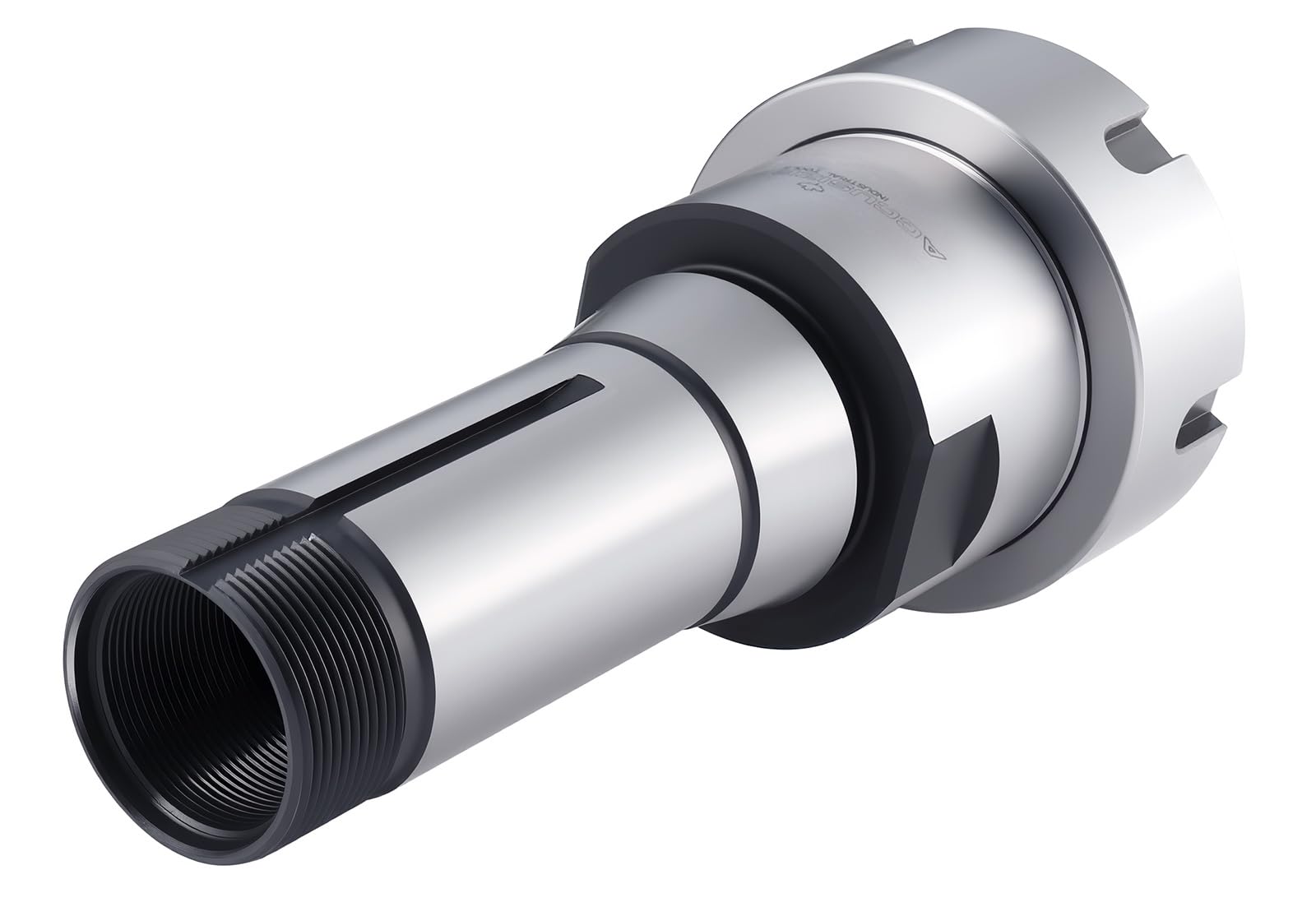

• 5C shank with 1.238"-20UNF external and 1.041"-24UNF internal thread adapts to 5C indexers, lathes, and collet closers.

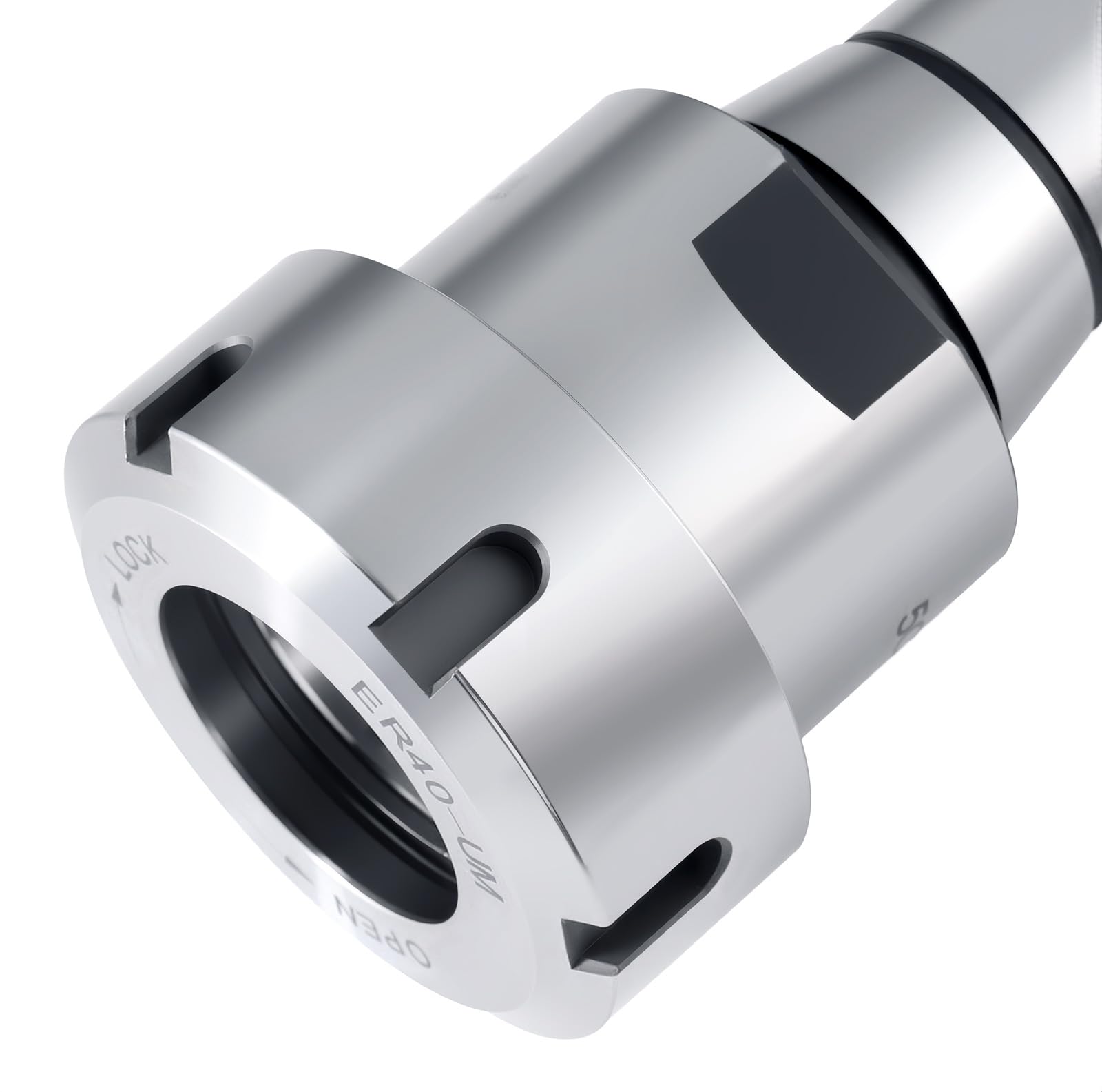

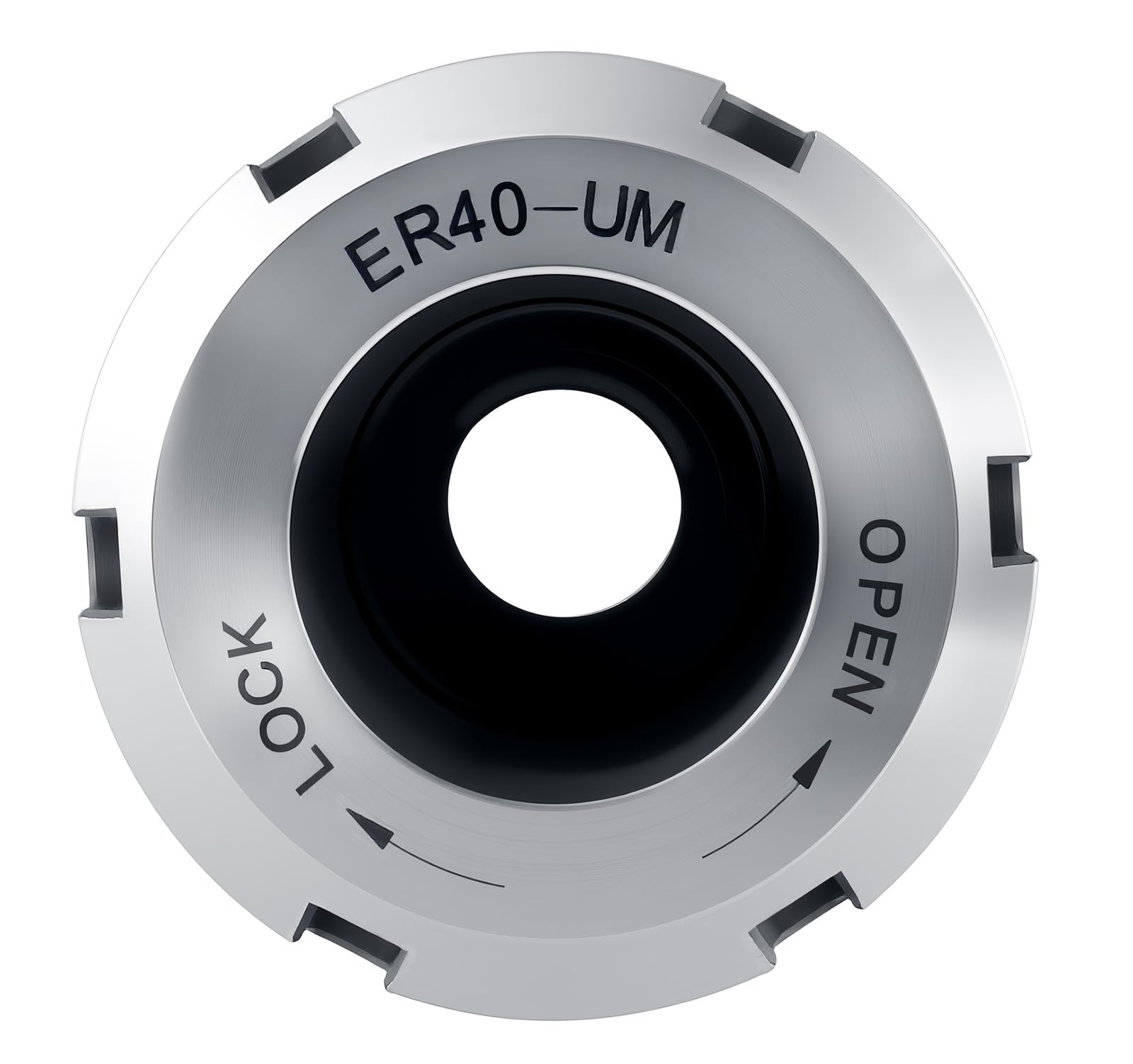

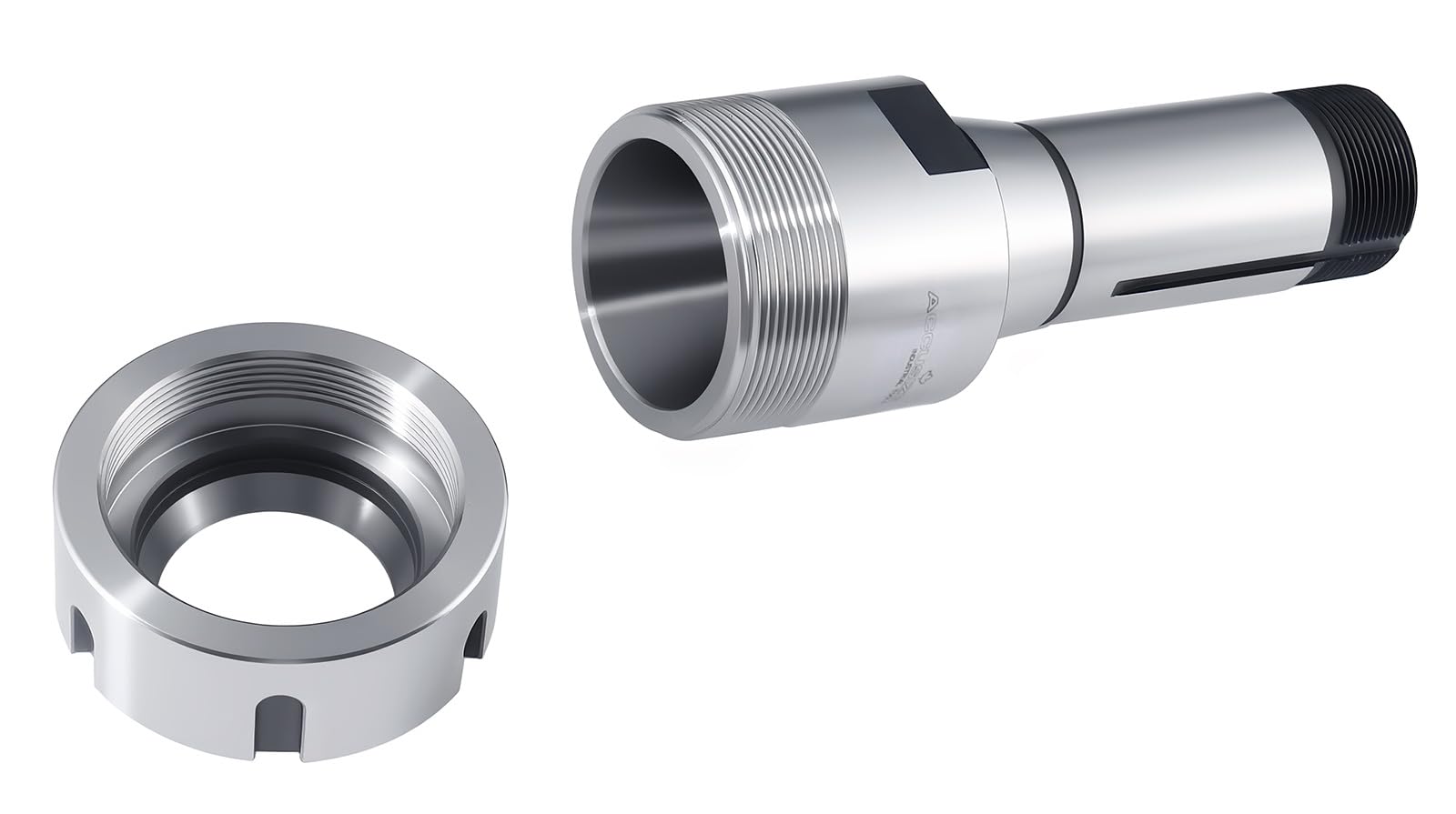

• Slotted-style collet nut provides reliable clamping strength and smooth installation for general machining and turning.

model number: 0223-0246

Part Number: 0223-0246

EAN: 0663566036861

Package Dimensions: 7.3 x 3.0 x 3.0 inches
