12V 250A ATV Winch Solenoid Relay Contactor for WARN -VANBOGOO Winch ATV Universal Kit for Model A2000 A2500 U2500 5ci 2.5ci 2.5ce 3.0ci 3.0ce 3.0s RT15 RT25 RT30 XT15 XT25 XT30 RT40 XT40

Brand: VANBOGOO

Features:

• 【Technical details & Applications】Voltage: 12V; Capacity:2000-5000lbs; The Stud is 1/4” ;/ For ATV Winch Solenoid Relay Contactor Switch 12V 250 AMP 1500lb-5000lb Application
• 【Premium quality】Great Alternative to OEM,Heavy duty and Replacement Contactor for KFI Winch Kits; It Functions As Reversing the Polarity On the Winch-motor As a function of the control-switch position.
• 【LIFETIME WARRANTY】100% high quality & oem Match, direct replacement,6 Month Warranty; Free Return and Full Refund
• Note: The Switch is a momentary center-off SPDT type. It is designed to handle intermittent current loads of 250 amps for up to 10 seconds, requiring a 20-30 second cooling time between cycles

model number: A2000 A2500 U2500 RT15 RT25 RT30

Part Number: VANCA-ATVA

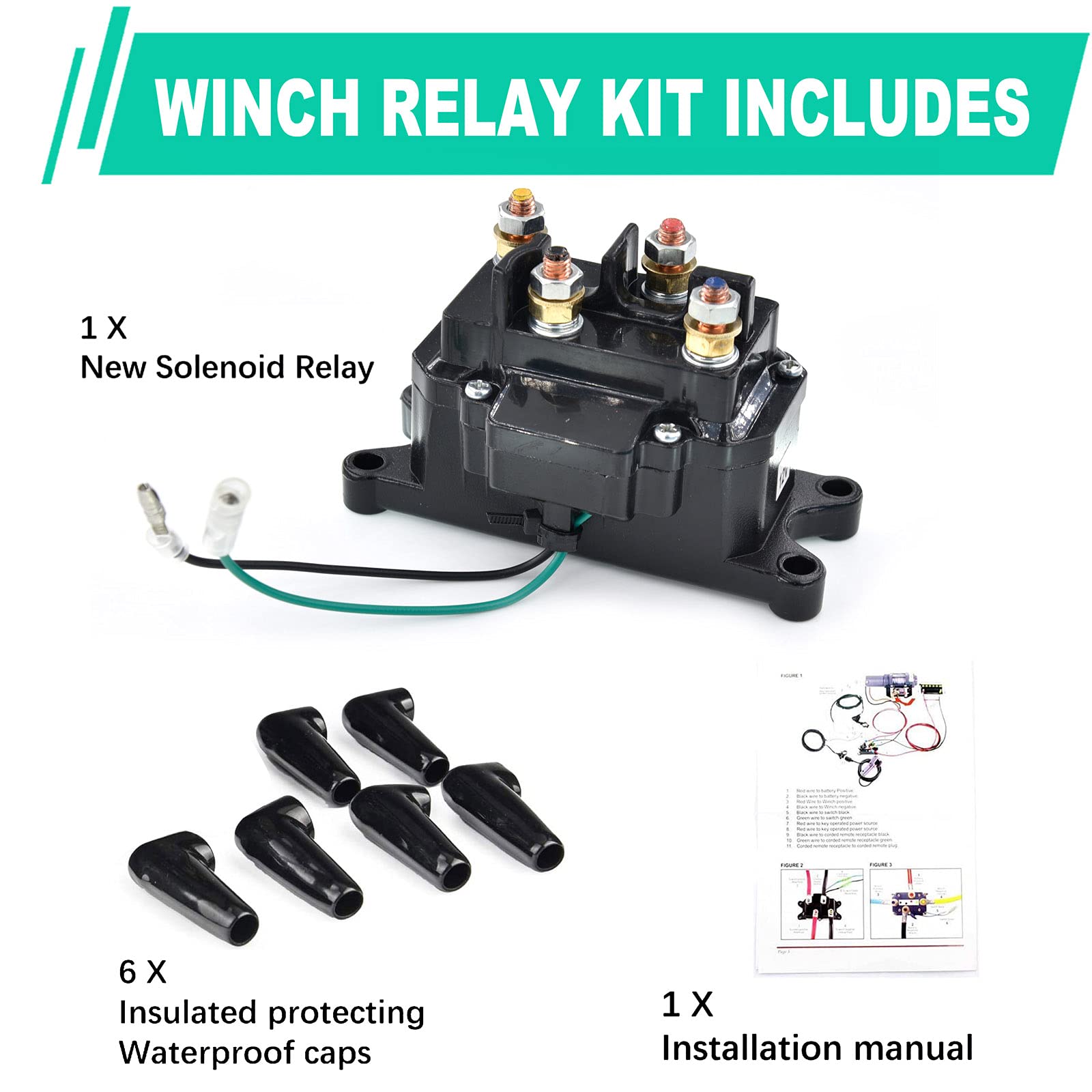

Details: Package include
1 X New Solenoid Relay
1 X Installation manual

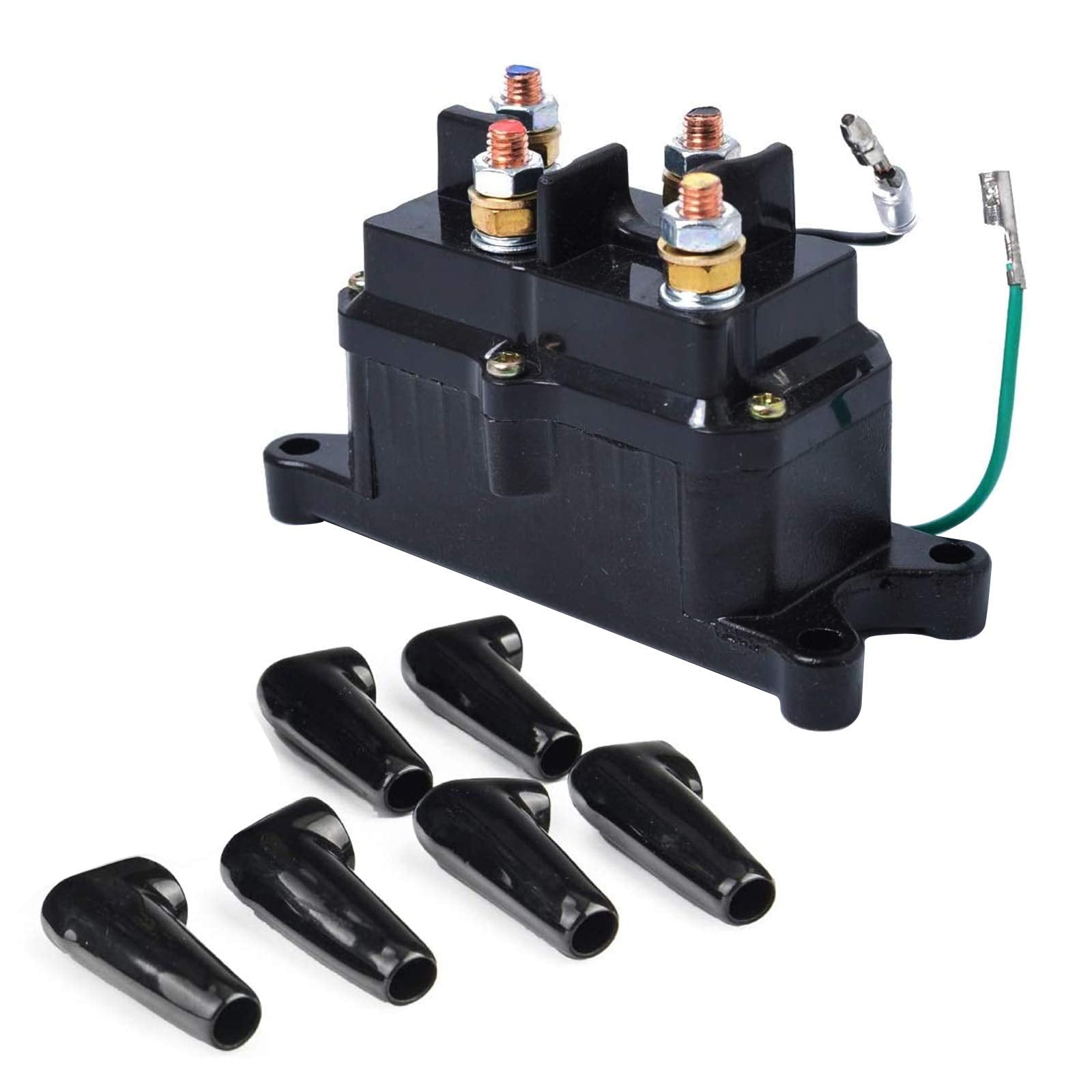

6 X Insulated protecting Waterproof caps
Specification
Voltage: 12 VDC Rating: 250A
Life Time: >10,000 times
Seal Level: IP67
OEM reference： 63070, 62135, 74900, 2875714, 70715

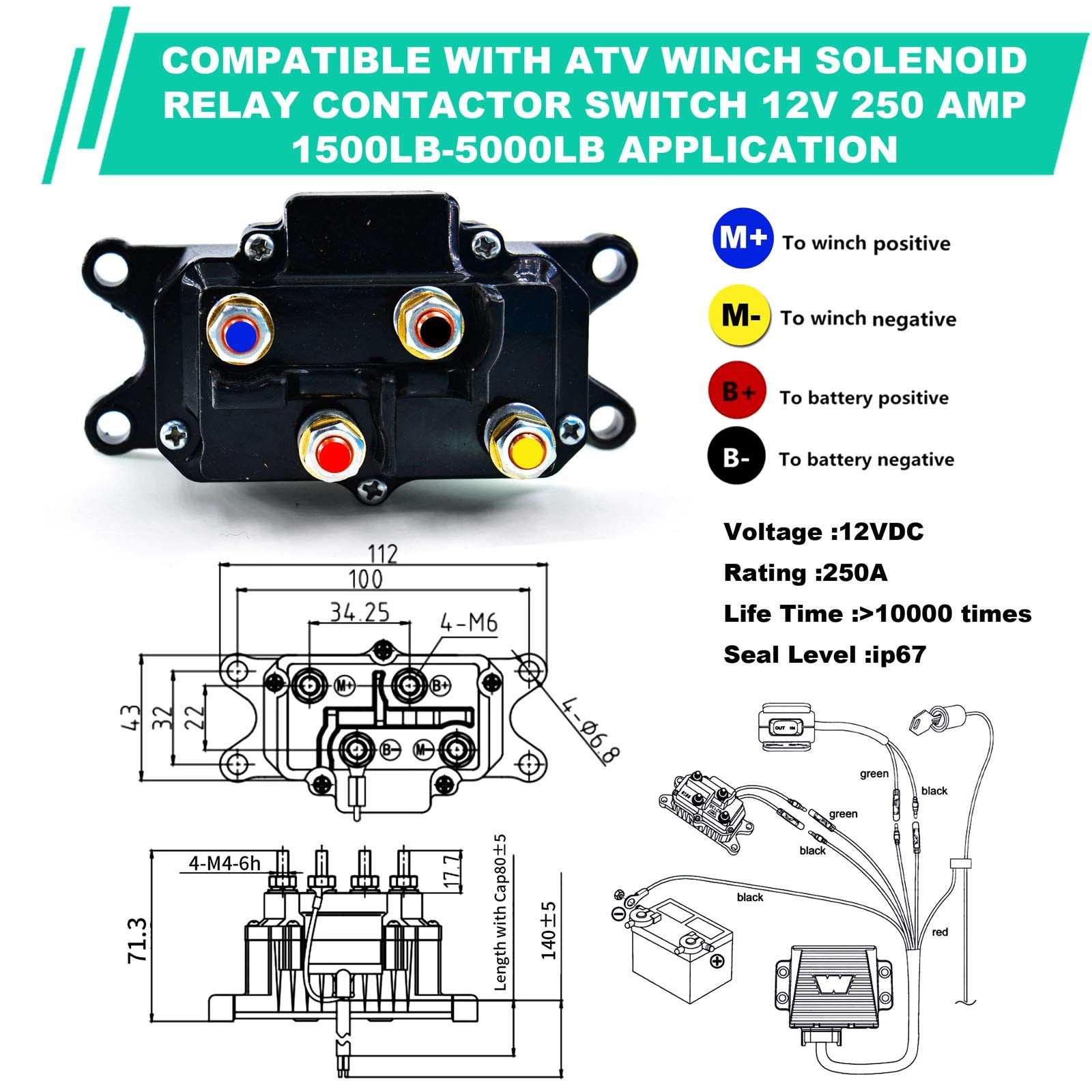

DIMENSIONS: 4.41 (L)* 1.69 (W)* 2.81 (H) inch/ 112*43*71.3 mm Easy InstallationEasy InstallationBlue To Winch positive
Easy Installation
Yellow To winch negative
Red To battery positive
Black To battery negative
Winch Motor’s Balanced Bridge
it Reverse as the Balanced Bridge On the Winch-motor and as a function of the control-switch position.
The Winch Relay is a momentary center-off SPDT type, handle intermittent current loads of 250 amps for up to 10 seconds, requiring a 20-30 second cooling time between cycles

EAN: 0792332450225

Package Dimensions: 7.9 x 6.3 x 0.9 inches
