12 Channel DMX Decoder, AZIMOM RGB LED Light Strip Controller dmx512 Decoder Dimmer Driver DC5V-24V LED Module Light

Brand: AZIMOM

Features:

• This DMX decoder adopts advanced computer control IC chip, can receive the international DMX - 512 standard digital control signals and converted into PWM controller signal to control the LED.

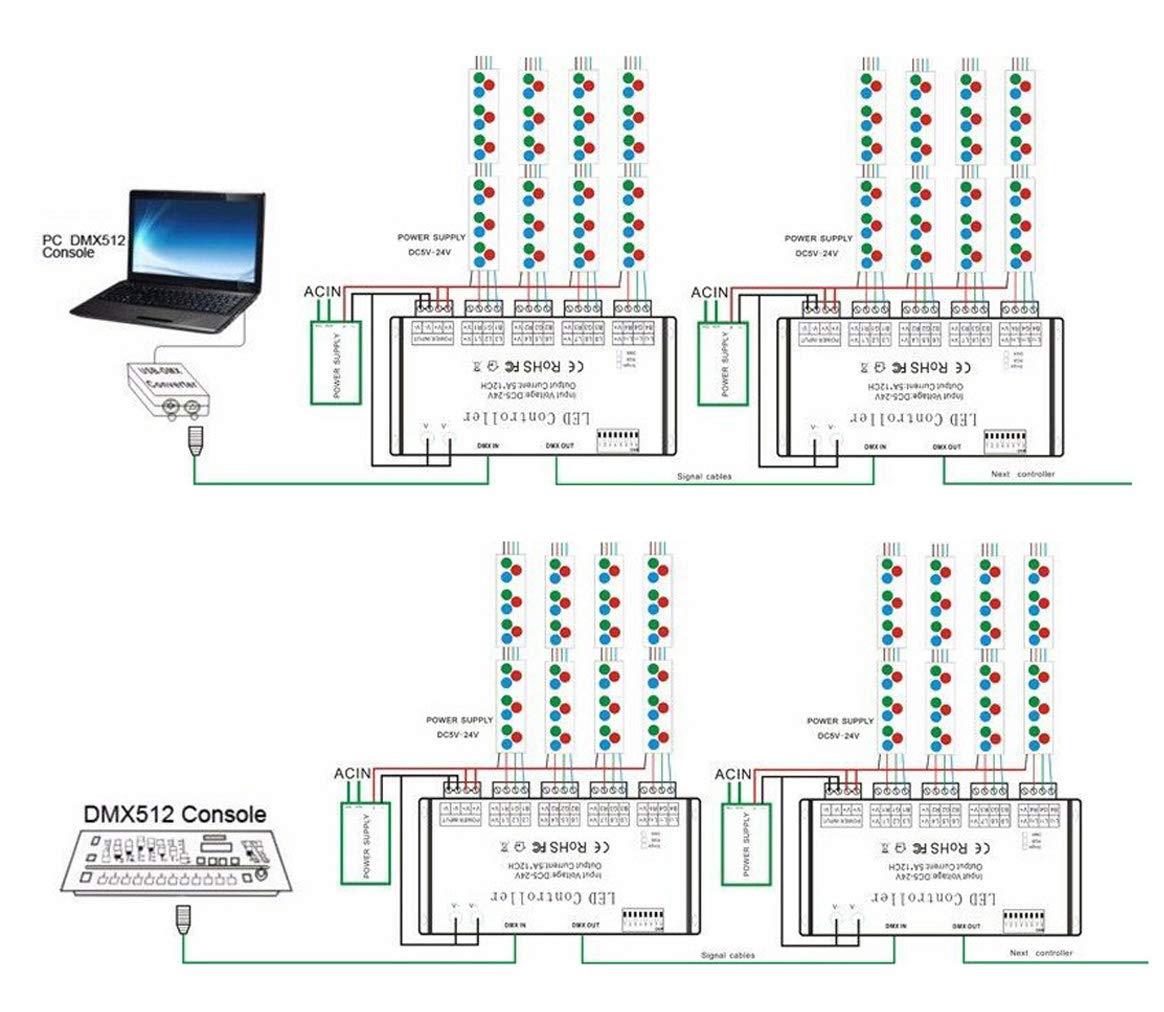

• The DMX decoder can be controlled by the DMX Console, and can connected with numbers of DMX Decoder to expand the outputs to realize all kinds of changing shows.
• This DMX decoder can be used as the synchronous controller to controlled the LED in synchronous, with 4096 levels grey scale output per channel
• 0-100% dimming output, each channel 256 gray levels. Each occupied by 12 DMX address, address code set by DIP switches.

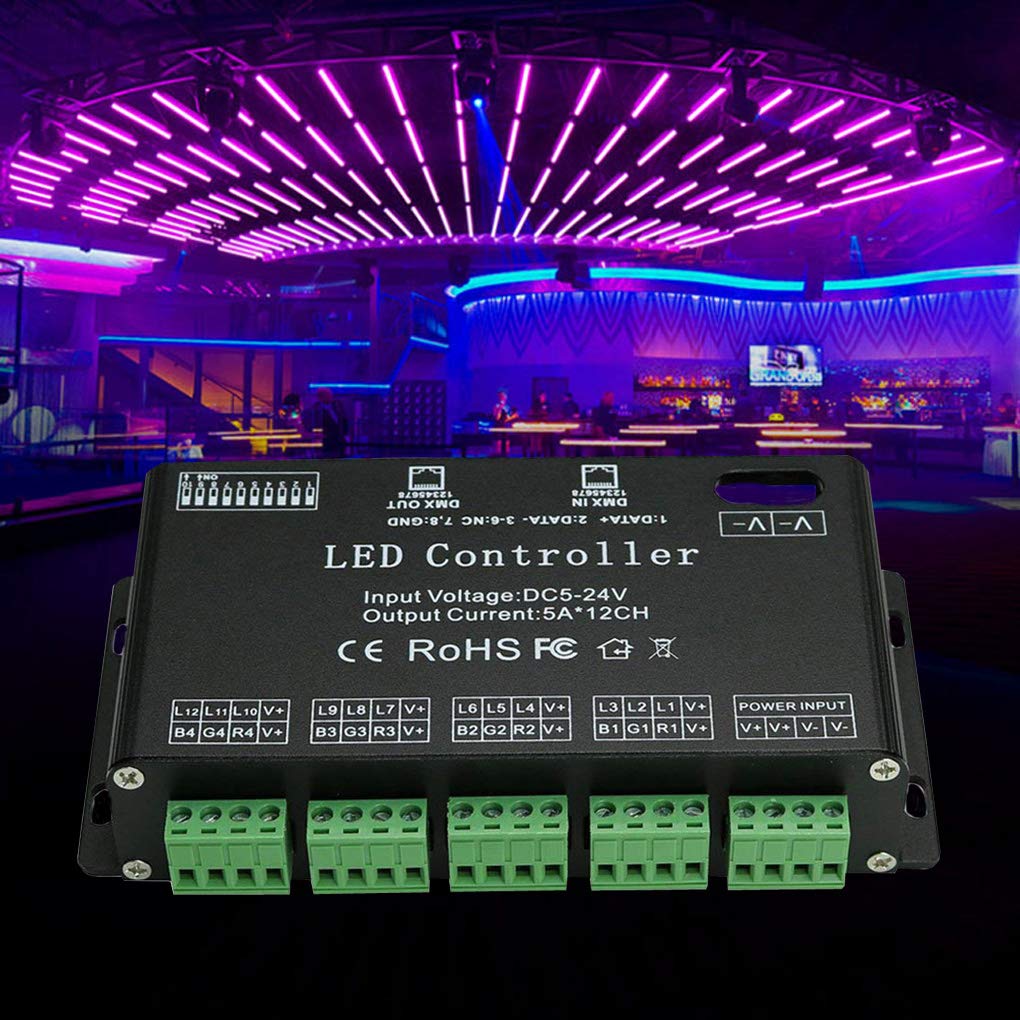

• Suitable for tape strip light RJ45 connection. Widely used in large-scale LED outdoor decoration projects and activities. Perfect color fade ＆ smooth effect, simultaneously let LED color more affluent.

Details: Instruction:
Welcome to use the 12CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 12 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.

Performance:
Input Power: DC5V-DC24V
Maximum load current: 5A/CHx12
Maximum power load: 300W (5V) 720W (12V)1440W (24V)
Output gray level: 256
Input Signal: DMX512/1990
Output signal: 12 channels Constant PWM
Output DMX : 12 channels

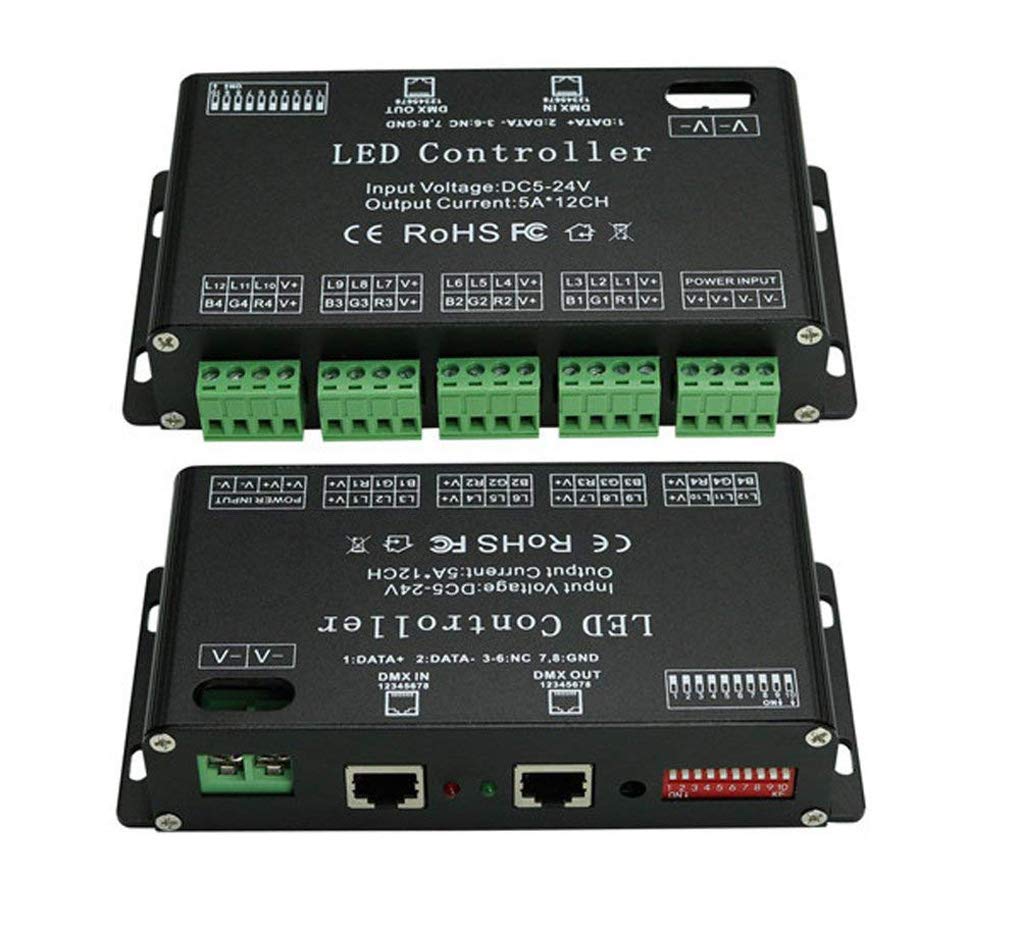

DMX512 socket standard RJ45

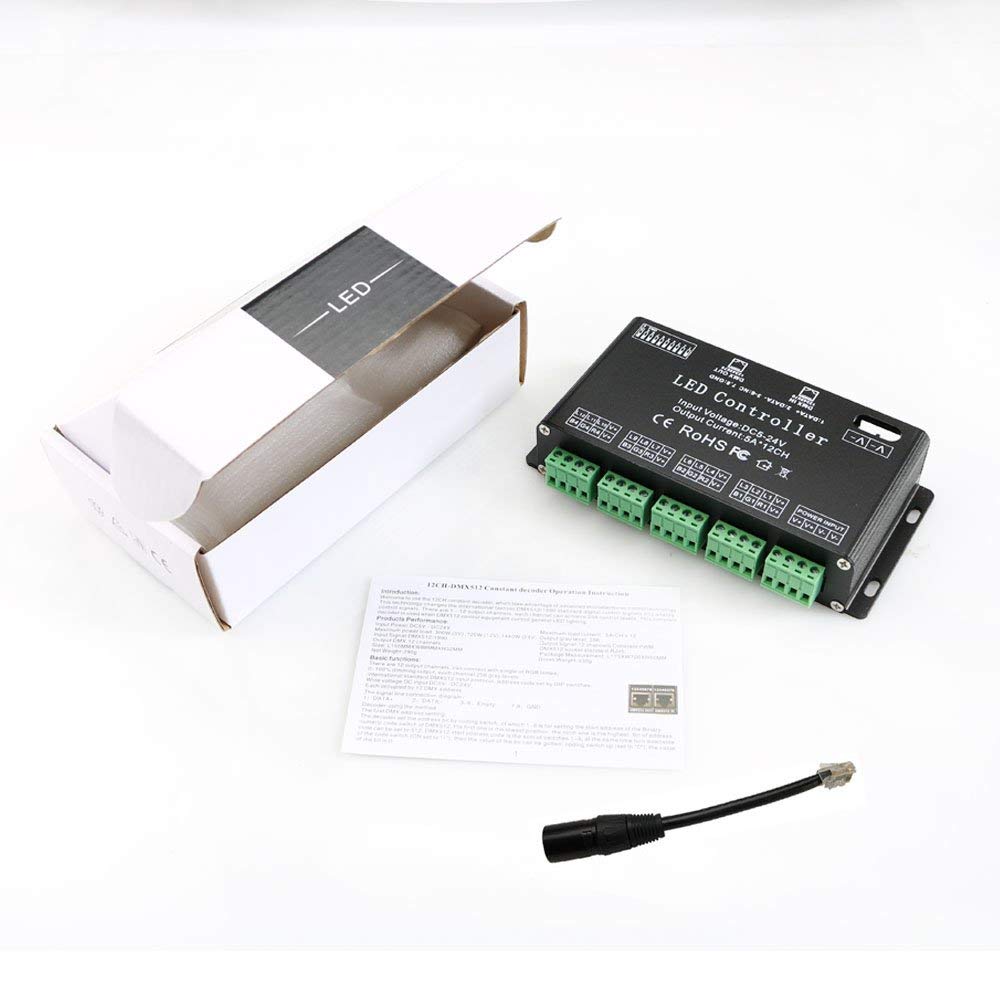

Package Included:
1 x DMX 512 Decoder
1 x User Manual

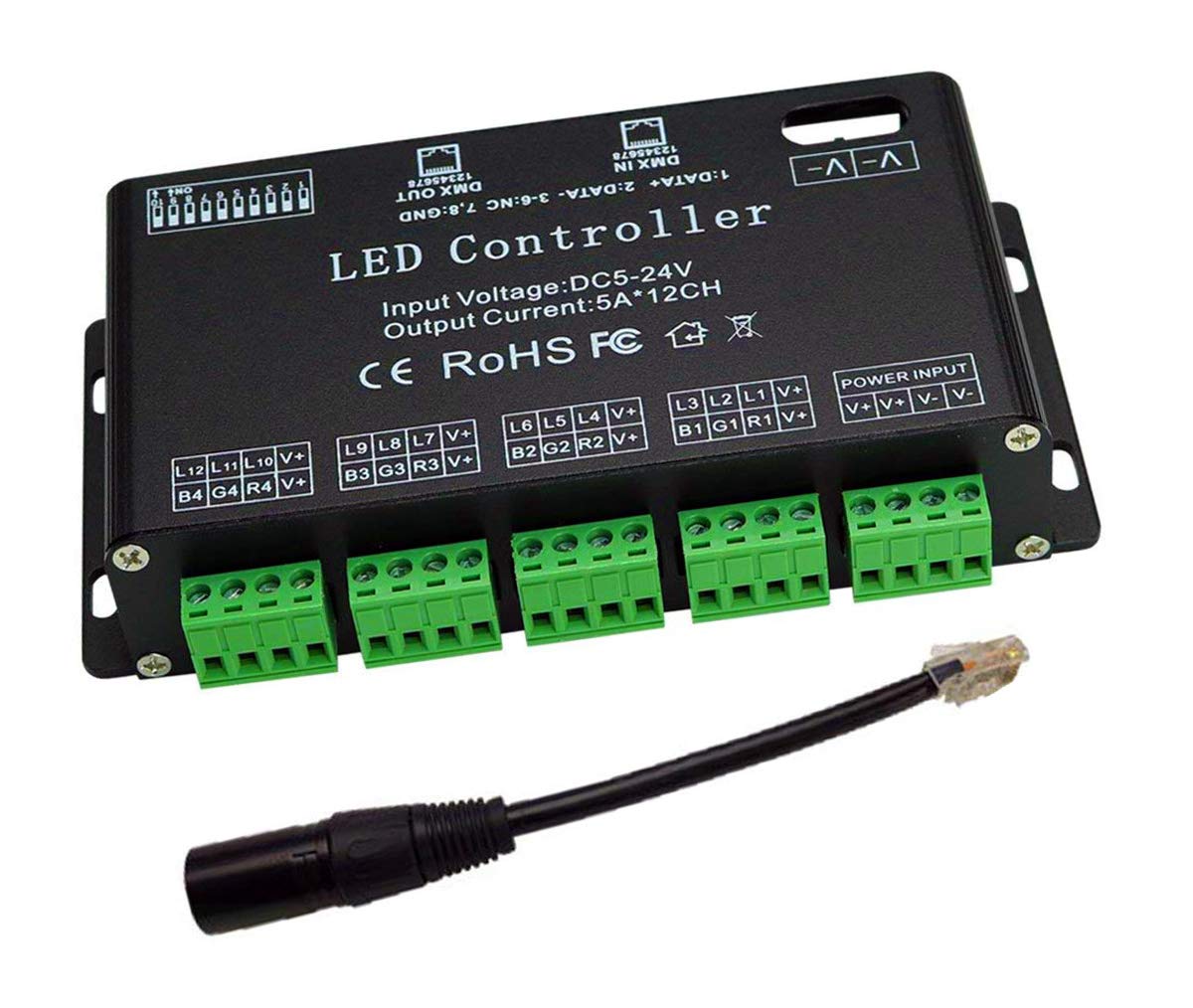

1 x DMX cable

Installation Notes:
※ This kind of controller works only under DC5V-24V, which is provided by the matched controllable main power, or else the controller will be damaged.

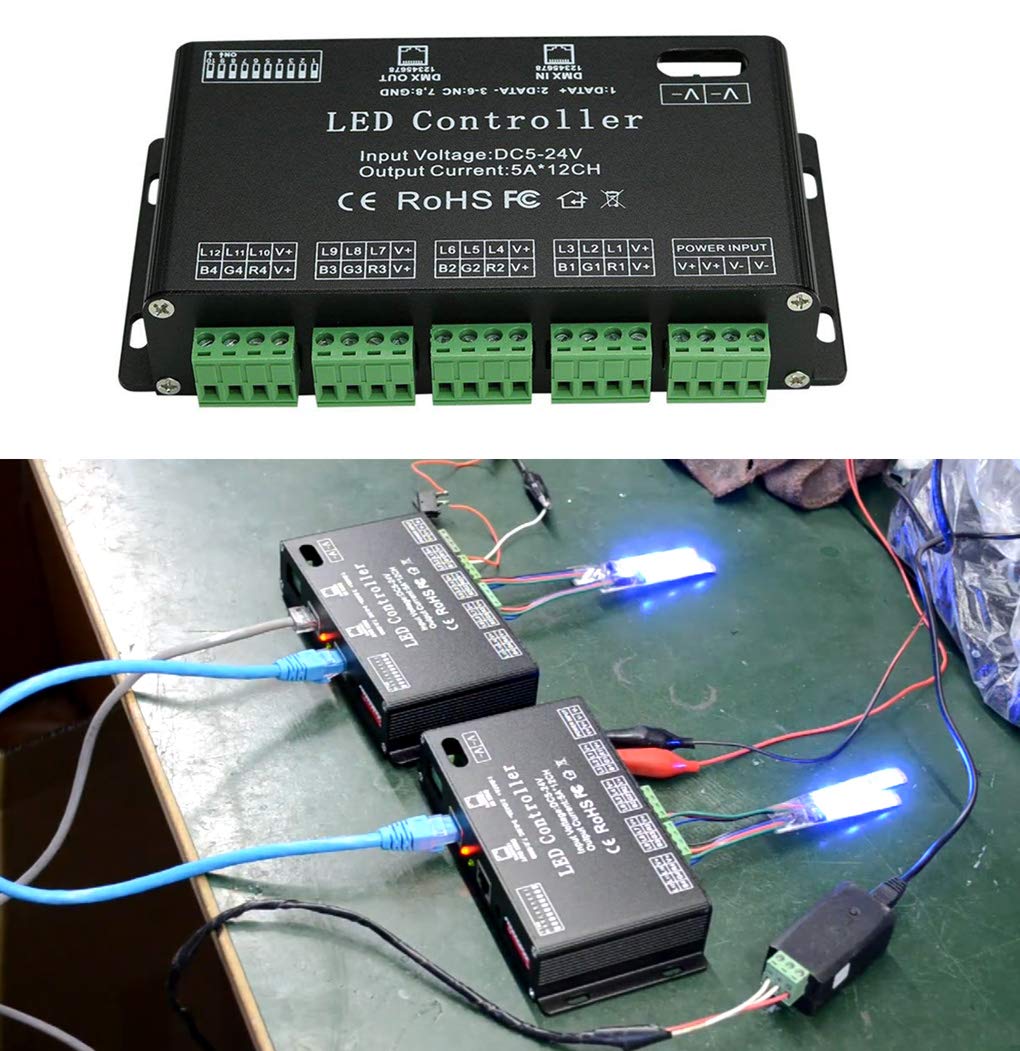

※ The UTP wire is connected hand in hand to make the cable, when two or more controller connected.
※ The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.
※ Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust.
※Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timely

EAN: 0769407393732

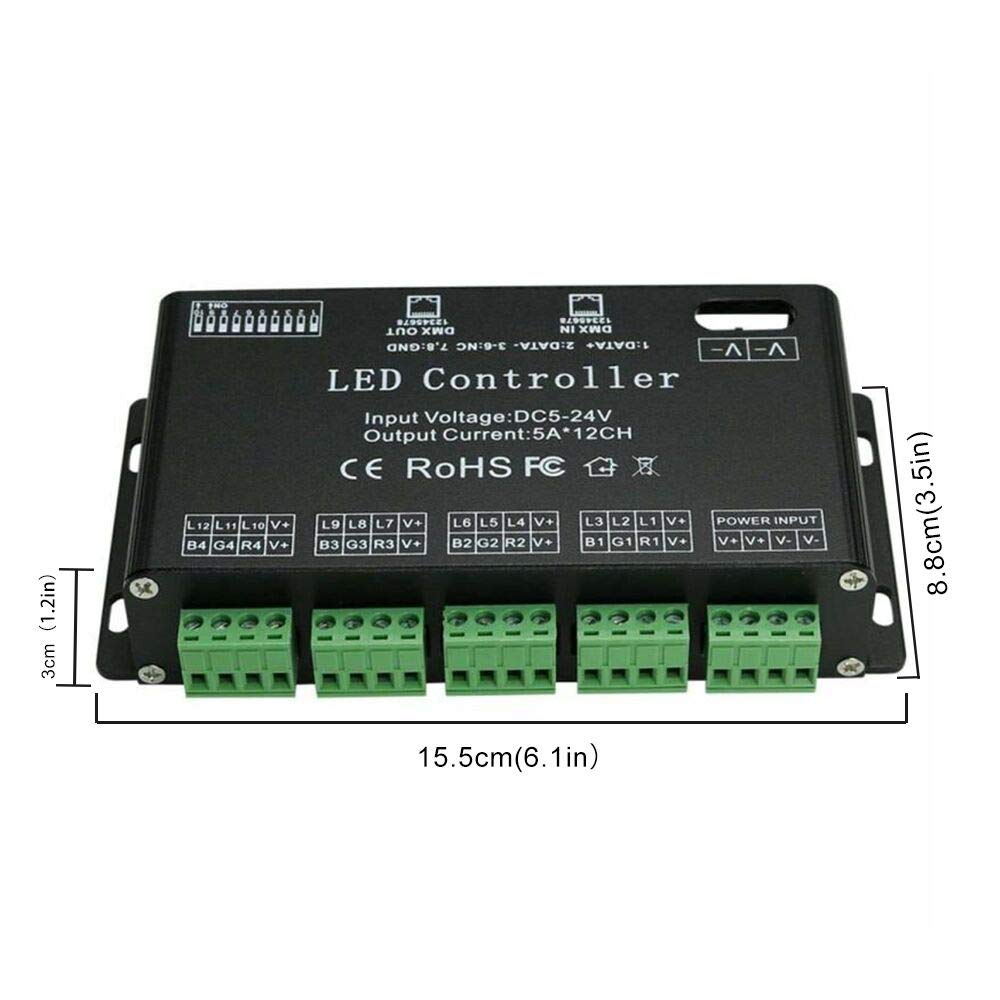

Package Dimensions: 7.1 x 3.8 x 1.9 inches
