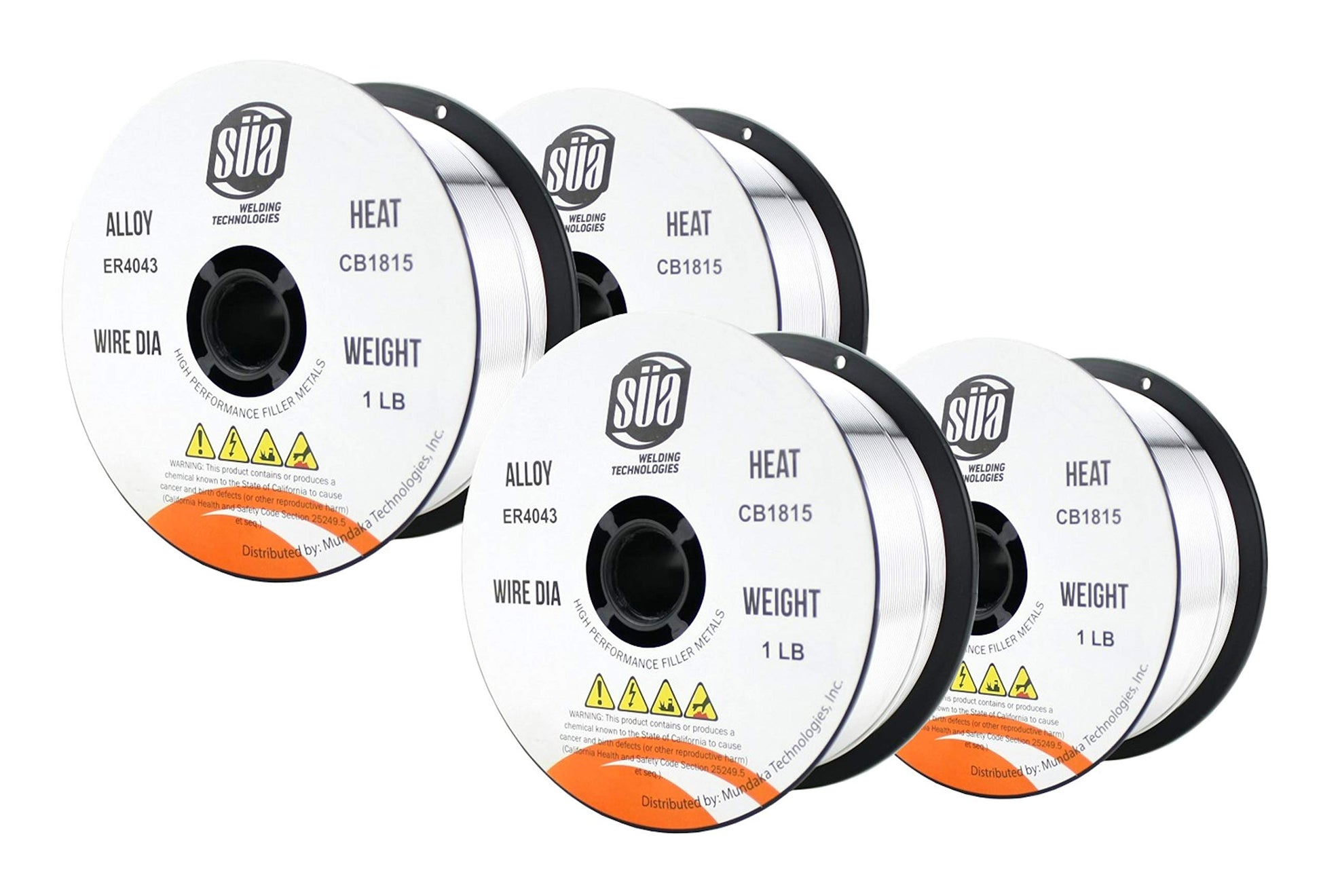

(0.035" - (4 Spools)) - ER4043 - MIG Aluminium Welding Wire - 0.5kg x 0.09cm (4 SPOOLS)

Brand: SÜA

Features:

• ER4043, commonly referred to as “AlSi5", has a 5% silicon and is the oldest and one of the most widely used aluminum welding wires for general purpose applications
• Less sensitive to weld cracking than other aluminum alloys and the 5% silicon content lowers the melting point, increases fluidity of the weld puddle and leaves a bright shiny weld deposit.
• ER4043 is commonly used for welding grades 6061, 6063, 5052, 3004, 3003 and cast alloys 356.0, 357.0, 413.0, and 443.0 to name just a few
• Melting range is 1065 °F– 1170 °F, density is 0.097 lbs/in3 and post anodizing color is gray
• 1 Lb of wire per Spool - Available diameters: 0.030", 0.035" and 0.045" - Available Spool Quantities 1, 2, 4 and 6-Pack. Select your choice from the menu.

Binding: Tools & Hardware

model number: 4043W4x35

Part Number: 4043W4x35

Details: ER4043 - WIRE - MIG (GMAW) – ALUMINUM AWS A5.10 Welding Positions: All, except vertical down INTRODUCTION: MIG solid wire electrode with aluminum 5% silicon for welding heat-treatable base alloys and more specifically, 6XXX series alloys. Untreated low strength values. Resistant to hot cracks. Main areas of use are welds on cast aluminum. Not recommended for materials to be anodized. USES: Materials: AlSiMg, AlMgSi. For welding 6XXX alloys, and most casting alloys, Automotive components such as frame and drive shafts, Bicycle frames CHEMICAL COMPOSITION (%): Chemical Composition Al Si Fe Cu Mn Requirement Balance 4.5-6.0 ?0.8 ?0.3 ?0.05 Typical test result Balance 5.12 0.13 0.01 0.01 Chemical Composition Mg Zn Ti Be Requirement ?0.05 ?0.1 ?0.2 ?0.0003 Typical test result 0.03 0.002 0.007 0.0002 WELDING PARAMETERS (DC+): Diameter WFS (ipm) Amps Volts (lb/100 ft) Argon (cfh) 0.030” 480-626 60-175 15-24 0.65-1.25 25-30 0.035” 450-750 70-185 15-27 1.0-4.25 30-35 0.045” 330-500 125-260 20-29 1.0-4.25 35-45 1/16” 250-450 170-300 24-30 3.8-6.6 45-75 Shielding Gas: 100% Argon, Argon / Helium Mixtures The above parameters are for reference purpose and depend on diverse factors. Run tests, evaluate and set your welding parameters before starting the welding job.

EAN: 0685867900801

Package Dimensions: 8.1 x 4.6 x 4.4 inches
