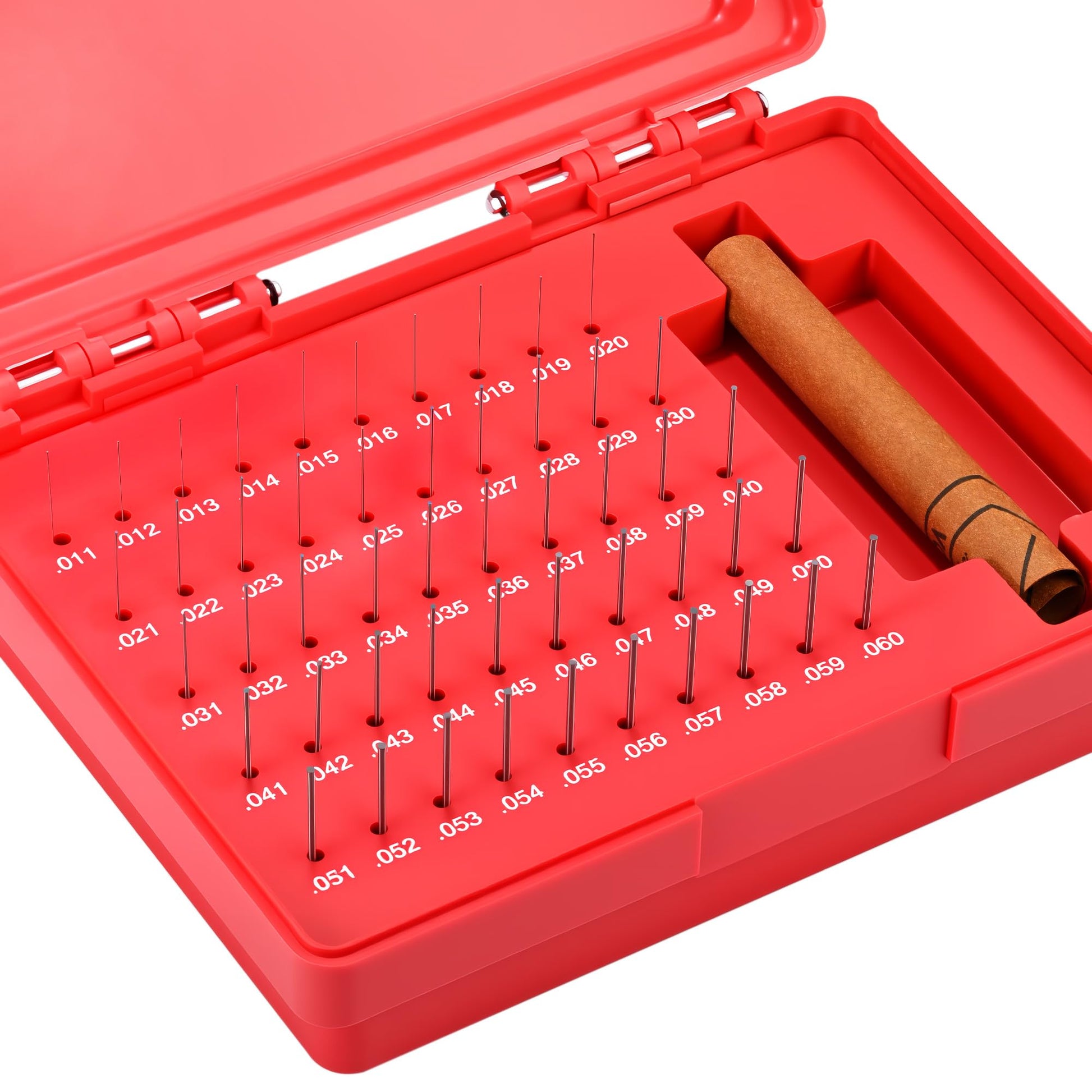

0.011”-0.060” Pin Gauge Set, Steel Gauge Pin Set with Storage Case, 50pcs Pin Gage Set, M0- Tolerance, Calibrates Gauge, Measures Hole Core Deviation Groove Keyway...

Brand: Mefape

Features:

• Size: 0.011”-0.060" at interval of 0.001”, tolerance: -0.0002", length: 2" ± 0.01"
• Made from bearing steel, heat treated, HRC 60-62, no sharp corners
• Each is laser engraved clearly with size
• 50pcs are well organized in a durable storage case
• Used to calibrate gauge, and measure core vibration, hole core deviation, dovetail groove, groove width, keyway width, tooth groove vibration, parallelism of V-groove, radius, aperture, hole spacing, hole position for parallelism, and position milling cutter

Part Number: 6358PGS-50

Details: 0.011”-0.060” Pin Gauge Set, Steel Gauge Pin Set with Storage Case, 50pcs Pin Gage Set, M0- Tolerance, Calibrates Gauge, Measures Hole Core Deviation Groove Keyway...
Size: 0.011”-0.060" at interval of 0.001”, tolerance: -0.0002", length: 2" ± 0.01"
Made from bearing steel, heat treated, HRC 60-62, no sharp corners
Each is laser engraved clearly with size
50pcs are well organized in a durable storage case
Used to calibrate gauge, and measure core vibration, hole core deviation, dovetail groove, groove width, keyway width, tooth groove vibration, parallelism of V-groove, radius, aperture, hole spacing, hole position for parallelism, and position milling cutter
SPECIFICATION
-Material: bearing steel
-HRC: 60-62
-Size: 0.011”-0.060" (interval: 0.001”)
-Tolerance: -0.0002"
-Length: 2" ± 0.01"
-Smooth Surface Treatment: 0.01mm
PACKAGE
-50 x Pin Gauge
-1 x Storage Case

Package Dimensions: 7.7 x 5.9 x 2.5 inches
