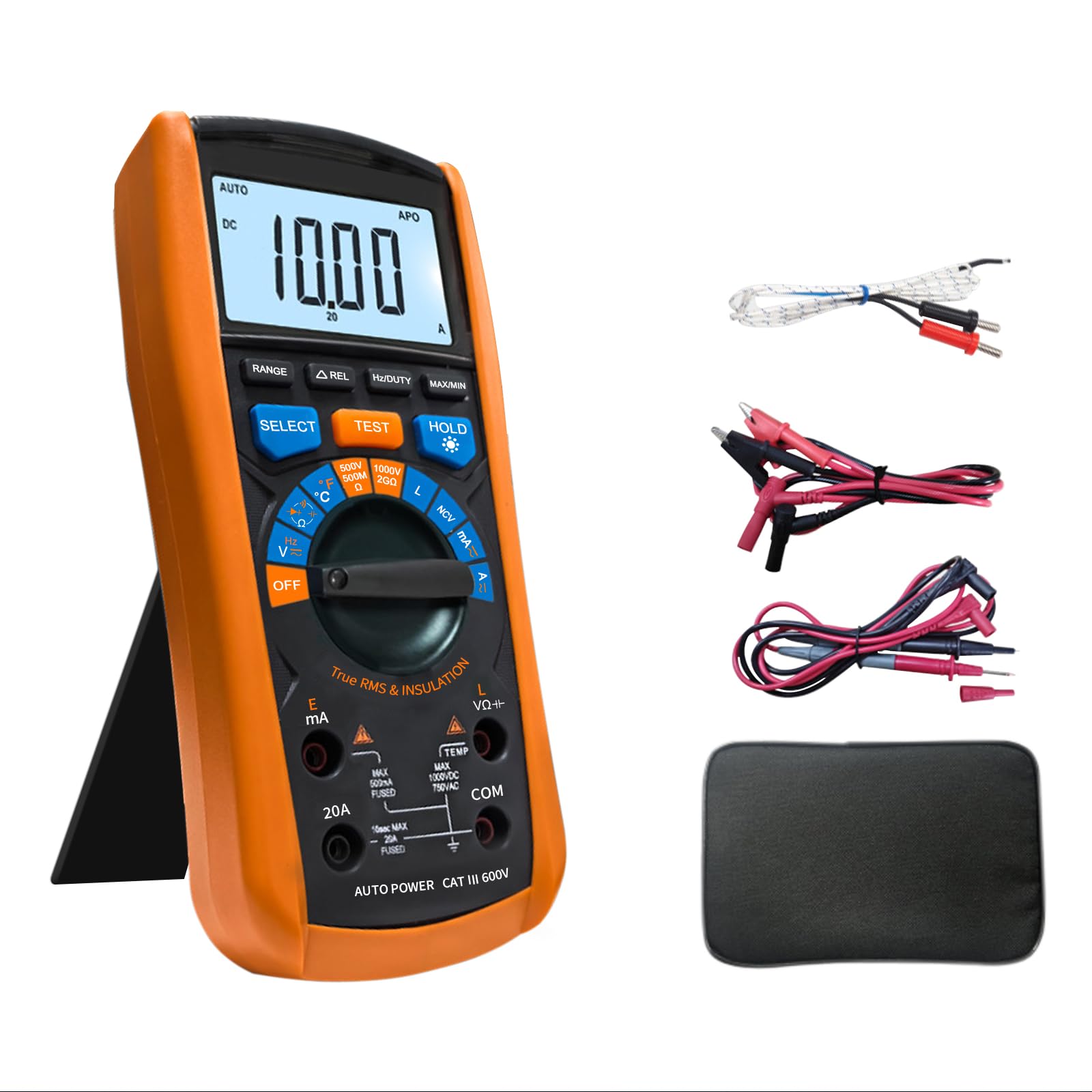

Insulation Resistance Tester Digital Multimeter 6000 Count, 500V/1000V Megohmmeter, 500MΩ/2GΩ Voltmeter, True RMS Voltage Tester for Industrial/Electrician/Home Use, Backlit LCD, Data Hold

Brand: INFURIDER

Color: Orange

Features:

• Professional Multifunctional Multimeter: Combine an insulation resistance tester with a high-performance digital multimeter for versatile diagnostics. Features manual/auto-ranging, True RMS for precise measurements, and NCV/ACV detection. Effortlessly test frequency/duty cycle, max/min values, and use data hold for efficient workflow.
• High-Precision Multi Meter: Achieve reliable insulation resistance tests with dual ranges: 500MΩ/500V and 2GΩ/1000V (±4.0%+2 accuracy). As a voltmeter, broad voltage/current compatibility includes DCV up to 1000V, ACV up to 750V, and current measurements up to 20A for both AC/DC.
• Safety Megohmmeter: The multimeter tester built to CAT III 600V safety standards with triple protection: overload fuse, anti-shock design, and 250V input protection. Anti-magnetic interference ensures stable readings, while volt meter auto-shutdown conserves battery after 15 minutes of inactivity.
• User-Centric: The digital multimeter has backlit display guarantees clear visibility in low light. Utilize relative value mode for quick comparisons, and store critical data with one-touch hold. Ideal for electricians, HVAC techs, and industrial maintenance.
• Widely used The voltage tester can be used in new energy auto repair, motor cables, telecommunication equipment, power facilities and other scenarios. The multimeter is equipped with a storage bag and can be placed diagonally on a flat surface to facilitate reading resistance voltage and other data, and is easy to carry.

model number: T7-VC4060-B1

Part Number: T7-VC4060-B1

Details: High Voltage Insulation Resistance Tester & Digital Multimeter, True RMS AC/DC Voltage Current Meter, CAT III 600V Safety, Auto Shutdown
Main functions: insulation resistance test, digital multimeter; true effective value, NCV non-contact voltage detection; frequency/duty cycle, relative value measurement;
Features: functional protection/shock protection/fuse overload protection/250V protection; maximum/minimum value; data retention; backlight display, low voltage prompt, automatic shutdown
Insulation resistance range and accuracy: 500MΩ/500V, 2GΩ/1000V; ±(4.0%+2)
DC voltage range and accuracy: 600mV/6V/60V/600V/1000V; ±(0.5%+5)
AC voltage range and accuracy: 6V/60V/600V/750V; ±(0.8%+10)
DC current range and accuracy: 6mA/60mA/600mA/6A/20A; ±(1.0%+5)
AC current range and accuracy: 6mA/60mA/600mA/6A/20A; ±(1.5%+10)
Resistance range and accuracy: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ; ±(0.8%+2)
Frequency: 50kHz (ACV range measurement)
Temperature: -40℃～1000℃ | -40℉～1832℉

Package Dimensions: 9.1 x 5.3 x 2.5 inches
