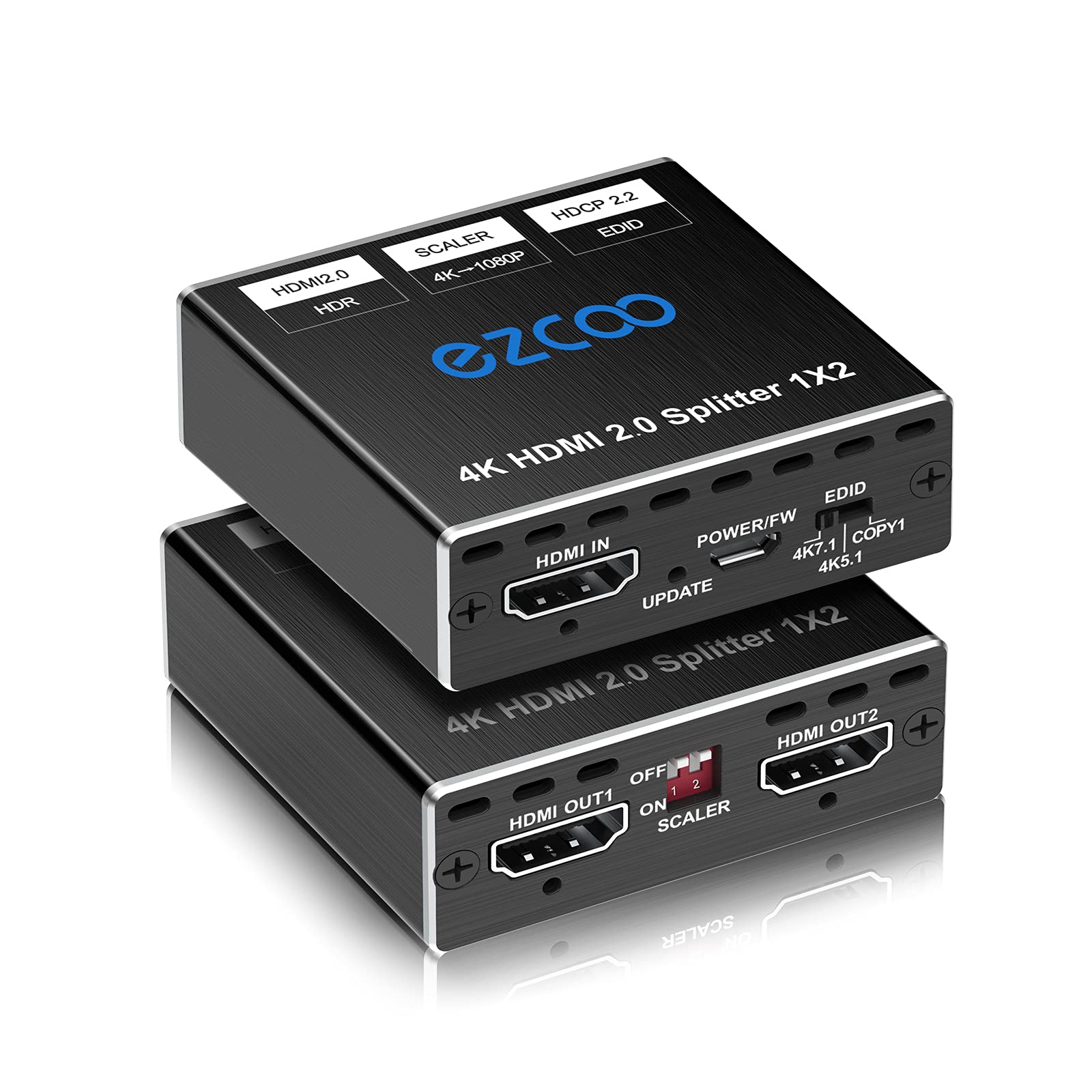

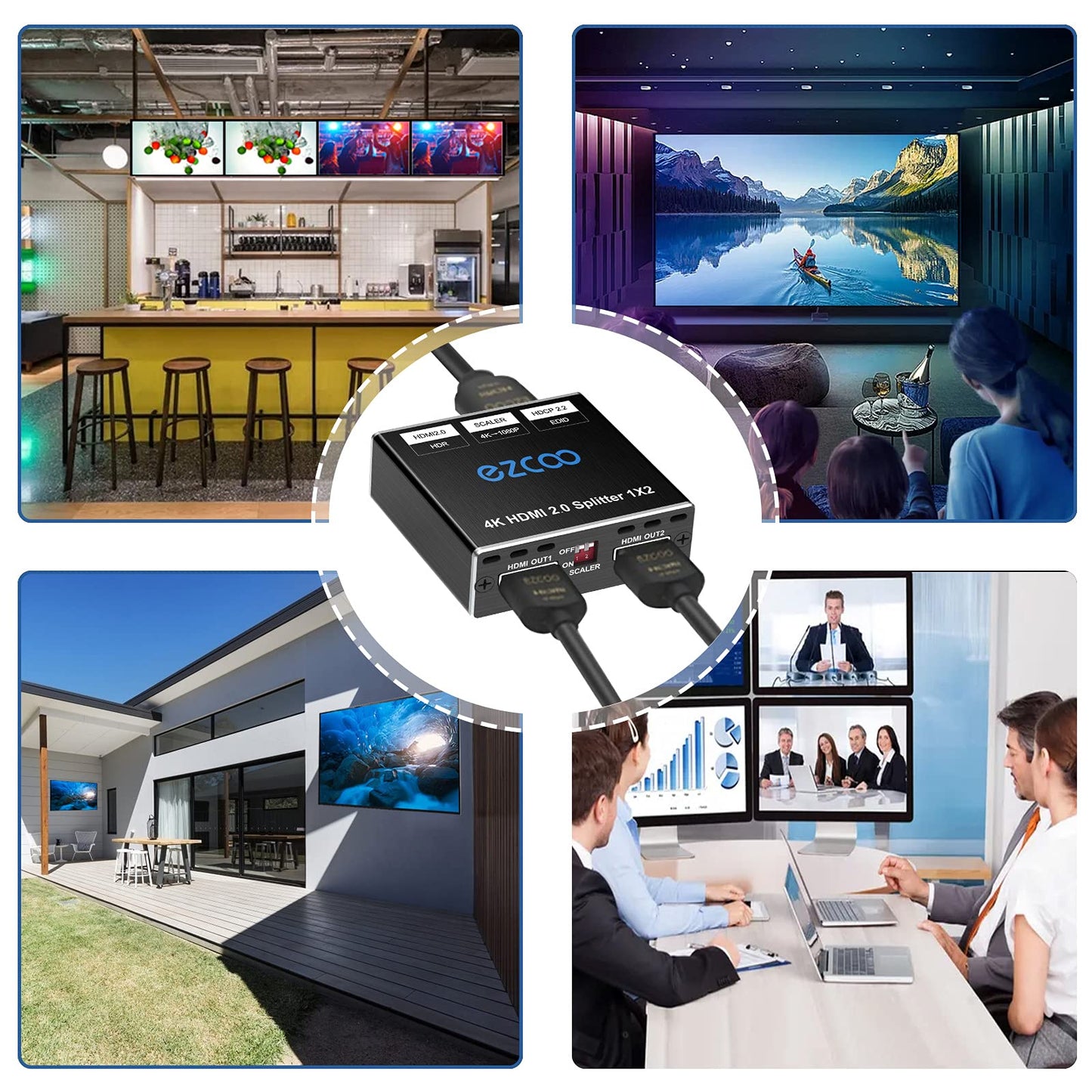

4K HDMI Splitter 1x2 HDR D-olby Vision Atmos - HDMI Down Scaler 1080P, EDID DIP Panel Switch Splitter 1 in 2 Out 4K 60Hz 4:4:4 HDCP2.2, Firmware Upgrade,USB Power,Mini SP12H2

Brand: ezcoo

Color: Black

Features:

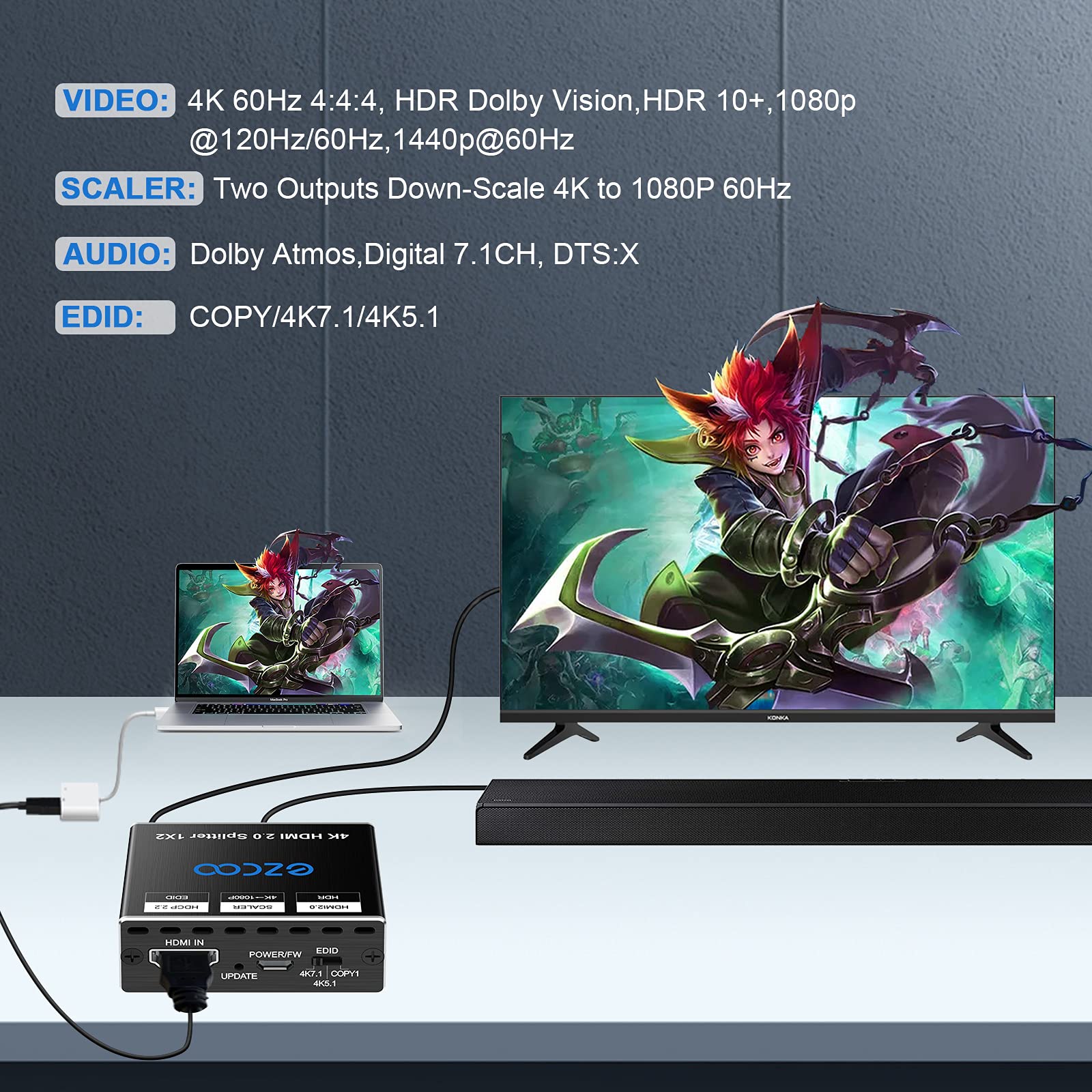

• Mini Size 1 to 2 4K HDMI Splitter play 4K and 1080P Simultaneously, two HDMI OUT can down-scale 4K to 1080p independently. Supports HDCP2.2 HDMI2.0 4K 60Hz 4:4:4, 8bit,18Gbps,HDR D-olby Vision; Audio formats of D-olby Digital 7.1CH,D-olby Atmos,DTS:X,Dolby TrueHD,DTS-HD Master,LPCM 2.1/ 5.1/ 7.1CH. Support Windows, IOS.

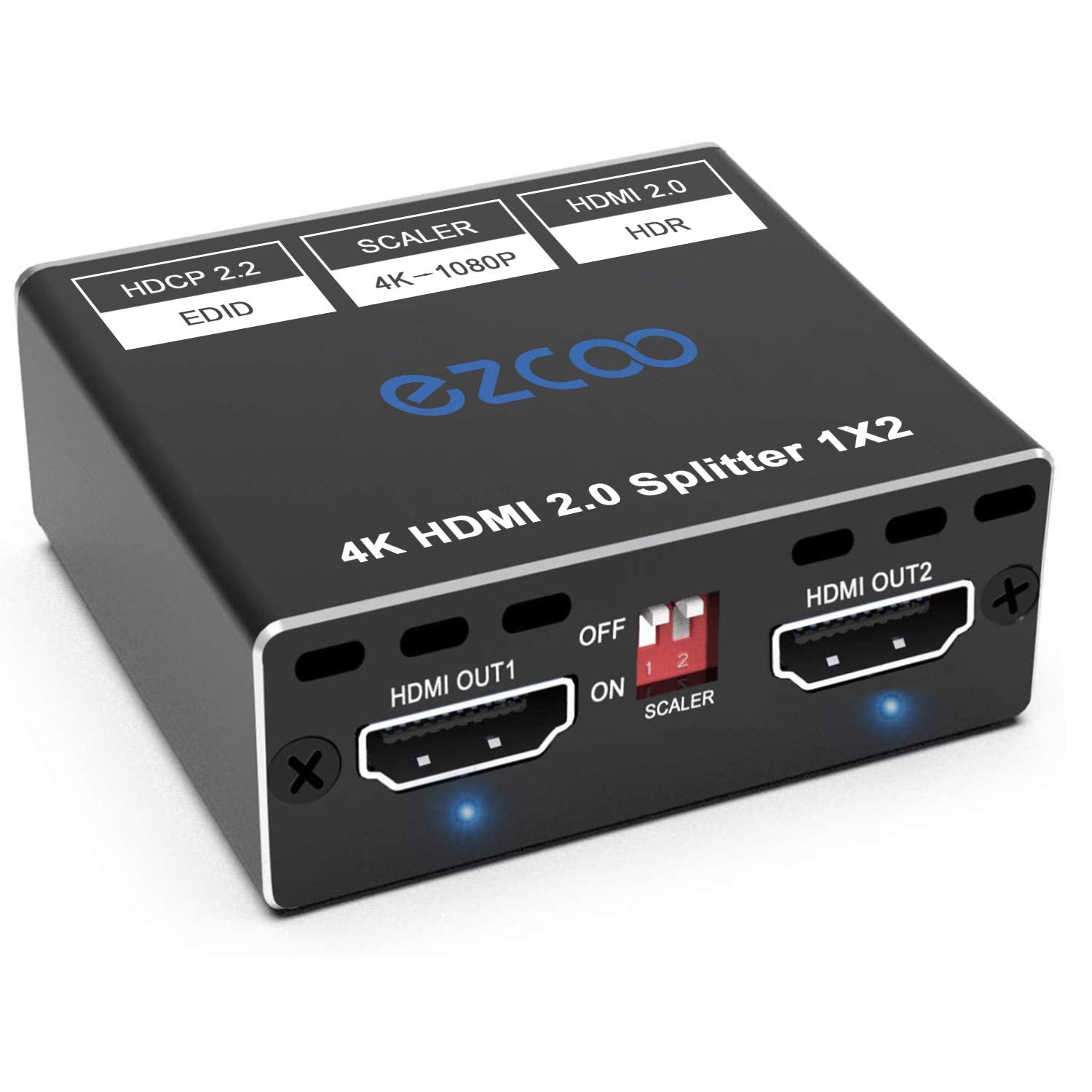

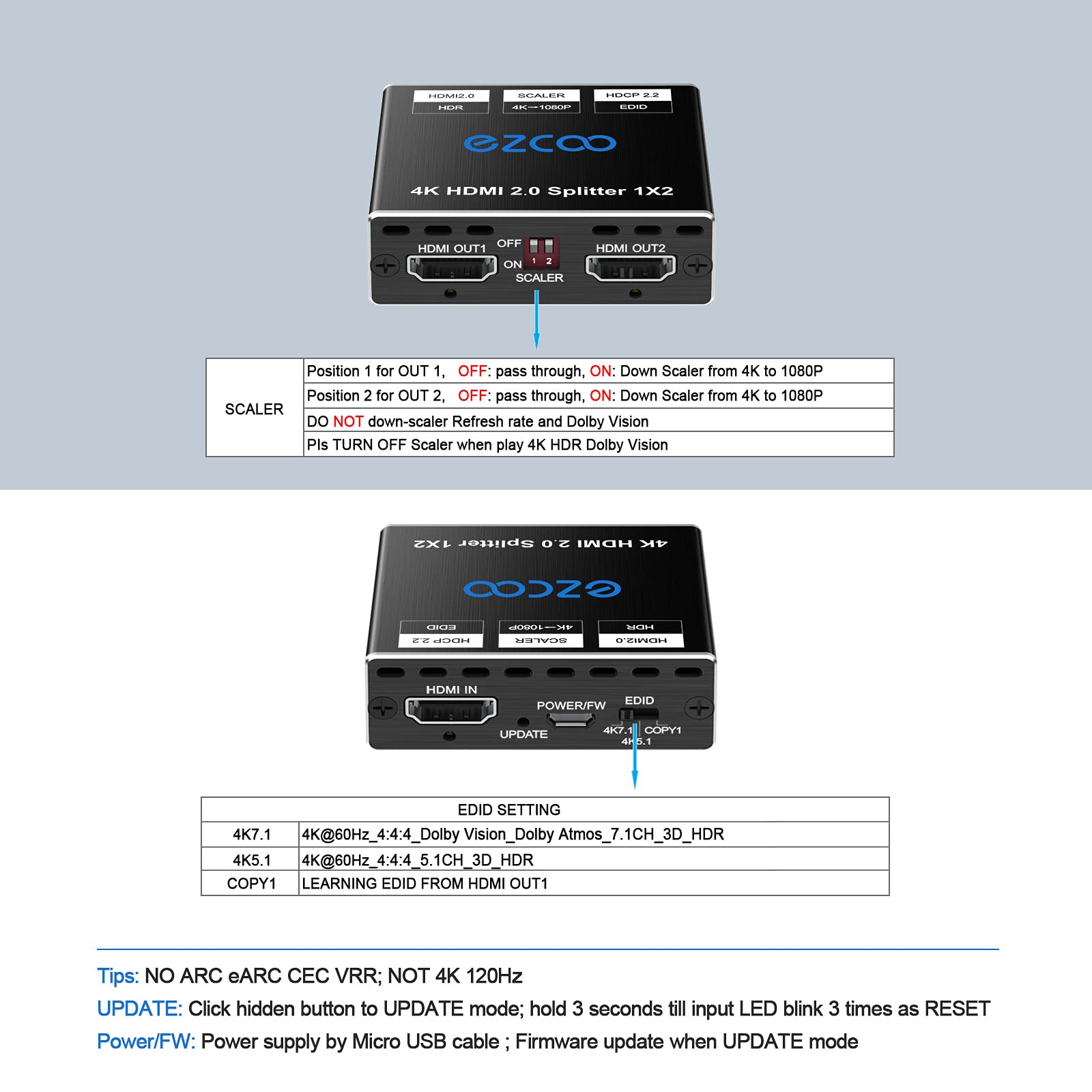

• ATTENTION: HDMI 2.0 Splitter 1x2 HDMI down-scale 4K/ 4KHDR to 1080P only, NO another option. NOT down-scale 4K HDR D-olby Vision. SCALER 1 & 2 control OUT1 & 2 down scaler separately. * Suggest use new HDMI2.0 cable less than 3 meter. * ASK seller Upgrade Firmware to get VRR or Down-scale 4K HDR Dolby Vision. * HDMI splitter NOT extend screen, only copy/mirror. NO ARC eARC VRR, NO CEC. * Press UPDATE for 3 secs to set HDCP or RESET signal solve picture flash/black.

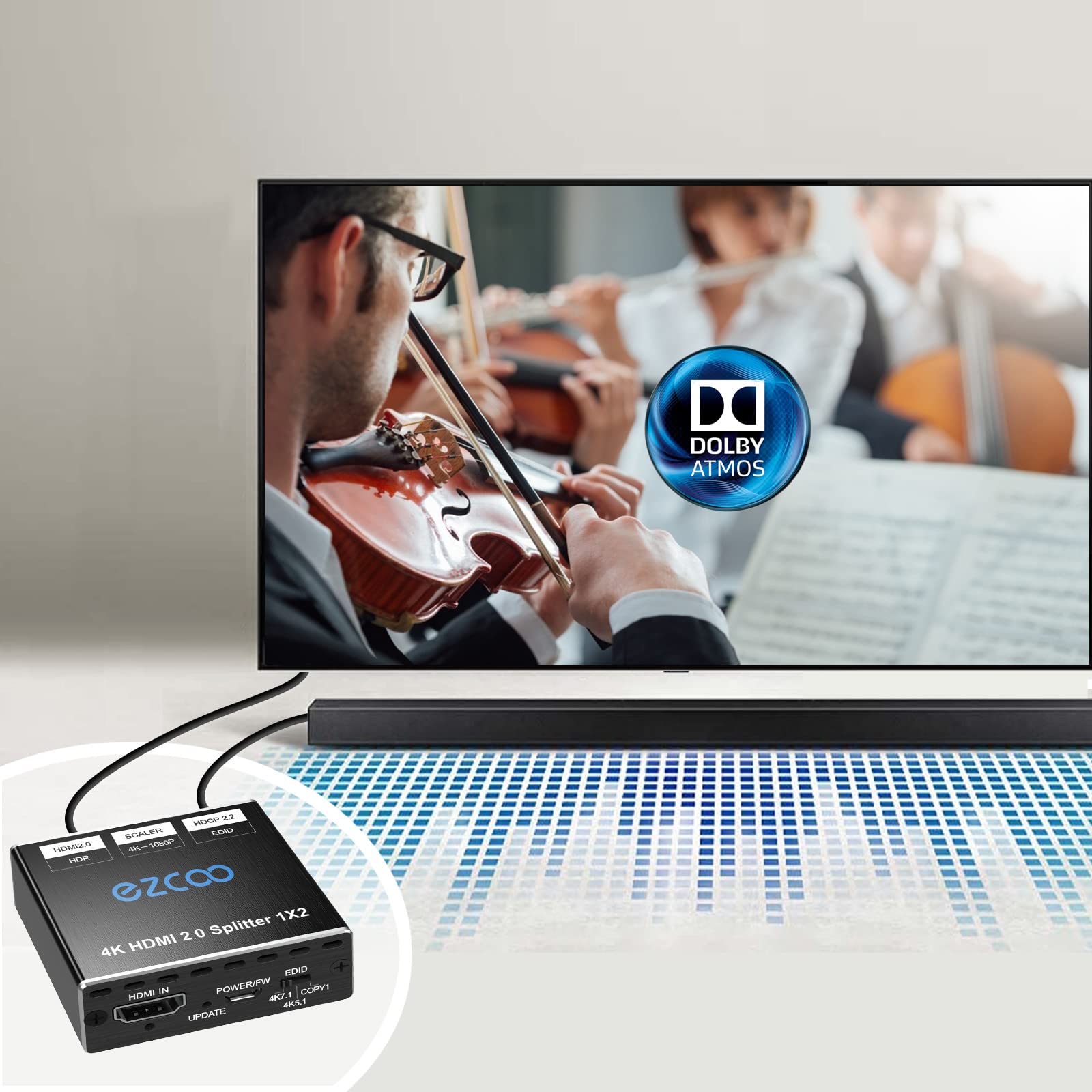

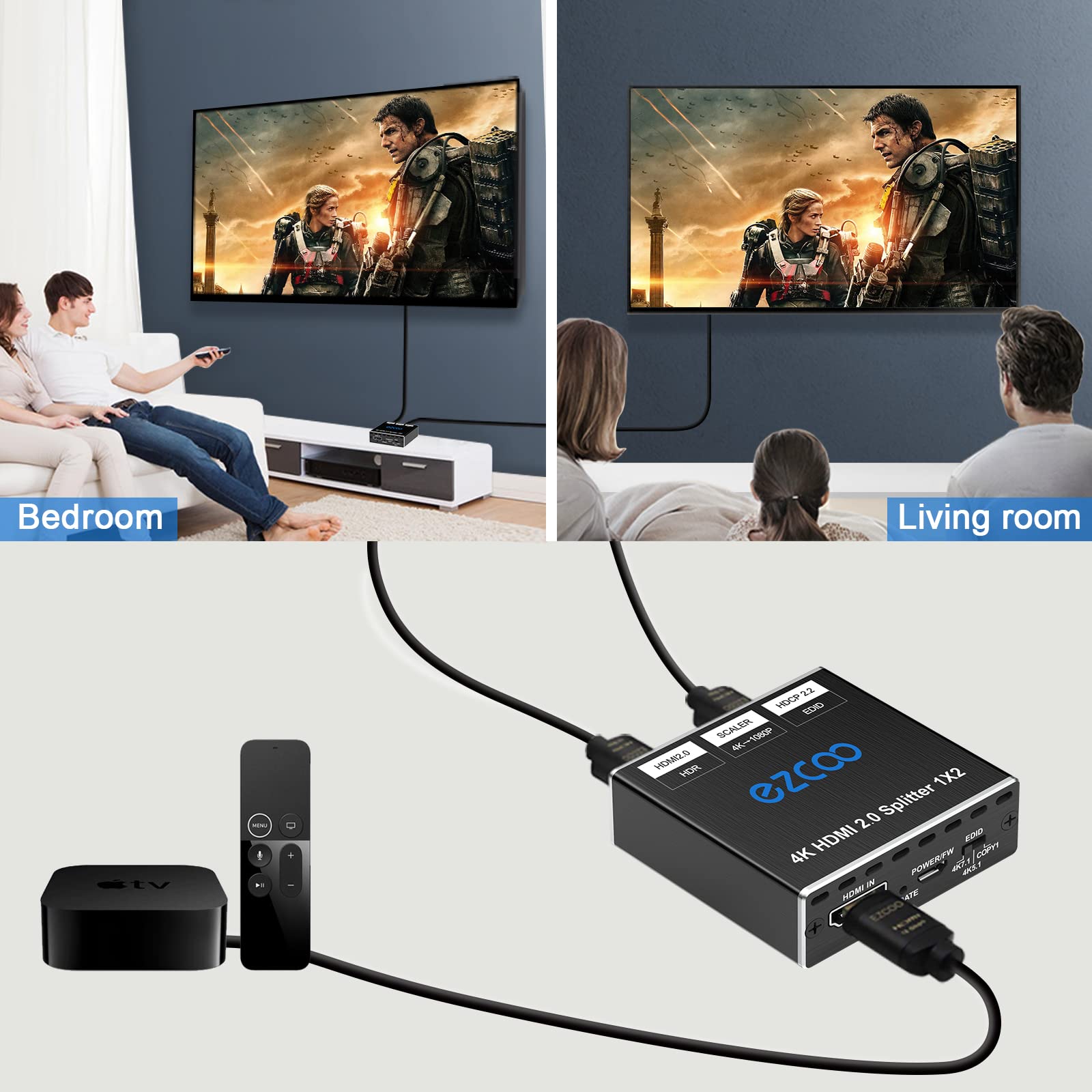

• EASY SET UP : To play 4K & 1080p TV in sync, set EDID COPY, 4K TV to Splitter OUT 1, 1080P TV to OUT 2, set SCALER 2 ON down-scale OUT 2 to 1080P, NO 3D. EDID copy OUT 1 prior. * TO get 4K HDR Dolby Vision and Dolby Atmos work in sync, set HDMI source Video 4K Dolby Vision, Audio Dolby Atmos, set EDID 4K, 4K TV to splitter OUT 1, AVR to OUT 2. * TO two 1080p TVs, set hdmi splitter EDID 2K.
• High Compatibility: HDMI one input two output mini splitter works perfectly with Nvidia Shield,Xfinity box, Game Capture,Apple TV,Amazon Fire TV,PS4 Pro,X BoX series,Comcast,Soundbar etc; HDMI input and USB power; cable tie for easy installation. Plug and Play. No signal delay/lag. Low Heat. Daisy chain cascade to 6 layers.
• Service : EZCOO 10 years OEM factory competency; Efficient online after-selling technical support. 30days free refund upon order date. NOT UP SCALER.

Binding: Electronics

model number: EZ-SP12H2

Part Number: EZ-SP12H2

EAN: 0657835496128

Package Dimensions: 4.7 x 2.5 x 1.0 inches
